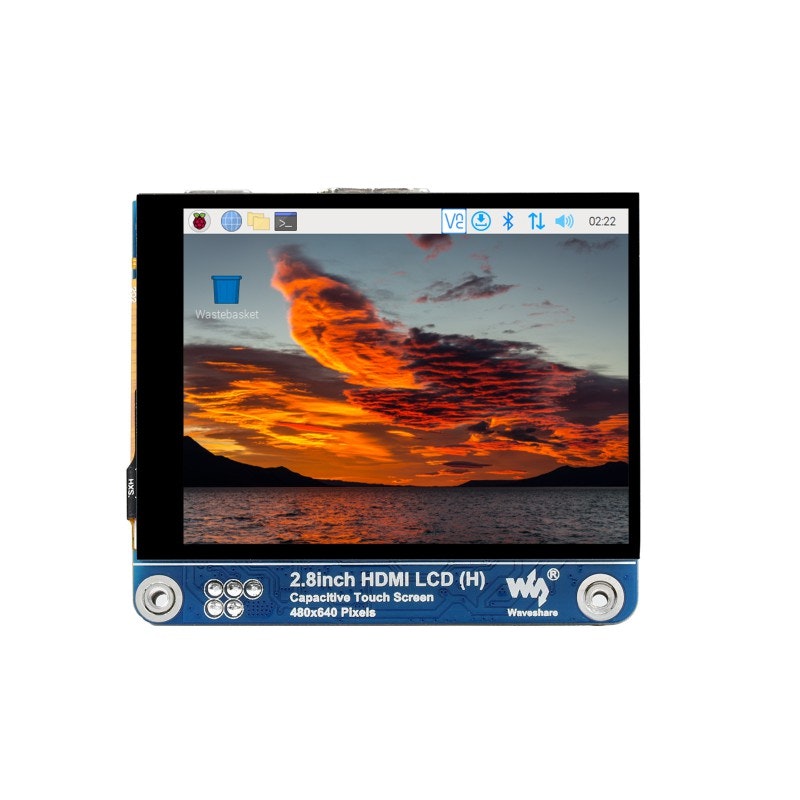

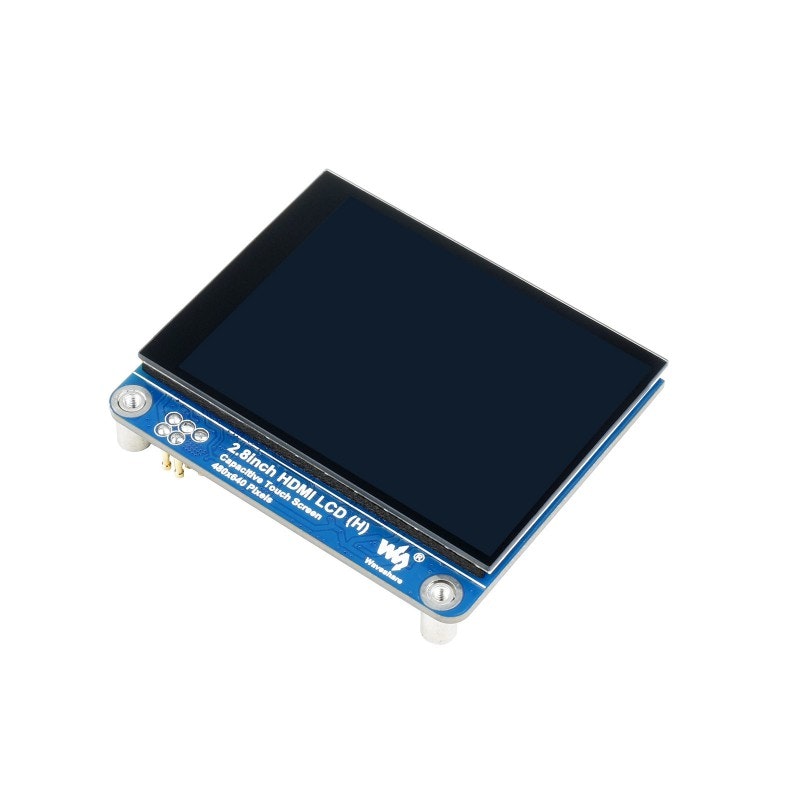

2.8inch HDMI IPS LCD Display 480×640

2.8inch HDMI IPS LCD Display (H), 480×640, Adjustable Brightness, Fully Laminated Screen.

2.8" HDMI IPS Display

Size  2.8"

Resolution.480×640

Display Port HDMI

Display Panel IPS

Viewing Angle 160°

Touch Type Capacitive

Touch Points 5-Points

Touch Port 1 USB-C

Touch Port 2 I2C

Touch Panel Tech Fully Laminated

Touch Panel Toughened Glass

Backlight Adjustable Brightness

The display orientation is portrait by default, 480×640 resolution (H×V). Change the software config for landscape display.

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS / Ubuntu / Kali / WIN10 IoT / Retropie
Driver free for USB-C touch
Config file is required for I2C touch

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7

for Jetson Nano and PC, only USB-C touch is available

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Jetson Nano AI Computer

Working With Mini PC

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system.

Design Features

Appearance And Dimensions

Resources & Services

Wiki: 2.8inch_HDMI_LCD_(H)

Shipping list

Weight: 0.167 kg

1. 2.8inch HDMI LCD (H) x1
2. HDMI Adapter (C) x1
3. HDMI Adapter (B) x1
4. HDMI cable x1
5. USB-A to USB-C cable x1
6. Screws pack x1
