Analog Capacitive Soil Moisture Sensor- Corrosion Resistant

  • 10.83 EUR

This product measures soil moisture levels by capacitive sensing, rather than resistive sensing like other types of moisture sensor. It is made of a corros

I lager.
Stock: 5
Article Number: 1000
Share

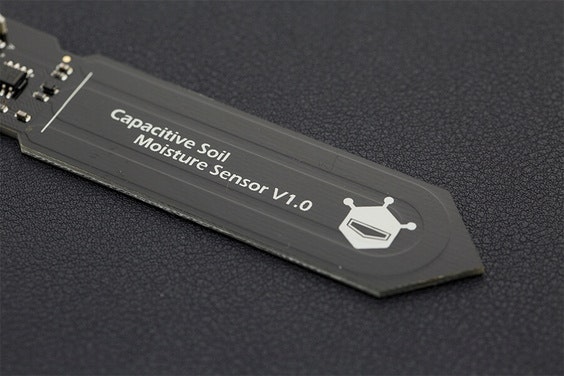

This product measures soil moisture levels by capacitive sensing, rather than resistive sensing like other types of moisture sensor. It is made of a corrosion-resistant material giving it long service life. Insert it into the soil and impress your friends with the real-time soil moisture data!

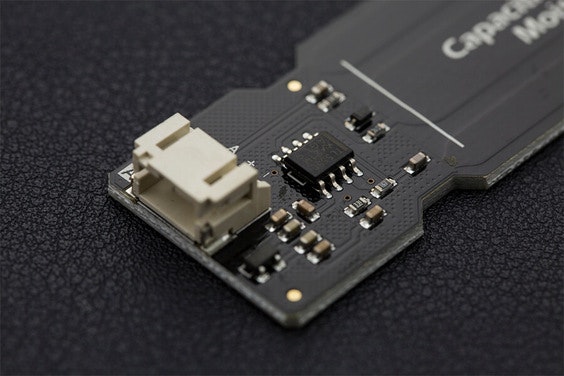

The product includes an on-board voltage regulator which gives it an operating voltage range of 3.3 ~ 5.5V. It is compatible with low-voltage MCUs (both 3.3V and 5V logic). To make it compatible with a Raspberry Pi, an ADC converter is required.

This sensor is compatible with our 3-pin "Gravity" interface, which means it can be directly connected to the Gravity I/O Expansion Shield.

The following image shows an example project - a device that notifies you when a plant needs to be watered.

Gravity: Analog Capacitive Soil Moisture Sensor

FEATURES

  • Supports Gravity 3-Pin Interface
  • Analog Output

APPLICATIONS

  • Gardening & Farming
  • Moisture Detection
  • Intelligent Agriculture

SPECIFICATION

  • Operating Voltage: 3.3 ~ 5.5 VDC
  • Output Voltage: 1.2 ~ 2.5V
  • Interface: PH2.0-3P
  • Dimension: 98mm * 23mm (3.86in x 0.905in)
  • Weight: 15g

DOCUMENTS

SHIPPING LIST

  • Capacitive Soil Moisture Sensor x1
  • Analog Sensor Cable x1
