Arducam 13MP AR1335 High Quality Camera Module with M12 Mount Lens for Raspberry Pi, and Jetson Nano

Arducam 13MP OBISP MIPI camera features onboard ISP (Image Signal Processor), it uses standard Raspberry pi 15pin MIPI CSI-2 interface, and works seamlessly on Raspberry pi, Jetson Nano, and can also be ported to other platforms which compliant to MIPI CSI-2 interface protocol.

Application

• Cellular phones

• Digital still cameras

• PC cameras

• IoT cameras

Features

• Resolution: High Resolution

• Shutter Type: Rolling Shutter

• Color Type: Color

• IR Sensitivity: 650nm IR filter, visible light only.

• Output Interface: 2-Lane MIPI CSI-2

• Output Format: YUV422, RGB888

• ISP Features: AWB, AE, Flip, Mirror, DeNoise, Gamma, Sharpness, Saturation, Contrast Digital Zoom, Digital Pan/Tilt, Speical Effects etc

• Platform Support: Raspberry Pi, Jetson Nano or platform with MIPI CSI-2 interface

Specs

• Sensor Type: 13MP AR1335

• Pixel Size: 1.1um x 1.1um

• Resolution: 4160×3120

• Optical Size: 1/3″

• Lens Spec: M12 Low distortion lens, EFL: 4.73mm, FoV(H): 50°, F/NO: 2.2

• Max Data Rate: 1.2Gbps/laneFrame Rate: 7fps@4160×3120, 11fps@3264×2448/3840×2160, 24fps@2560×1440, 30fps@1600×1200/1920×1080/640×480/320×240

• Responsivity: 4.7k e/lux-sec

• SNR(Max): 37dB

• Dynamic Range: 69dB

• Power Consumption: 270mW

• Temperature Range: -10 ~ 70 degrees

• Camera Driver: V4L2 Compliant driver for Raspberry Pi and Jetson Nano

• Board Size: 38mm x 38mm

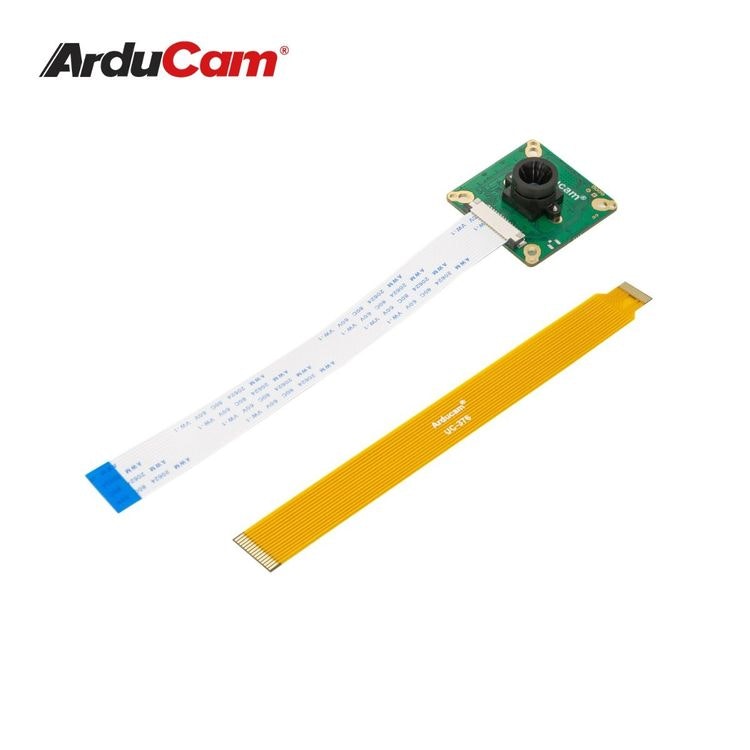

Package Contents

• 1pcs Arducam 13MP AR1335 High Quality Camera Module with M12 Mount Lens

• 1pcs 150mm 15pin flex ribbon cable

• 1pcs 150mm 15pin to 22pin flex ribbon cable

Documentation

User Guide-OBISP 13MP Low Distortion Camera Module
