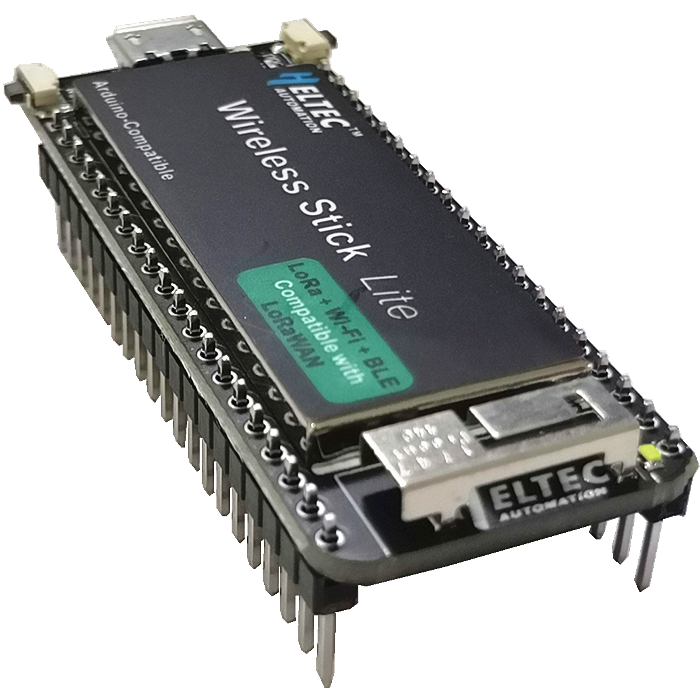

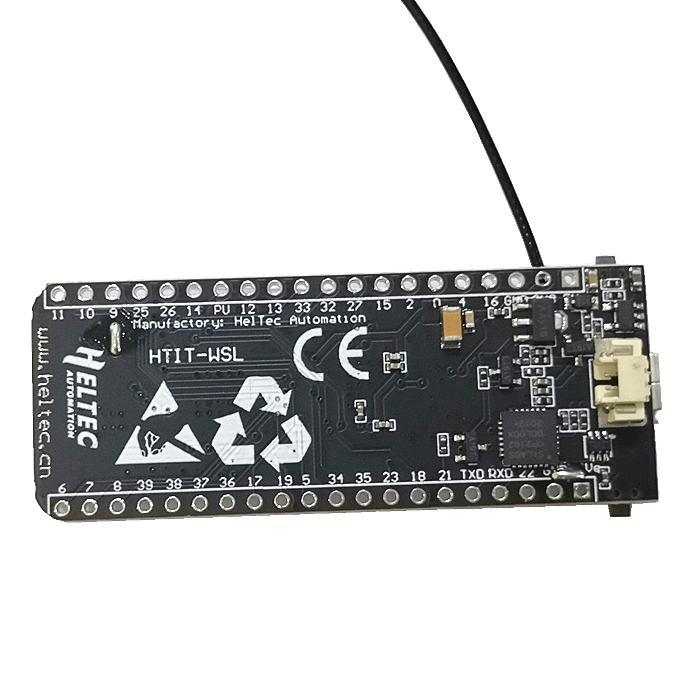

HTIT-WSL SX1276 wireless stick lite 868Mhz development board with antenna compatible

  • 34.67 EUR

Heltec HTIT-WSL SX1276 wireless stick lite 868-915Mhz development board with antenna compatible.Wireless stick liteMany users need a version without OLED displa

I lager.
Stock: 3
Article Number: 1046
Share
  • Information

Heltec HTIT-WSL SX1276 wireless stick lite 868-915Mhz development board with antenna compatible.

Wireless stick lite

Many users need a version without OLED display, because they want to use it directly in their IoT projects as the main controller
and RF (LoRa, Wi-Fi, BLE) connection. Compare with Wireless Stick, “Wireless Stick Lite” has much better low power design (30uA in
deep sleep). Removed the 0.49″ OLED, use ESP32-PICO MCU (it’s more friendly for low power design).

 Upgraded Version IOT Development Kit SX1276+ESP32 Chip Full support for standard lorawan protocol.



Full Support for Arduino IDE

The product can be programmed with standard library and concise development language to quickly complete the scheme verification and product development

The Arduino example of the esp32 + lorawan protocol is provided

Direct Chip Level Development

The product does not use popular WiFi / Lora and other modules, but makes special modulation in function according to the needs of its own product, which can better match the needs of the product itself

Three Wireless Communication Protocols

Esp32 chip, supports WiFi / ble4.2/lora wireless communication function

WiFi Speed

150Mbps

LoRa Maximum Output Power

18dB ± 2dB


Receiver Sensitivity

-128dBm


Shield Cover: Strong Anti-interference

The shielding cover is installed on the module, which greatly improves its anti-interference ability

Upgraded Version, Smaller and More Energy-saving

Integrate the advantages of traditional wireless modules, reduce the product size and energy consumption

Only 5cm in length and 2.5cm in width

All kinds of Intelligent Scenes are Applicable

It can be used not only as a gateway of Internet of things products, but also as a driving terminal product

Intelligent Vehicle

Intelligent Street Lamp

Robot Control

Equipment Monitoring

Environmental Monitoring

UAV Monitoring

Development Parameters

Source
Parameter
MCU
ESP32( 240MHz Tensilica LX6 dual-core + 1 ULP, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth)
LoRa chip
SX1276
LoRa bands
EU_433, CN_470_510, EU_863_870, US_902_928 four bands optional
LoRa maximum output power
18dB ± 2dB
Hardware resources
UART x 3; SPI x 2; I2C x 2; I2S x 1
12 – bits ADC; 8 – bits DAC
29 general GPIO
Display
None
FLASH
4MB(32M-bits) SPI FLASH
interface
Micro USB x 1; LoRa antenna interface(IPEX) x 1
Size
50.2 x 25.5 x 9.74 mm
USB to UART Bridge
CP2102
Battery Type
3.7V Lithium（SH1.25 x 2）
Battery detection circuit
√
External device power control（Vext）
√
Low power design
Deep Sleep 800uA
Electrical characteristics
condition
Minimum
Typical
Maximum
Power Supply
USB powered（≥500mA）
4.7V
5V
6V
Lithium powered（≥250mA）
3.3V
3.7V
4.2V
3.3V（pin）powered（≥150mA)
2.7V
3.3V
3.5V
5V（pin）powered（≥500mA）
4.7V
5V
6V
Power consumption(mA)
WIFI scan


115mA


WIFI AP


135mA


LoRa 10dB emission


50mA


LoRa 12dB emission


60mA


LoRa 15dB emission


110mA


LoRa 20dB emission


130mA


Output
3.3V pin output




500mA
5V pin output （USB powered only）

Equal to the input current


External device power control (Vext 3.3V）


350mA

Development Board Component Structure

Description of Accessories


PIN Stickers and PINs

PIN stickers and PINs are Free

Tips: This product does not include supporting antenna, lithium battery, bread plate. Please purchase separately if necessary

Breadboard

Use with PINPlease purchase separately if necessary

Lithium Battery

With lithium battery interface, it can manage the charge and discharge of lithium battery simply

433 470 Mhz Antenna

High quality brass spring, high density, strong signal


868 915 Mhz Antenna

High gain, small VSWR, reasonable structure and stable performance

Development Environment Description

Drivers are installed automatically in the operating system above Windows 7,

Mac OS,Ubuntu


Complete Functional Testing

   At least two basic function tests before delivery to ensure that the program can be downloaded and work normally.

  Test contents include：

                                    ● Program download test；

                                    ● Wireless communication function test；

                                    ● Wireless communication power test；

                                    ● Charging and discharging function test.


Product Display

Developing

How to install HelTech Arduino Ddevelopment Enviroment

Heltec ESP(ESP32 & ESP8266) framework (the basic of Heltec ESP series products Arduino running environment):

https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series

Heltec ESP32 library (must work with Heltec ESP framework):

https://github.com/HelTecAutomation/Heltec_ESP32

Heltec ESP32 LoRaWAN library (a standard LoRaWAN protocol library provide by Heltec Automation, need a license to active:

http://www.heltec.cn/search/): https://github.com/HelTecAutomation/ESP32_LoRaWAN

Diagram

https://resource.heltec.cn/download/Wireless_Stick/Wireless_Stick.pdf
