Industrial Unibody Temperature Transmitter, Stainless Steel Probe, RS485 Bus

  • 45.19 EUR

New product shipping v50Industrial Unibody Temperature Transmitter, High Accuracy, Stainless Steel Probe, Water-Proof & Dust-Proof, RS485 BusINDUSTRIAL TEMP

I lager.
Article Number: 907
Share
  • Information

New product shipping v50

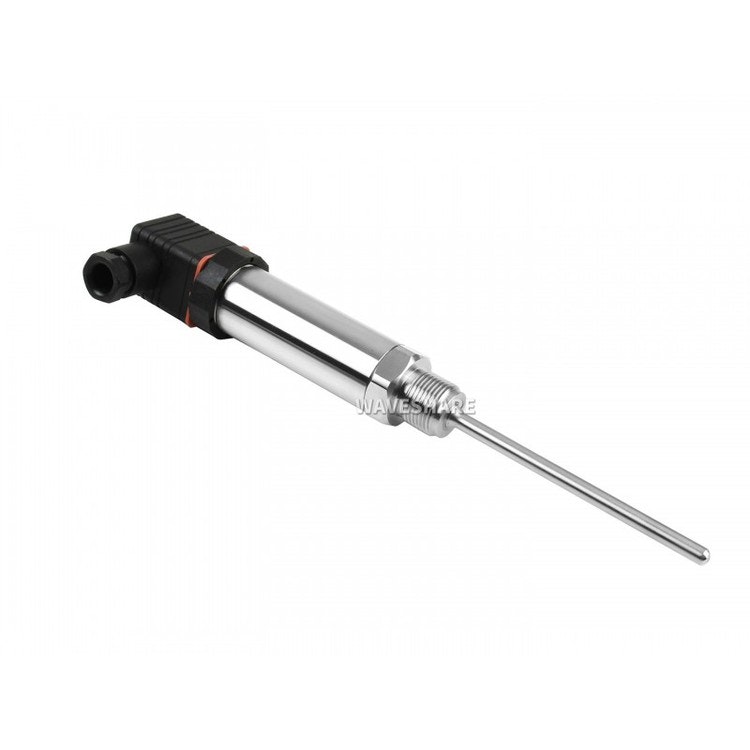

Industrial Unibody Temperature Transmitter, High Accuracy, Stainless Steel Probe, Water-Proof & Dust-Proof, RS485 Bus

INDUSTRIAL TEMPERATURE TRANSMITTER

Wide Range Input Voltage, Non-Linear Correction, High Accuracy

Small Size, Light Weight, Easy Installation



Features At A Glance

  • Digital output, via RS485 (standard Modbus-RTU protocol)
  • Wide range input voltage, non-linear correction, high accuracy
  • Small size, light weight, easy installation
  • Lightning-proof，cut-off frequency interference design, strong anti-interference capability
  • Reverse proof, over voltage protection, and current limited protection
  • Measurement accuracy up to 0.5% FS

Specifications

MEASURED MEDIUMLiquid, gasACCURACY0.5% FS
FULL WEIGHT180gSTABILITY±0.1% FS/year
MEASUREMENT RANGE-50~100℃PROTECTION RATINGIP65
POWER SUPPLY12~36V DCAMBIENT TEMPERATURE-40~85℃
OUTPUT SIGNALRS485 (standard Modbus-RTU protocol)AMBIENT HUMIDITY0%~95% RH
(non-condensing, non-frosting)
MATERIALProbe: 304 stainless steel (contacted)
Intermediate junction: 304 stainless steel (contacted)
Shell: 304 stainless steel
Hirschmann connector: ABS engineering plastics

Digital Output

Using RS485 Bus, Standard Modbus-RTU Protocol

The USB TO RS485 in the photo is NOT included.

Accurate Measurement

Up To 0.5％FS Accuracy

High Ingress Protection Rating

IP65 Protection Rating, Protected From Dust And Low Pressure Water Jets From Any Direction

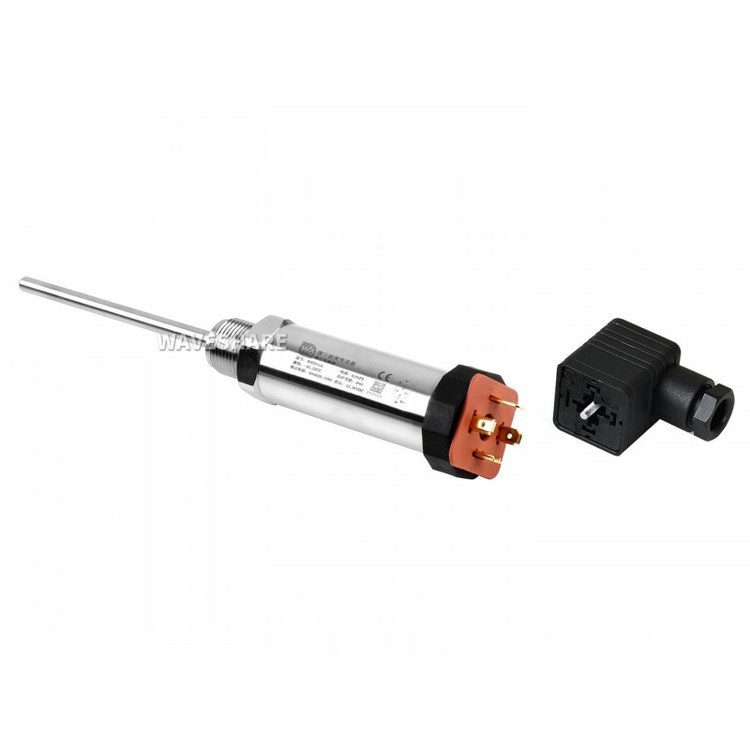

Details Show

Application Examples

Connection Example

The cable in the photo is NOT included.

Outline Dimensions

Resources & Services

Wiki: WSTP11A
