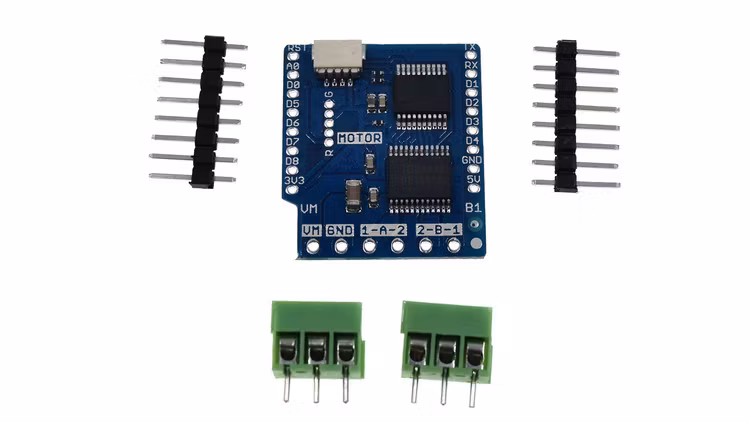

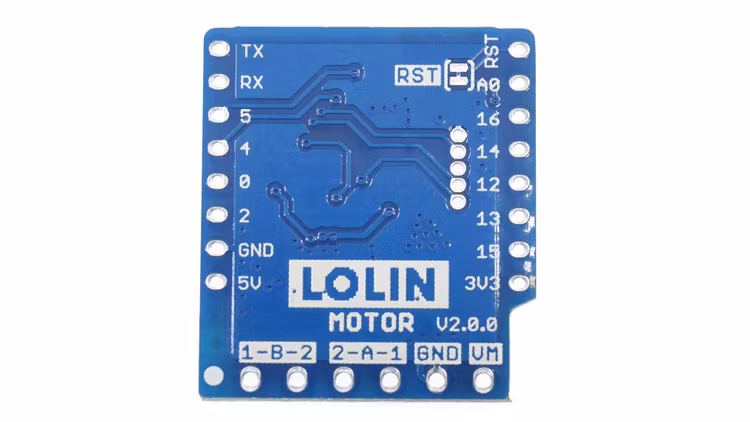

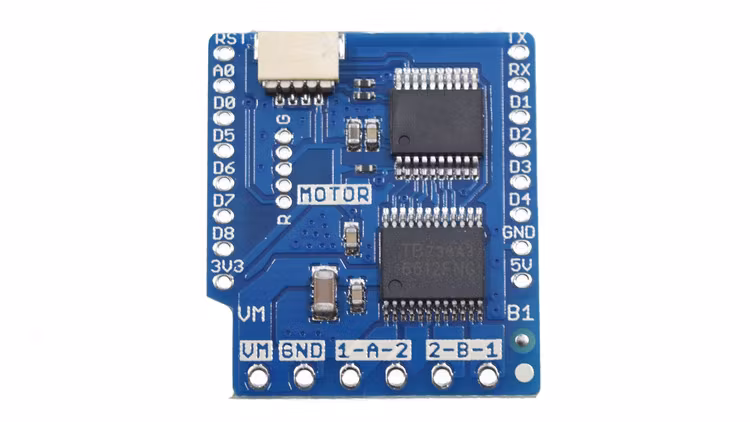

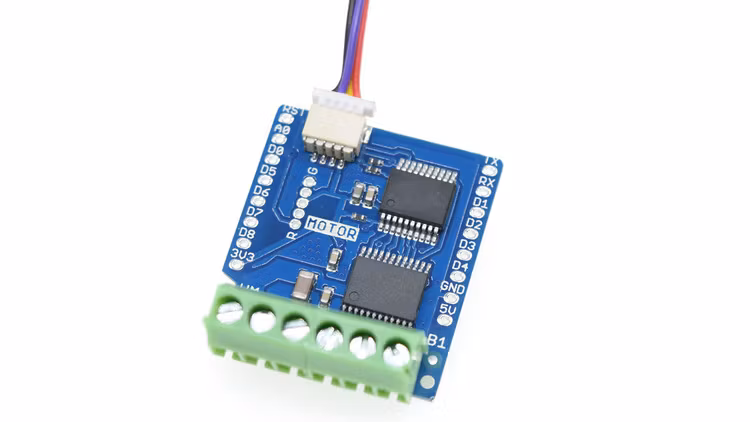

D1 mini I2C Dual Motor Driver Shield

  • 6.46 EUR

FeaturesI2C interfacePower supply voltage: VM=15V maxOutput current: Iout=1.2A(average) / 3.2A (peak)Standby control to save powerCW/CCW/short brake/stop motor

I lager.
Article Number: 689
Share
  • Information

Features

  • I2C interface

  • Power supply voltage: VM=15V max

  • Output current: Iout=1.2A(average) / 3.2A (peak)

  • Standby control to save power

  • CW/CCW/short brake/stop motor control modes

Pins

D1 miniShield
D1SCL
D2SDA
RSTRST

  • VM: Motor power supply + (Max 15Vdc)

  • GND: Motor power supply -

  • 1-A-2: Motor A

  • 2-B-1: Motor B

I2C address

Documents
