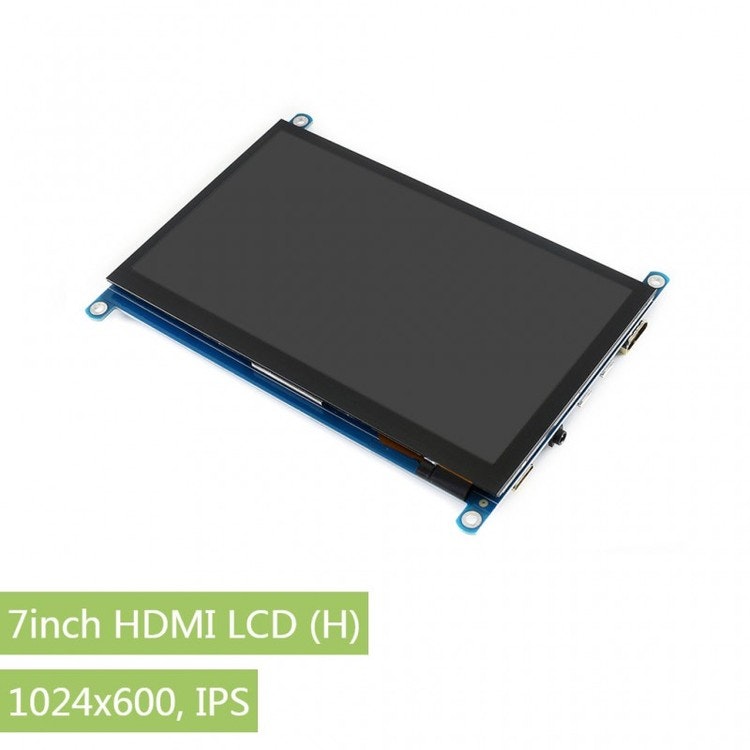

7inch HDMI LCD (H), 1024x600, IPS, supports various systems, capacitive touch

  • 69.02 EUR

7inch, 1024x600, Capacitive Touch Screen LCD, HDMI interface, Supports Multi mini-PCs, Multi Systems7inch HDMI LCD (H) FeaturesIPS screen, 1024x600 hardware res

I lager.
Article Number: 586
Share
  • Information

7inch, 1024x600, Capacitive Touch Screen LCD, HDMI interface, Supports Multi mini-PCs, Multi Systems

7inch HDMI LCD (H) Features

  • IPS screen, 1024x600 hardware resolution, configurable by software (up to 1920x1080)

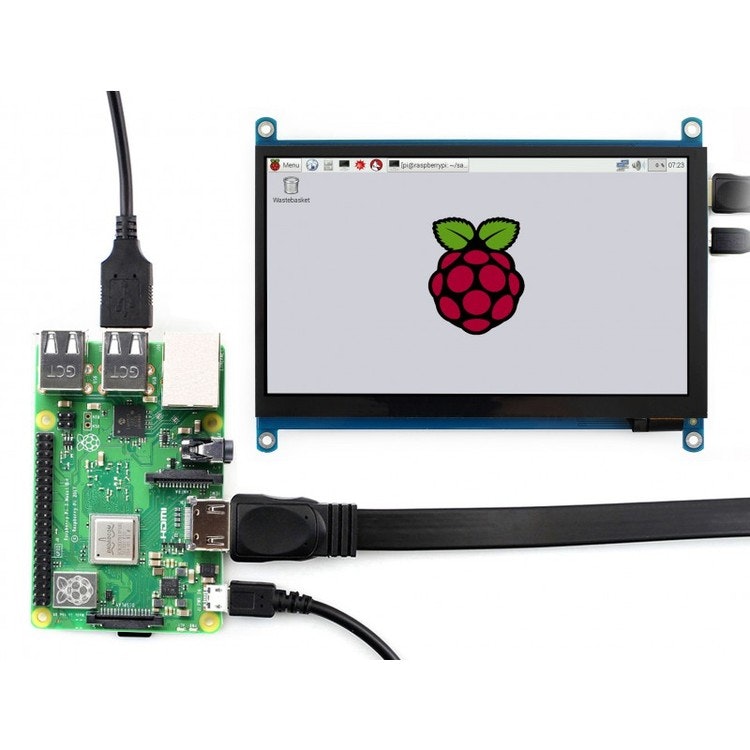

  • Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers
    • When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free

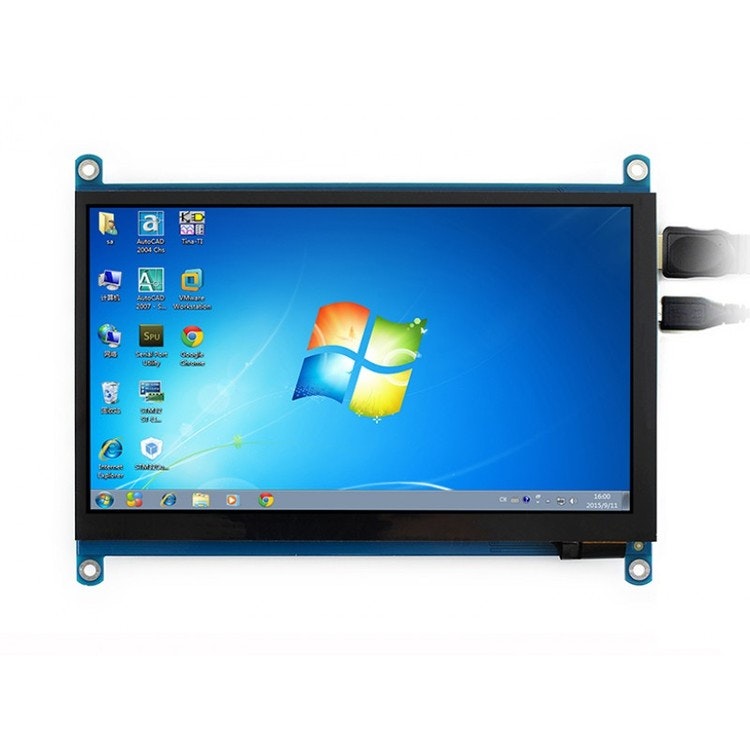

    • When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
  • Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.
  • Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
  • 3.5mm audio jack, speaker connector, supports HDMI audio output
  • Also supports VGA input (specific cable is required and should be purchased separately)

Development Resources

Wiki : www.waveshare.com/wiki/7inch_HDMI_LCD_(H)

FAQ

Why the LCD doesn't work with my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.
Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
Which power supply should I use?
It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power.
For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

For more info, please check the wiki page.

Shipping list

Weight: 0.273 kg

Note: Raspberry Pi and Speaker (8Ω 5W) in the photos are NOT included.

  1. 7inch HDMI LCD (H) x1
  2. HDMI cable x1
  3. HDMI to Micro HDMI Adapter x1
  4. USB type A plug to micro B plug cable x1
  5. Quick start sheet x1
