Ethernet / USB HUB HAT for Raspberry Pi, 1x RJ45, 3x USB

  • 21.57 EUR

Ethernet / USB HUB HAT for Raspberry Pi, 1x RJ45 Ethernet Port, 3x USB PortsOverviewThis Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ

I lager.
Article Number: 713
Share

Ethernet / USB HUB HAT for Raspberry Pi, 1x RJ45 Ethernet Port, 3x USB Ports

Overview

This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.

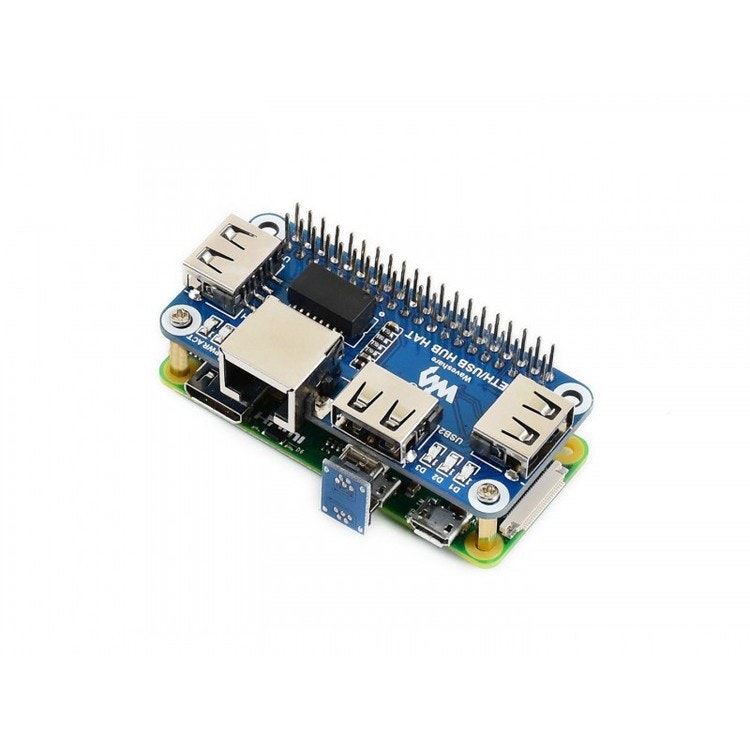

It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.

Features

  • 3x USB ports, compatible with USB2.0/1.1
  • 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
  • Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port

What's on Board

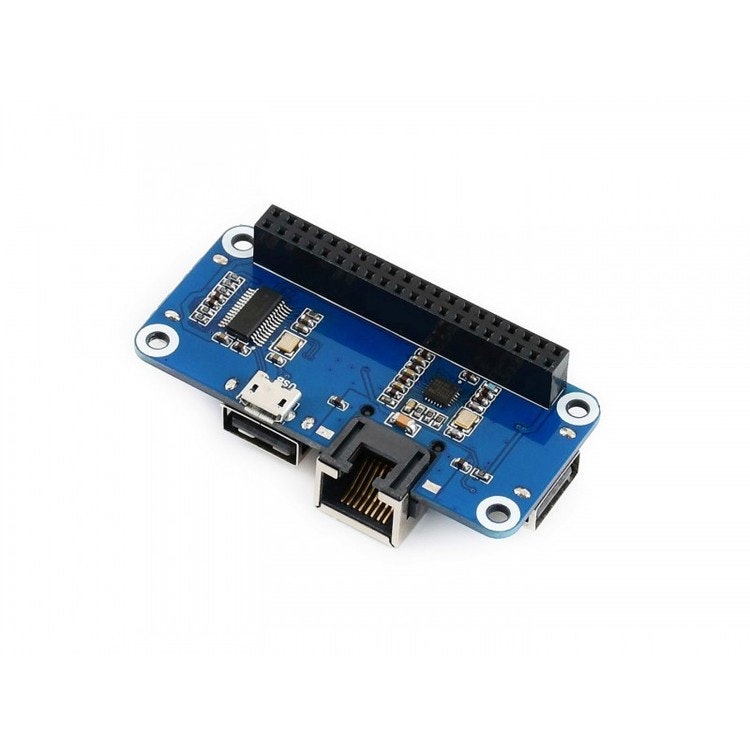

Raspberry Pi Expansion Board on board resource

  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. USB extended ports: USB1~USB3
  3. RJ45 port: 10/100M Ethernet interface
  4. USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port
    • Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector
    • Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable
  5. TS8121A: Ethernet wave filter
  6. RTL8152B: 10/100M Ethernet chip
  7. FE1.1S: USB HUB chip
  8. LED indicators:
    • PWR: power indicator
    • ACT: Ethernet indicator
    • D1~D3: a dedicated indicator for USB1~USB3 respectively

Specifications

  • Operating voltage: 5V
  • Dimension: 65mm × 30mm
  • Mounting hole size: 3.0mm

Dimensions

ETH/USB HUB HAT dimensions

Development Resources

Wiki : www.waveshare.com/wiki/ETH/USB_HUB_HAT

Shipping list

Weight: 0.068 kg

  1. ETH/USB HUB HAT x1
  2. Micro USB connector x1
  3. Micro USB cable x1
  4. RPi screws pack (2pcs) x1
