16MP AutoFocus USB2.0 UVC Camera, Full Sensor Coverage, Digital PTZ, Arducam ezBOX-Klarity

  • 100,86 €

EzBOX-Klarity offers precision in every pixel with its SONY 16MP Color Sensor, featuring a 1.12um x 1.12um pixel size. It maximizes the entire active sensor are

I lager.
Article Number: 1385
Share
EzBOX-Klarity offers precision in every pixel with its SONY 16MP Color Sensor, featuring a 1.12um x 1.12um pixel size. It maximizes the entire active sensor area, ensuring no pixel is wasted and delivering optimal image quality. This camera is perfect for applications requiring exceptional clarity and precision, with resolutions up to 16MP. Additionally, it provides enhanced flexibility at lower resolutions (480p, 720p, 1080p), allowing for digital Pan-Tilt-Zoom (PTZ) adjustments to optimize composition.

Presale, the estimated delivery time is the middle of May 2025

Applications

  • Robotics
  • Precision Agriculture
  • Medical and Scientific Research
  • Document Scanning and Archiving
  • Broadcast and Media Production
  • We Welcome You to Test: Explore the ezBOX-Swift in your own applications and share your results with us—or contact us for custom orders tailored to your specific needs!

Features

  • ezBOX-Klarity: Precision in Every Pixel for Exceptional Clarity
  • SONY 16MP Color Sensor for Ultra-High Definition: The ezBOX-Klarity features a SONY 16MP color sensor with 1.12µm x 1.12µm pixel size, delivering ultra-high-definition imaging. Its ability to capture intricate details makes it ideal for medical imaging, scientific research, and applications requiring exceptional clarity.

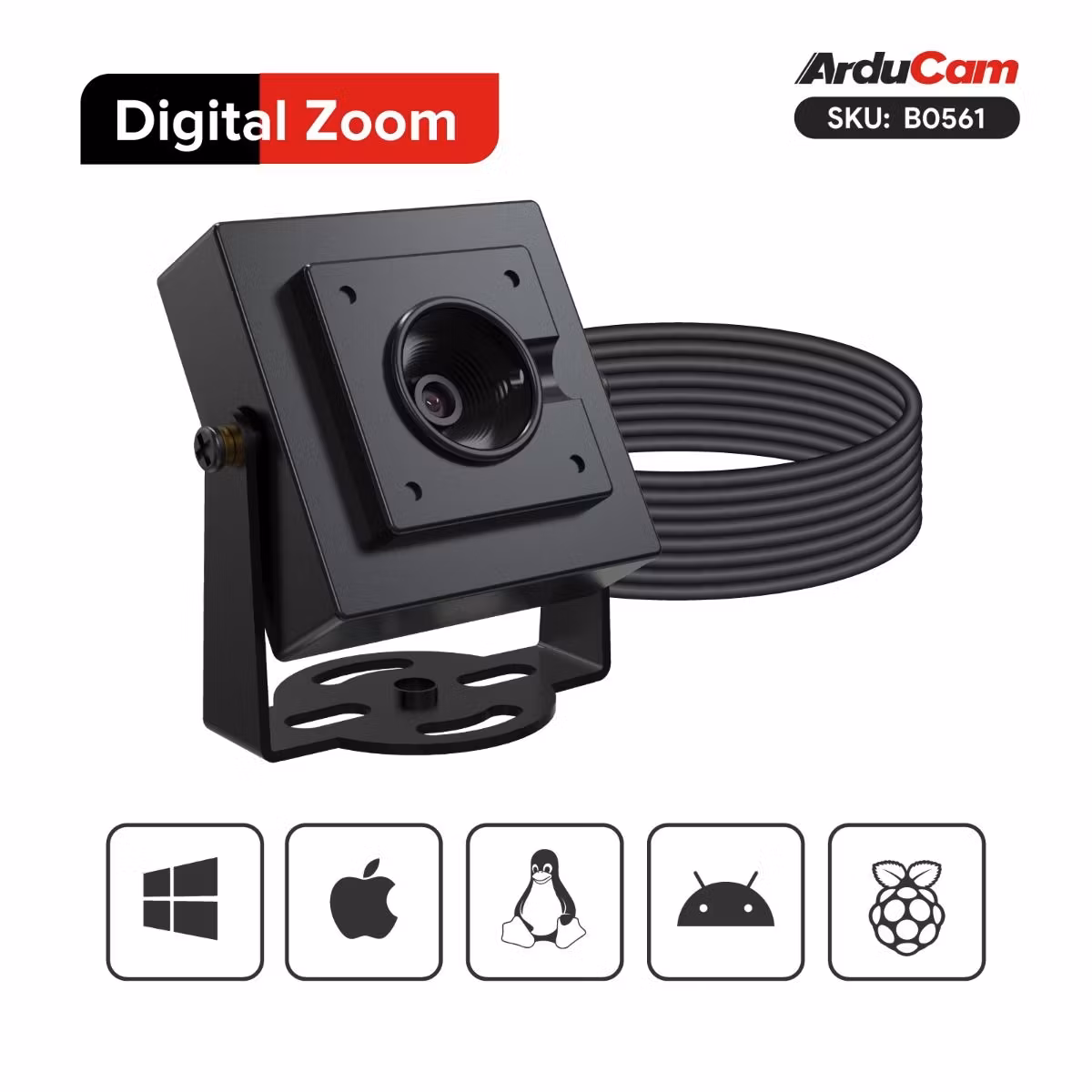

  • Digital PTZ Adjustments for Flexible Composition: The Klarity offers digital PTZ (Pan-Tilt-Zoom) adjustments at lower resolutions (480p, 720p, 1080p), allowing users to optimize composition without physically moving the camera. This feature enhances flexibility in framing and focusing, particularly in constrained environments.
  • Maximized Active Sensor Area for Optimal Quality: Like the ezBOX-HDR, the ezBOX-Klarity maximizes its sensor’s active area, ensuring no pixel is wasted. This results in sharper, more detailed images, making it a powerful tool for applications where precision and image quality are critical.

Specifications

Image Sensor
SensorSONY 16MP Color Sensor
Still Resolution16 Megapixels
Color Filter TypeColor
Shutter TypeRolling
Optical Size1/2.8″
Output FormatMJPG
Pixel Size1.12 µm x 1.12 µm
Sensor Active Area4656(H) x 3496(V)
IR SensitivityIntegral 650nm IR Filter, visible light only
Frame Rate4656x3496@10fps, 4000x3000@15fps, 3840x2160@25fps, 3264x2448@25fps, 2592x1944@25fps, 1920x1080@25fps
Lens
Focus TypeAutofocus
FOV78°(D)×65°(H)×52°(V)
Lens MountStock Lens
F.NOF1.8
E.F.L3.95mm
Default Focus Range10cm-∞
USB Interface
InterfaceUSB 2.0 Device

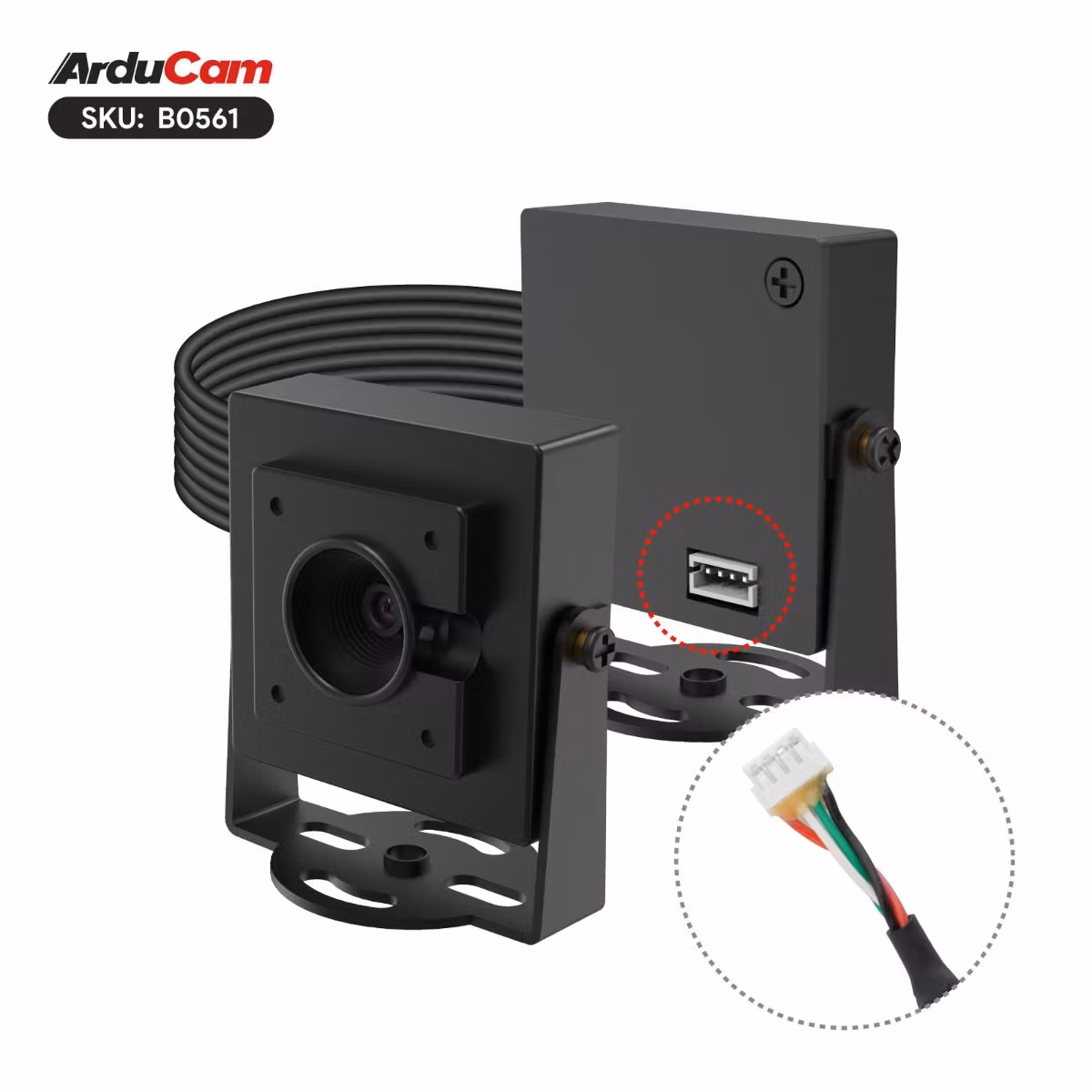

ConnectorB4B-ZR JST
UVC CompliantNo additional drivers required
Electrical and Mechanical
Operating Voltage5V
Operating Temp.32°F-158°F (0°C to 70°C)
Power Consumption1.75W
Camera Board Size32mmX32mmX1.6mm
Functionality and Compatibility
Supported OSWindows, Linux
Recommend Sample ApplicationAmcap for Windows, qv4l2 for Linux
UVC ControlsBrightness, Contrast, Saturation, PTZ (Pan/Tilt/Zoom), White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)

Package Including

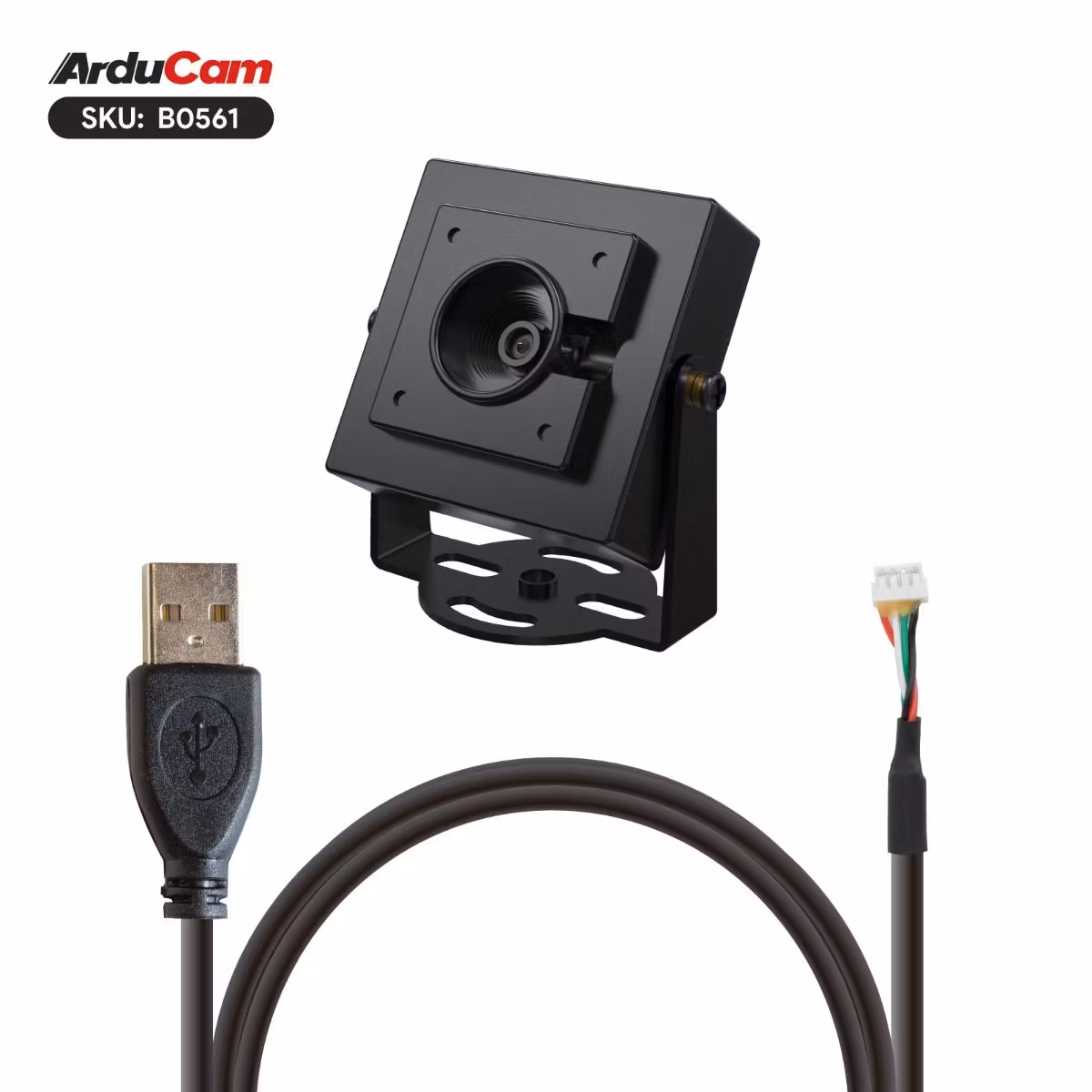

  • 1 x 16MP High Resolution Color USB2 UVC Camera
  • 1 x 1m USB2 to B4B-ZR JST Cable

Documentation
