DFPlayer Pro A mini MP3 Player with On-board 128MB Storage

  • 25.98 EUR

Here comes the DFPlayer Pro---A mini simple but powerful MP3 Player! This MP3 player module supports four controlling modes: Arduino, AT command, on-board butto

I lager.
Stock: 4
Article Number: 1275
Share
  • Information

Here comes the DFPlayer Pro---A mini simple but powerful MP3 Player! This MP3 player module supports four controlling modes: Arduino, AT command, on-board buttons, and ADKEY. You can directly press the on-board button to play or switch music without using a controller. Moreover, this player module has 128MB of storage. By using a USB cable, you can easily copy your favorite songs into this module to play them anywhere you want, or use it as a sound card for your PC or Raspberry Pi after connecting them.

DFRobot DFPlayer PRO - A MP3 Player

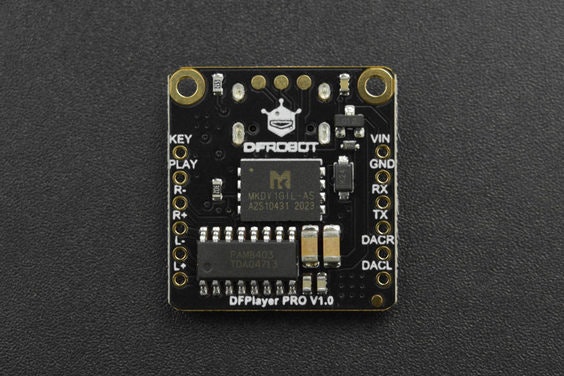

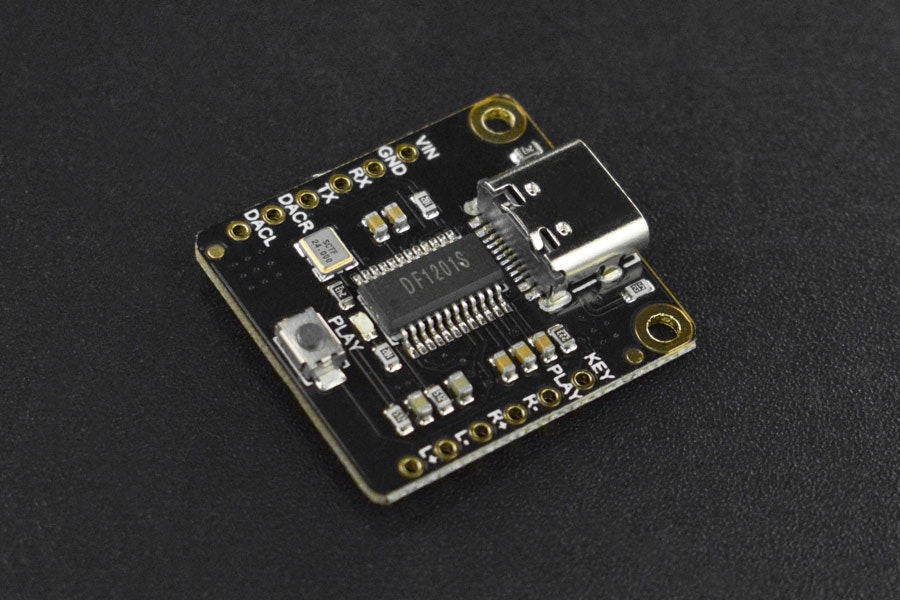

Board Overview

MP3 Module Selection Guide


NameDFPlayerDFPlayer ProGravity: UART MP3 Voice Module
SKUDFR0299DFR0768DFR0534
StorageStorage Card Required128MB8MB
Sound ChannelMonoDual-channelMono
Analog U-disk SupportNoYesYes
ADKEY Control SupportYesYesNo
On-board Power Amplifier SupportYesYesYes
Audio FormatMP3, WAV, WMAMP3, WAV, WMA, FLAC, AAC, APEMP3, WAV
CommunicationUARTUARTUART
Operating Voltage3.3V/5V3.3V/5V3.3V/5V
Dimension20*20mm/0.79*0.79"23*24.5mm/0.91*0.96"22*30mm/0.87*1.81"




Features1. Small size
2. Support IO, serial port and ADKEY control
3. Maximum support 32G of the TF card, suitable for occasions in need of abundant audio files
1. Stereo dual-channel output
2. Support four controlling modes: Arduino, AT command, on-board buttons, and ADKEY
3. On-board 128MB high-speed storage, perfect for occasions in need of storing small numbers of audio files
4. Support the USB cable to copy music
5. Can be used as a sound card for the PC or Raspberry Pi
1. DF-Gravity interface, easy to connect
2. On-board 8MB storage
3.Support the USB cable to copy music
4. Suitable for playing sound effects and prompt sounds

FEATURES

  • On-board 128MB High-speed Storage
  • Playback Switch by Button
  • Dual-channel
  • Support analog U-disk

APPLICATIONS

  • DIY Plush Toys
  • Handmade Personalized Gift
  • Musical Alarm Clock
  • USB Sound Card

SPECIFICATION

  • Power Supply: 3.3V~5V
  • Operating Current: >20mA
  • Storage: 128MB
  • Audio Format: MP3, WAV, WMA, FLAC, AAC, APE
  • Communication: UART
  • Operating Temperature: -20℃~70℃
  • Operating Humidity: 5%RH~95%RH

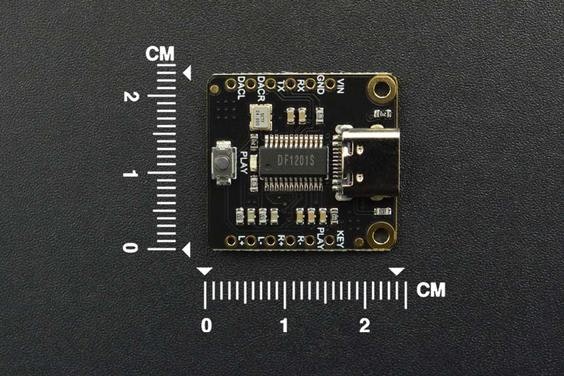

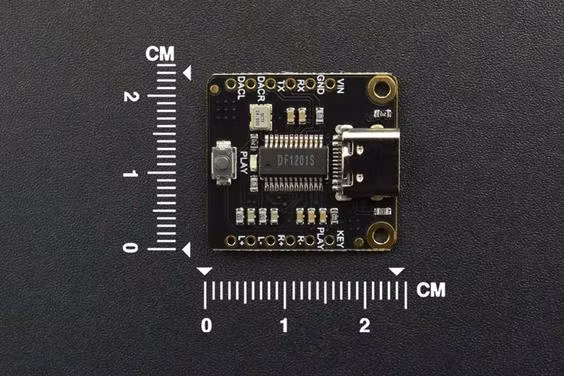

  • Dimension: 23*24.5mm/0.91*0.96”

DOCUMENTS

SHIPPING LIST

  • DFPlayer PRO - A MP3 Player x1
  • 2.54-6P Black Single-Row Pin x2
