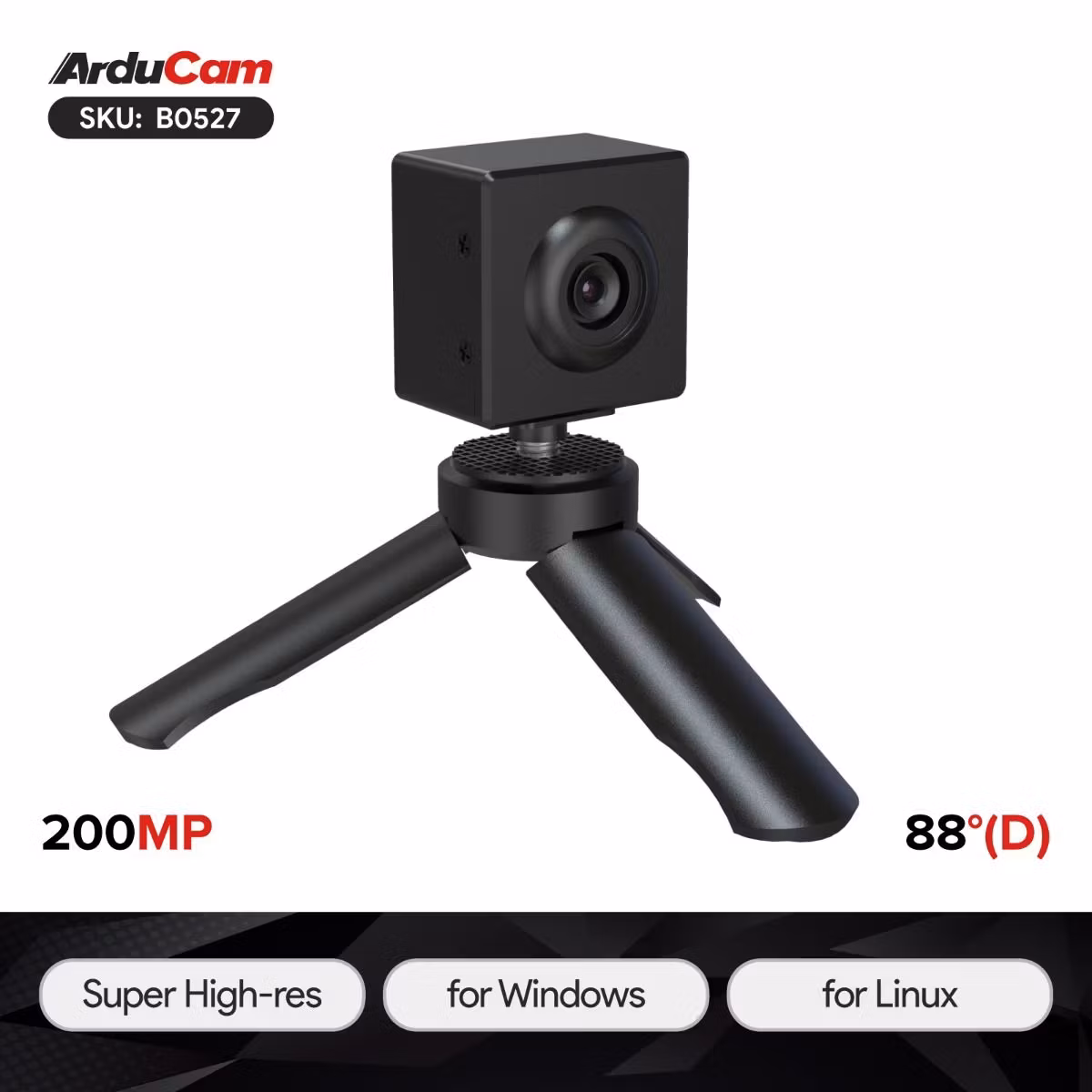

Arducam 200MP Motorized Focus USB 3.0 Camera Module

  • 564.43 EUR

Arducam's new 200MP USB 3.0 camera features a Sony 1/1.4" sensor with a max resolution of 16320x6144. It delivers clear images and accurate color reproduction,

I lager.
Article Number: B0527
Share

Arducam's new 200MP USB 3.0 camera features a Sony 1/1.4" sensor with a max resolution of 16320x6144. It delivers clear images and accurate color reproduction, supporting AEB/AEC for optimal exposure.

Equipped with a motorized lens, the camera supports adjusting focus through software, boasting an 88° FOV, and 10cm MOD. The camera now supports YUYV format output for uncompressed, high-quality pictures. Additionally, its ultra-fast 1080P60/4k@20fps capability delivers silky-smooth HD videos.

Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.

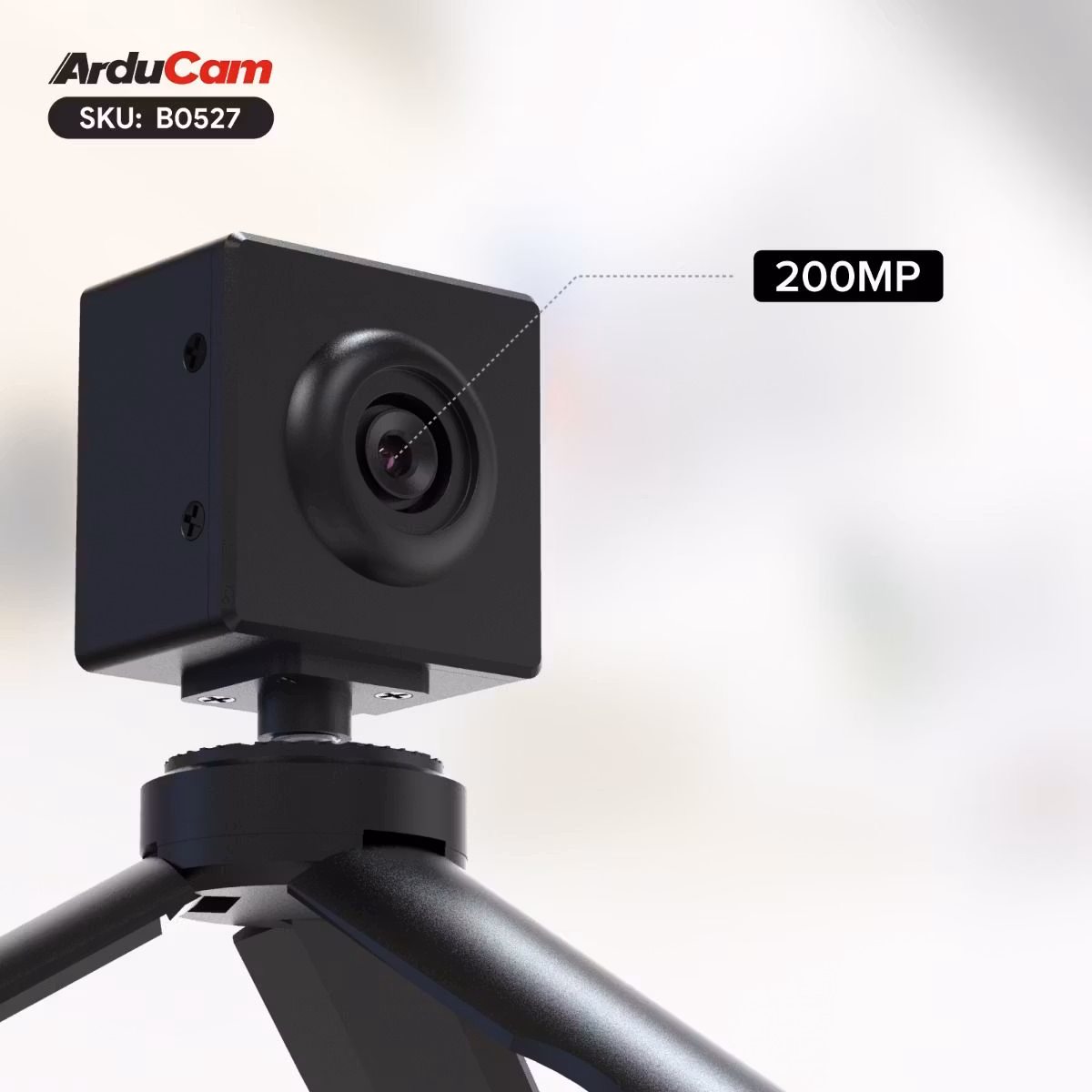

  • Capture 200MP images at 16320×6144 for stunning clarity and visual effects.
  • Smooth motion recording at 120fps@720p, 1080p60, 4k@20fps.
  • Superior image quality with de-Bayer, Gamma, BLC, AE, AWB, CCM, and RGB2YUV processing.
  • Motorized focus and 88° FOV for precise, comprehensive surveillance.
  • Plug-and-play compatibility with Windows and Linux, no drivers needed.

Applications

  • Machine Vision
  • Video Surveillance
  • 3D Scanning and Metrology
  • Live Streaming
  • Video Conferencing

Features

  • 200MP Superior Imaging: Capture breathtaking still images at 16320×6144 with the 200MP ultra-high resolution CMOS sensor, delivering unparalleled clarity and stunning visual effects.
  • Flexible Frame Rate: Program your desired frame rate for smooth motion recording, achieving up to 60fps even at 1080p resolution.
  • Advanced Image Enhancement: Onboard ISP technology ensures superior image quality with features like de-Bayer, Gamma correction, BLC, AE, AWB, CCM, and RGB2YUV processing.
  • Precision Focus: Motorized focus adjustable via software provides precision, while an 88-degree diagonal field of view ensures comprehensive surveillance and optimal clarity.
  • Plug-and-Play: Enjoy seamless compatibility with Windows and Linux systems for true plug-and-play functionality without the need for additional drivers.

Specifications

Image Sensor
Still Resolution200 Megapixels
Color Filter TypeColor
Shutter TypeRolling
Optical Size1/1.4"
Output FormatYUY2
Pixel Size0.56 μm x 0.56 μm
Sensor Active Area16320(H) x 12288(V)
Frame Rate (USB 3.0)*YUV: 1280×720@120fps, 1920×1080@60fps, 3840×2160@20fps,
4080×3072@13fps,8160×6144@3fps
RAW: 16320×6144@1fps**
Frame Rate (USB 2.0)1280x720@10fps
Lens
Focus TypeMotorized Focus
FOV88°(D)×75°(H)×60°(V)
Lens MountStock Lens
F.NOF1.65±5%
E.F.L6.14 mm
IR SensitivityIntegral IR-cut Filter, visible light only
Default Focus Range10cm-∞
USB Interface
InterfaceUSB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts

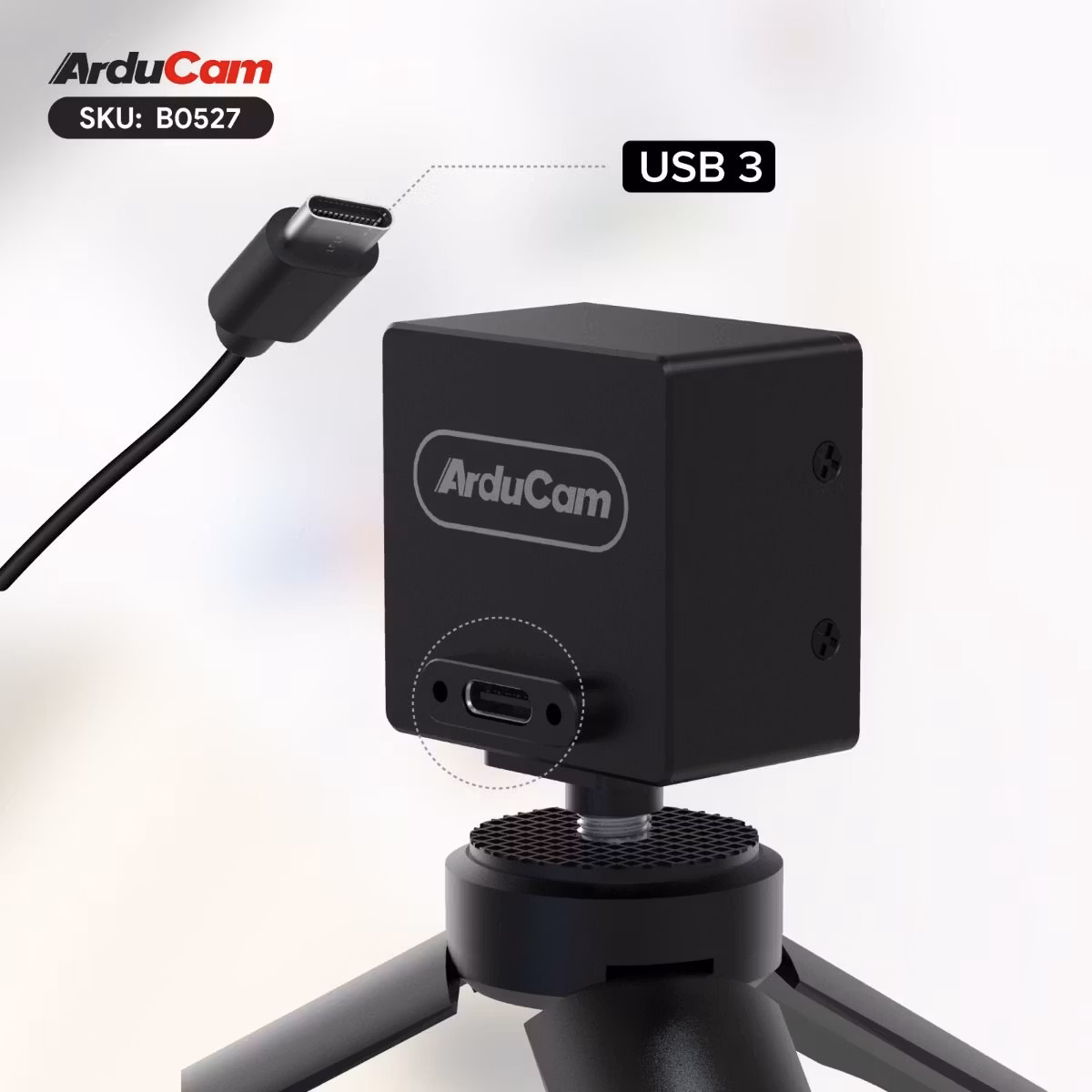

ConnectorType-C reversible interface connector
UVC CompliantNo additional drivers required
Electrical and Mechanical
Operating Voltage5 V +/- 5%
Operating Temp.32°F-158°F (0°C to 70°C)
Power RequirementsMax: 2.32W, Min: 1.1W

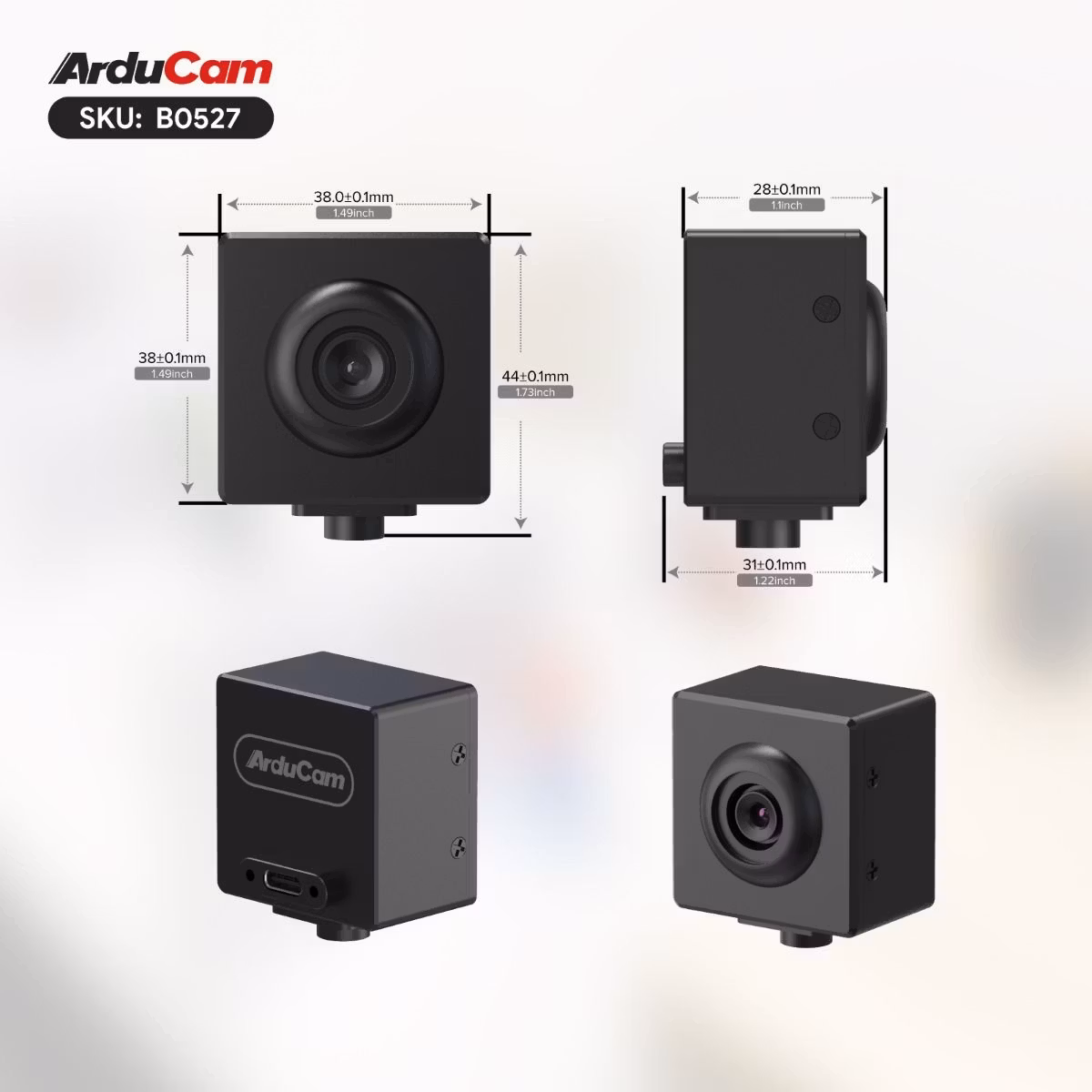

Camera Board Size34×34 mm
Functionality and Compatibility
Supported OSWindows, Linux
Recommend Sample ApplicationPotPlayer for Windows, qv4l2 for Linux
UVC ControlsBrightness, Contrast, Saturation, White Balance (Manual/Auto), Gain, Exposure (Manual/Auto), Focus(Manual)
Frame Rate (USB 3.0)*: Please note that the maximum resolution (16320×6144) requires using specific software, please click the Quick Start Guide below for details.
16320×6144@1fps**: The output here is actually 16320x12288 (maximum resolution) RAW format data output. YUV data packets are used internally to transmit RAW data, so the resolution appears to be half the size, but it is actually 200MP.

Package Including

  • 1 x Arducam 200MP Camera Module
  • 1 x USB Cable (1m)

Notes

  • The package contains small contents, please keep it away from children to avoid accidental ingestion
  • After receiving the package, please confirm whether the contents of the package are consistent with the description
