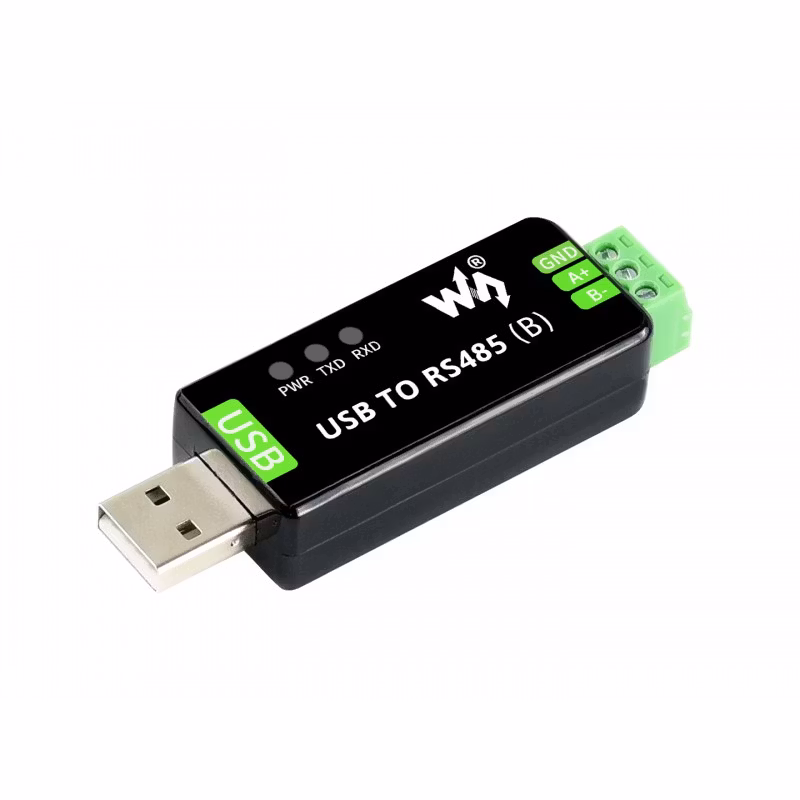

Industrial USB TO RS485 Bidirectional Converter, Onboard original CH343G

  • 26.02 EUR

This Industrial USB to RS485 Bidirectional Converter is equipped with the high-performance original CH343G chip, ensuring stable and fast data communication. Th

I lager.
Article Number: 22456
Share
  • Information

This Industrial USB to RS485 Bidirectional Converter is equipped with the high-performance original CH343G chip, ensuring stable and fast data communication. Thanks to its built-in multi-layer protection circuits, it is ideal for use in harsh industrial environments where reliability and safety are critical.

Features At A Glance

  • Support USB to RS485 bidirectional conversion
  • Fast communication, stable and reliable, better compatibility
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
  • Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
  • 3 LEDs for indicating the power and transceiver status

Specifications

PRODUCT TYPE
Industrial Grade USB to RS485 converter
Host port
USB
Device port
RS485
Baudrate
300bps ~ 3Mbps
USB
Operating voltage
5V
Connector
USB-A
Protection
200mA self-recovery fuse, ESD protection
Transmission distance
About 5m
RS485

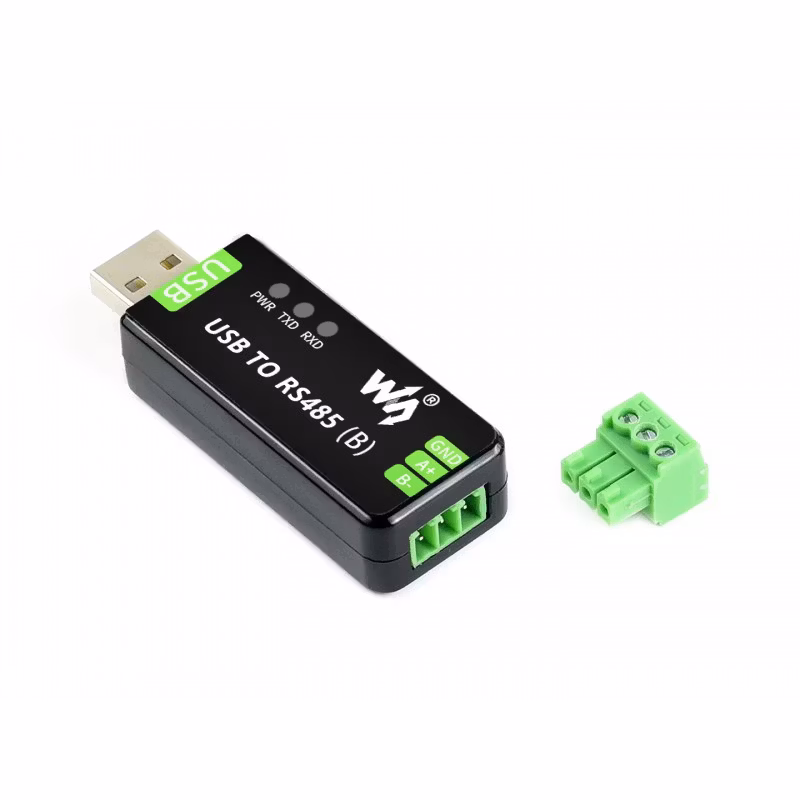

Connector
Screw terminal
Pins
A+, B-, GND
Direction control
Hardware automatic control
Protection
600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distance
About 1.2km(low rate)
Transmission mode
Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
LED indicators
PWR
Red power indicator, light up when there is USB connection and voltage is detected
TXD
Red TX indicator, light up when the USB port sends data
RXD
Red RX indicator, light up when the device ports send data back
Operating environment
Temperature
-15℃ ~ 70℃
Humidity
5%RH ~ 95%RH
Operating system
Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7

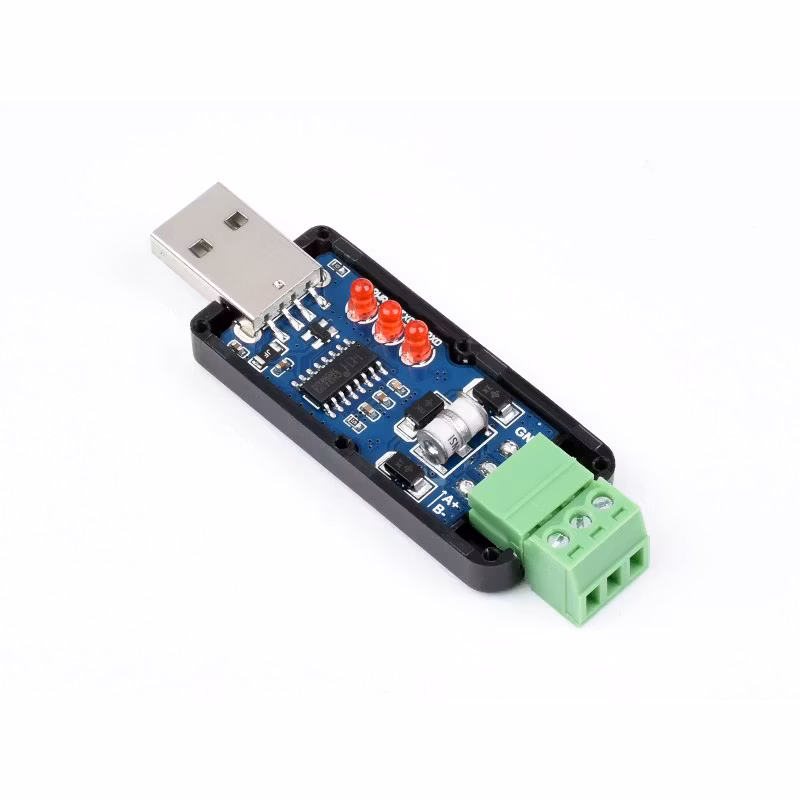

Onboard Original Chips

Onboard original CH343G and SP485EEN chips, providing better stability and compatibility, built-in lightningproof tube, resettable fuse, ESD and TVS protection circuits, etc.

Transmission distance up to 1.2km

The USB signal can be converted into a balanced differential RS485 signal and the transmission rate is stable. The reliable speed is 300bps ~ 3Mbps, the transmission distance is about 1.2km for RS485, and about 5 meters for USB.

Multi system Support

Supports Mac, Linux, Android, WinCE, Win11/10/8.1/8/7/XP, etc.

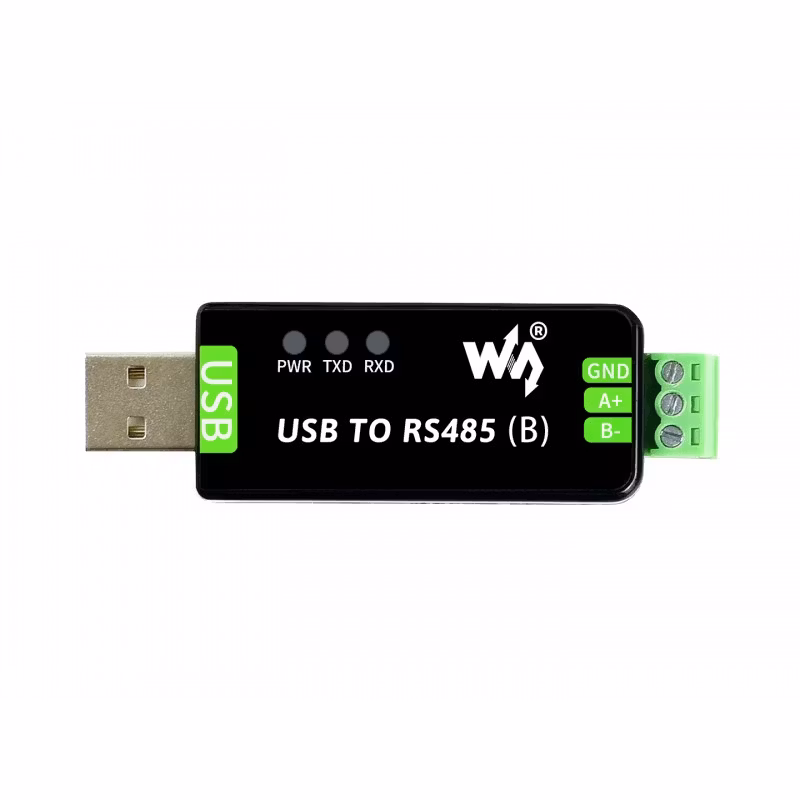

Working Status Indicators

Onboard 3 LEDs for indicating the power and transceiver status



Outline dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/USB_TO_RS485_(B)

Shiping list

Weight: 0.085 kg

  1. USB TO RS485 (B) x1
  2. USB-A male to female cable x1
  3. Screwdriver x1

1

2

3
