Luckfox Pico Max M Linux Micro Development Board

  • 35.44 EUR

Luckfox Pico Pro/Max RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors SpecificationsProcessorCortex [email protected]

I lager.
Stock: 5
Article Number: 25720
Share

Luckfox Pico Pro/Max RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors



Specifications

ProcessorCortex [email protected]
NPU0.5TOPS, supports int4, int8 and int16
ISPInput 5M @30fps (Max)
MemoryPro: 128MB DDR3L
Max: 256MB DDR3L
USBUSB 2.0 Host/Device
CameraMIPI CSI 2-lane
GPIO26 × GPIO pins
Ethernet port10/100M Ethernet controller and embedded PHY
Default StorageSPI NAND FLASH (256MB)

Version And Pinheader Options

Highly Integrated And Powerful Performance

Integrates CPU, NPU, ISP And Other Processors

  • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
  • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
  • Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
  • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
  • Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
  • Integrated with built-in POR, audio codec and MAC PHY

Easier To Develop

Integrates TF Card Slot, Camera Interface And Ethernet Port

SLC NAND FLASH

For A Better User Experience

Application Example

Suitable For More Application Examples

Pin Definition

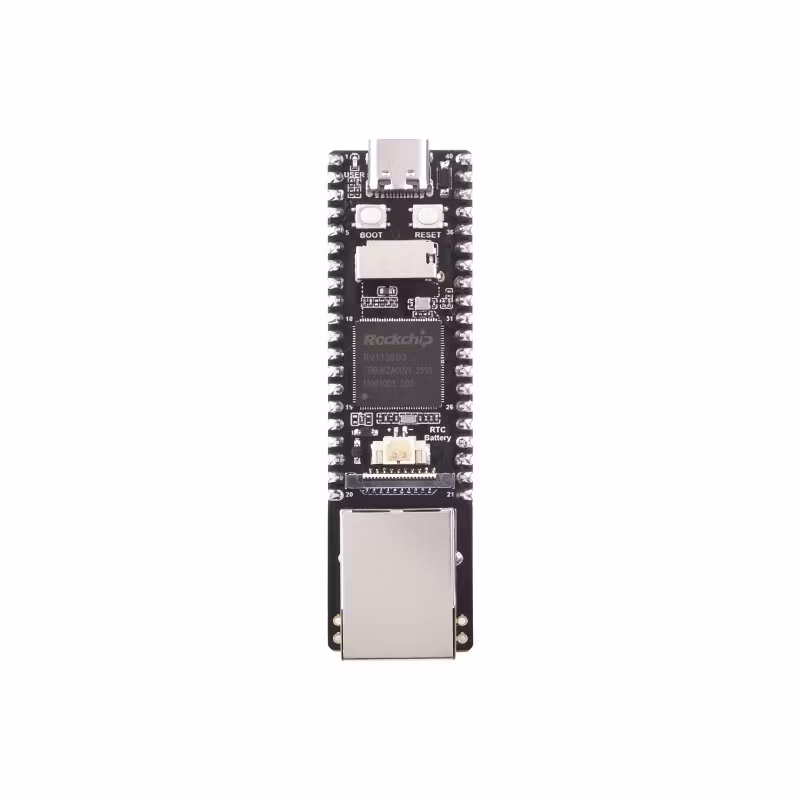

What's On Board

  1. USB Type-C connector
    for power supply and program burning
  2. ACT-LED
  3. BOOT button
    Press it when powering on to enter download mode
  4. RESET button
  5. TF card slot
  6. RV1106
    Vision processor SoC with built-in ARM Cortex-A7 core (RV1106G2 for Pro version, RV1106G3 for Max version)



  1. RTC battery header
    MX1.25 connector, for connecting RTC battery
  2. CSI camera interface
    MIPI CSI 2-lane
  3. RJ45 Ethernet port
  4. USB test pads
  5. BOOT test pad
  6. W25N02KV
    256MB SLC NAND FLASH
  7. GPIO header

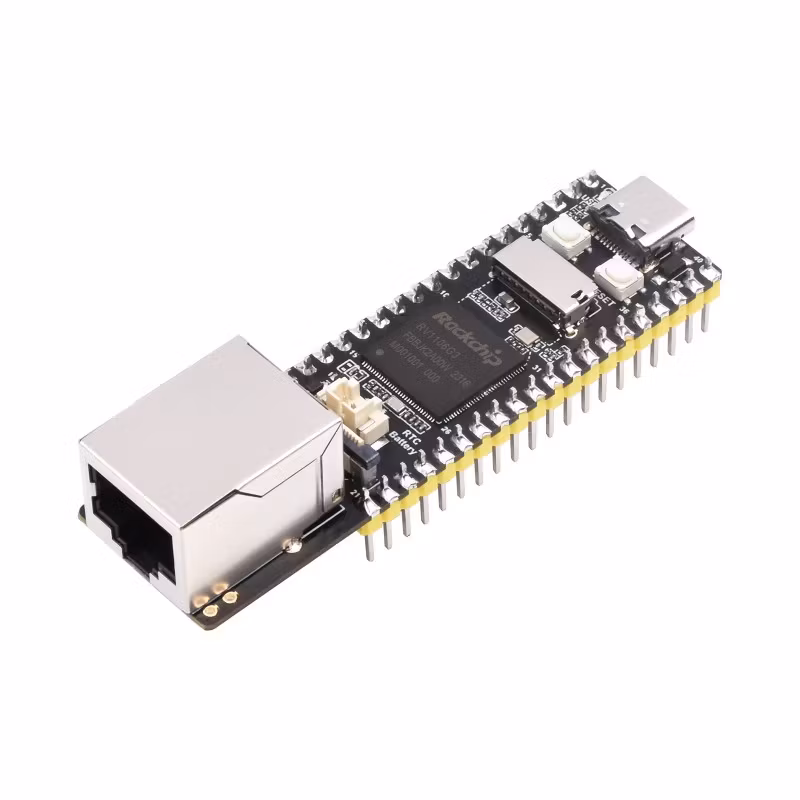

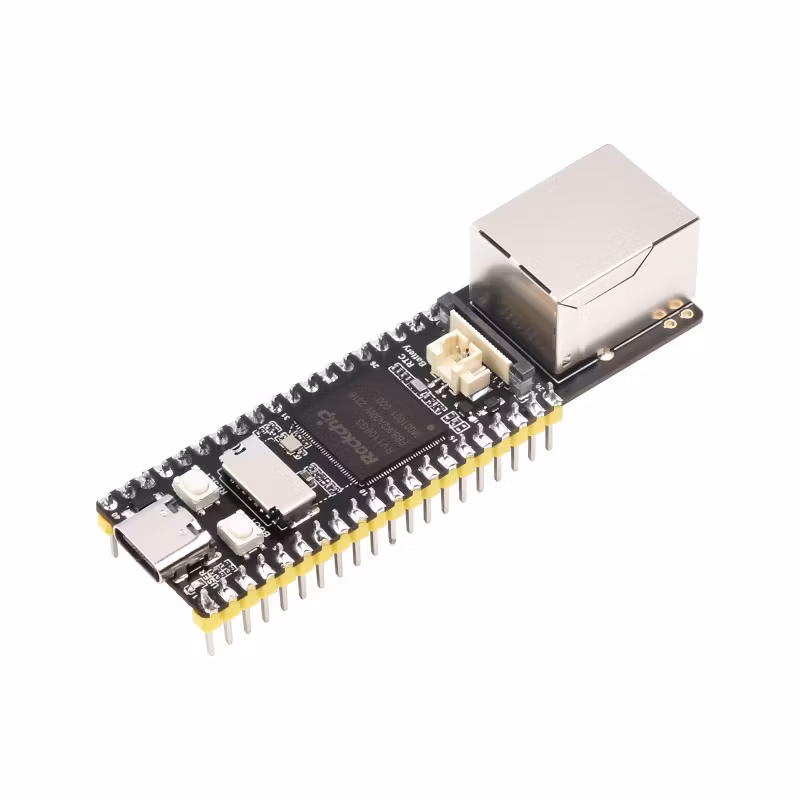

Product Show

Outline Dimensions

Wiki: https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-quick-start/

Shipping list

Luckfox Pico Max M

Luckfox Pico Max with pre-soldered header x1
