PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5, Supports 4-ch NVMe Solid State Drives, Supports Powering The Raspberry Pi 5, Raspberry Pi 5 NVMe

  • 91,79 €

PCIe to 4-Channel M.2 NVMe SSD Adapter Board for Raspberry Pi 5Unlock the full potential of your Raspberry Pi 5 with this advanced PCIe to 4-Channel M.2 Adapter

I lager.
Stock: 2
Article Number: 30674
Share

PCIe to 4-Channel M.2 NVMe SSD Adapter Board for Raspberry Pi 5

Unlock the full potential of your Raspberry Pi 5 with this advanced PCIe to 4-Channel M.2 Adapter Board. Engineered specifically for high-performance storage applications, this adapter enables seamless integration of up to four M-Key M.2 NVMe SSDs.

🔧 Key Features:

  • 4x M.2 NVMe SSD Support: Expand your storage by connecting up to four NVMe solid-state drives simultaneously for ultra-fast read/write speeds.

  • Raspberry Pi 5 Compatible: Tailored for direct PCIe connection to Raspberry Pi 5 via the onboard PCIe FPC connector.

  • Power Delivery Support: Provides stable power supply to Raspberry Pi 5 through the adapter board.

  • LED Status Indicators: Onboard LEDs offer real-time status monitoring for drive activity and power.

  • High-Speed Data Transfer: NVMe protocol ensures rapid file access and improved system responsiveness – ideal for data-intensive tasks, multimedia, or database handling.

  • Compact & Efficient Design: Optimized for space-constrained environments with passive cooling compatibility.

⚙️ Applications:

  • High-speed storage expansion for Raspberry Pi 5

  • DIY NAS servers and media centers

  • AI, ML, and edge computing projects

  • Software development environments

Give your Raspberry Pi 5 a powerful storage upgrade and boost your project’s efficiency with this robust, feature-packed NVMe adapter board.

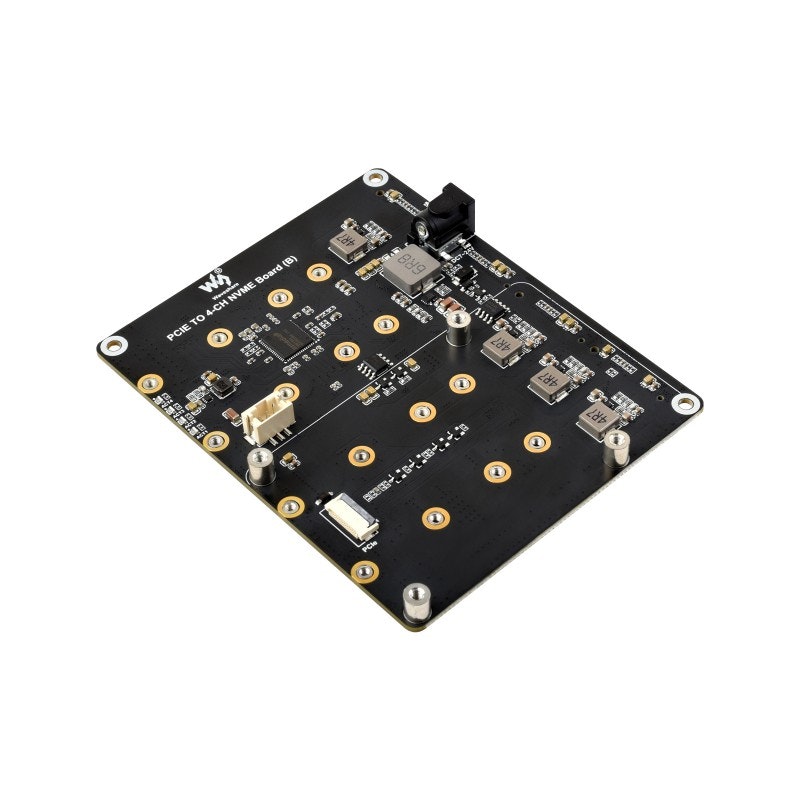

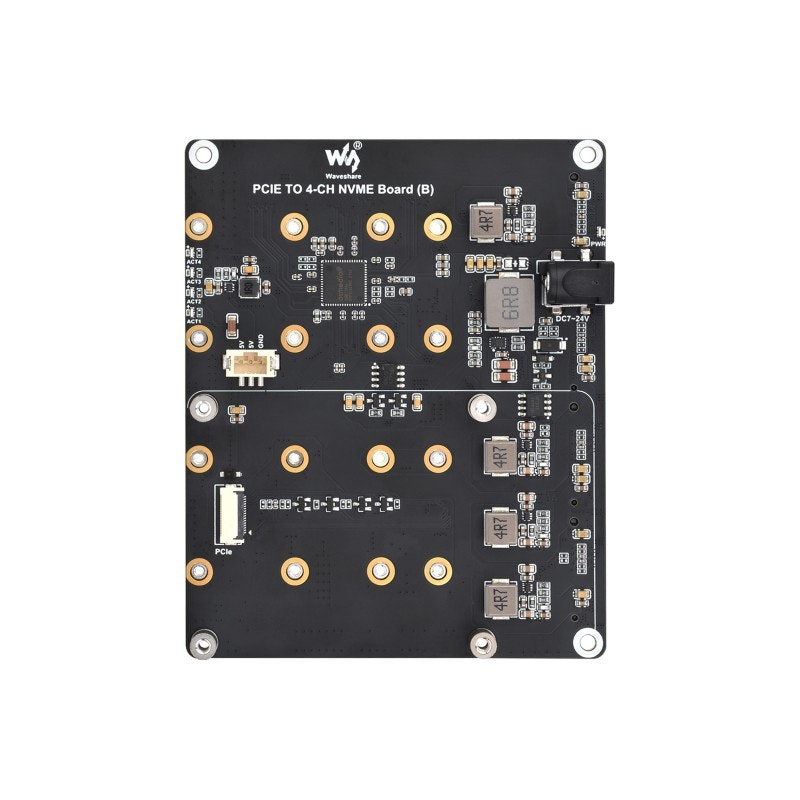

PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5, front view and features

Version Options

PCIE TO 4-CH NVME Board (B) NP

PCIE TO 4-CH NVME Board (B) NP
without power supply

 PCIE TO 4-CH NVME Board (B)

PCIE TO 4-CH NVME Board (B)
with 12V 4A power supply

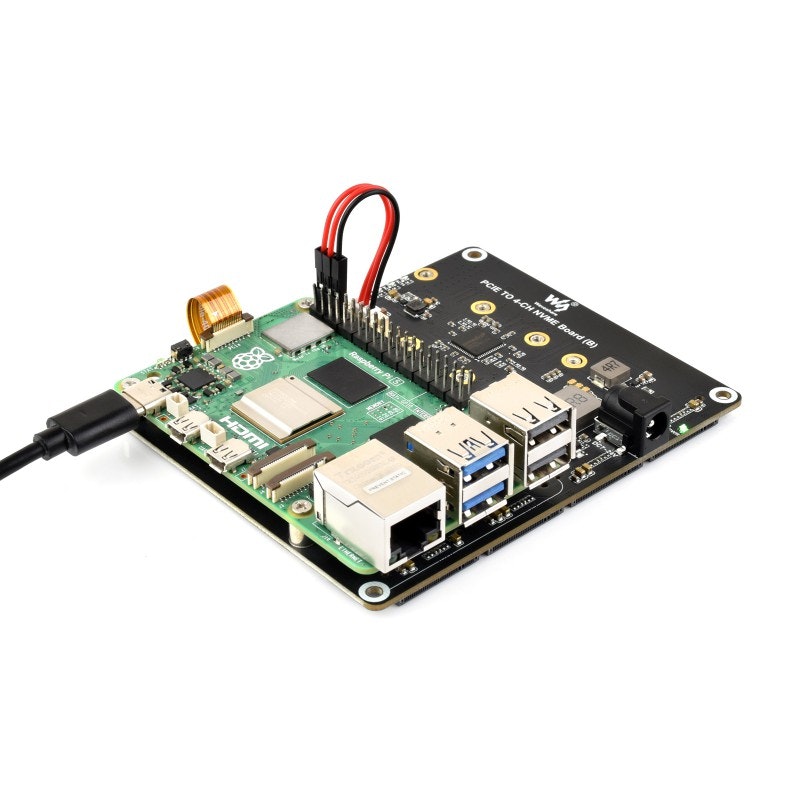

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5, connecting to PI5 via 16PIN cable

* for reference only, the Raspberry Pi 5 is NOT included.

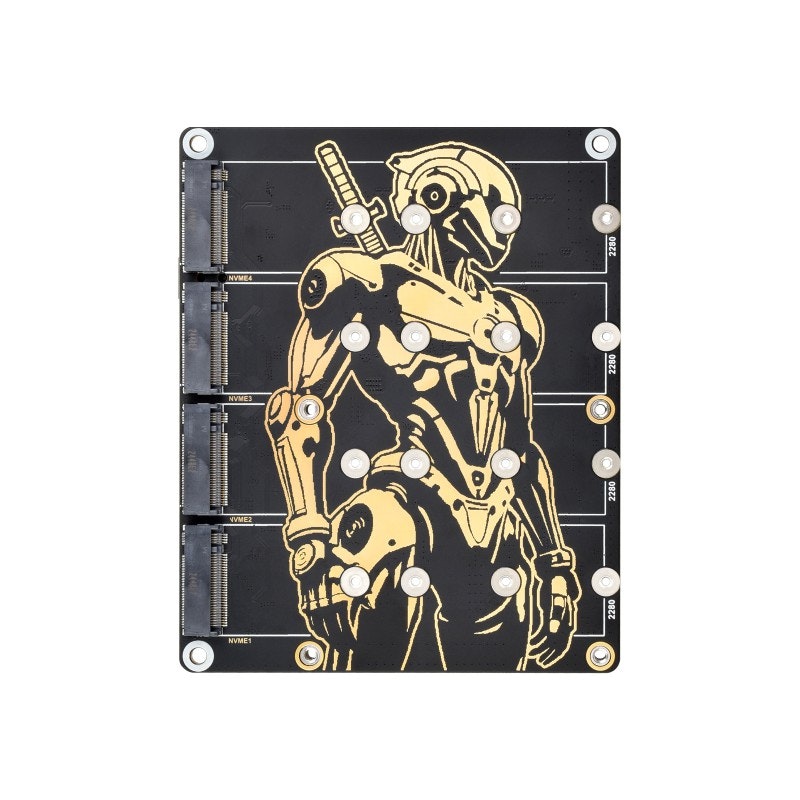

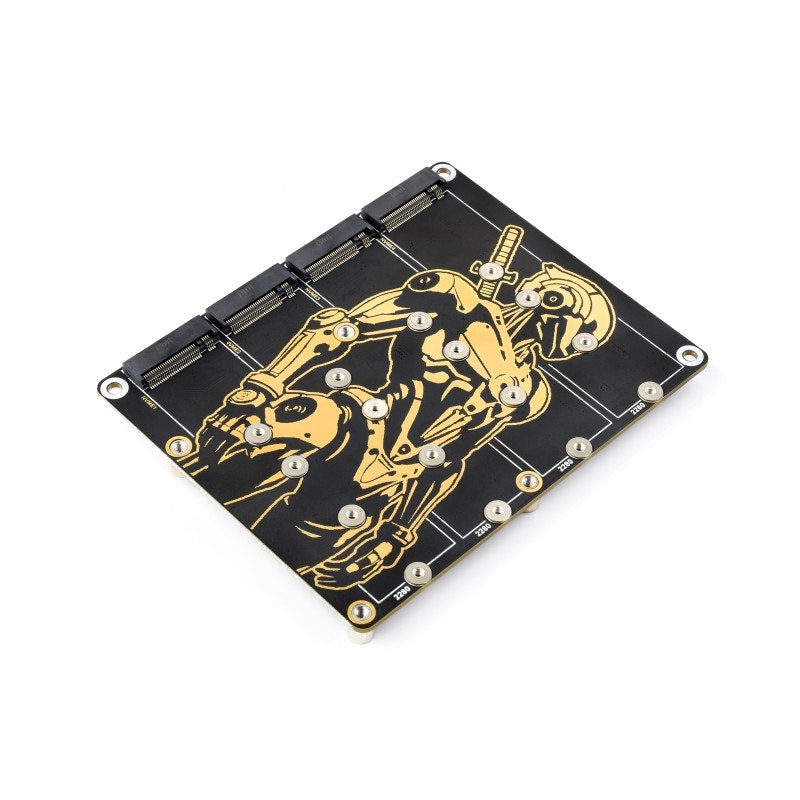

4-ch NVMe Solid State Drives Support

Compatible With 2280 / 2260 / 2242 / 2230 Size M.2 Solid State Drives
Supports PCIe x1 Gen2 only, Supports Booting PI5 From Solid State Drive

PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5, compatible With 2280 / 2260 / 2242 / 2230 Size M.2 Solid State Drive

NVMe Drive Slot Support


PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5, NVMe Drive slot support

Note: Only supports the NVMe Protocol Solid State Drives.


Improves reading/writing speed of your Pi

Offers faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5, improves reading/writing speed

* for reference only, please refer to the Package Content for detailed part list


Supports powering the Raspberry Pi 5

Onboard wide voltage input DC jack (7V~24V), supports powering the Raspberry Pi via 3PIN cable (up to 5V 5A). The PCIe adapter board also can be powered by the Raspberry Pi 5.

PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5, supports powering the Raspberry Pi 5

* for reference only, the Raspberry Pi 5 is NOT included.

Onboard LED Indicators

Easy to monitor the Working Status

PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5, onboard LED indicators


How to install

PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5, how to install

* for reference only, the Raspberry Pi 5 is NOT included.


Outline dimensions

PCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5, outline dimensions


Wiki: www.waveshare.com/wiki/PCIE_TO_4-CH_NVME_Board_(B)

Product list

PCIE TO 4-CH NVME Board (B)

  1. PCIE TO 4-CH NVME Board (B) x1
  2. PH2.0 3PIN cable x1
  3. 16P-Cable-40mm x1
  4. Screws pack x1
  5. 12V 4A power supply x1
