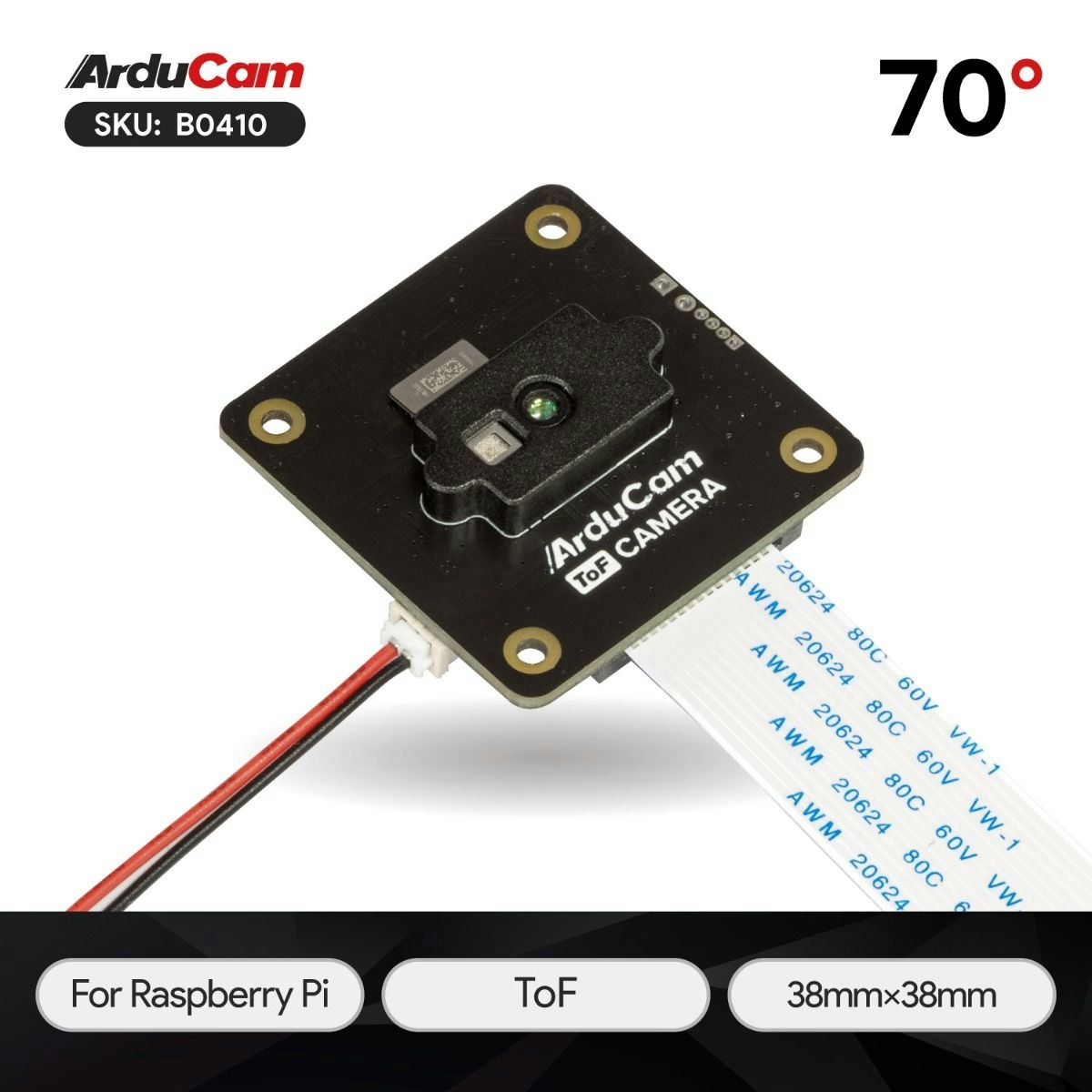

Time of Flight Camera for Raspberry Pi

A Time of Flight camera module featuring a MIPI-CSI 2 connection and offering up to 4-meter measuring range with sub-2cm precision, designed and optimized exclusively for Raspberry Pi & Nvidia Jetson boards.

• Pixel-level accuracy: powerful depth/distance measurement.
• Large working range: 2m/4m optional, and a 10-meter broader coverage with our cable extension kit.
• Outdoor usable: No worry of interferences from ambient light.
• Any MV library works: 3 languages applicable. C, C++ or Python
• Affordable decency: 3D imaging with primed point clouds at an unexpectedly low cost.

Note: Raspberry Pi OS Bullseye is required for this camera (04/04/2022 or later releases), a fresh install is highly recommended.

Quick sum-up about the camera:

● Real-time point cloud and depth map.
● Resolution: 240x180@30fps on RPI4/CM4
● Up to 4M measuring distance
● Onboard 940nm laser for both indoor & outdoor uses, no external light source needed.
● V4L2-based video kernel device
● C/C++/Python SDK for userland depth map output and example source code
● ROS ready.
● 38 x 38mm board size

Specification

Documents

Getting Started with Arducam ToF Camera

Getting Started with Arducam ToF Camera (PDF)

Arducam ToF Camera SDK

Point Cloud With Arducam ToF Camera

Getting Started with Nvidia Jetson

Github – Arducam ToF

3D Model of ToF Camera

Packing List

1 x Arducam ToF Camera Module
1 x FPC Cable (15cm)

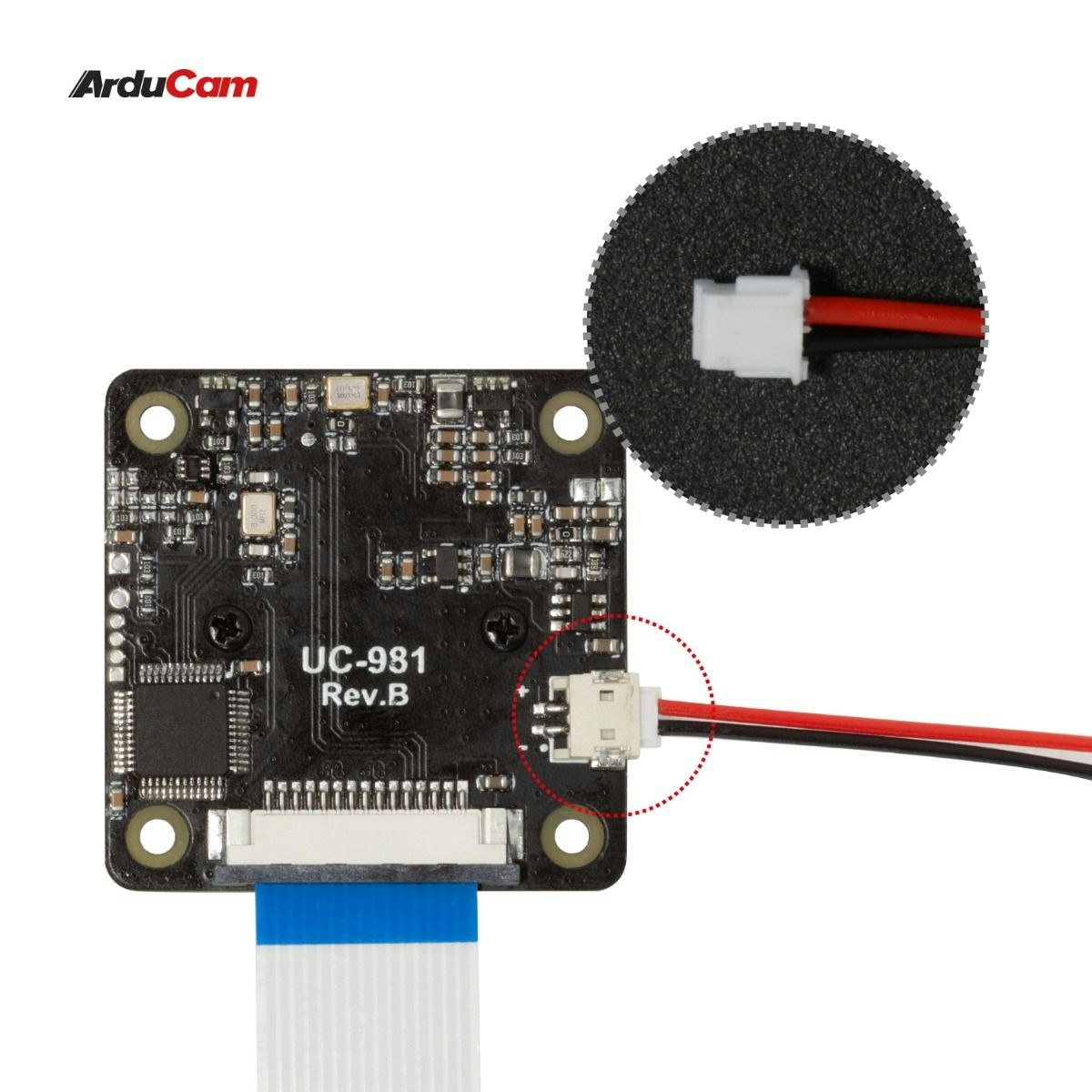

1 x 2-pin Dupunt Cable

Note:

*To use the camera on Pi Zero and 2 W, you need this.

FAQ

Is it compatible with all Raspberry Pi models?
Yes, it can work with most Pis. However, with early models, there may be performance drops.

Do I need external light sources?
No, the camera has an onboard laser. (Non-intrusive, safe for the human eye.)

What’s the maximum operating range?
Far Mode: 4m Near Mode: 2m

See the full list of FAQs >
