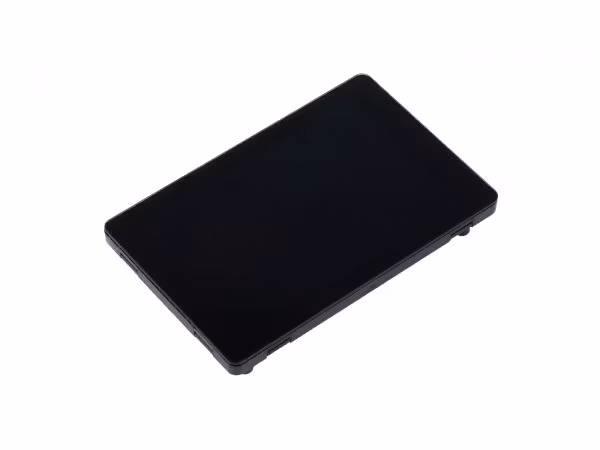

WT32-SC01 Plus is a development board for visual touch screen, the board is equipped with GUI platform firmware developed independently, supports graphic drag and drop programming to help users complete the development of customized control platform. It is ideal for implementing smart home.
PRODUCT DETAILS
WT32-SC01 Plus is a development board for visual touch screen, the board is equipped with GUI platform firmware developed independently, supports graphic drag and drop programming to help users complete the development of customized control platform.It is ideal for implementing smart home.
Features
- Powerful development firmware: Equipped with GUI platform firmware allows users to customize their own personalized control scheme. Graphical programming makes development easier.
- LCD with capacitive multi-touch panel: RGB colorful display and visual touch operation are more convenient to make interaction.
- Rich extension interfaces: Customize functions such as button operation, voice control, and camera operation through the expansion interfaces.
- Highly integrated MCU: The ESP32-wrever-b MCU is a Wi-Fi + Bluetooth + Bluetooth LE module suitable for various applications. It can be used in low-power sensor networks and important applications.
- Easy to assemble: The small size of the motherboard can be perfectly combined with the user's products through the buckle, saving space and cost.
Description
WT32-SC01 Plus is a development board with a visual touch screen. The development system consists of a 3.5-inch LCD screen with a resolution of 320×480 pixels and a capacitive touchpad. It has a feature that supports drag-and-drop graphical programming to help less-experienced users develop solutions.
SC01 plus is an upgraded version of our WT32-SC01 development board. The upgraded product is based on Loxin ESP32-S3. The screen is replaced by IPS and fully fitted, making the touch more sensitive and smooth. At the same time, we are equipped with an integrated black plastic frame, which can be quickly installed on your products by means of clasp. The development board adds a speaker, RS485, SD card and an interface for debugging.
Compared with The previous version of SC01, the main controller of WT32-SC01 Plus development board is configured with a more integrated and powerful WT32-S3-Wrover-N16R2 module. this module is a general-purpose WiFi + BT + BLE MCU module, 16MB SPI flash and 2MB PSRAM configured in. It supports RGB colorful display of various pictures, capacitive multi-touch makes interaction easier, and the use of IPS full touch screen brings users better visual effects and a more comfortable experience.
WT32-SC01 Plus development board can also develop and debug functions such as buttons, voice and camera through the expansion interfaces on both sides, greatly shortening the development cycle of users.
Application
- Smart Home
- Environment Monitoring
- Intelligence Appliance
- Temperature Controller
- Home Automation Control
- IoT Wearable Devices
Specifications
| Basic Parameters | |
| MCU | WT32-S3-WROVER-N16R2 |
| Supply Power | DC 5V 2A |
| Power management | Two LDOS of 3.3V output |
| Capacity | 2Mbyte PSRAM+ 16Mbyte Flash |
| working current | 240mA |
| Working Temperature | -20°C~70°C |
| Dimensions | 60mm*92mm*10.8mm |
| Display Parameters | |
| Display Type | LCD |
| Driver IC Model | ST7701 |
| Viewing Angle | FULL |
| Display Size | 3.5 Inch |
| Resolution | 480*320 |
| Interface | MCU8080 8Bit |
| Color | RGB565 |
| Touch Parameters | |
| Touchscreen Type | Capacitive touch |
| Driver IC Model | FT6336U |
| Interface | I²C |
| Touchscreen structure | G+F |
| Touch Mode | Single touch |
Hardware Overview
Part List
| WT32-SC01 Plus | ×1 |
| Type-C Cable | ×1 |
ECCN/HTS
| HSCODE | 8543709990 |
| USHSCODE | 8471490000 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
