OpenNCC Programmable AI Camera Kit, 3872 × 2180 Pixels, OpenVINO IR Models Support

I lager.
1 570 kr

1 476 kr

Artikelnummer: 835

New product shipping v37

OpenNCC Programmable AI Camera Kit, 3872 × 2180 Pixels, OpenVINO IR Models Support, Small Form Factor

PROGRAMMABLE AI CAMERA

OpenNCC Camera Developer Kit

Swift Changeable "Brain", Endless Possibilities Of The AI Camera

This OpenNCC camera developer kit is a simple and easy-to-learn AI camera, which adopts standard industrial camera design. It is small and elegant, easy to use and integrate. Rich camera development pack and technical documents are provided for secondary development. It supports various deep learning frameworks, supports C / C++ / Python, as well as OpenNCC View open source. Take it, let your algorithm to be dancing, shining on the stage!

Specifications

HARDWARE
SOFTWARE
AI
Performance
4TFlops (Max)
Model support
all of the OpenVINO models
Framework support
ONNX, TensorFlow, Caffe, MXNet, Kaldi
Image signal process
supported
Open source resources
camera development pack OpenNCC CDK, technical documents,
configuration tool OpenNCC View
Language support
C / C++ / Python
SDK functions
1. retrieving video stream
2. AI models download and change
3. obtain model operation result
4. camera take photos, reset, etc.
OpenView functions
configure camera setting, configure camera local AI model
OpenNCC CDK OS support
Linux and windows
OpenNCC View OS support
Linux
Dimensions
50 × 50 × 55mm
Weight
camera net weight 140g
VPU
Intel Movidius Myriad X MV2085
Operating temperature
0-50℃
RAM
4GB
Data port
USB Type-C 2.0/3.0
Power supply
5V / 2A
Camera module
8MP visible light module
Resolution
3872 × 2180
Frame rate
30Hz
Horizontal FOV
58°

HD Image Output

3872 × 2180 HD Resolution, With Image Pre-Processing Function
Video Output Formats Including YUV, H.264, H.265, MJPEG

Freely Changeable AI Models

OpenNCC Allows The Camera To Freely Change Local OpenVINO IR Models
Make It Easy To Enable Functions Like Face Detection, Object Detection, Skeleton Detection



Intel AI Chip Inside

Integrates Intel AI Chip Which Is Compatible With All Of The OpenVINO IR Models
Via The OpenNCC View Tool

USB Plug-And-Play

Make Your Own Changeable AI Camera Quickly And Easily
Just Plug It Onto The Computer Through A USB-C Cable To Start Development

Aluminum Alloy Body

Aluminum Alloy Material With Modern Space Grey Finish
Robust, Nice Looking, Wear-Proof, Corrosion-Proof

Host Environment

Ubuntu16.04, Ubuntu18.04, Raspberry Pi, Arm Linux (Tool Chain Required For Cross Compiling)

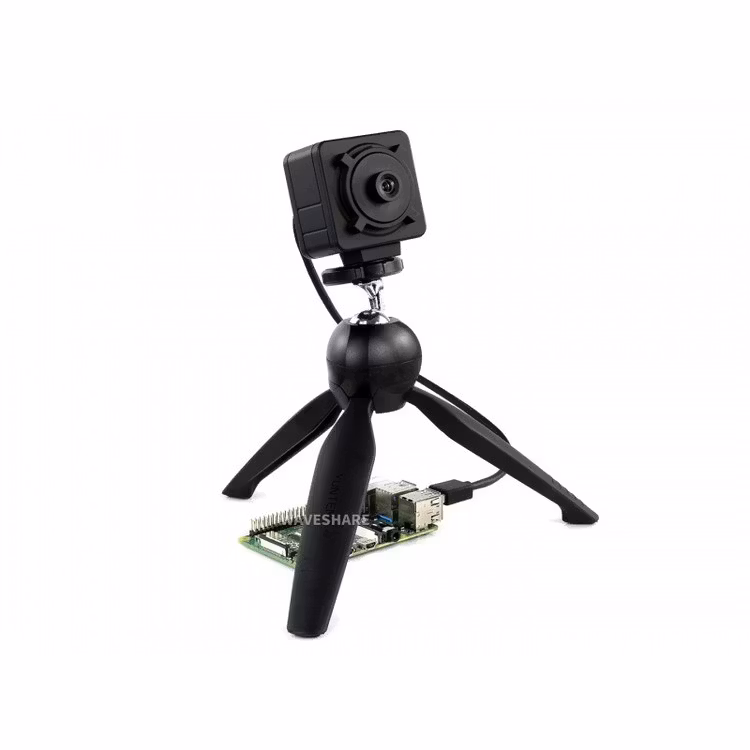

The Mini Tripod is  included.

Outline Dimensions

Resources & Services

Wiki: OpenNCC-Knight-4G8M

Shipping list

Weight: 0.188 kg

  1. OpenNCC-Knight-4G8M x1
  2. USB-C cable x1
