Power over Ethernet HAT (D) for Raspberry Pi 3B+/4B, 802.3af-compliant, Official case compatible

I lager.
Antal: 2

299 kr

Artikelnummer: 998

Power Over Ethernet HAT (Type D) For Raspberry Pi 3B+/4B, 802.3af-Compliant, Tailored For Raspberry Pi Official Case

POE HAT FOR RASPBERRY PI

Power Over Ethernet HAT For Raspberry Pi 3B+/4B, 802.3af-Compliant

Tailored for Raspberry Pi official case

Features At A Glance

The PoE HAT (D) is an 802.3af-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

  • Supports Raspberry Pi 3B+/4B, compatible with the Raspberry Pi official case
  • PoE (Power Over Ethernet) capability,IEEE 802.3af-compliant
  • Fully isolated switched-mode power supply (SMPS)
  • Onboard high speed active cooling fan, better heat dissipation

Specifications

POE POWER INPUT37V ~ 57V DC in
POWER OUTPUT5V 2.5A DC out
NETWORK STANDARDIEEE 802.3af PoE
DIMENSIONS58.90 × 54.92mm

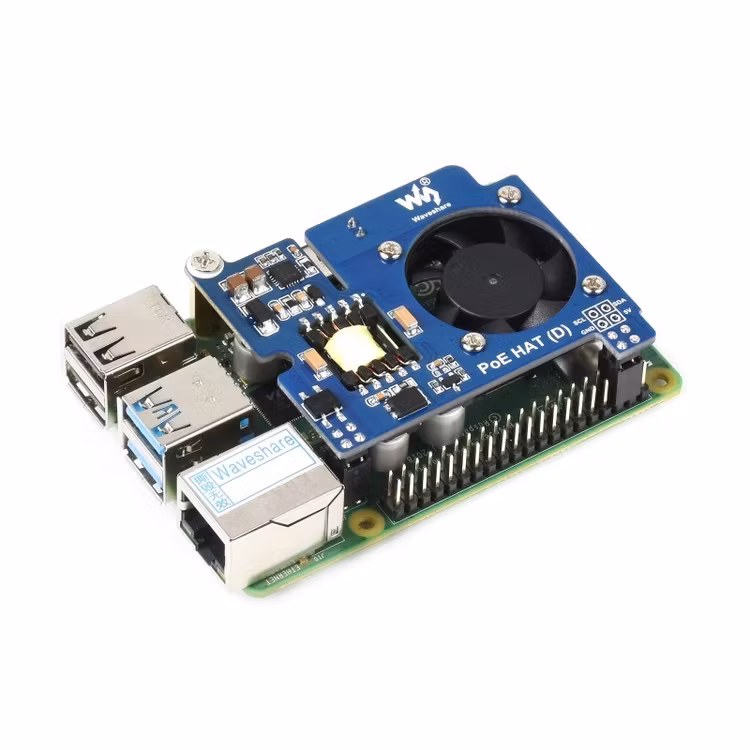

For Use With Raspberry Pi 3B+/4B

Compatible With Official Case

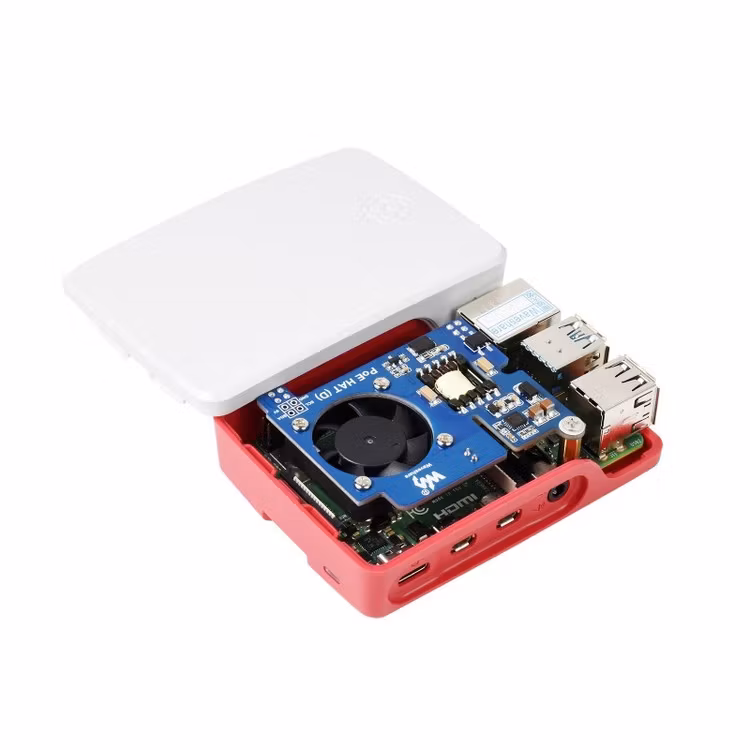

Raspberry Pi Official 4B Case (Left) And Raspberry Pi Official 3B+ Case (Right)

Application Example

Power Over Ethernet

Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable

Raspberry Pi, official cases, and PoE equipment are NOT included.

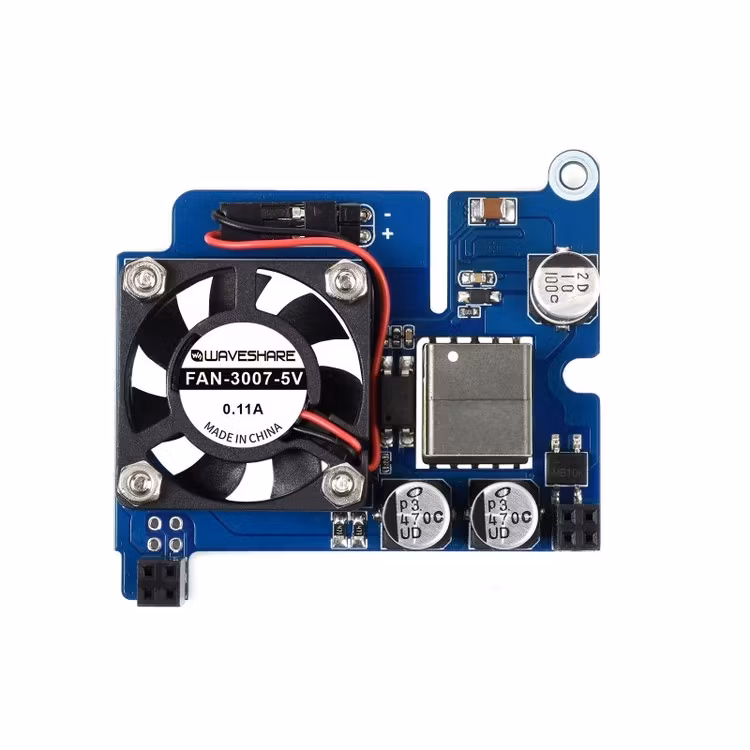

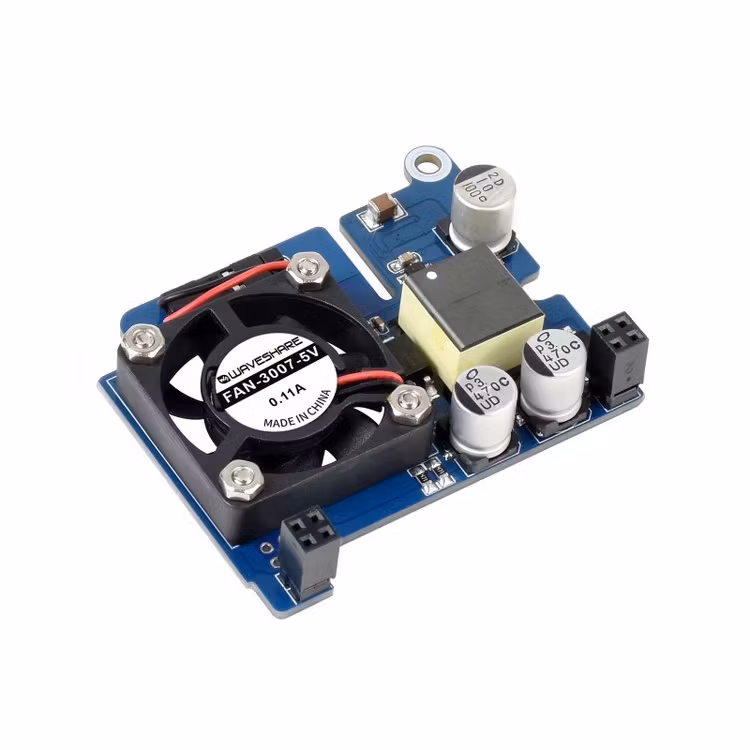

Active Cooling Fan

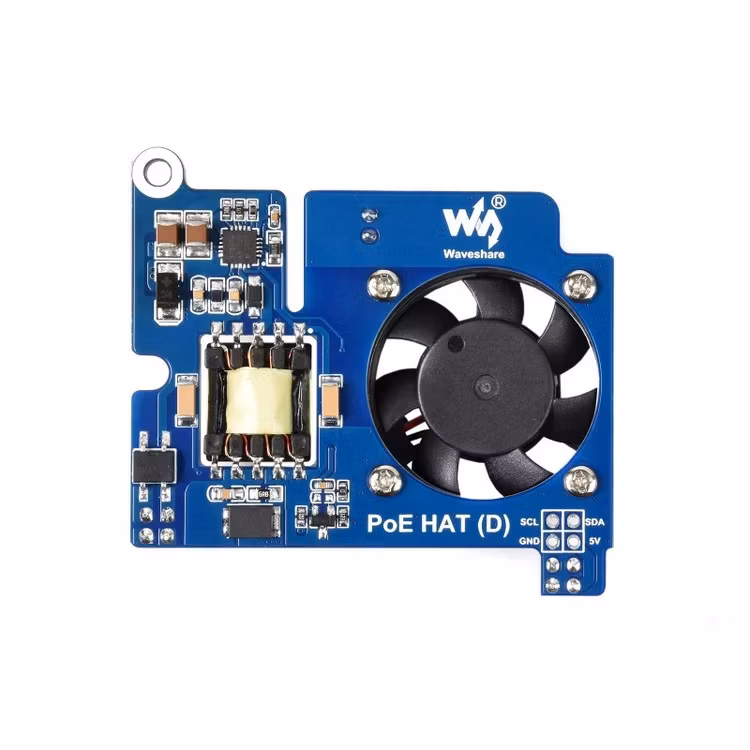

Onboard Resources

Outline Dimensions

Resources & Services

WIKI: PoE_HAT_(D)

Shipping list

Weight: 0.029 kg

  1. PoE HAT (D) x1
  2. Standoffs pack x1
