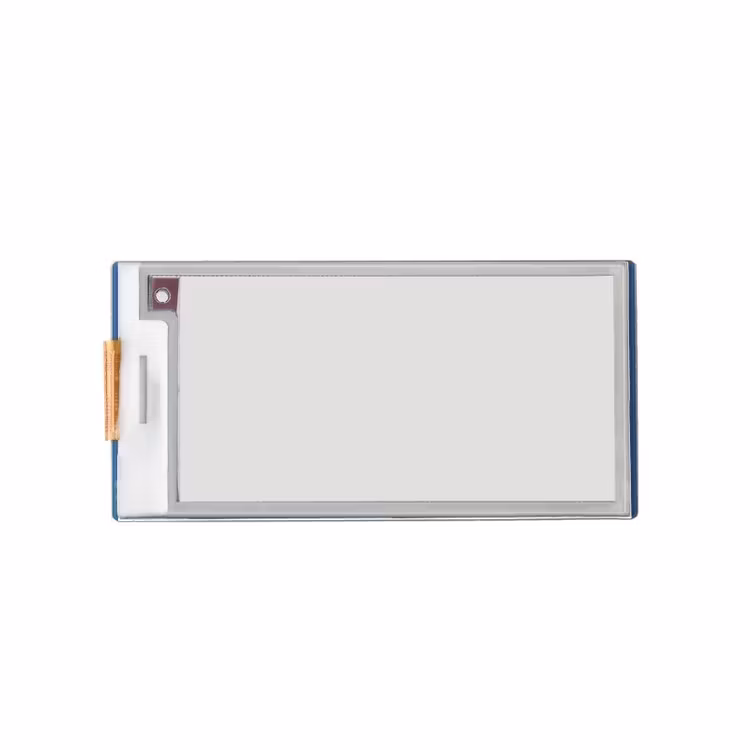

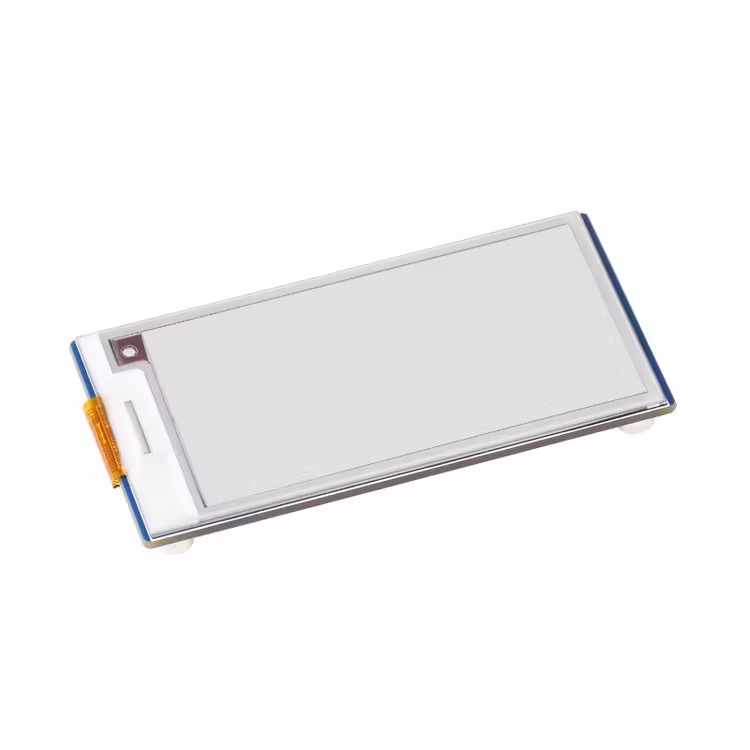

2.66inch E-Paper E-Ink Display Module (B) for Raspberry Pi Pico

  • 299 kr

2.66inch E-Paper E-Ink Display Module (B) for Raspberry Pi Pico, 296×152, Red / Black / White, SPI.Low Power, Wide Viewing Angle, Paper-Like EffectIdeal for pri


I lager.
Artikelnummer: 1011
Dela
  • Information

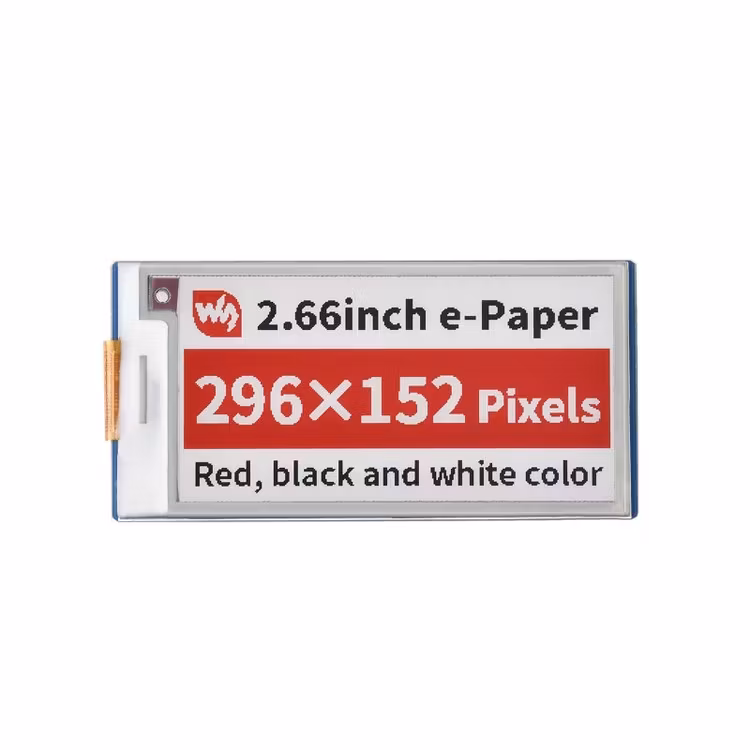

2.66inch E-Paper E-Ink Display Module (B) for Raspberry Pi Pico, 296×152, Red / Black / White, SPI.

Low Power, Wide Viewing Angle, Paper-Like Effect

Ideal for price tags, shelf labels, industrial instruments...



Size 2.66"

Resolution 296×152

Viewing Angle >170°

Display Color Red / Black / White

Grey Scale 2

Communication SPI

Display Panel E-paper

Experience Paper-like

Comfortably Reading Eye Care, No Bluelight

Environment Ambient Light Required


Display Type Passively Reflective

Power Consumption Ultra Low

Display Duration Persists without Power

Features At A Glance

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, requires minimal IO pins
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

OPERATING VOLTAGE
3.3V
DISPLAY COLOR
red, black, white
INTERFACE
3-wire SPI, 4-wire SPI
GREY SCALE
2
OUTLINE DIMENSIONS
74.00 × 37.50mm
FULL REFRESH TIME
15s
DISPLAY SIZE
60.088 × 30.704mm
REFRESH POWER
42.4mW (typ.)
DOT PITCH
0.203 × 0.202mm
STANDBY CURRENT
<0.01uA (almost none)
RESOLUTION
296×152 pixels
VIEWING ANGLE
>170°


Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

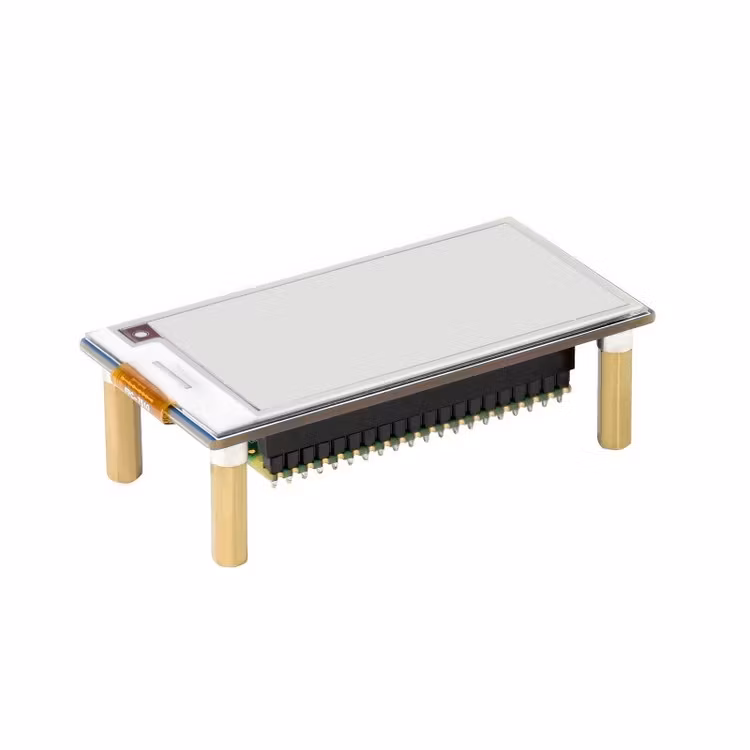

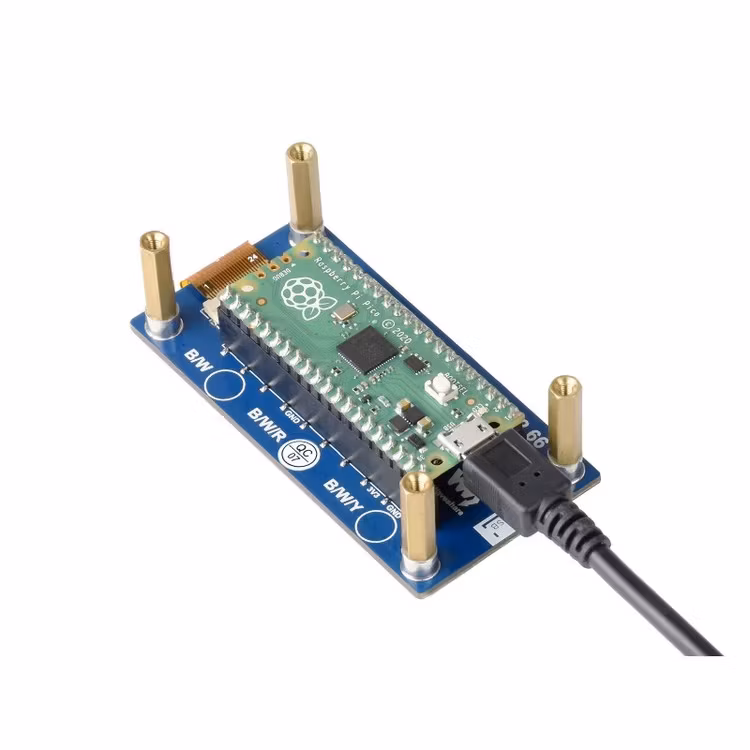

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Pinout Definition

Outline Dimensions

Resources & Services


WIKI: Pico-ePaper-2.66-B

Weight: 0.034 kg

  1. Pico-ePaper-2.66-B x1
  2. Standoff pack x1

1

2

Alternative 2

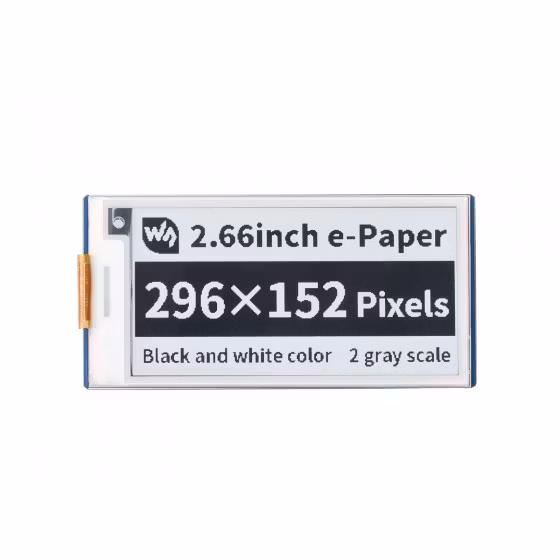

2.66inch E-Paper E-Ink Display Module For Raspberry Pi Pico, 296×152 Pixels, Black / White, SPI Interface

WIKI: Pico-ePaper-2.66


Shipping  list

Weight: 0.034 kg

  1. Pico-ePaper-2.66 x1
  2. Standoff pack x1

1

2
