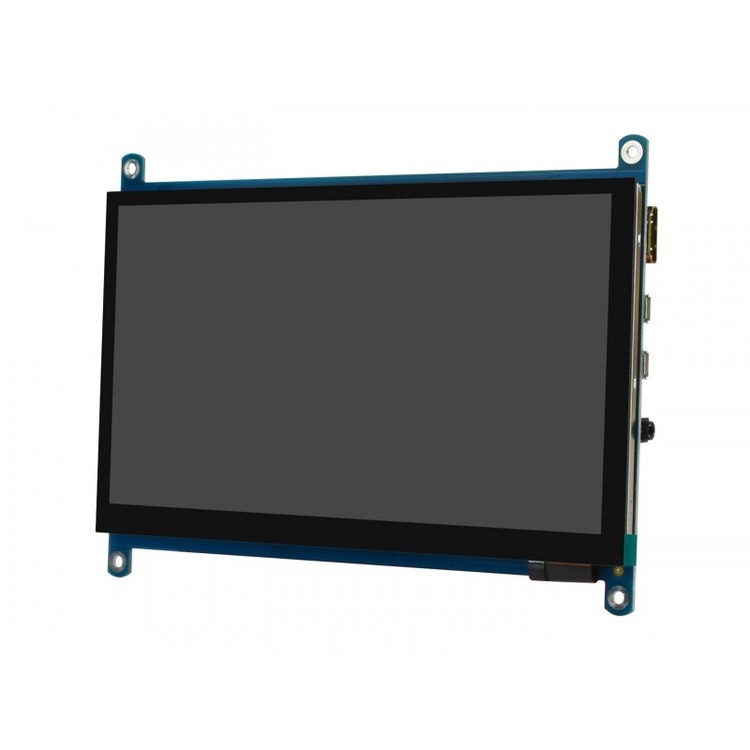

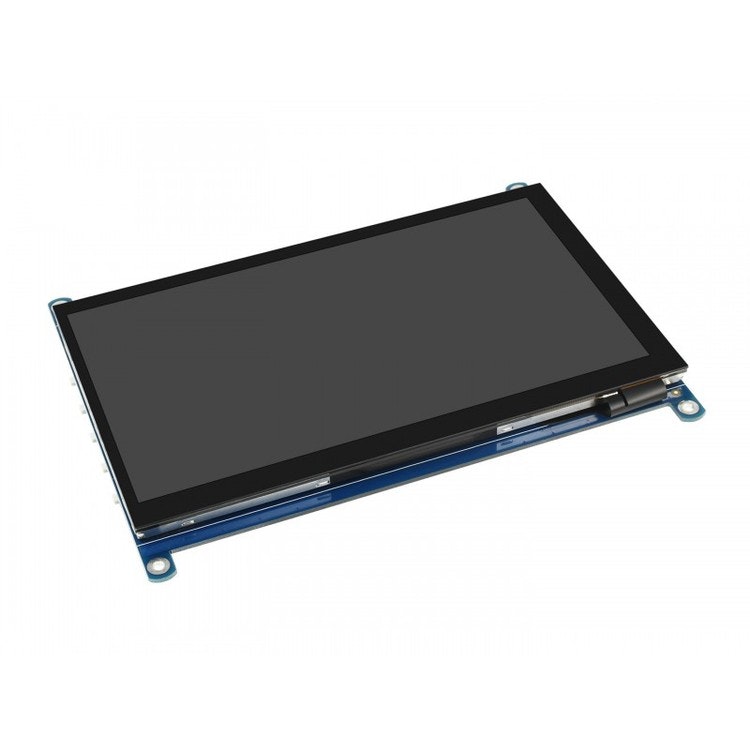

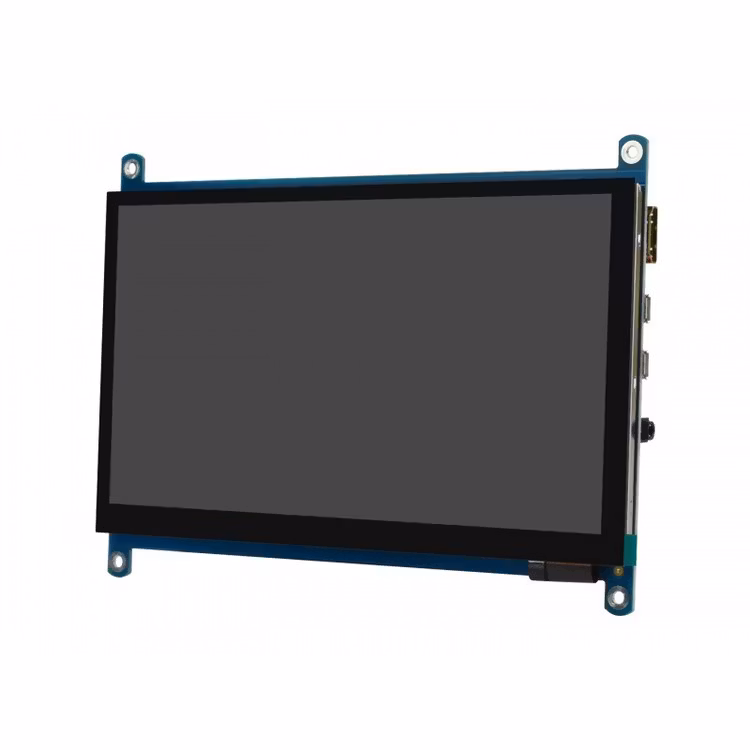

7inch QLED Quantum Dot Display, Capacitive Touch

I lager.
Antal: 2
949 kr

892 kr

Artikelnummer: 876

7inch QLED Quantum Dot Display, Capacitive Touch, 1024×600, G+G Toughened Glass Panel, Various Devices & Systems Support.

7" QLED Quantum Dot Display


Size 7"

Resolution 1024×600

Display Port HDMI

Display Panel IPS

Viewing Angle 170°

Backlight QLED Quantum Dot

Touch Type Capacitive

Touch Points 5-Points

Touch Port USB

Touch Panel G+G Toughened Glass

OSD Menu Brightness/Contrast

Audio Output1 3.5mm Jack

Audio Output2 4PIN Header

Gaming Xbox360/PS4/Switch

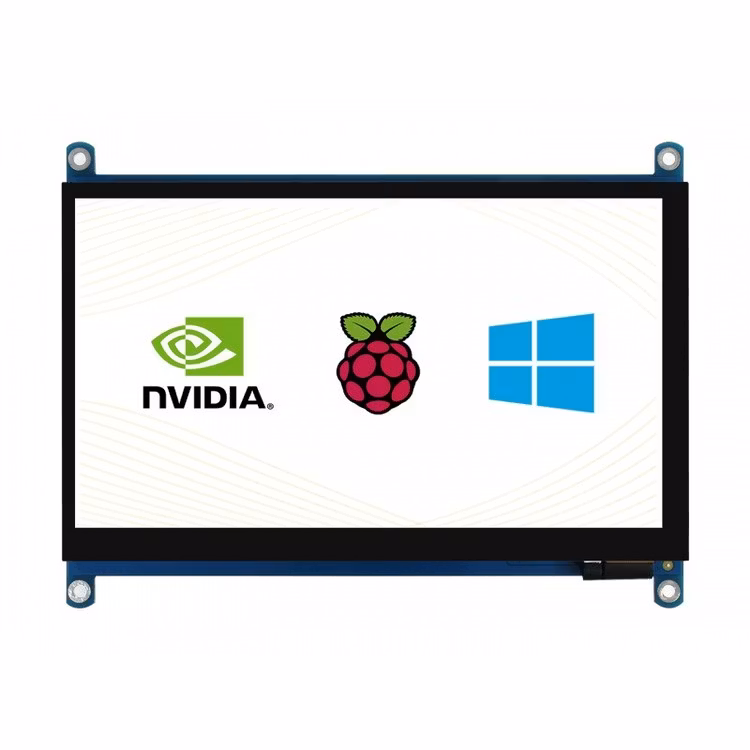

Device & System Support



Raspberry Pi

Supports Raspbian, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 10 / 8.1 / 8 / 7, 5-points touch, driver free

Game Console

Xbox360, PS4, Switch...

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With AI Computer Jetson Nano

Working With Mini PC

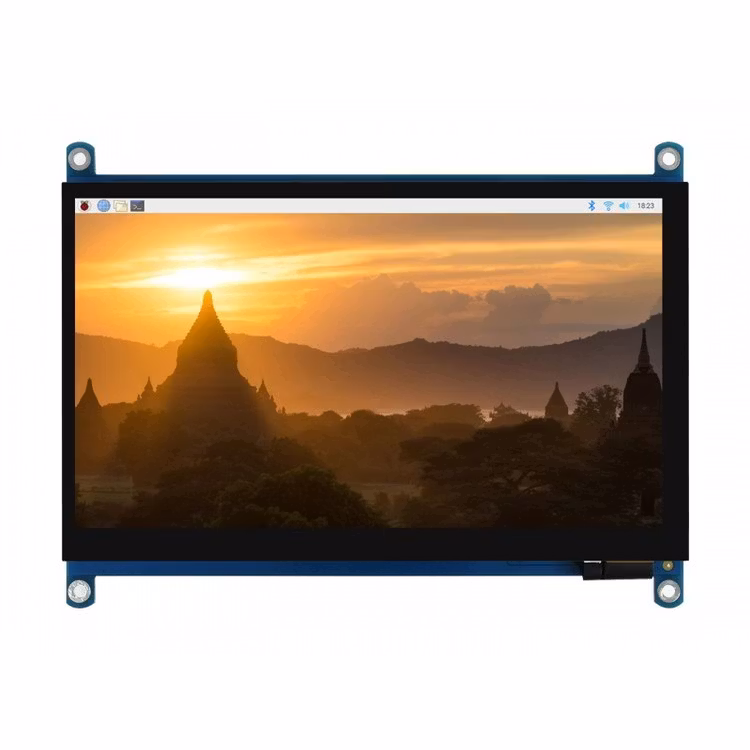

Display

QLED Panel

QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: NTSC 78%, SRGB 92%

More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

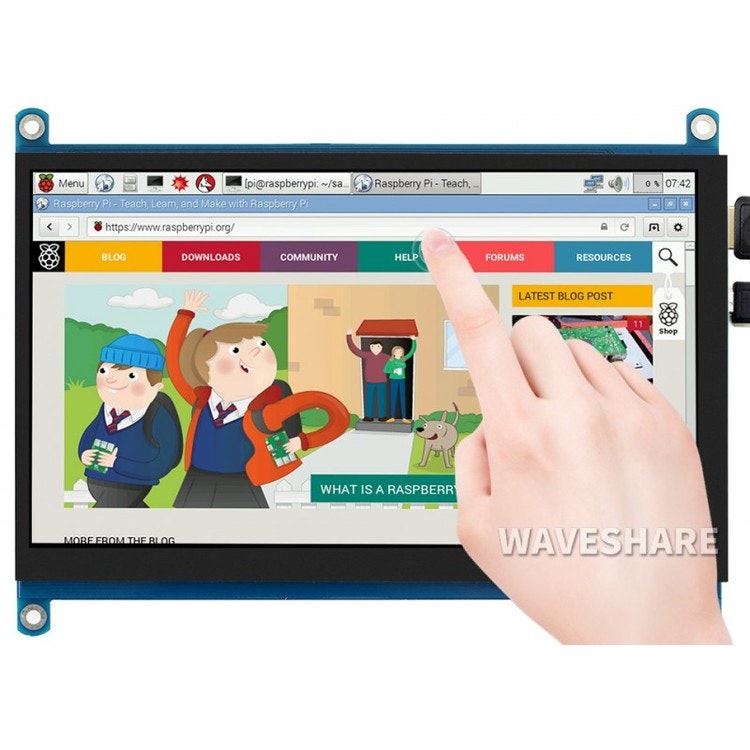

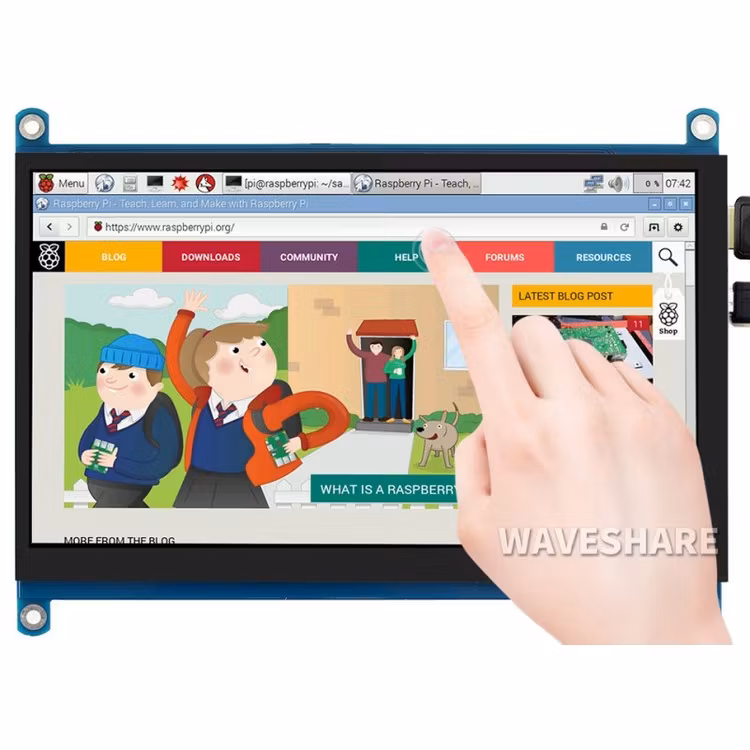

Touch Control



1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness G-G toughened glass panel.

Backlight Control

The Backlight Brightness Is Adjustable Via Software

Enjoy Gaming



* audio output via earphone/speaker port.

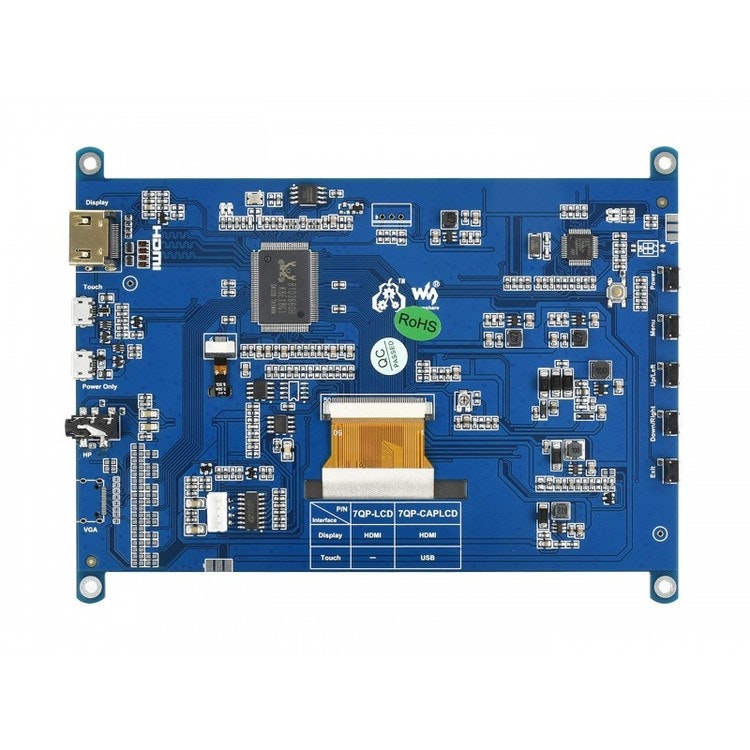

Demystifying Design Details

  1. LCD FFC cable anti-interference design, more stable for industrial application
  2. VCOM voltage adjustment for optimizing display effect
  3. USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
  4. 4~5.5V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage
  5. Low dropout ideal diode isolation, when both the Touch and Power Only are connected to a power source, only the one with more power capability will be used as power supply. The two power inputs are totally isolated to prevent any breakdown
  6. Two audio outputs for earphone and speaker, each track of speaker supports 2.6W PA circuit
  7. OSD menu config buttons for adjusting backlight (via software) and display color
  8. DC-DC LCD driver circuit, low heating on long term operation

Appearance And Dimensions

Wiki: 7HP-CAPQLED

Shippings list

Weight: 0.428 kg

  1. 7HP-CAPQLED x1
  2. HDMI cable x1
  3. HDMI to Micro HDMI Adapter x1
  4. USB type A plug to micro B plug cable x1
  5. RPi screws pack (4pcs) x 1
