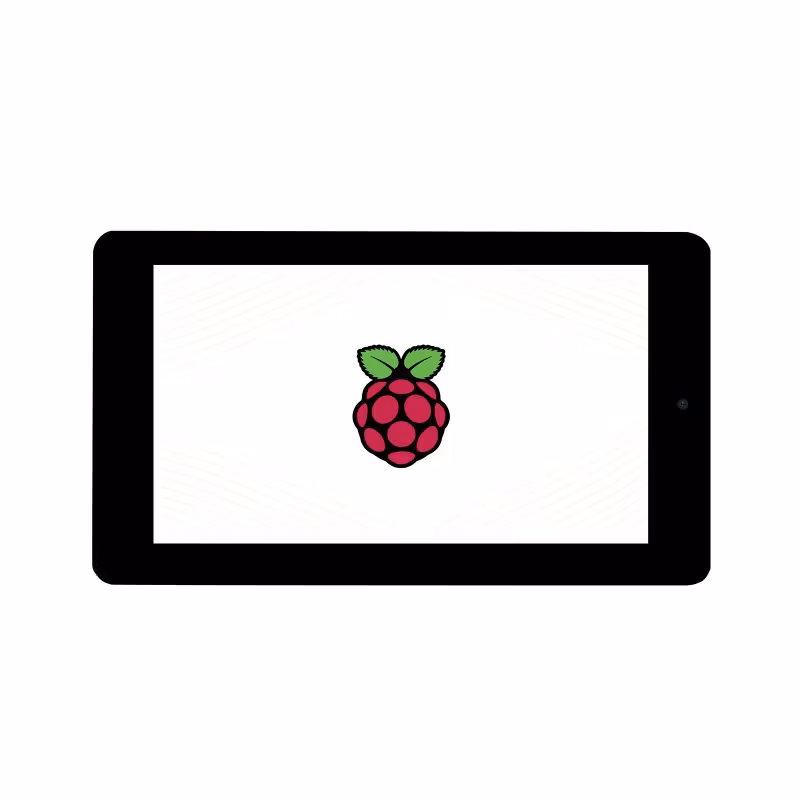

7inch Capacitive Touch Display for Raspberry Pi, with 5MP Front Camera, 800×480, DSI

I lager.

999 kr

Artikelnummer: 1085

7″ Touch Display With 5MP Front Camera

Size 7″


Resolution 800×480

Front Camera 5MP

Display Port DSI

Camera Port CSI

Touch Type Capacitive

´

Touch Points 5-Points

Touch Port I2C

Touch Panel Toughened Glass

Power Consumption. Low Power

Device & System Support



Raspberry Pi

Supports Raspberry Pi OS, 5-points touch, driver free
Supports Ubuntu, single point touch, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*

* CM3/3+/4 requires extra adapter board

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

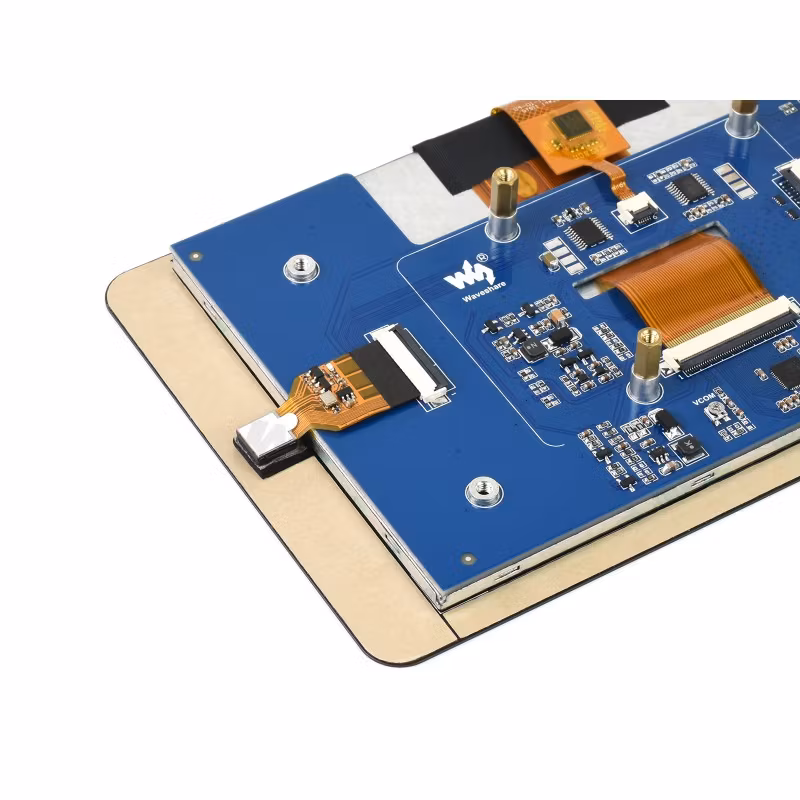

5MP Front Camera

SENSOR
OV5647
CMOS SIZE
1/4 inch
PIXELS
5MP
APERTURE
F2.4
FOCAL LENGTH
3.89mm
DIAGONAL FOV
72.9°
DISTORTION
< 1.5%
DEPTH OF FIELD
20cm ~ ∞
2592 × 1944 still image resolution
VIDEO
1920 × 1080p @30, 1280 × 720p @60, 640 × 480p @60, 640 × 480p @90

Touch Control



1) up to 5-points touch, depending on the operating system.

Adjustable Brightness Via Software

Appearance And Dimensions

Resources & Services

Wiki: 7inch_DSI_LCD_(with_cam)

Shippings list

Weight: 0.281 kg

  1. 7inch DSI LCD x1
  2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x2
  3. FPC 15PIN 1.0 pitch 120mm (opposite sides) x1
  4. 2PIN wire 10cm x1
  5. Screws pack x1
