TFT 2.4 Touch Shield V1.0.0 for LOLIN (WEMOS) D1 mini 2.4"

  • 399 kr

TFT 2.4 Touch Shield V1.0.0 for LOLIN (WEMOS) D1 mini 2.4" inch 320X240 SPI Touch Screen ILI9341 XPT2046.Features2.4” diagonal LCD TFT display320X240 pixelsTFT

I lager.
Lagersaldo: 10
Artikelnummer: SKU198
Dela
  • Information

TFT 2.4 Touch Shield V1.0.0 for LOLIN (WEMOS) D1 mini 2.4" inch 320X240 SPI Touch Screen ILI9341 XPT2046.

Features

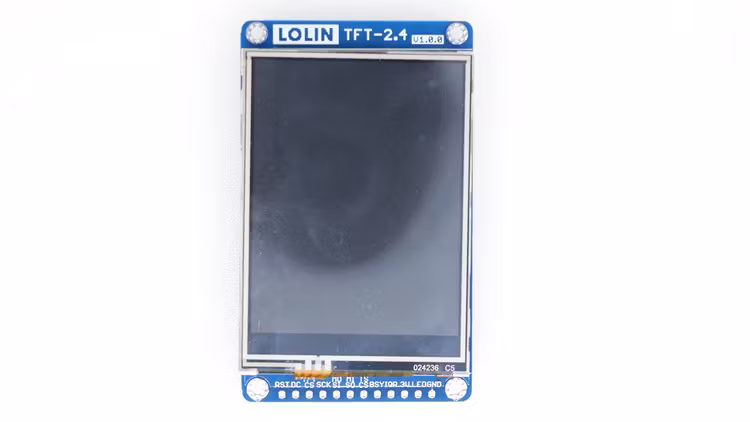

  • 2.4” diagonal LCD TFT display
  • 320X240 pixels
  • TFT Driver IC: ILI9341
  • Touch Screen controller IC: XPT2046

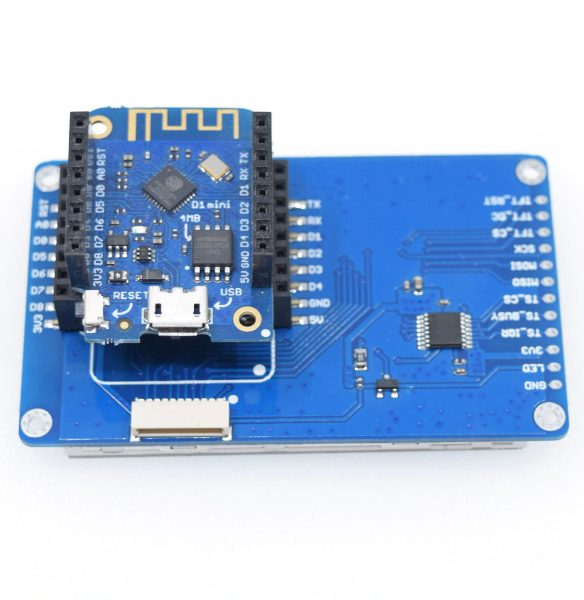

  • Compatible with D1 mini, D1 mini Pro, D32 Pro.
  • 3 kinds of connection

Pins

D1 mini
GPIO
Shield
NC*(D1/D2/D3/D4)
NC*(5/4/0/2)
TFT_LED
RST*(D1/D3/D4))
RST*(5/0/2)
TFT_RST
D8
15
TFT_DC
D7
13
MOSI
D6
12
MISO
D5
14
SCK
D0
16
TFT_CS
D3*(D1/D2/D4)
0*(5/4/2)
TS_CS

* - default

Documents

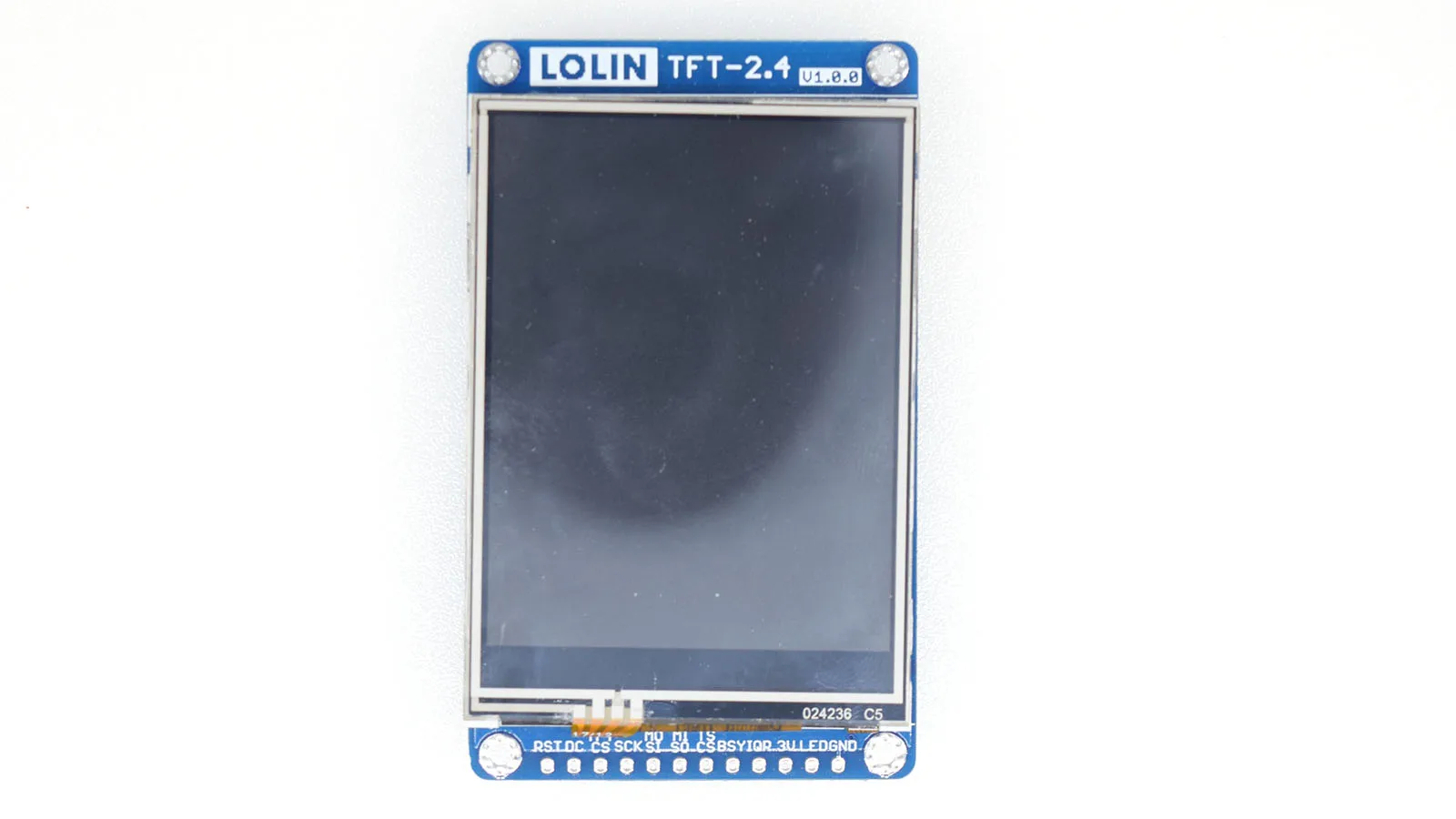

TOP

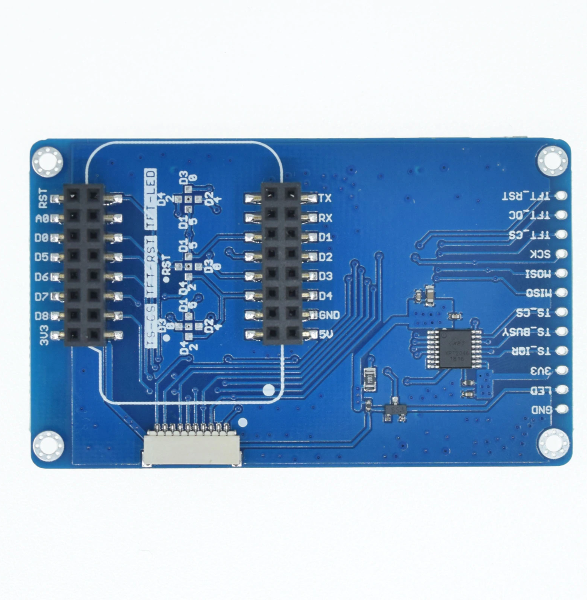

Bottom

Dimensions

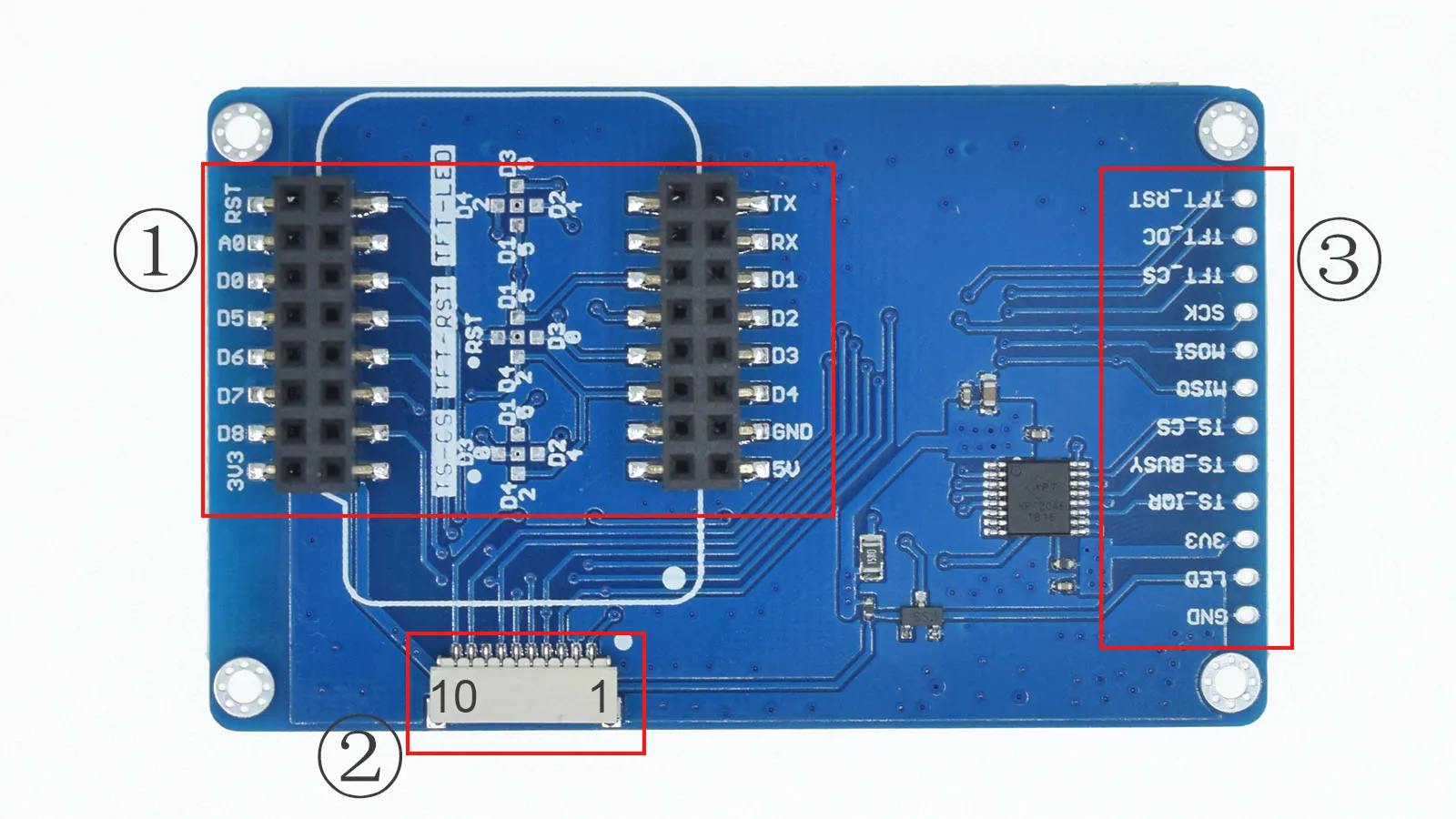

Connection method

  1. D1 mini Shield Connector

  Compatible with D1 mini.

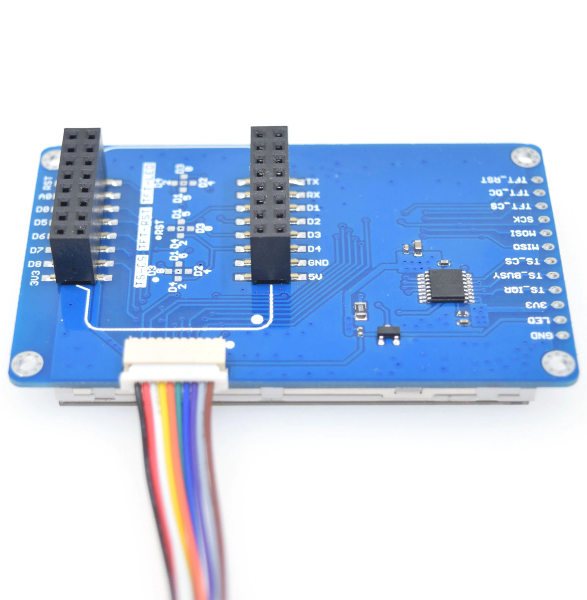

  2. SH1.0-10P Connector

  Using 10P TFT Cable, connect to the TFT&I2C Connector Shield (V1.1.0 or later) or D32 Pro.



  3. 1x12P 2.54mm Connector



Shipping list:

  1.TFT 2.4 Shield  x1pcs
