NanoV3.0 ATmega328P NRF24L01 Wireless Module with USB Type C

I lager.
Antal: 9

199 kr

Artikelnummer: 938

USB Type-C NRF24L01 Nano 2.4G NanoV3.0 ATmega328P NRF24L01 USB Wireless Module.

Description:

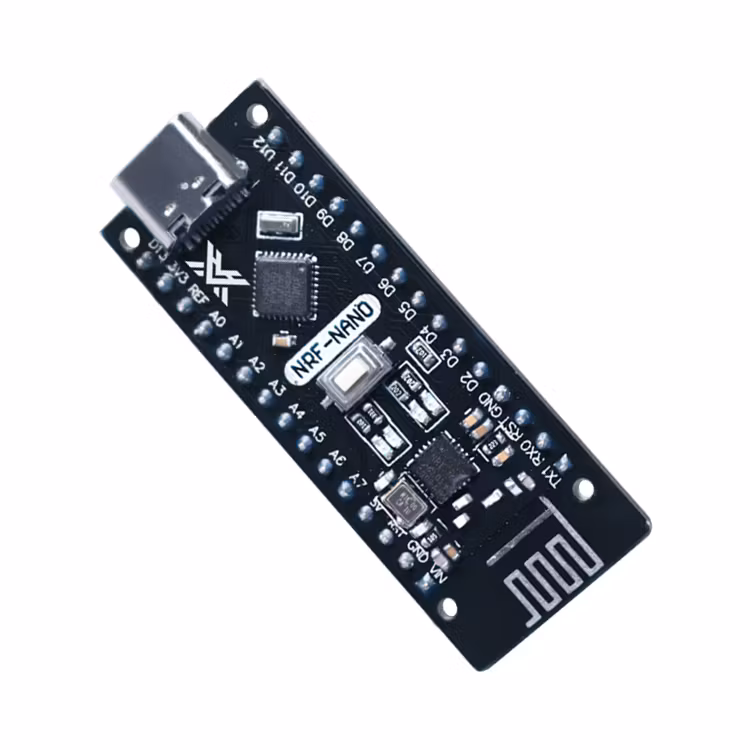

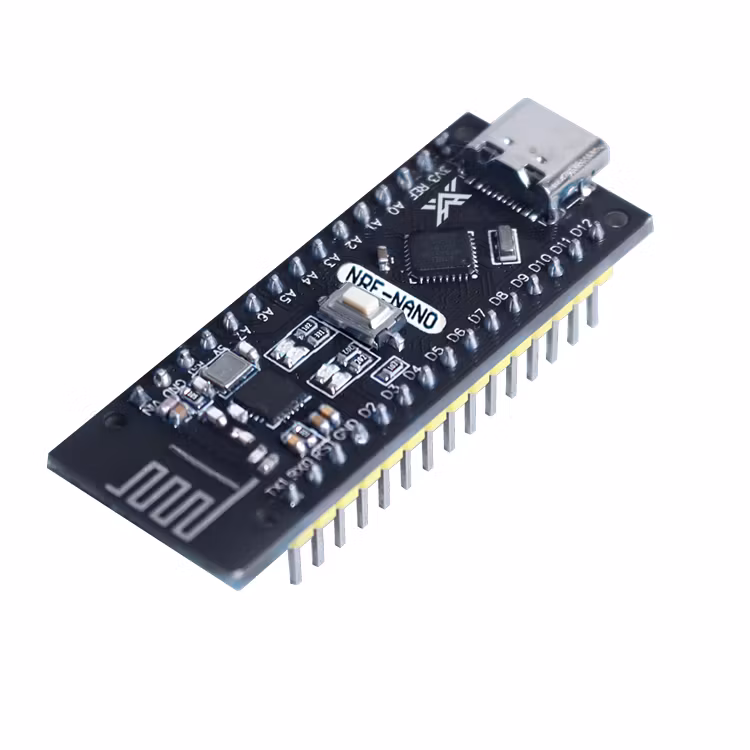

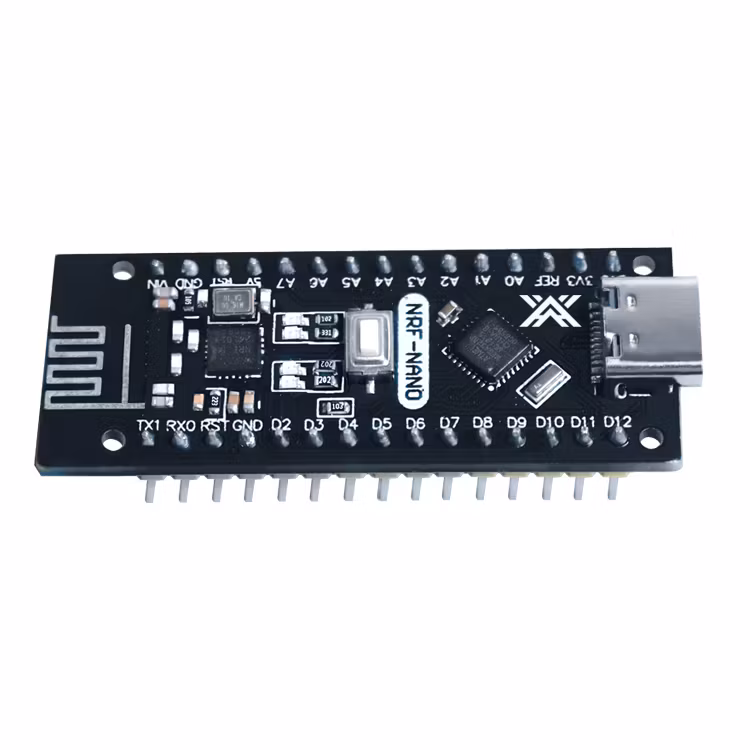

1.The NRF-NANO board integrates the NRF24L01+ chip.

2.It is equivalent to combining an ordinary Nano board and a NRF24L01 module into one.

3.The type-c usb is more convenient to use and small in size.

4.NRF-NANO has exactly the same pins as the common Nano board.

5.The NRF-NANO microprocessor is ATmega328 (Nano3.0).

6.With Type-c USB interface, it also has 14 digital input/output ports (6 of which can be used as PWM output), 8 analog inputs, a 16MHz crystal oscillator, an ICSP header and a reset button.

7.NRF-Nano power supply mode: Type-c USB interface power supply and external vin connection 7~12V external DC power supply

8.Memory:ATmega328 includes on-chip 32KB Flash, of which 2KB is used for Bootloader. There are also 2KB SRAM and 1KB EEPROM.

Specifications:

Processor: ATmega328
Working voltage: 5V
Input voltage (recommended): 7-12V
Input voltage (range): 6-20V
Digital IO pins: 14 (6 of which are used as PWM outputs) (D0~D13)
Analog input pins: 6 (A0~A5)
IO pin DC current: 40mA
Flash Memory: 32KB (of which 2KB is used for bootloader)
SRAM: 2KB

EEPROM: 1KB (ATmega328)

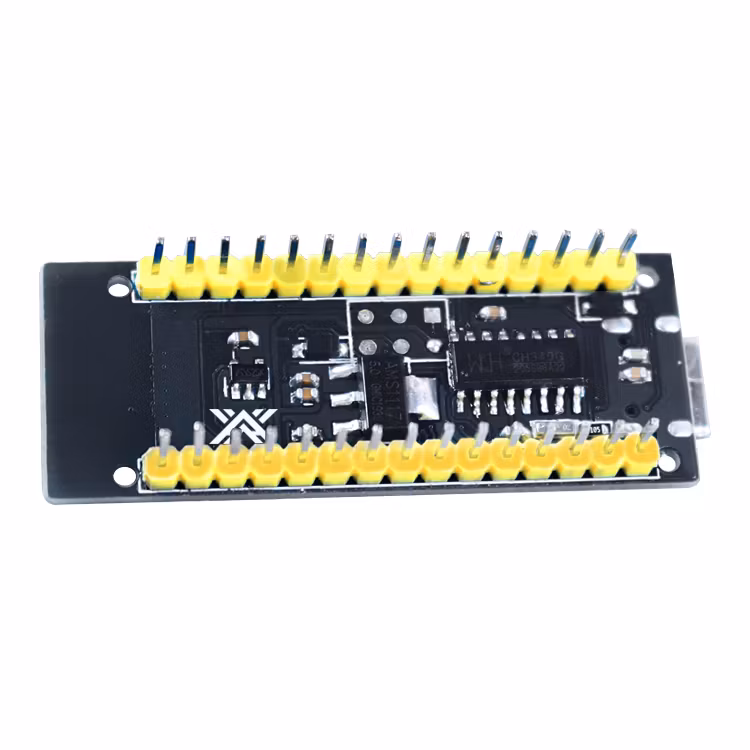

USB to serial chip: CH340
Working clock: 16 MHZ

Package list

1 × NanoV3.0 Wireless Module
Standard Anti-static Poly Bag
USB Type C


Description:

  1. The NRF-NANO board integrates the NRF24L01+ chip.
  2. It is equivalent to combining an ordinary Nano board and a NRF24L01 module into one.
  3. The type-c usb is more convenient to use and small in size.
  4. NRF-NANO has exactly the same pins as the common Nano board.
  5. The NRF-NANO microprocessor is ATmega328 (Nano3.0).
  6. With Type-c USB interface, it also has 14 digital input/output ports (6 of which can be used as PWM output), 8 analog inputs, a 16MHz crystal oscillator, an ICSP header and a reset button.
  7. NRF-Nano power supply mode: Type-c USB interface power supply and external vin connection 7~12V external DC power supply
  8. Memory:ATmega328 includes on-chip 32KB Flash, of which 2KB is used for Bootloader. There are also 2KB SRAM and 1KB EEPROM.

Specifications:

Processor: ATmega328
Working voltage: 5V
Input voltage (recommended): 7-12V
Input voltage (range): 6-20V
Digital IO pins: 14 (6 of which are used as PWM outputs) (D0~D13)
Analog input pins: 6 (A0~A5)
IO pin DC current: 40mA
Flash Memory: 32KB (of which 2KB is used for bootloader)
SRAM: 2KB

EEPROM: 1KB (ATmega328)
USB to serial chip: CH340
Working clock: 16 MHZ

Package list

1 × NanoV3.0 Wireless Module
Standard Anti-static Poly Bag

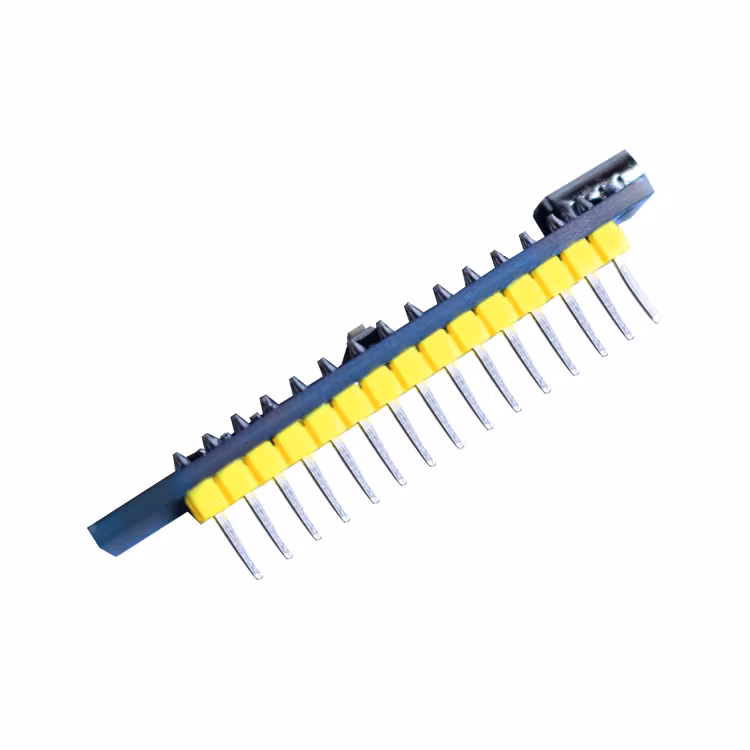

Details Images
