Ai-Thinker ESP-C3-M-I-Kit IPEX antenna C3 mini series development board

  • 125 kr

Ai-Thinker NEW ESP-C3-M-I-Kit IPEX antenna C3 mini series development board base on ESP32-C3 chip.SpecificationDevelopment board modelESP-C3-M1-I-KitSuitable mo

I lager.
Artikelnummer: 1072
Dela
  • Information

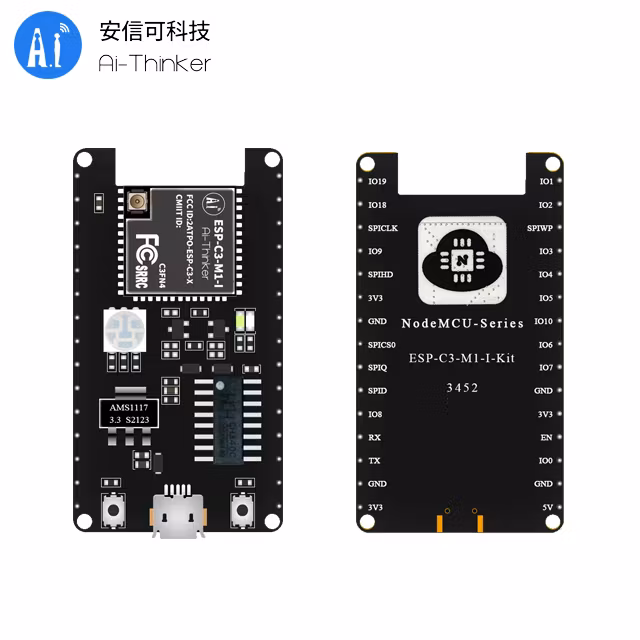

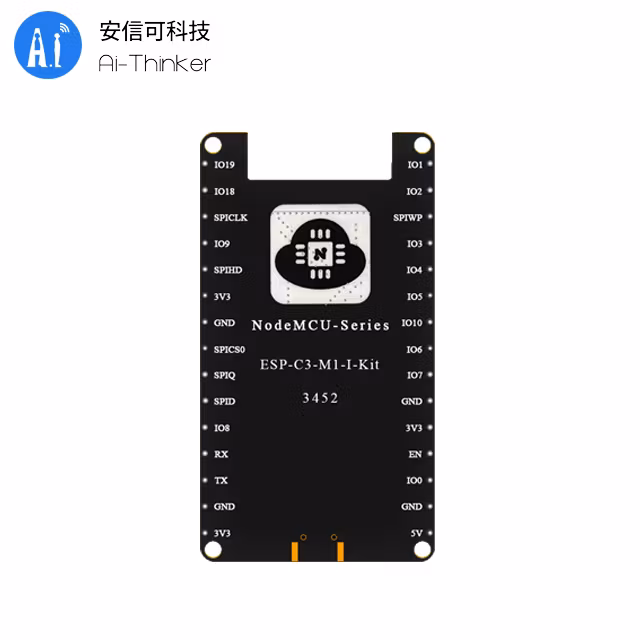

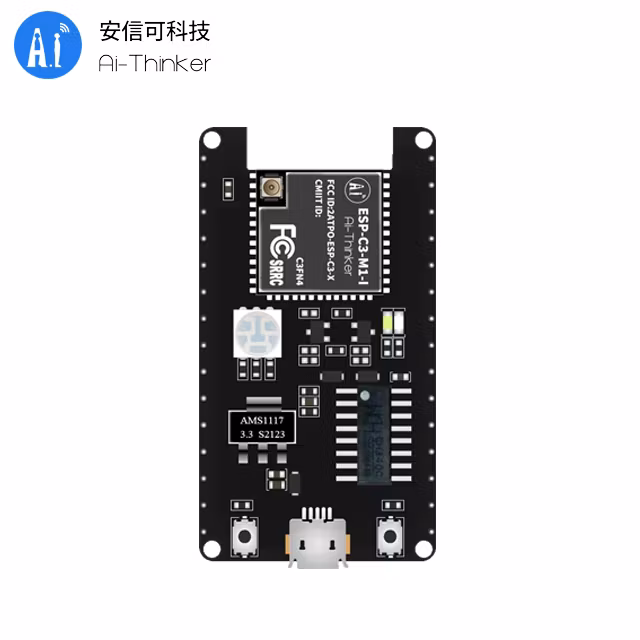

Ai-Thinker NEW ESP-C3-M-I-Kit IPEX antenna C3 mini series development board base on ESP32-C3 chip.


Specification

Development board model
ESP-C3-M1-I-Kit
Suitable module
ESP-C3-M1-I
Package
DIP-30 (2.54mm pitch standard pin header)
Size
48.26*25.4(±0.2)mm
Antenna
IPEX interface, an external antenna is required
Operating temperature
-40 ℃ ~ 85 ℃
Storage environment
-40 ℃ ~ 125 ℃，< 90%RH
Power supply range
Voltage: 5V, Electrical current ≥ 500mA
Support Interface
UART/I2C/PWM/ADC/GPIO/SPI/I2S
IO
16 GPIO(including TX0\RX0 and USB_D-\USB_D+)
UART Rate
Support 110 ~ 4608000 bps, default 115200 bps
BlE
BLE 5.0
Security
WEP/WPA-PSK/WPA2-PSK
Flash
Built-in 4MB Flash
