IMX219-83 Stereo Camera, 8MP Binocular Camera Module, Depth Vision

I lager.
Antal: 2

835 kr

Artikelnummer: 754

Leverans v20

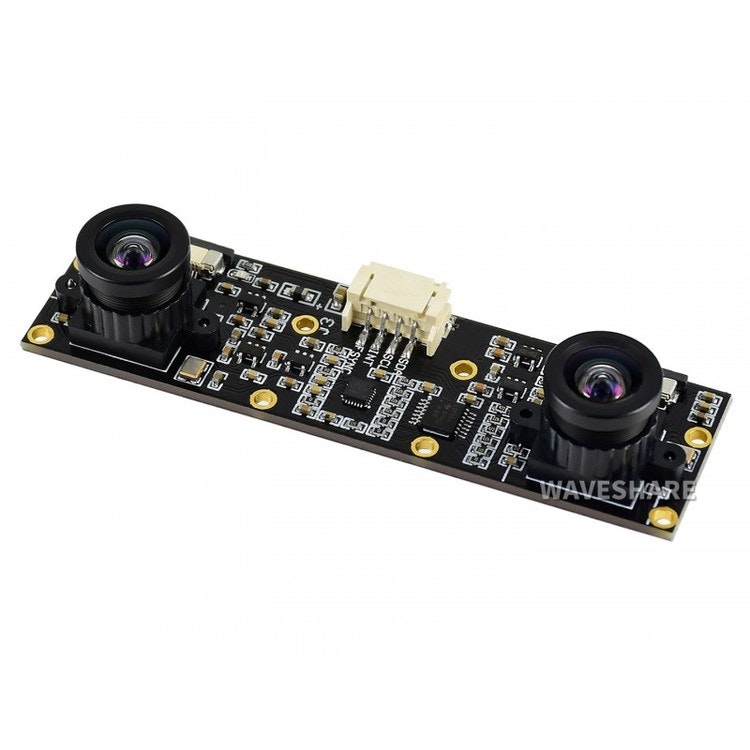

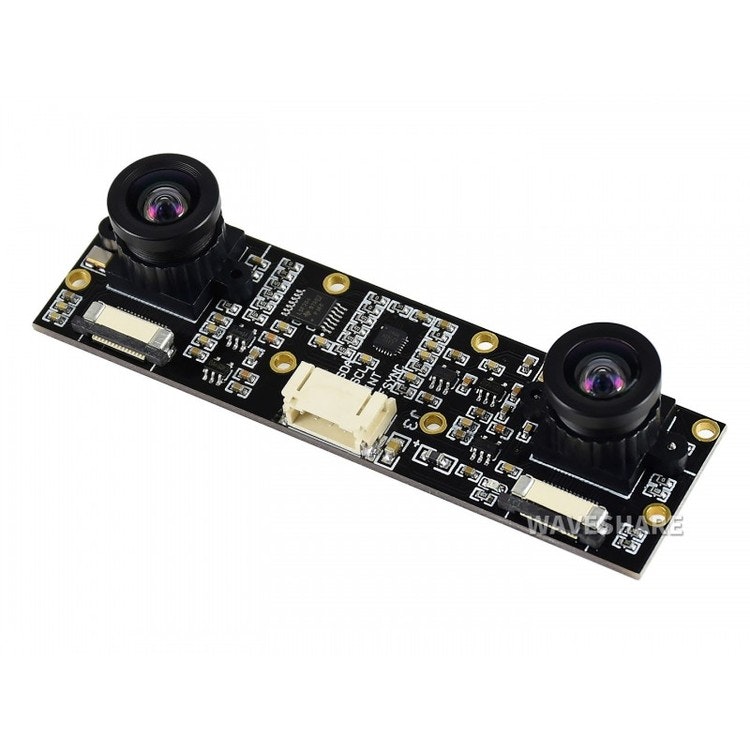

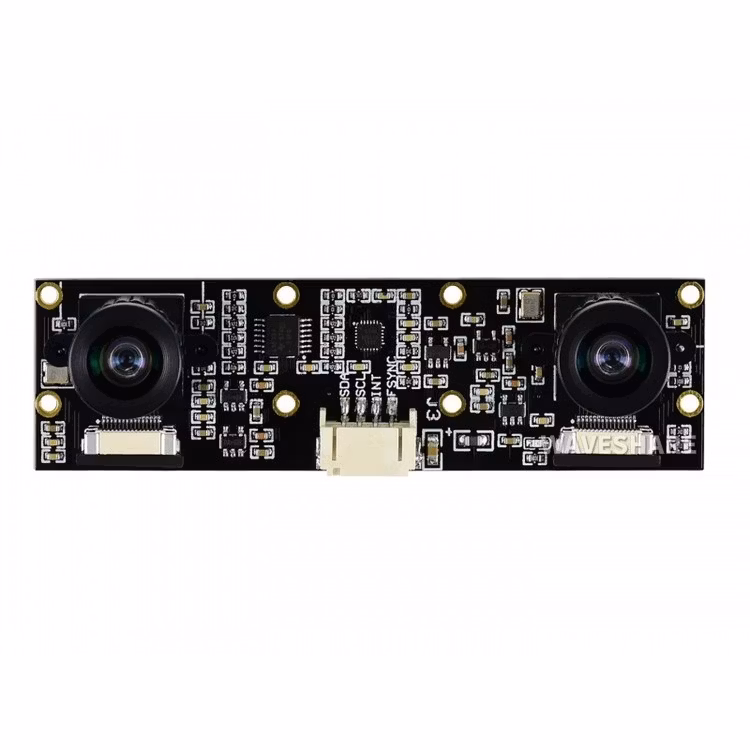

Binocular Camera Module, Dual IMX219, 8 Megapixels, Stereo Vision, Depth Vision

Overview

This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.

The module supports NVIDIA Jetson Nano Developer Kit B01 version, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.

Specifications

  • 8 Megapixels
  • Sensor: Sony IMX219
  • Resolution: 3280 × 2464 (per camera)
  • Lens specifications:
    • CMOS size: 1/4inch
    • Focal Length: 2.6mm
    • The angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
    • Distortion: <1%
    • Baseline Length: 60mm
  • ICM20948:
    • Accelerometer:
      • Resolution: 16-bit
      • Measuring Range (configurable): ±2, ±4, ±8, ±16g
      • Operating Current: 68.9uA
    • Gyroscope:
      • Resolution: 16-bit
      • Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec
      • Operating Current: 1.23mA
    • Magnetometer:
      • Resolution: 16-bit
      • Measuring Range: ±4900μT
      • Operating Current: 90uA
  • Dimension: 24mm × 85mm

Applications

AI vision applications like depth vision and stereo vision.

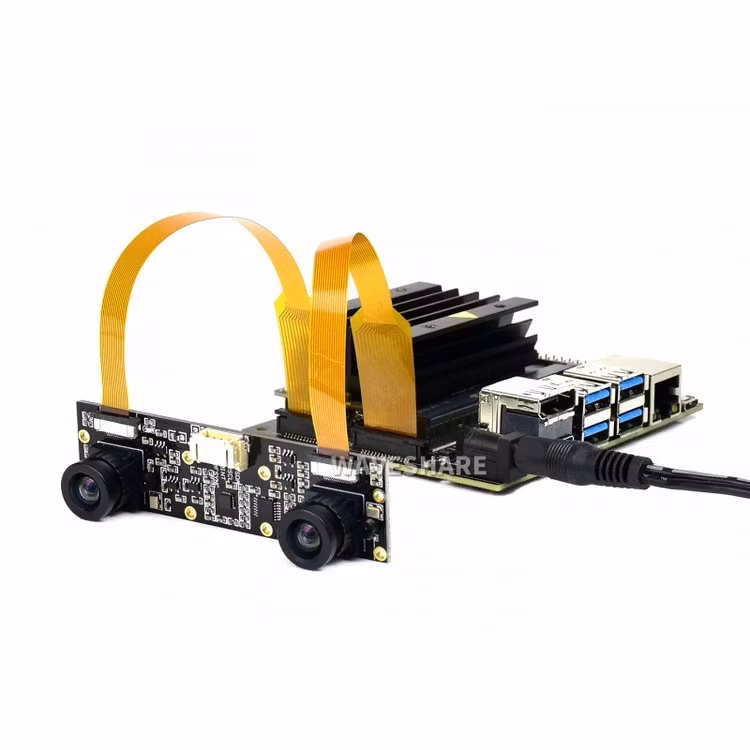

Example

IMX219-83 Stereo Camera dimensions

Note: for reference only, Jetson Nano Developer Kit (B01) is NOT included.

Dimensions

IMX219-83 Stereo Camera dimensions

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-83_Stereo_Camera

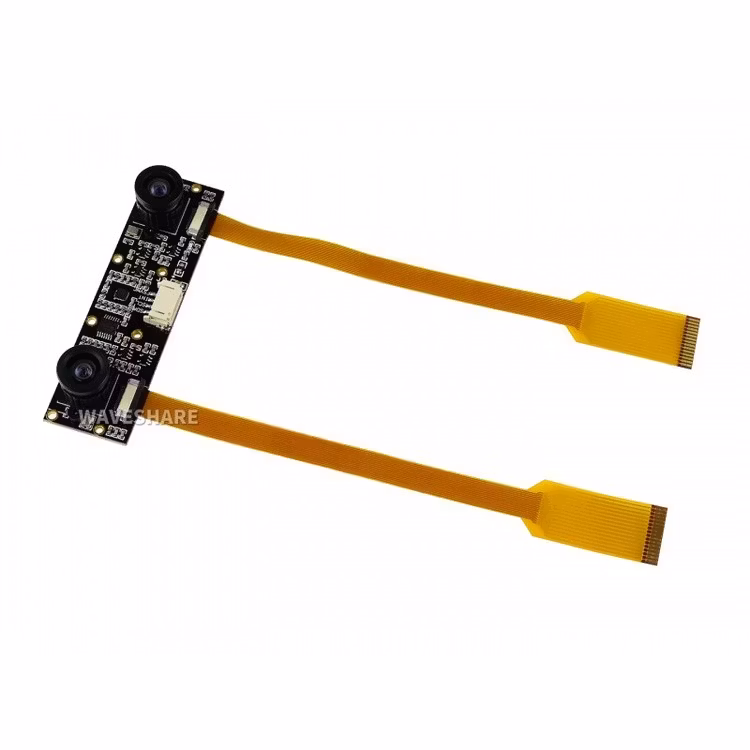

Shipping list

Weight: 0.023 kg

  1. IMX219-83 Stereo Camera x1
  2. FFC (2PCS) x1
  3. PH2.0 4PIN wire x1
