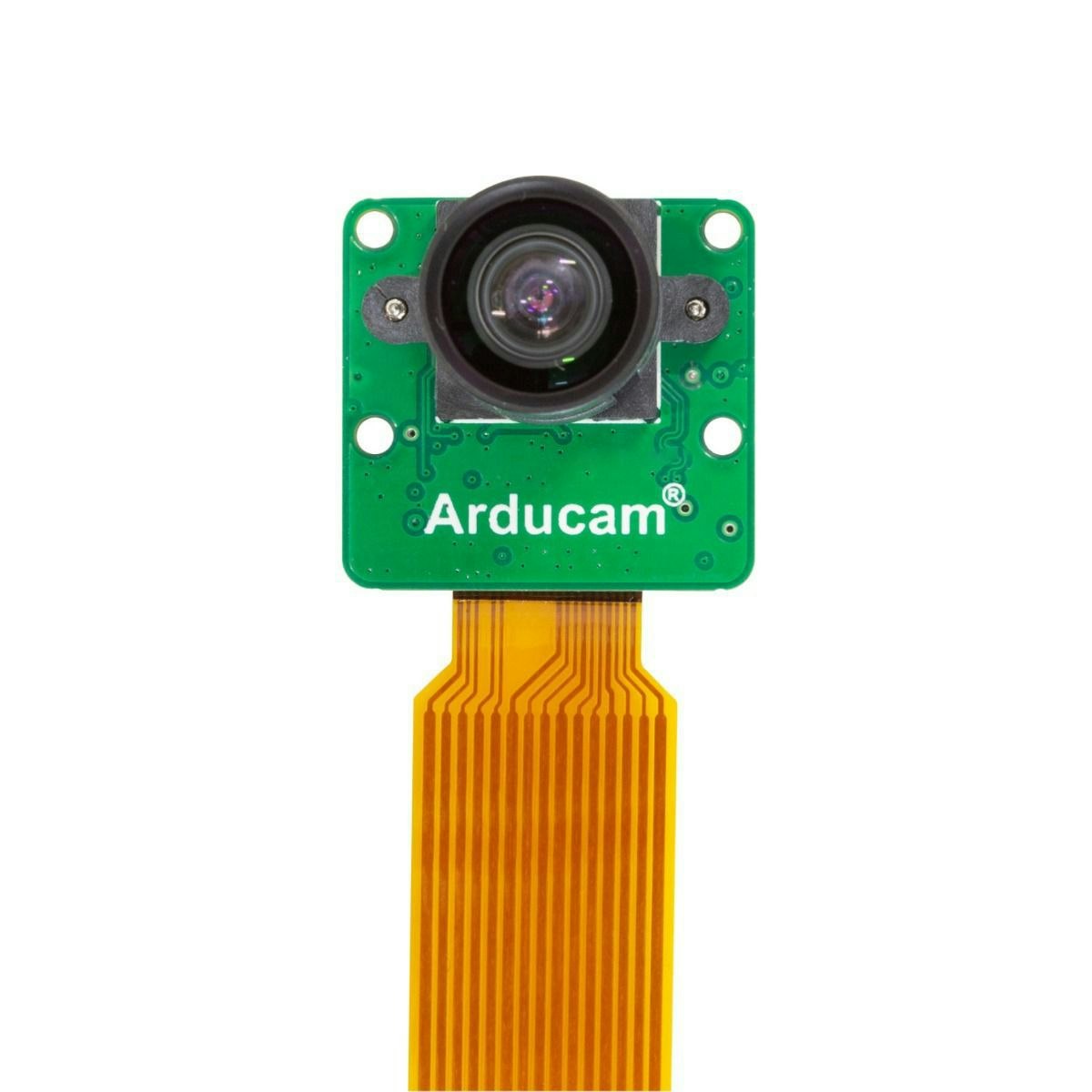

Arducam 12MP IMX477 Mini HQ Camera Module for Raspberry Pi and Pi zero

  • 999 kr

Item DescriptionTime to enjoy a smooth upgrade for your IMX219 to the 12MP IMX477 camera, or relieve the stress from the bulky Raspberry Pi High Quality Camera

I lager.
Artikelnummer: B0262
Dela

Item Description

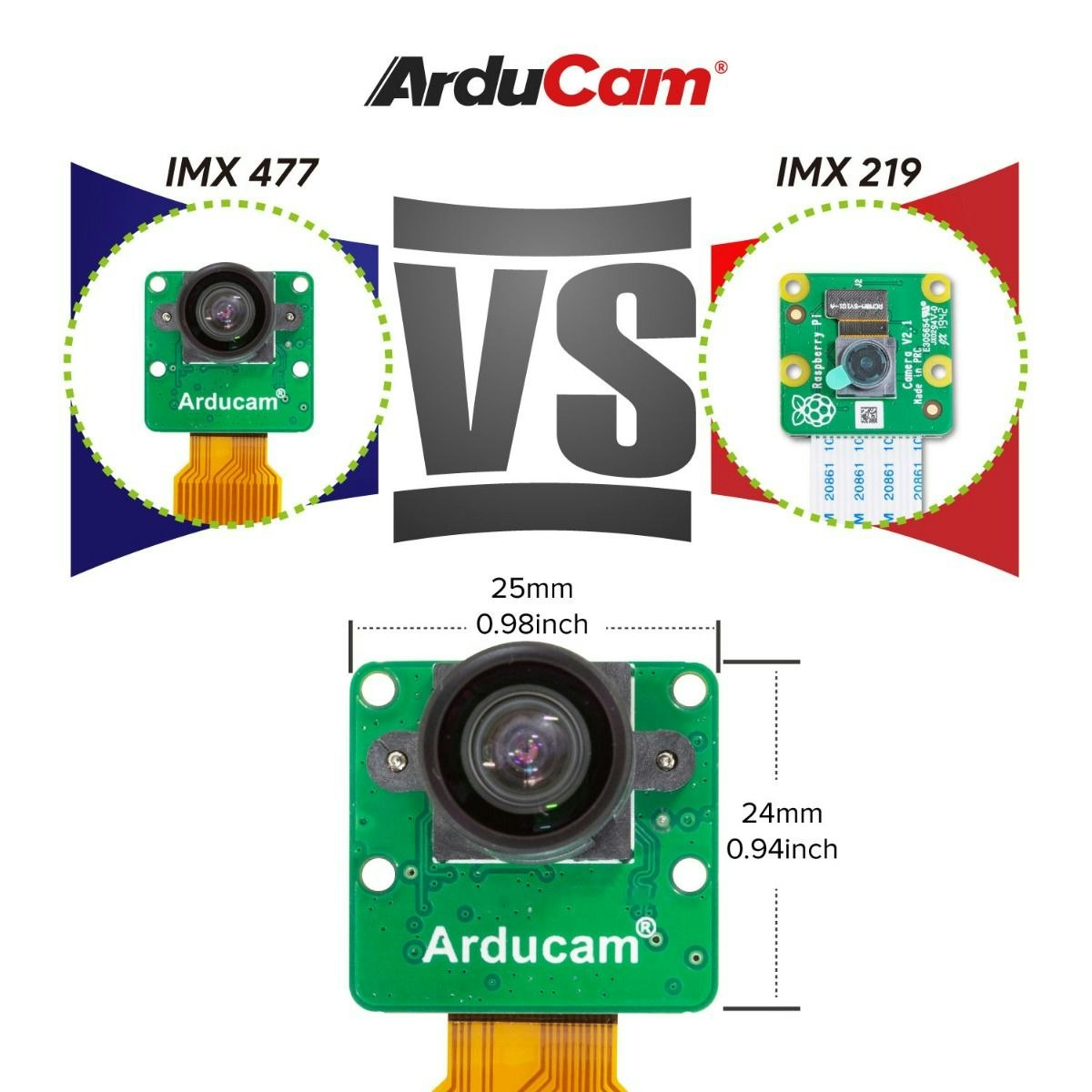

Time to enjoy a smooth upgrade for your IMX219 to the 12MP IMX477 camera, or relieve the stress from the bulky Raspberry Pi High Quality Camera Module! This Arducam 12MP IMX477 camera module for Raspberry Pi has the same camera board size and mounting holes as the Raspberry Pi Camera Module V2, so no major hardware modifications are needed to ditch your 8MP IMX219 and embrace Arducam. Space- and weight- constrained IMX477 applications, such as drones, also benefits from this camera, because it keeps the same imager performance and same control commands as the official Raspberry Pi High Quality Camera, while offering a much smaller size and lighter weight, as well as interchangeable M12 lenses.

Features

  • Resolution: High Resolution
  • Shutter Type: Rolling Shutter
  • Color Type: Color
  • IR sensitivity: Visible light only
  • Interface: MIPI
  • Platform Support:  Raspberry Pi
  • Picrure Format: JPEG (accelerated), JPEG + RAW, GIF, BMP, PNG, YUV420, RGB888
  • Video formats: raw h.264 (accelerated)

Specification

  • Sensor type: IMX477
  • Pixel size: 1.55um x 1.55um
  • Resolution: 4056(H) x 3040(V) 12.3MP
  • Optical Size: 1/2.3”
  • Lens spec: Focal length: 3.9mm, F.NO: 2.8, FOV: 75° (H), Low Distortion,M12 Mount, interchangeable
  • Color Filter: 650nm
  • Video Modes on Raspberry Pi: 1080p30, 720p60 and 640 × 480p60/90
  • Interface Type: 2-lane MIPI
  • Board Size: 24 x2 5mm
  • Partnumber: LN053
  • Peak Current: 300mA

Applications

  • UAV/Drones/FPV camera
  • Machine Vision
  • Robotics
  • Face Recognition
  • Defect Detection



Lens Options

SKULN059
LN036
LN058
LN024
LN053
LN033
LN069

LN064
LN056LN031
Part No
M17350H08
M2025ZM02
M231250H03
M2306ZM13
M23390H08
M23356H09
M23270H10
M23325H12
M23272M14
M25156H18
Optical Format1/2.3'1/2.3'1/2.3''1/2.3''1/2.3''1/2.3''1/2.3”1/2.3''1/2.3''1/2.3'
EFL(mm)35.0025.00 12.506.003.903.562.703.252.271.56
BFL(mm)5.505.20 2.117.564.495.924.974.103.014.30
Construction5G6G6G+IR6G+IR6G+IR4G3P+IR5G2P+IR7G+IR8G+IR6G+IR
F/NO3.02.0 2.352.02.82.52.82.22.52.0
HFOV on 1/2.3‘’ Cam20°30°50°75°90°100°120°140°180°
IR filterNo IR filterNo IR filter650 IR filter650 IR filter650 IR filter650 IR filter650 IR filter650 IR filter650 IR filter650 IR filter
MOD0.35m0.20m 0.30m0.30m0.30m0.20m0.30m0.30m0.20m0.20m
Size(mm)
22x 29.317 x 2114 x 22.7216x 16.4114x 18.6714x 16.316x 18.4317x 1917.2x 2220x 17.3



NOTE: The M12 Lens kit for the IMX477 HQ Camera module, please check LK003, 6 lenses are included.

Documentation

Package Including

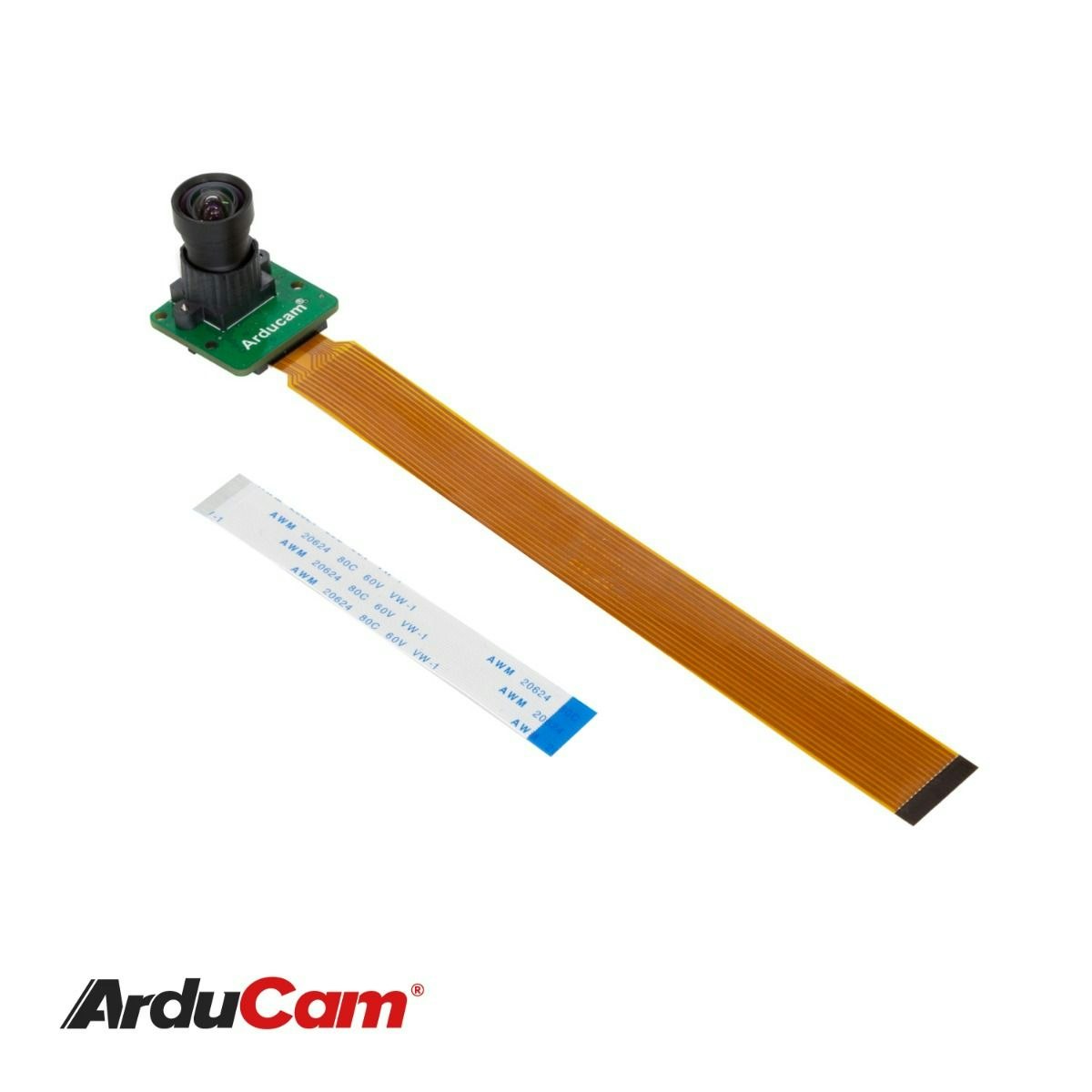

  • 1 pcs 12.3MP IMX477 color camera module with M12 mount lens
  • 1 pcs 150mm/12inch 15pin to 22pin camera cable
  • 1 pcs 80mm/3.1inch 22pin camera cable

Blog:

Arducam 12MP IMX477 HQ camera module for Raspberry Pi

Video:
