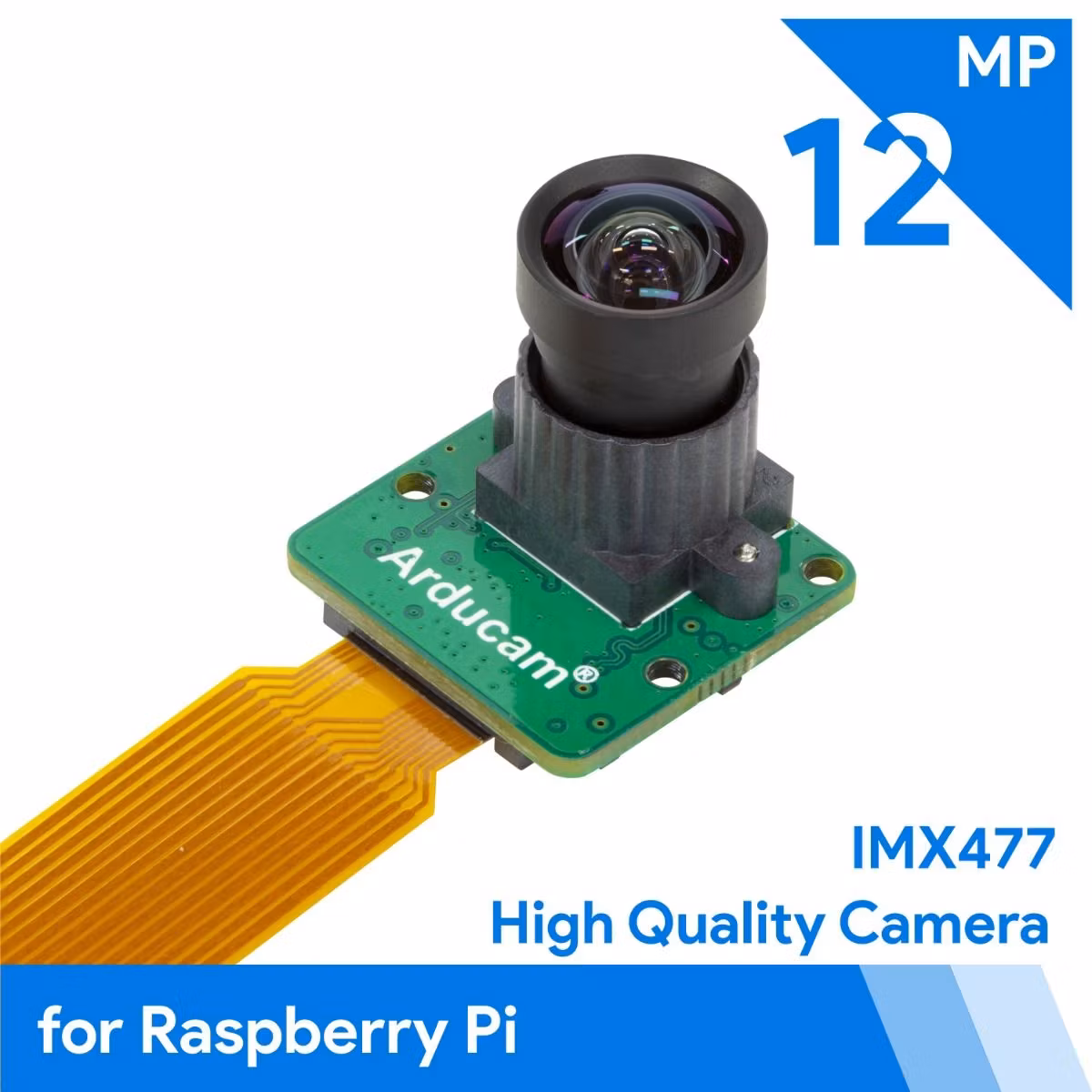

Arducam 12MP IMX477 Mini HQ Camera Module for Raspberry Pi and Pi zero

Arducam 12MP IMX477 Mini HQ Camera Module for Raspberry Pi and Pi zero

94.73 EUR

Item DescriptionTime to enjoy a smooth upgrade for your IMX219 to the 12MP IMX477 camera, or relieve the stress from the bulky Raspberry Pi High Quality Camera

Stock: 1

Article Number: B0262

Information

Item Description

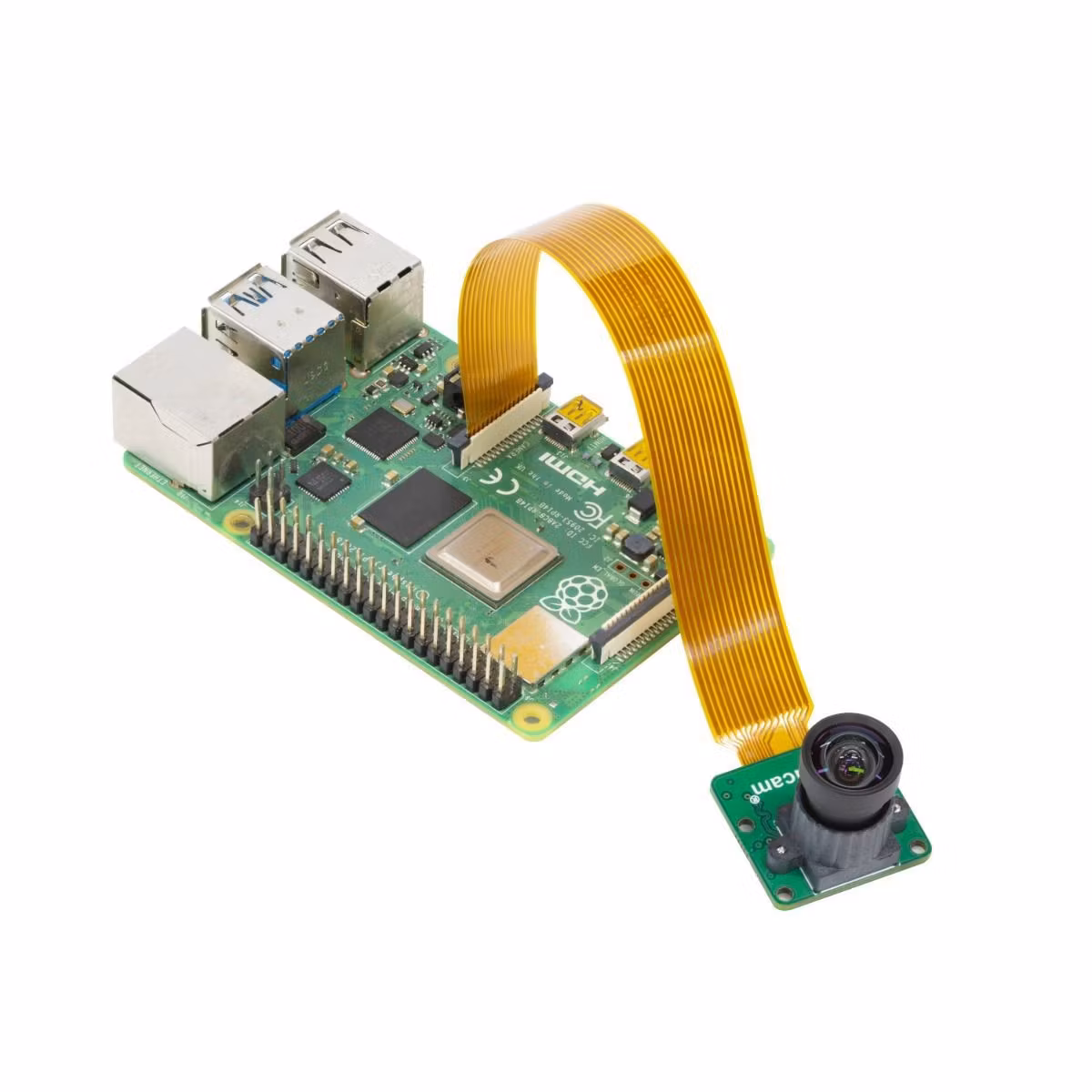

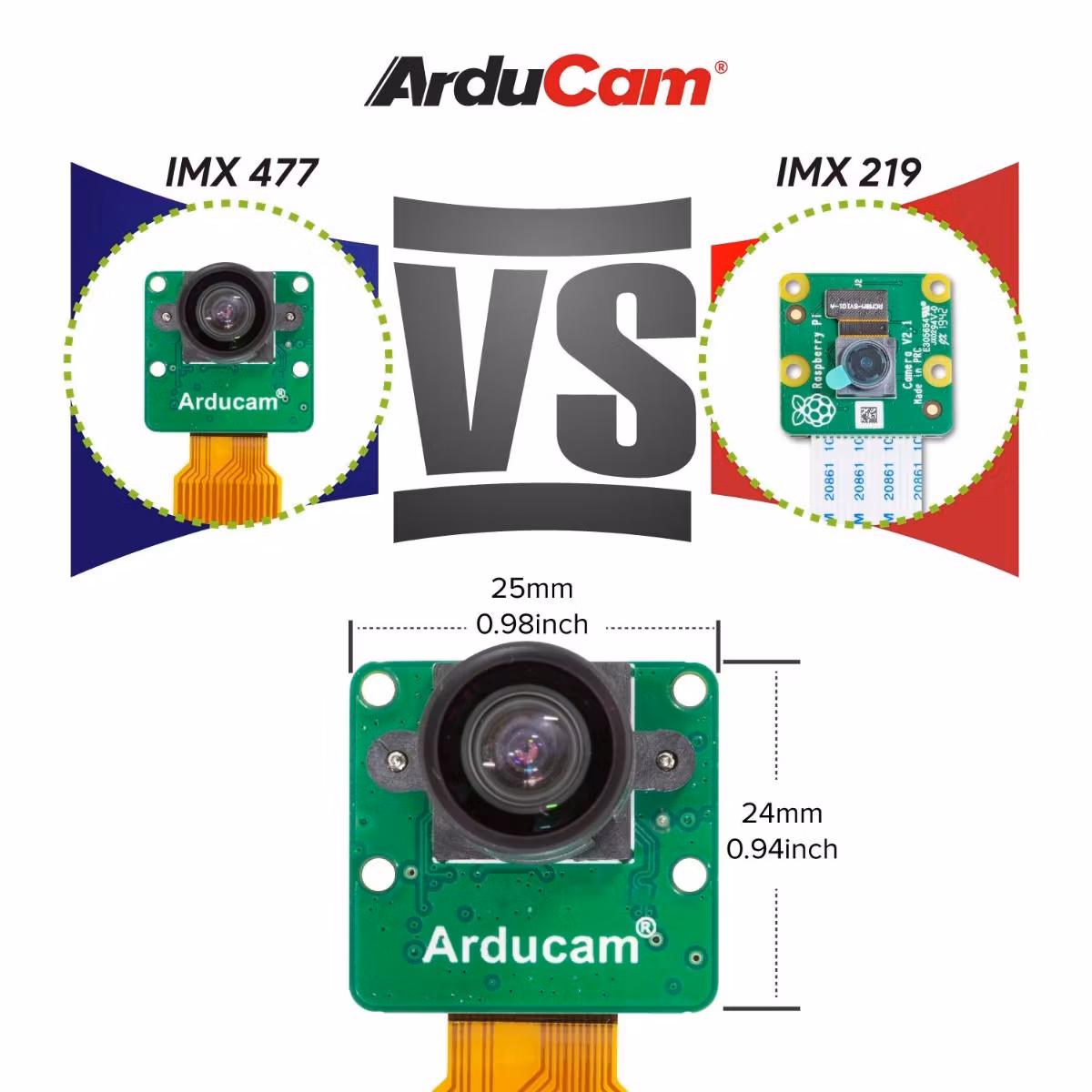

Time to enjoy a smooth upgrade for your IMX219 to the 12MP IMX477 camera, or relieve the stress from the bulky Raspberry Pi High Quality Camera Module! This Arducam 12MP IMX477 camera module for Raspberry Pi has the same camera board size and mounting holes as the Raspberry Pi Camera Module V2, so no major hardware modifications are needed to ditch your 8MP IMX219 and embrace Arducam. Space- and weight- constrained IMX477 applications, such as drones, also benefits from this camera, because it keeps the same imager performance and same control commands as the official Raspberry Pi High Quality Camera, while offering a much smaller size and lighter weight, as well as interchangeable M12 lenses.

Features

Resolution: High Resolution
Shutter Type: Rolling Shutter
Color Type: Color
IR sensitivity: Visible light only
Interface: MIPI
Platform Support: Raspberry Pi
Picrure Format: JPEG (accelerated), JPEG + RAW, GIF, BMP, PNG, YUV420, RGB888
Video formats: raw h.264 (accelerated)

Specification

Sensor type: IMX477
Pixel size: 1.55um x 1.55um
Resolution: 4056(H) x 3040(V) 12.3MP
Optical Size: 1/2.3”
Lens spec: Focal length: 3.9mm, F.NO: 2.8, FOV: 75° (H), Low Distortion,M12 Mount, interchangeable
Color Filter: 650nm
Video Modes on Raspberry Pi: 1080p30, 720p60 and 640 × 480p60/90
Interface Type: 2-lane MIPI
Board Size: 24 x2 5mm
Partnumber: LN053
Peak Current: 300mA

Applications

UAV/Drones/FPV camera
Machine Vision
Robotics
Face Recognition
Defect Detection

Lens Options

SKU	LN059	LN036	LN058	LN024	LN053	LN033	LN069	LN064	LN056	LN031
Part No	M17350H08	M2025ZM02	M231250H03	M2306ZM13	M23390H08	M23356H09	M23270H10	M23325H12	M23272M14	M25156H18
Optical Format	1/2.3'	1/2.3'	1/2.3''	1/2.3''	1/2.3''	1/2.3''	1/2.3”	1/2.3''	1/2.3''	1/2.3'
EFL(mm)	35.00	25.00	12.50	6.00	3.90	3.56	2.70	3.25	2.27	1.56
BFL(mm)	5.50	5.20	2.11	7.56	4.49	5.92	4.97	4.10	3.01	4.30
Construction	5G	6G	6G+IR	6G+IR	6G+IR	4G3P+IR	5G2P+IR	7G+IR	8G+IR	6G+IR
F/NO	3.0	2.0	2.35	2.0	2.8	2.5	2.8	2.2	2.5	2.0
HFOV on 1/2.3‘’ Cam	8°	20°	30°	50°	75°	90°	100°	120°	140°	180°
IR filter	No IR filter	No IR filter	650 IR filter	650 IR filter	650 IR filter	650 IR filter	650 IR filter	650 IR filter	650 IR filter	650 IR filter
MOD	0.35m	0.20m	0.30m	0.30m	0.30m	0.20m	0.30m	0.30m	0.20m	0.20m
Size(mm)	22x 29.3	17 x 21	14 x 22.72	16x 16.41	14x 18.67	14x 16.3	16x 18.43	17x 19	17.2x 22	20x 17.3

NOTE: The M12 Lens kit for the IMX477 HQ Camera module, please check LK003, 6 lenses are included.
