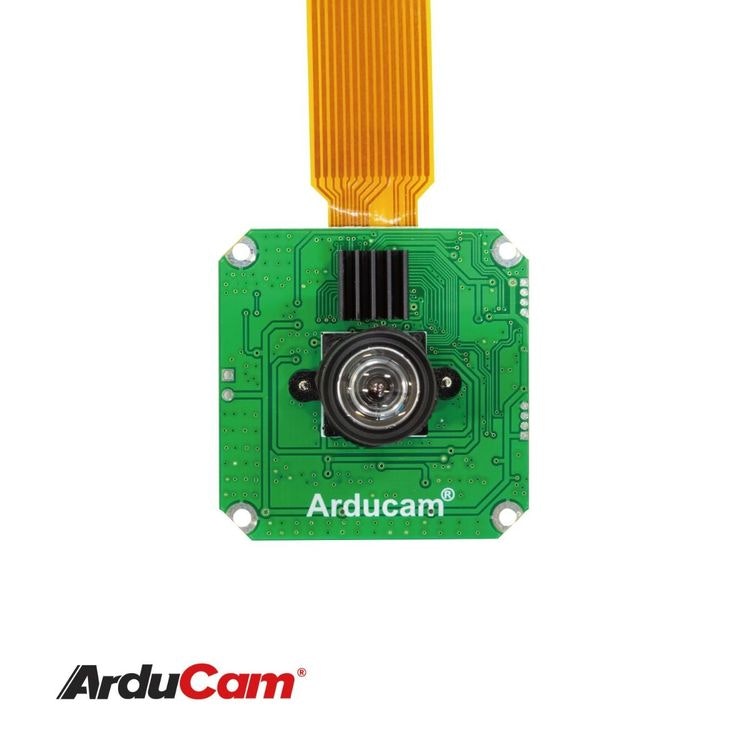

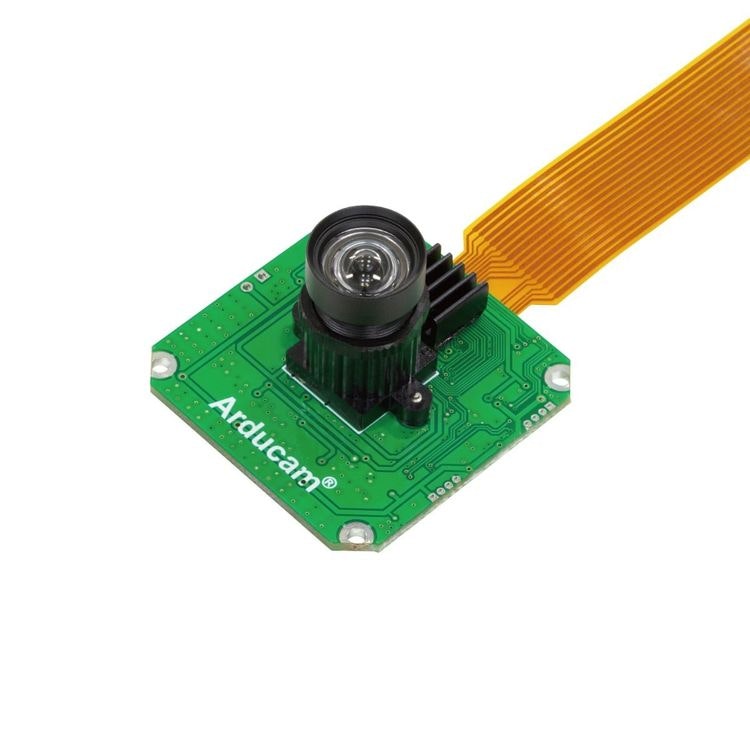

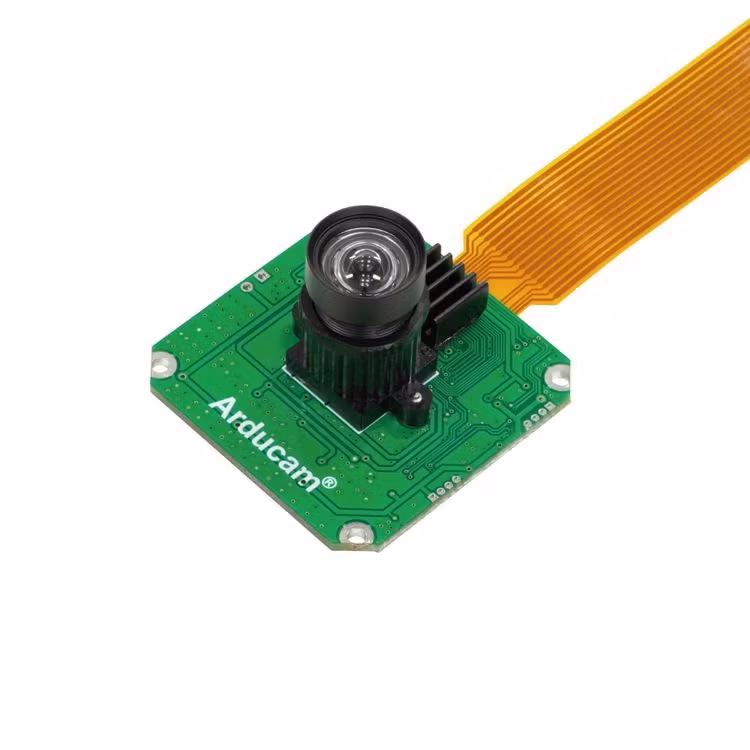

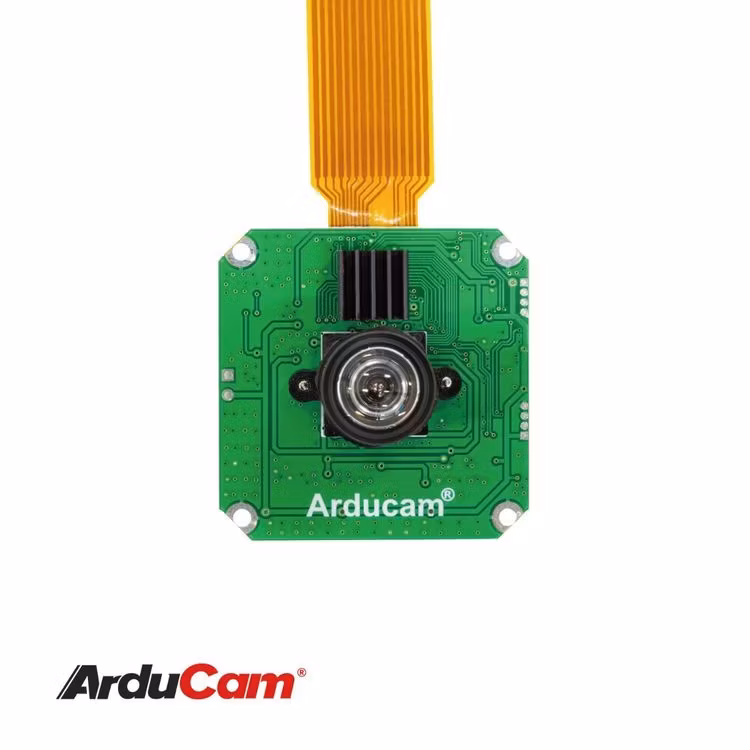

Arducam 2MP AR0230 OBISP MIPI Camera Module for Raspberry Pi, Jetson Nano

I lager.
799 kr

751 kr

Artikelnummer: 830

Arducam 2MP OBISP MIPI camera features onboard ISP (Image Signal Processor) with extraordinary highlight contrast HDR performance with upto 105dB dynamic range. It uses standard Raspberry pi zero 22pin MIPI CSI-2 interface, and works seamlessly on Raspberry pi, Jetson Nano, and can also be ported to other platforms which compliant to MIPI CSI-2 interface protocol.

Features

  • Resolution: 2MP 1920 x 1080
  • Shutter Type: Rolling Shutter
  • Color Type: Color
  • IR Sensitivity: built-in 650nm IR filter, visible light only
  • Night Vision Ability: Optional with proper lens combination
  • Interface: 2-Lane MIPI CSI-2
  • ISP Features: AWB, AE, Flip, Mirror, Gamma, Sharpness, Saturation etc

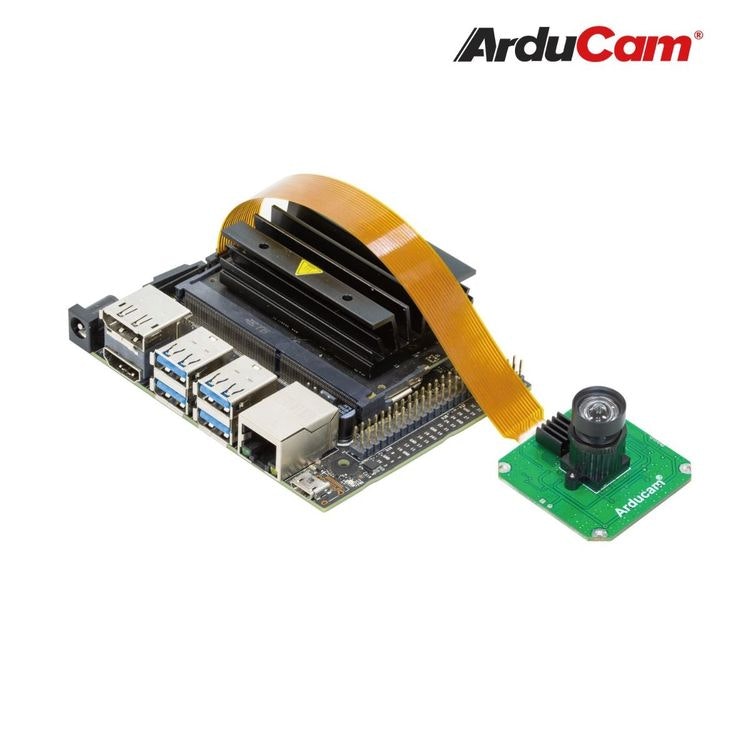

  • Platform Support: Raspberry Pi, Jetson Nano or platform with MIPI CSI-2 interface

Specification

  • Sensor Type: AR0230
  • Pixel Size: 3.0um x 3.0um
  • Optical Size: 1/2.7″
  • Lens spec: M12 default, EFL: 4mm, FoV(H): 90°, F/NO: 2.8, Distortion: 3%
  • Frame rate: 30fps@1920×1080/1280×720/640×480/320×240
  • Responsivity: 4.0V /lux-sec
  • SNRmax: 41dB
  • Dynamic Range: max 105dB
  • Power Consumption: max 300mA@3.3V
  • Temperature Range: -10 ~ 70°C
  • Camera Driver: V4L2 Compliant driver for Raspberry Pi and Jetson Nano

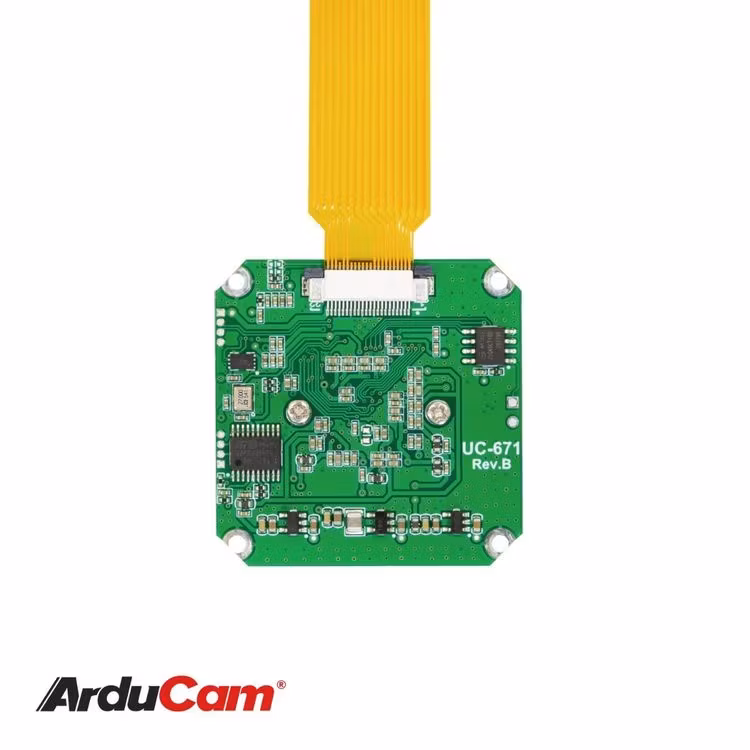

  • Board Size: 40mm x 40mm

Applications

  • Cellular phones
  • Digital still cameras
  • PC cameras
  • IoT cameras
  • Facial Recognition

Documentation

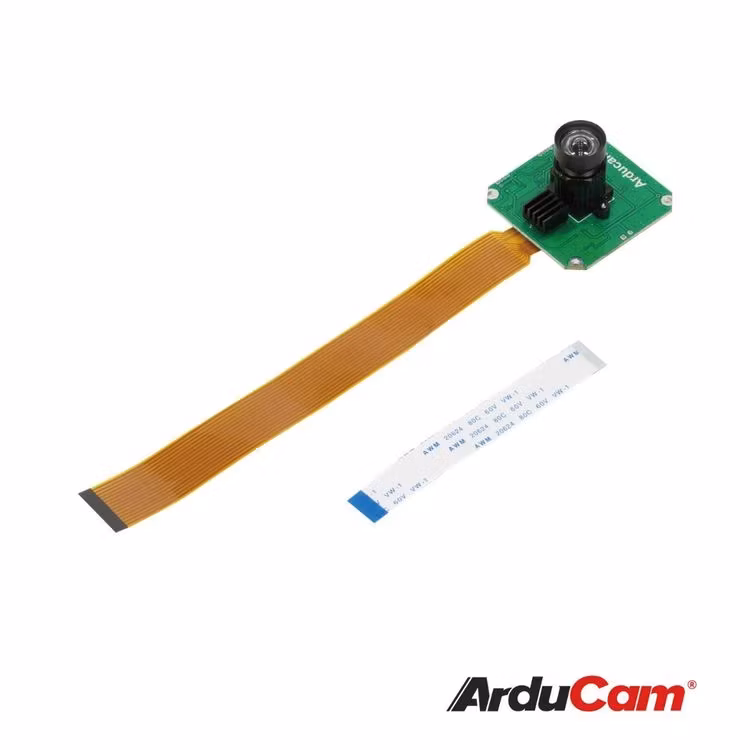

Package Including

  • 1pcs Arducam 2MP OBISP Camera Module
  • 1pcs 80mm 22pin flex cable
