ePaper display utvecklingskort

I lager.

299 kr

Artikelnummer: SKU64

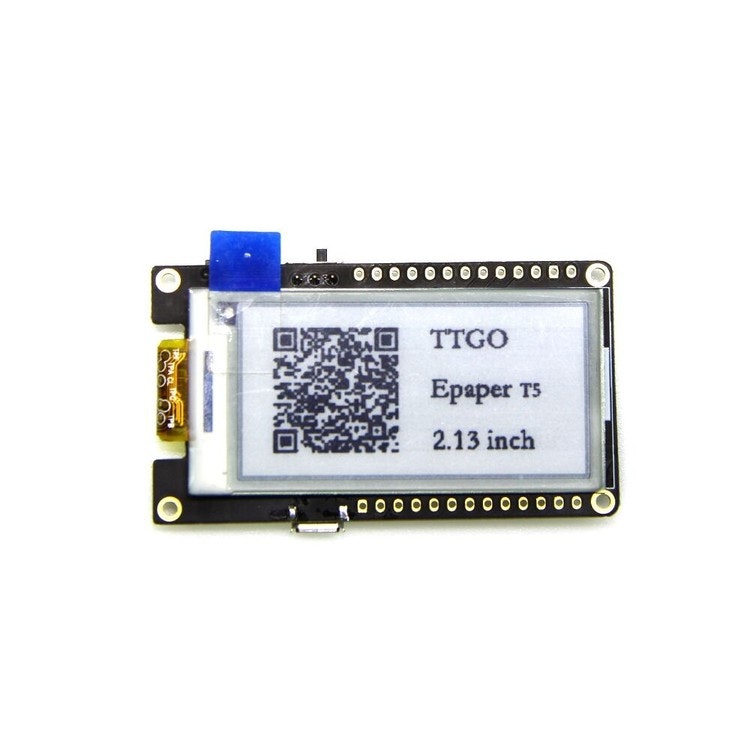

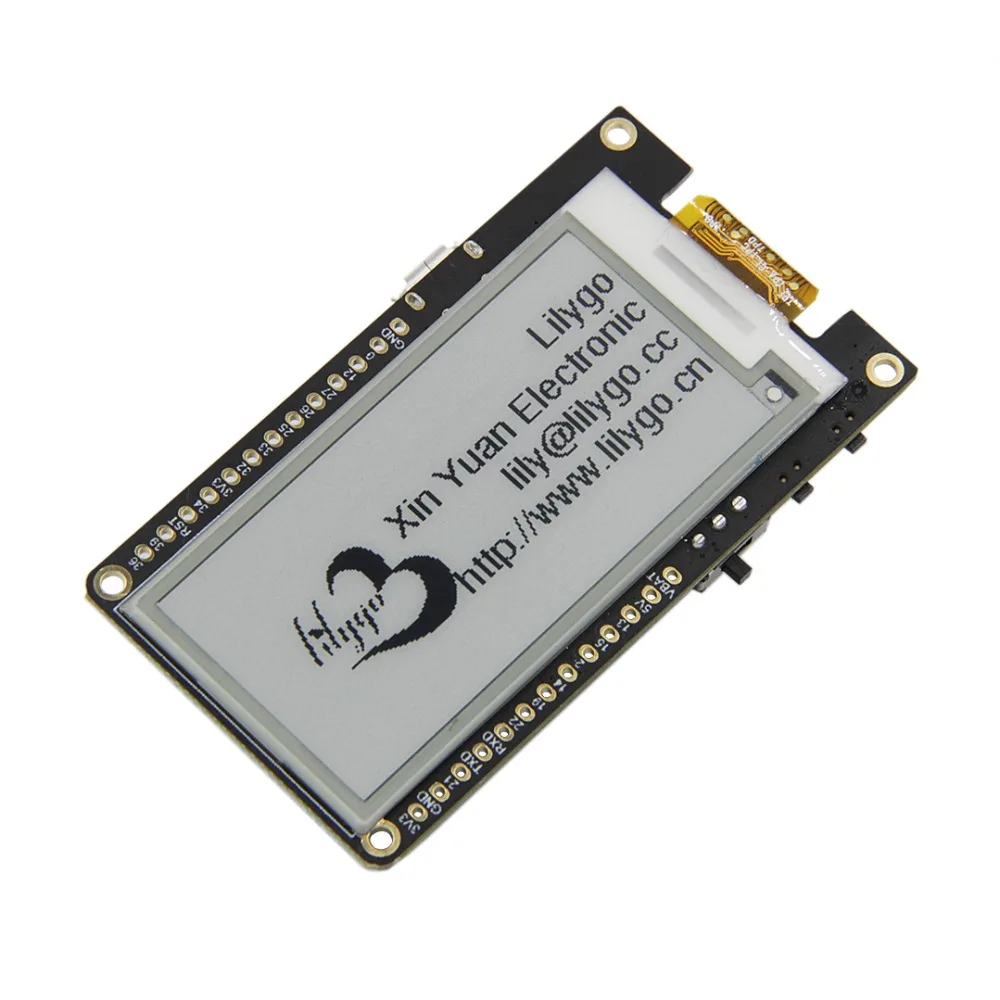

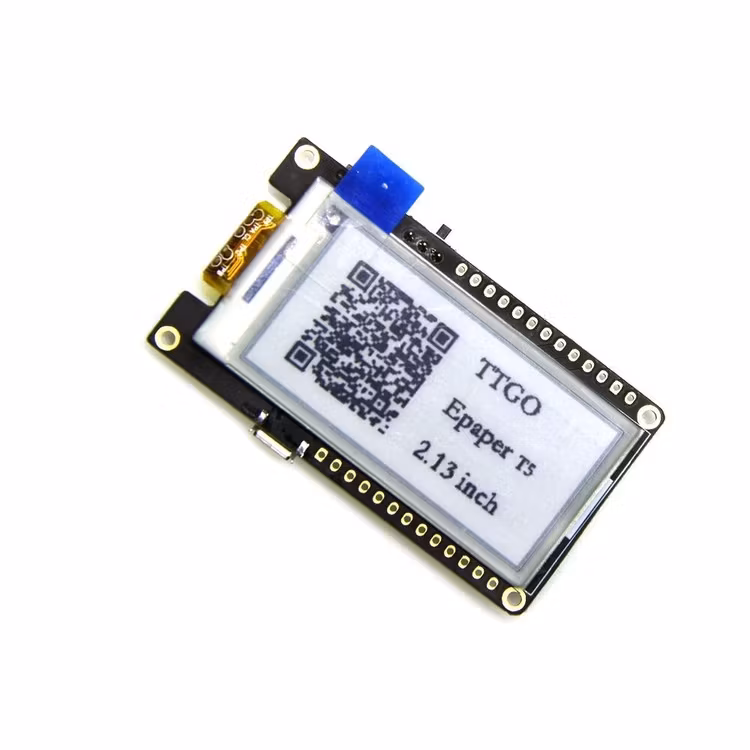

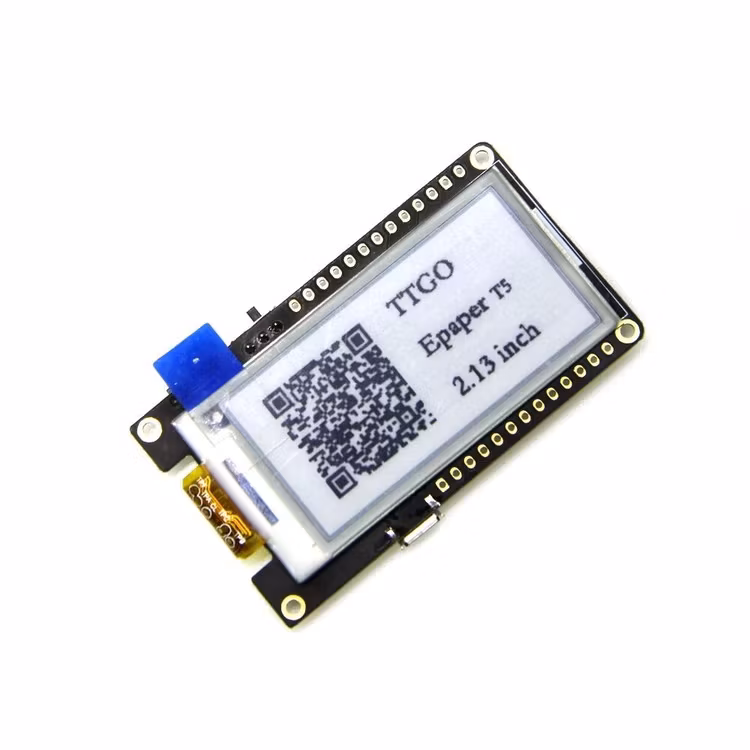

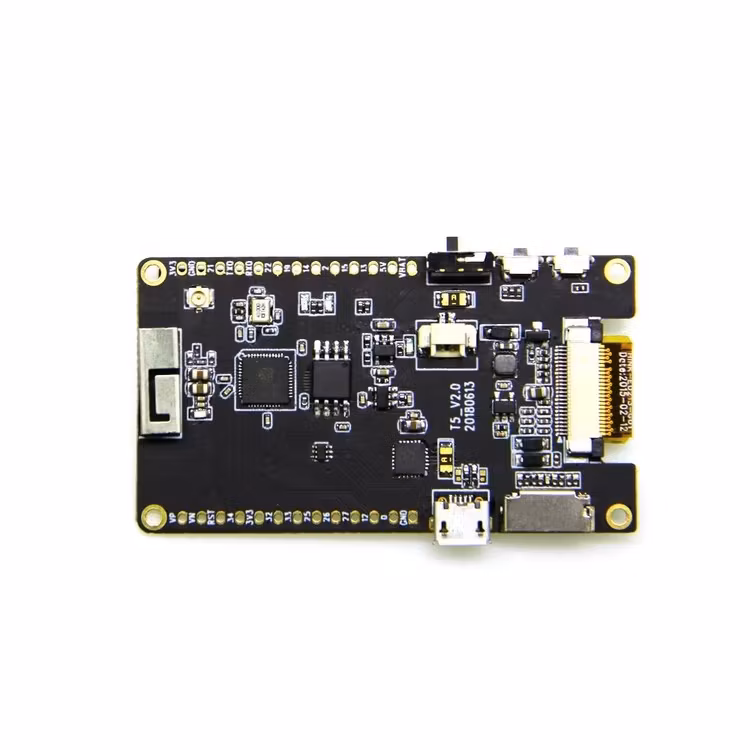

TTGO T5 V2.0 WiFi wireless Module Bluetooth base ESP-32 esp32 2.13 ePaper display development board

Due to the advantages like ultra-low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

· No backlight keeps displaying last content for a long time even when power down

· Ultra-low power consumption, basically power is only required for refreshing

· Comes with development resources and manual (examples for Arduin-esp32)

Specifications

· Operating voltage: 3.3V

· Interface: 3-wire SPI, 4-wire SPI

· Display colour:  black, white

· Grey level: 2

· Full refresh time: 8s

· Refresh power: 26.4mW(typ.)

· Standby power: <0.017mW

· Viewing angle: >170°

  Driver chip:GDEH0213B72

GitHub link

https://github.com/Xinyuan-LilyGO/T5-Ink-Screen-Series

Dimensions

H239

Pin Out

TTGO 1.8

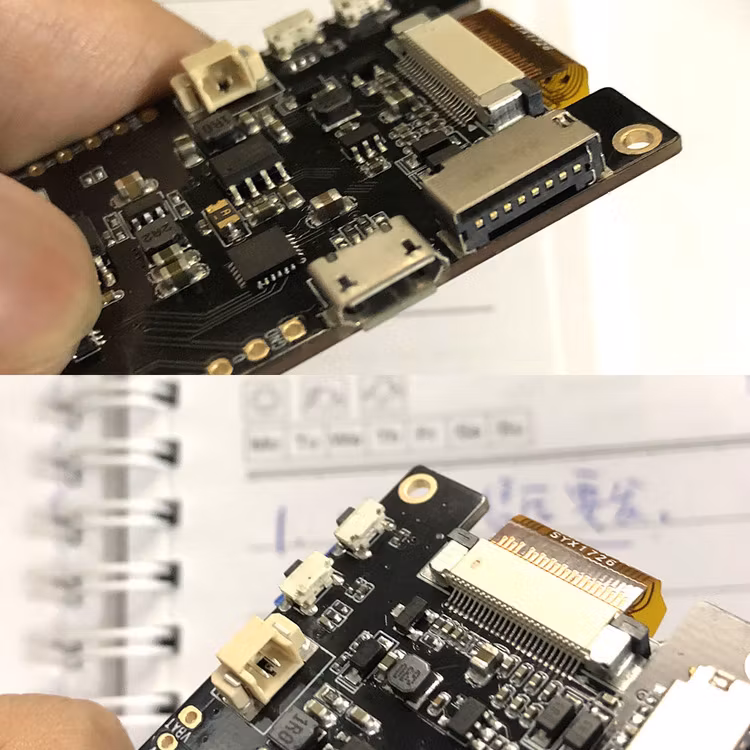

Product Details

Use Demonstration

20190221191258

QQ20180328112410



Product Details

Part Number

Colors

Grey Level

Resolution

Display size (mm)

Outline Dimension (mm)

Full Refresh Time (s)

Partial Refresh Time (s)

Interface













2.13inch e-Paper

black, white

2

250x122

48.55 × 23.71

59.2 × 29.2

2

0.3

SPI

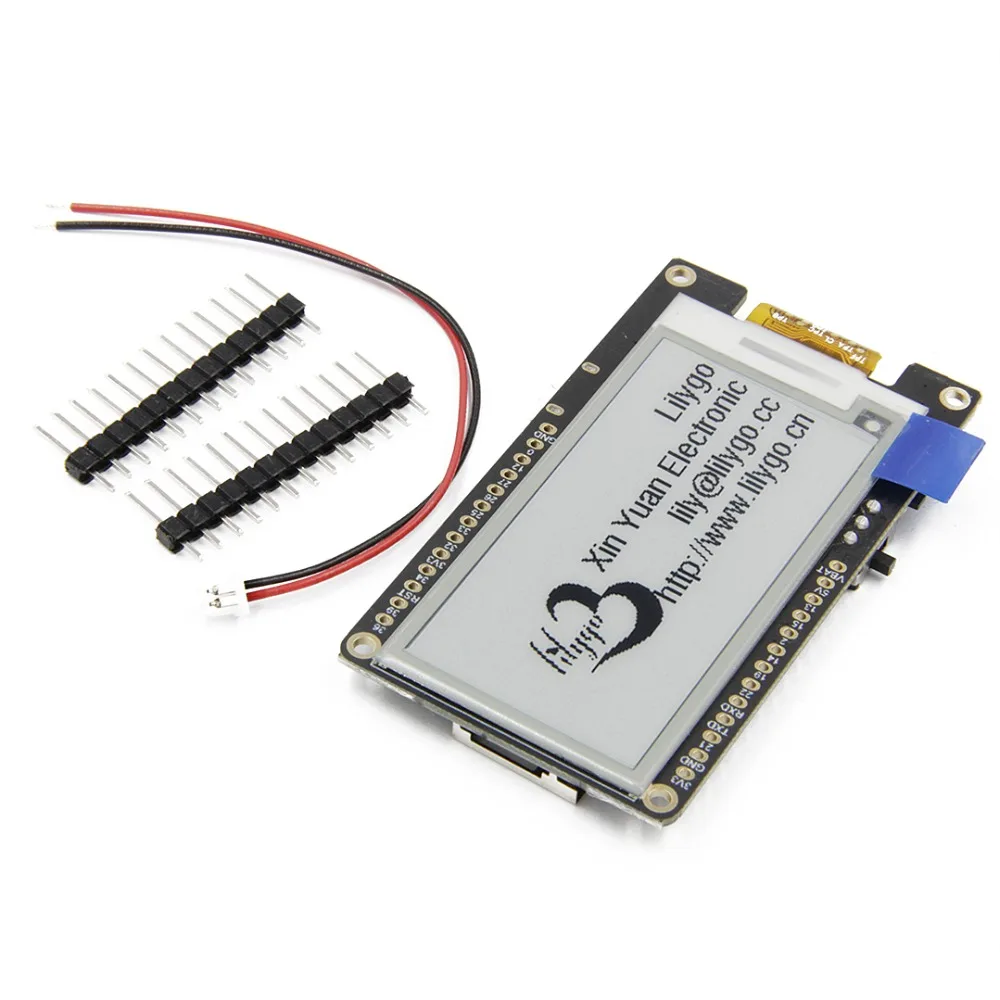

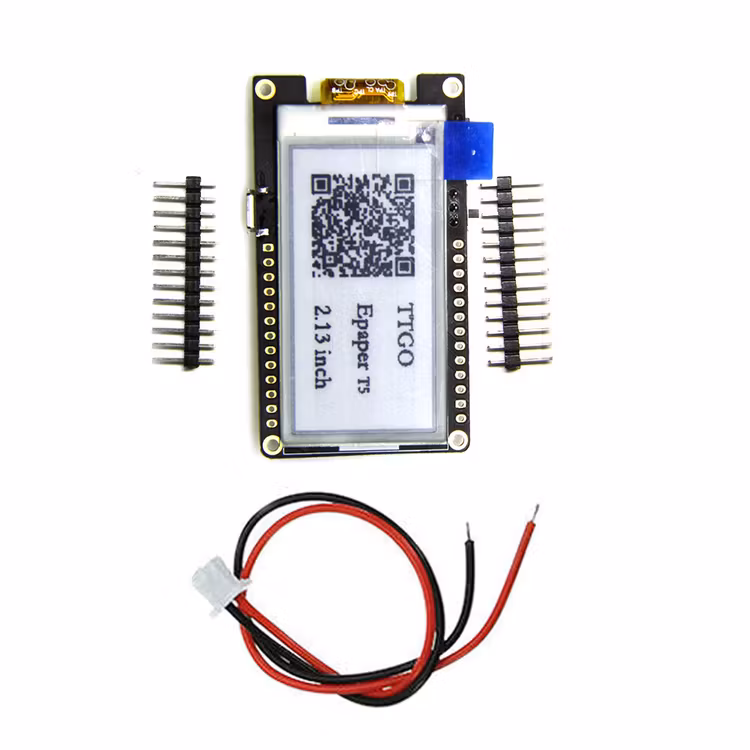

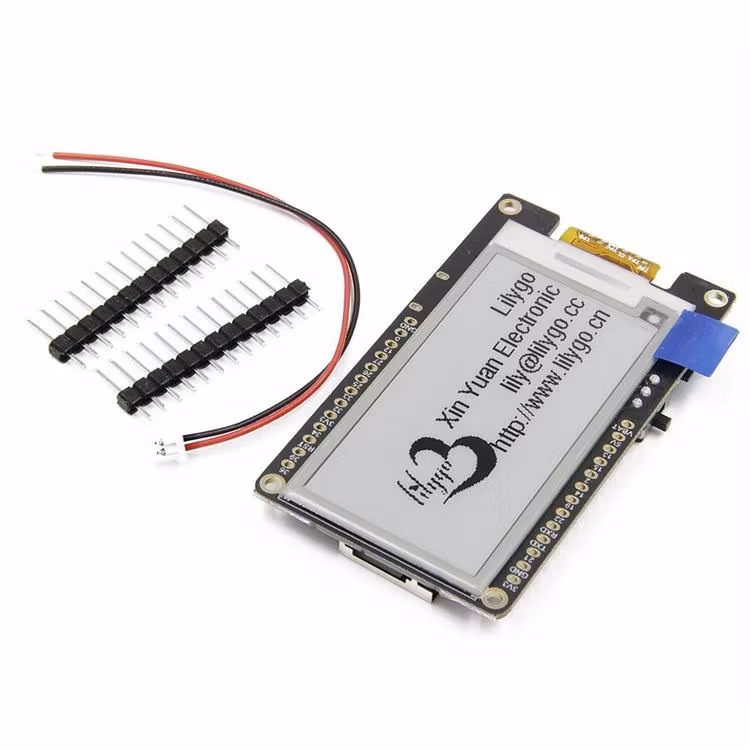

Shipping List

1 X T5 V2.13 ESP-32 Module

1 X Power Cable

1 X Free Box

2 X Pin

t5s 2.13 V2
