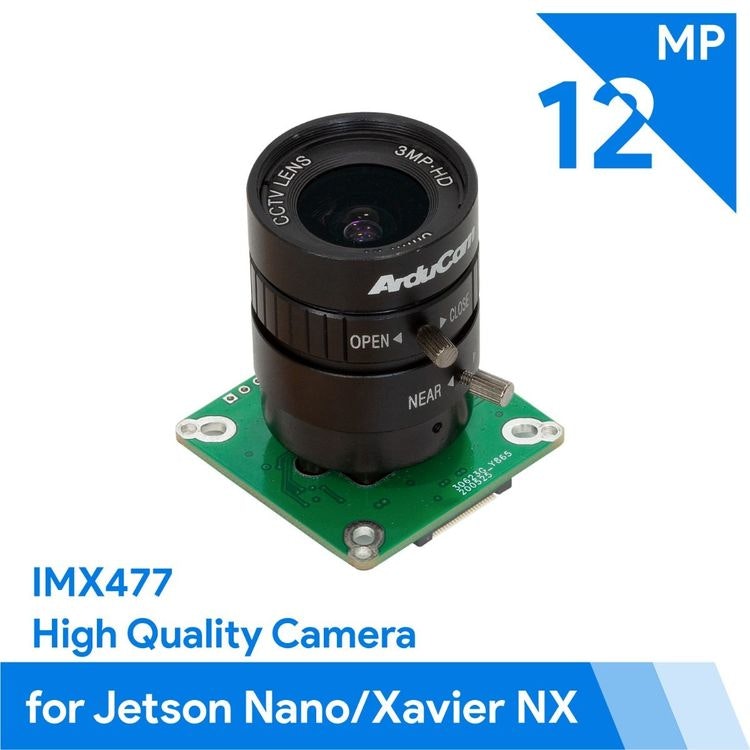

Arducam High Quality Camera for Jetson Nano and Xavier NX, 12.3MP 1/2.3 Inch IMX477 HQ Camera Module with 6mm CS-Mount Lens

Arducam High Quality Camera, 12.3MP 1/2.3 Inch IMX477 HQ Camera Module with 6mm CS-Mount Lens for Jetson Nano，Xavier NX and Raspberry Pi Compute Module CM4, CM3, CM3+.

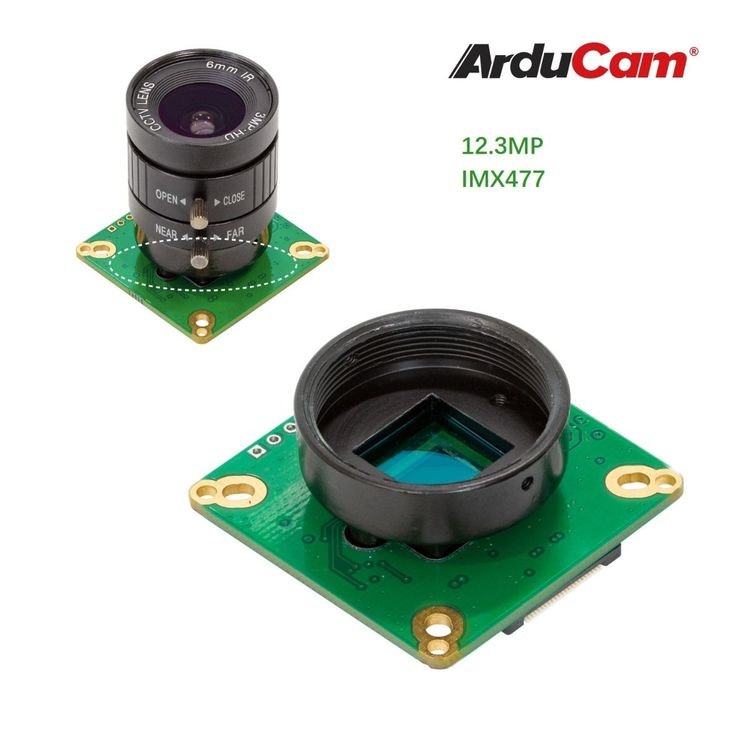

Arducam just released this High Quality camera module for Jetson Nano/Xavier NX, an IMX477 camera board with 3 hole pitches, a 6mm CS lens. You can use this camera module on Jetson Nano/Xavier NX natively with ISP features. No hardware modifications required, just install the driver and you are good to go.

Features:

• Driver link: https://github.com/ArduCAM/MIPI_Camera/tree/master/Jetson/IMX477/driver
• Get Clearer Images: This camera adopts 1/2.3" 12.3 Megapixel IMX477 sensor for sharp image, max. still resolution 4056(H) x 3040(V).
• Less Hassle: No more wasting time looking for the CS lens and camera case. A 1/2.3" 6mm focal length CS lens is included.
• More Lanes: The Arducam high quality camera module has a 4-lane MIPI CSI-2 interface to make it possible to get more data through.
• Support More Platforms: It supports all Raspberry Pi camera models. Pi 4, Pi 3/3B+/3A+, CM3/3+, Pi Zero, and more. For Nvidia Jetson Nano and Xavier NX, you can search for B0249 / B0250 to get the Jetson camera bundle. For PC/laptop, you need a camera shield and a MIPI adapter board, please search for USB2 camera shield B0175 or USB3 camera shield B0111, and MIPI adapter board B0123.



Specifications

• Camera

- Sensor: IMX477

- Optical Format: 1/2.3" (diagonal 7.857mm)

- Resolution: 4056(H) x 3040(V) 12.3MP

- Pixel Size: 1.55um x 1.55um

- IR Sensitivity: Visible light

- Interface: 4-lane MIPI CSI-2

- Default Lens Mount: CS-Mount

- Frame Rate: (depends on the target platform, maximum fps limit might apply)

1920x1080 @ 60fps

4032x3040 @ 30fps

Lens

- Format: 1/2.3 inch

- Focal Length: 6mm

- Aperture (F): F1.4

- Field of View (FOV): 65° (H)

- Mount: CS-Mount

- Back Focal Length: 12.5mm

- MOD: 0.1m Dimension: Φ28×26.58mm

- Weight: 29g

Camera board

- Board Size: 38mm×38mm

- Hole Pitch: Compatible with 29mm, 30mm, 34mm

Package Includes:

• 1 pcs 12.3MP IMX477 color camera module

• 1 pcs 6mm focal length CS-mount camera lens

• 1 pcs 300mm/12inch 15pin to 22pin camera cable

• 1 pcs 80mm/3.15inch 22pin camera cable

Documentation:

• Arducam IMX477 (High Quality Camera) on Jetson Nano/Xavier NX
