Arducam High Quality IR-CUT Camera for Raspberry Pi 12.3MP 1/2.3 Inch IMX477 HQ Camera Module with 6mm CS

I lager.

1 225 kr

Artikelnummer: 927

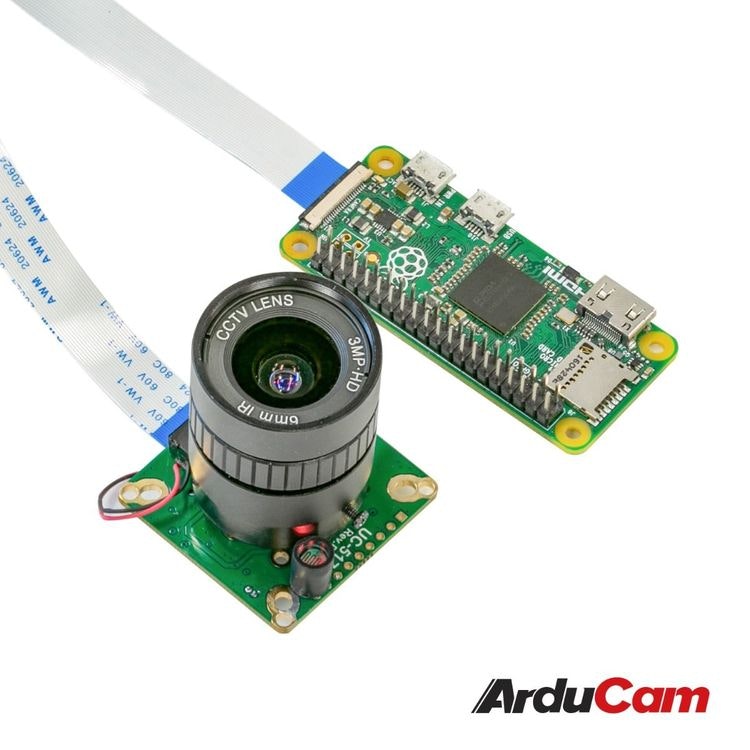

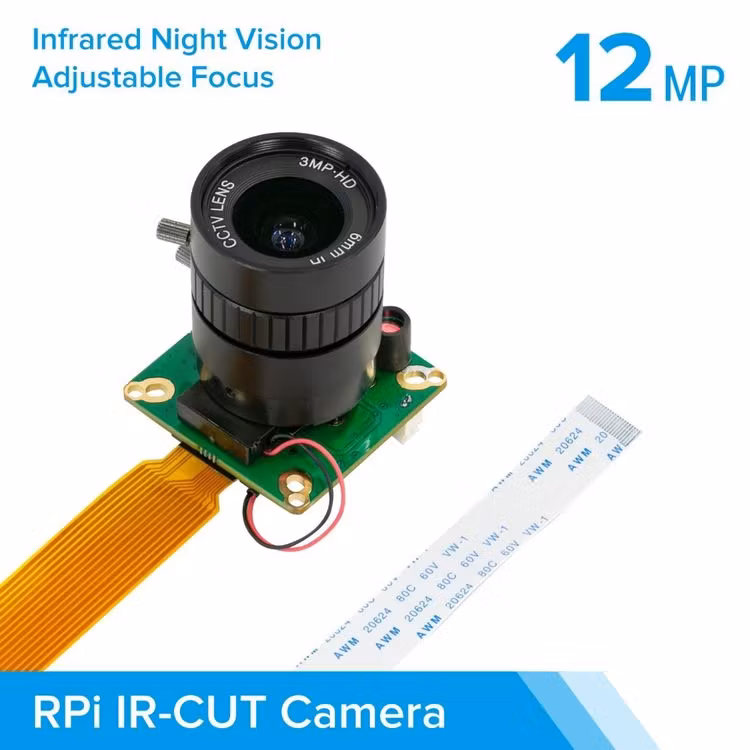

Arducam High Quality IR-CUT Camera for Raspberry Pi, 12.3MP 1/2.3 Inch IMX477 HQ Camera Module with 6mm CS Lens for Pi 4B, 3B+, 2B, 3A+, Pi Zero and more.

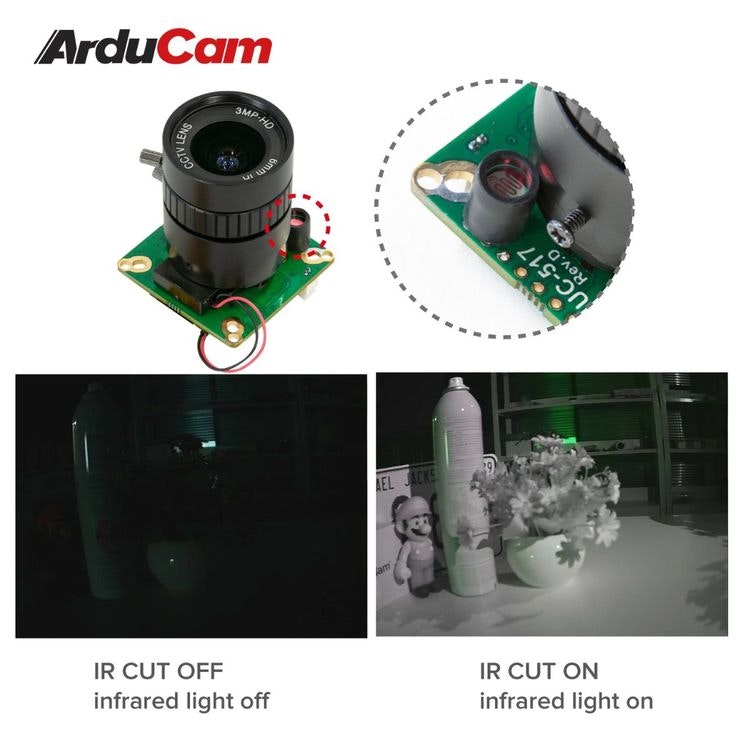

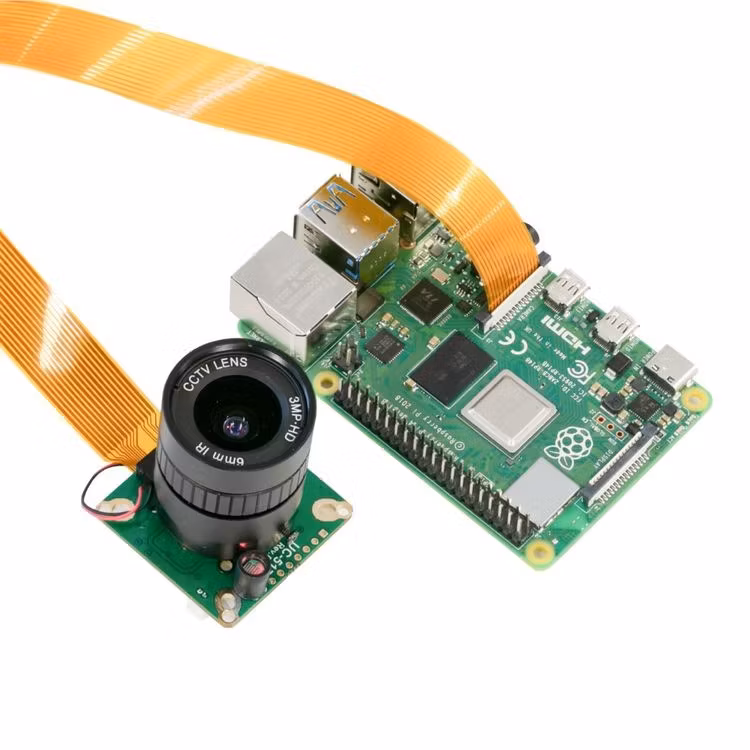

This Arducam module uses the same 12MP IMX477 image sensor as the Raspberry Pi High Quality Camera, but offers a mechanical IR cut-off filter switched automatically based on light condition. The official RPi HQ camera is not sensitive to infrared, and there won’t be a NoIR version. On the contrary, this Arducam camera module not only offers sensitivity to infrared but also keeps the natural feeling during daylight. It’s fully compatible with all Raspberry Pi models with a camera connector.

Specifications

  • Camera

– Sensor: IMX477

– Optical Format: 1/2.3″ (diagonal 7.857mm)

– Resolution: 4056(H) x 3040(V) 12.3MP

– Pixel Size: 1.55um x 1.55um

– IR Sensitivity: Visible light

– Interface: 4-lane MIPI CSI-2

– Default Lens Mount: CS-Mount

– Frame Rate: (depends on the target platform, maximum fps limit might apply)

Full resolution@60fps(normal), 4K2K@60fps, 1080p@240fps

Full resolution@40fps (12bit normal)

Full resolution@30fps (DOL-HDR, 2 frames)

  • Lens

– Format: 1/2.3 inch

– Focal Length: 6mm

– Aperture (F): Max. F1.2

– Field of View (FOV): 65° (H)

– Mount: CS-Mount

– Back Focal Length: 7.53mm

– MOD: 0.2m

– Dimension: Φ30×31mm

– Weight: 53g

  • Camera board

– Board Size: 38mm×38mm

– Hole Pitch: Compatible with 29mm, 30mm, 34mm

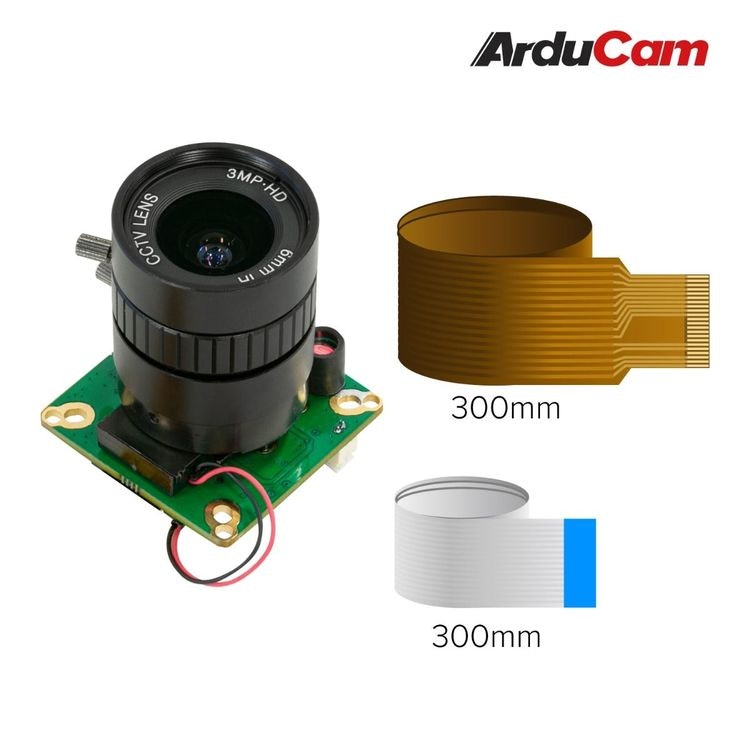

Package Includes:

  • 1 pcs 12.3MP IMX477 IR-CUT camera module
  • 1 pcs 6mm focal length CS-mount camera lens
  • 1 pcs 300mm/3.15inch 22pin camera cable for pi Zero&W
  • 1 pcs 300mm/12inch 15pin to 22pin camera cable for pi A&B series

Documentation

12MP IMX477 IR-CUT Camera Module

3D drawing

Video

Arducam IMX477 Switchable IR-Cut HQ Camera for Raspberry Pi, Auto Switch for both Day and Night
