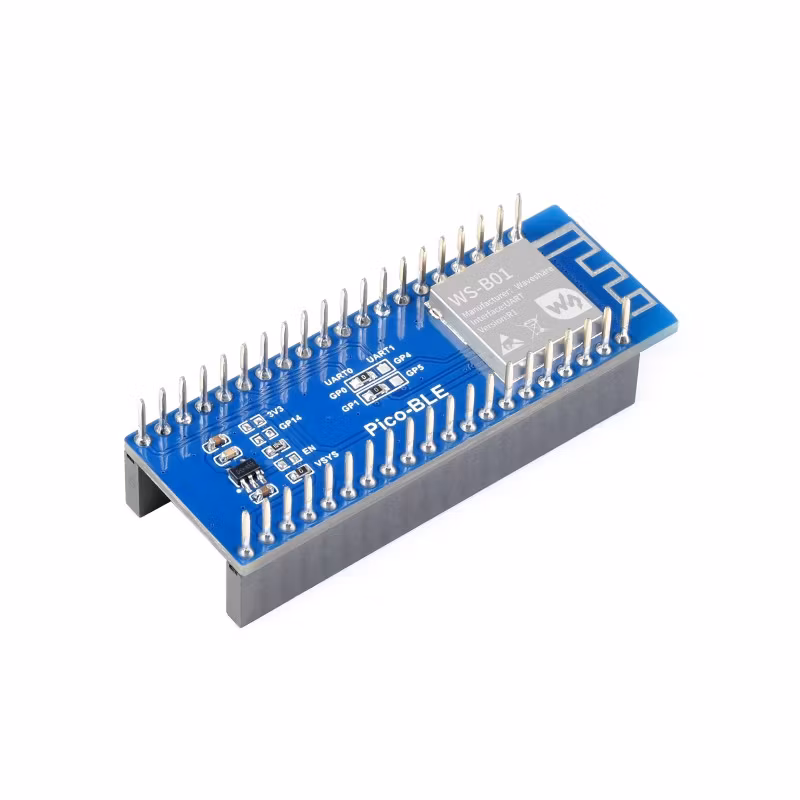

Dual-Mode Bluetooth Module for Raspberry Pi Pico, SPP BLE, Bluetooth 5.1

  • 149 kr

Dual-Mode Bluetooth Module For Raspberry Pi Pico, SPP / BLE, Bluetooth 5.1 WirelessDual-Mode Bluetooth Module For PicoFeatures At A GlanceThe Pico-BLE is a

I lager.
Lagersaldo: 8
Artikelnummer: Hi1098
Dela
  • Information

Dual-Mode Bluetooth Module For Raspberry Pi Pico, SPP / BLE, Bluetooth 5.1 Wireless

Dual-Mode Bluetooth Module For Pico

Features At A Glance

The Pico-BLE is a dual-mode Bluetooth 5.1 expansion module designed for Raspberry Pi Pico, which is controlled via UART AT commands, with SPP and BLE support. Combined with the Raspberry Pi Pico, it can be used for Bluetooth wireless communication applications.

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
  • Controlled via UART AT commands, get started quickly
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

BLUETOOTH MODULEdual-mode Bluetooth to UART module
TRANSMISSION DISTANCE30m (open air)
COMMUNICATIONUART
ANTENNAOnboard PCB antenna
TRANSMISSION CACHE1K bytes UART cache,
it is recommended to transmit less than 512 bytes per transmission for SPP
UART BAUDRATE13 different baudrate configuration, 115200 bps by default
INPUT VOLTAGE5V / 3.3V
OPERATING CURRENTStartup transient current: about 25mA for about 300ms;
Stable status current: about 6mA, non low power mode;
Low power mode current: refer to user manual
OPERATING TEMPERATURE-40℃ ~ 80℃
OPERATING HUMIDITY5% ~ 95%
DIMENSIONS56.5 × 21 (mm)

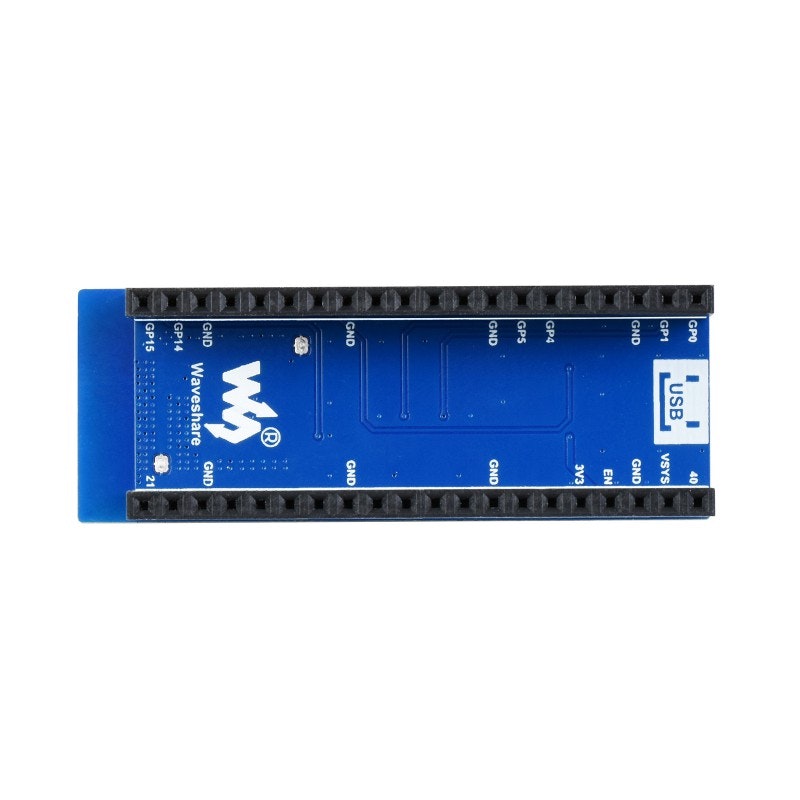

Raspberry Pi Pico Header Compatibility

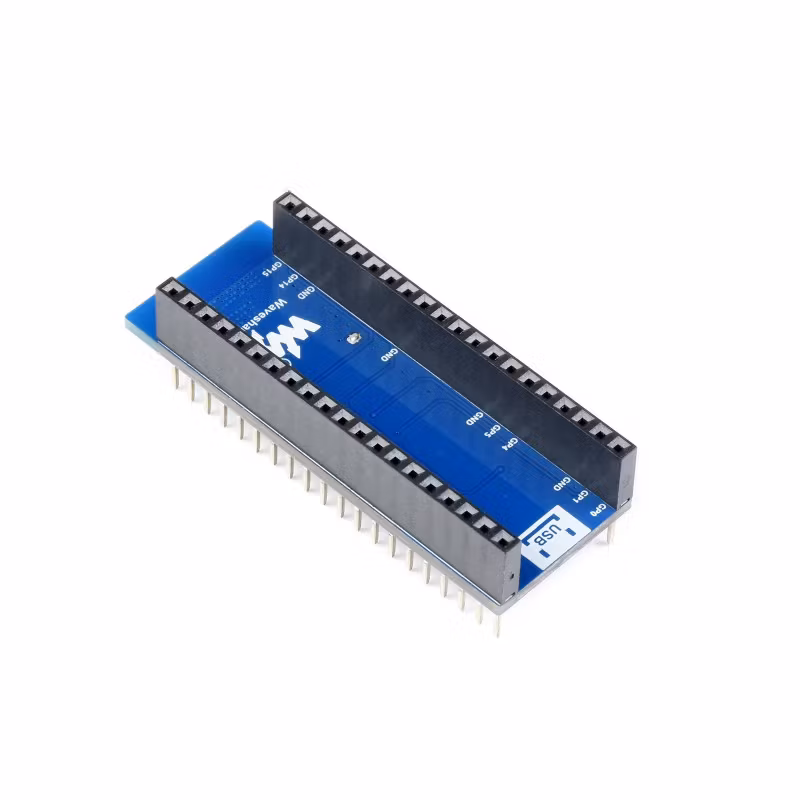

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico,
Stackable Design

for reference ONLY, Raspberry Pi Pico is NOT included.

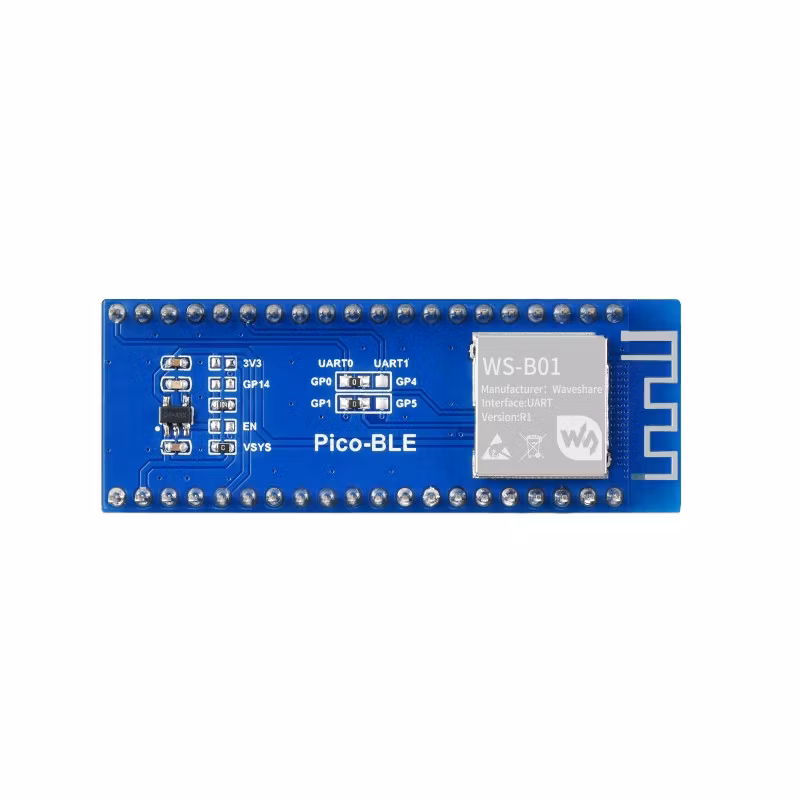

What's On Board

  1. Bluetooth module
  2. RT9193-33
    3.3V regulator



  1. Raspberry Pi Pico header
  2. UART input pins selection
  3. Onboard Bluetooth antenna

Pinout Definition

Outline Dimensions

Resources & Services

WIKI: Pico-BLE
