FireBeetle ESP8266 IOT Microcontroller WIFI

199 kr

DFRobot FireBeetle is a series of low-power-consumption development hardware designed for Internet of Things (IoT). Firebeetle ESP8266 is a development board integrated with IoT WiFi, TCP/IP, 32-bit MCU, 10-bit ADC and multiple interfaces such as HSPI, UART, PWM, I2C and I2S. In DTIM10, the full power consumption to maintain WiFi connection reached to 1.2mW. Equipped with 16MB outer SPI flash memory, ESP8266 is available for programs and firmware storage.
Compatible with Arduino programming enables Firebeetle ESP8266 to lower the barrier of programming. Operator can implement Arduino programming codes directly onto ESP8266 to reduce the difficulty of operating and increase the stability of board.

In programming stage, Firebeetle Board-ESP8266 supports RTOS SDK in Linux, arduino IDE and Micropython.

FEATURES

  • Compatible with FireBeetle series
  • Compatible with Arduino programing
  • Built-in 32-bit Tensilica L106 MCU and 10-bit ADC
  • Support RTOS SDK in Linux, Arduino IDE and Micropython.
  • Support IEEE802.11 b/g/n WiFi (2.4 GHz~2.5 GHz)
  • Support TCP / IP
  • Support Lithium Battery (The Maximum charge current: 500mA)
  • Support Low Power Consumption
  • Support OTA Updating
  • Support STA/AP/STA+AP

SPECIFICATION

  • Operating Temperature: -40℃~+85℃
  • Operating Voltage: 3.3V
  • Input Voltage (limits): 3.3~5V (Lithium Battery:3.7V & USB:5V)
  • Microcontroller: Tensilica L106 (32-bit MCU)
  • Clock Speed: 80MHz (Maximum: 160MHz)
  • SRAM:50KB
  • External Flash Memory: 16MB
  • DC Current in the Low-Power-Consumption: 46uA
  • Average Operating Current: 80mA
  • Maximum Discharging Current: 600mA (LDO-3.3 Output)
  • Maximum Charging Current: 500mA
  • Digital Pin x10
  • Analog Pin x1
  • SPI interface x1
  • I2C interface x1
  • IR interface x1
  • I2S interface x1
  • Interface: XH2.54mm Pin (No soldering default)
  • In Combination of Wi-Fi MAC/ BB/RF/PA/LNA
  • WiFi: IEEE802.11 b/g/n (2.4 GHz~2.5 GHz), not support 5GHz WiFi
  • Dimension: 58 × 29(mm)
  • Operating Temperature: -10℃~+55℃
  • Mounting Hole Dimension: 53 x 24(mm)
  • Weight: 24g

DOCUMENTS

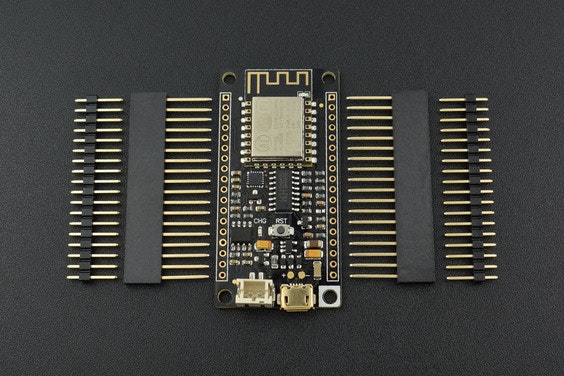

SHIPPING LIST

  • FireBeetle Board-ESP8266×1
  • 18pin-2.54mm ×2
  • 18pin-2.54mm Female Holder ×2

NameFireBeetle ESP8266
MicrocontrollerESP8266
Power supply interfaceUSB or 3.7V Lipo
USB Powered or External (V)3.3 - 5.0
Operating Voltage (V)3.3V
CPU Frequency (MHz)160
Flash(M)16
SRAM(KB)50
Analog pins1
Digital pins10
Wi-Fi protocol802.11b/g/n
Frequency range2.4 - 2.5 GHz
UART1
I2C1
I2S1
SPI1
Compatible IDEArduino IDE 1.6+
Download ModeMicro USB
Arduino UNO Compatible×
Lipo Charger Support
Dimension(mm)58*29
 Weight (g)24 g
Price($)$11.9
Key FeaturesArduino、RTOS、microPython Programming Support. Built-in 32-bit Tensilica L106 MCU and 10-bit ADC.
