HR8833 Motor Shield v1.0.0 for LOLIN (WEMOS) D1 mini I2C Dual Motor 3-10V

  • 149 kr

New product delivery at the beginning  of January 2022.HR8833 Motor Shield v1.0.0 For LOLIN (WEMOS) D1 mini I2C Dual Motor 3-10V.Features:I2C interface wit

I lager.
Lagersaldo: 25
Artikelnummer: 1070
Dela
  • Information

New product delivery at the beginning  of January 2022.

HR8833 Motor Shield v1.0.0 For LOLIN (WEMOS) D1 mini I2C Dual Motor 3-10V.

Features:

  • I2C interface with LOLIN I2C Port.
  • Power supply voltage: VM=3-10VDC
  • Output current: Iout=1.5A(average) / 2.5A (peak)
  • CW/CCW/short brake/stop motor control modes

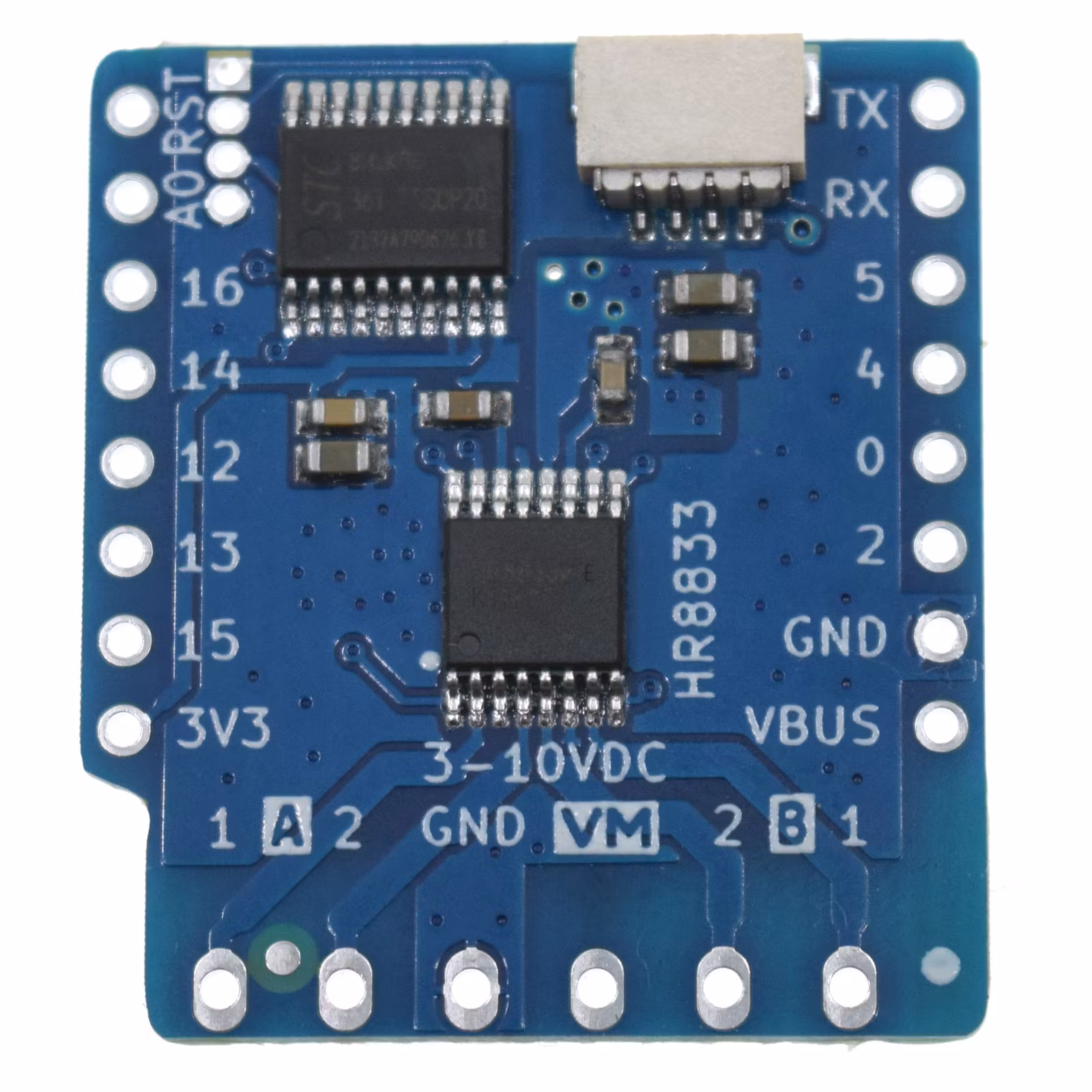

TOP

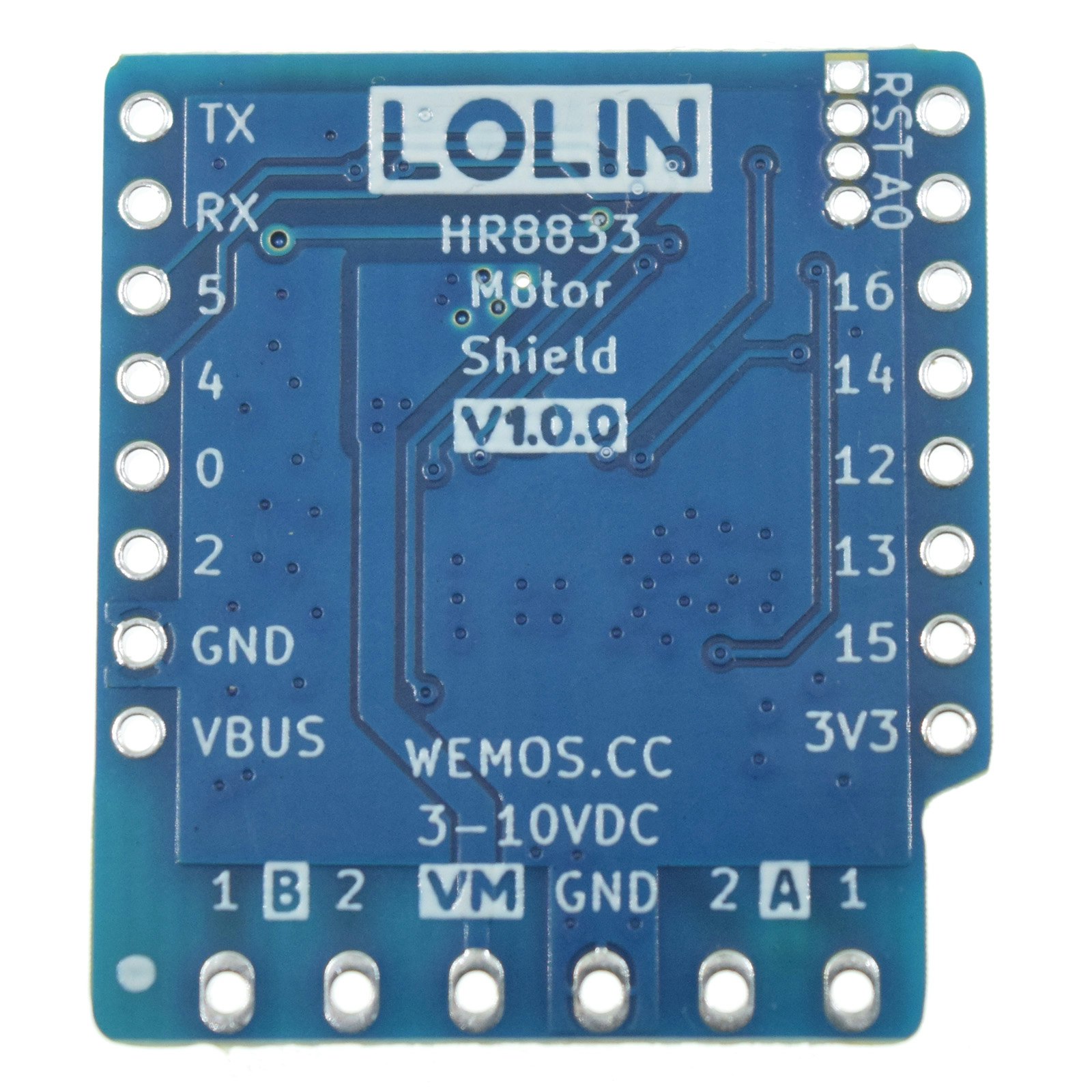

BOTTOM


Pins Description

VM: Motor power supply +  (3-10VDC)

GND: Motor power supply -

1-A-2: Motor A

2-B-1: Motor B

Details

Details

Arduino library

https://github.com/wemos/LOLIN_I2C_MOTOR_Library







Shipping list:

1. 1x8P pins  x2pcs

2. 1x3P 3.5mm pins  x2pcs

3. Motor Shield  x1pcs
