Universal e-Paper Raw Panel Driver HAT

I lager.
Antal: 5

199 kr

Artikelnummer: 745

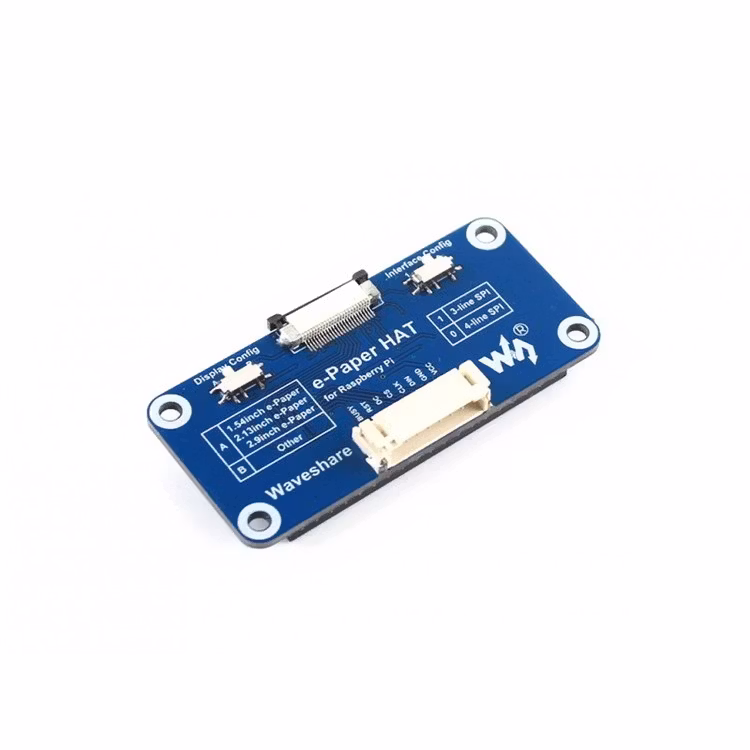

Universal e-Paper Driver HAT, supports various Waveshare SPI e-Paper raw panels

Overview

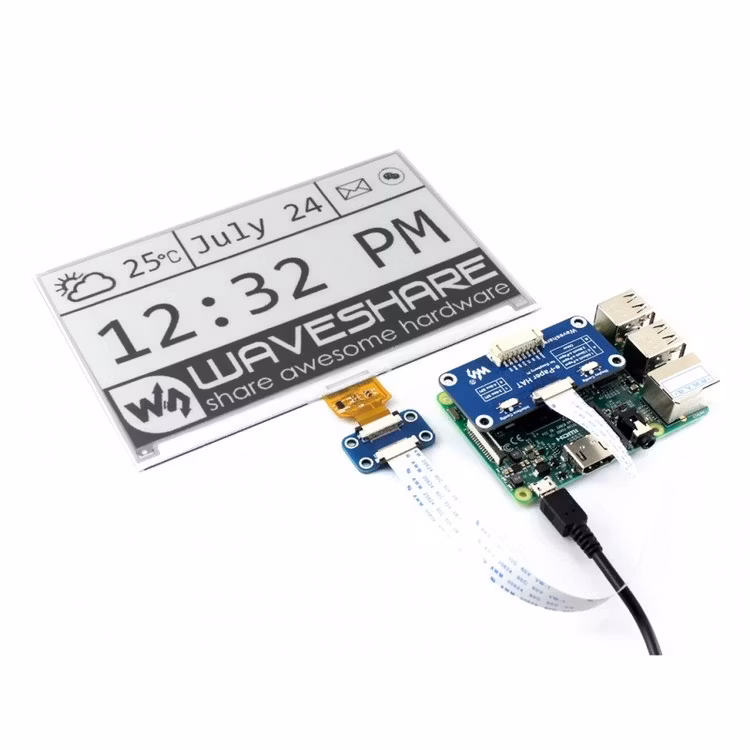

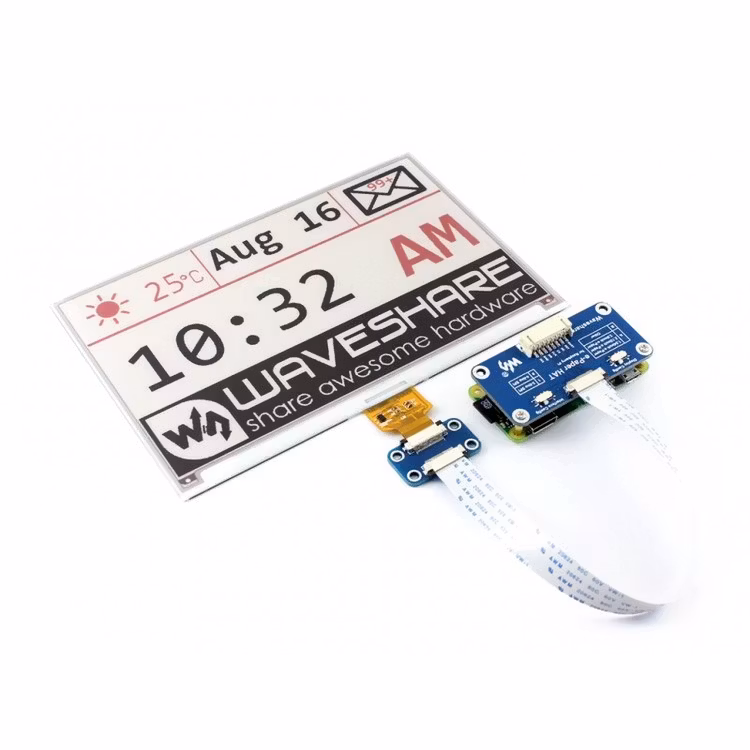

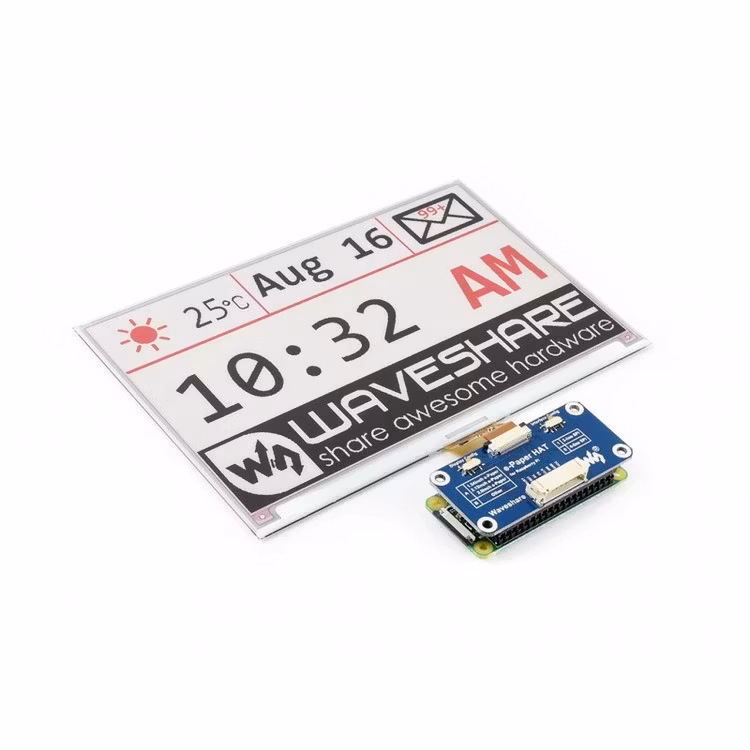

This is a universal driver board for e-Paper raw panels, can be used to drive various SPI interface e-Paper from Waveshare.

Features

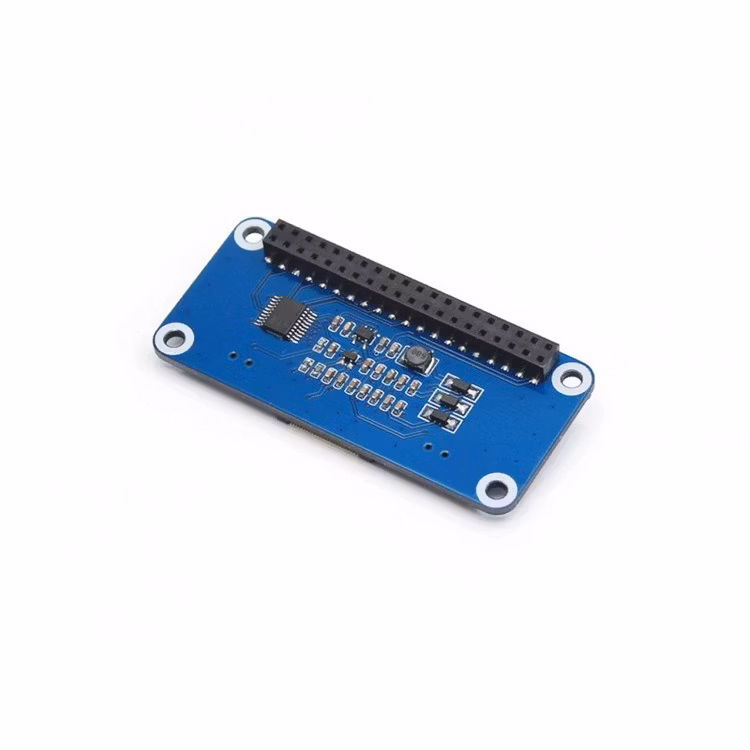

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V~5V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 65mm × 30.2mm
  • Mounting hole size: 3.0mm

Interface

SYMBOLDESCRIPTION
VCC3.3V~5V
GNDGround
DINSPI MOSI pin
CLKSPI SCK pin
CSSPI chip selection, low active
DCData/Command selection (high for data, low for command)
RSTExternal reset, low active
BUSYBusy status output, low active

Dimensions

7.5inch e-Paper HAT dimensions

Development Resources

Wiki: www.waveshare.com/wiki/e-Paper_Driver_HAT

Weight: 0.021 kg

Note: e-Paper and Raspberry Pi are NOT included.

  1. e-Paper Driver HAT x1
  2. RPi screws pack (2pcs) x1

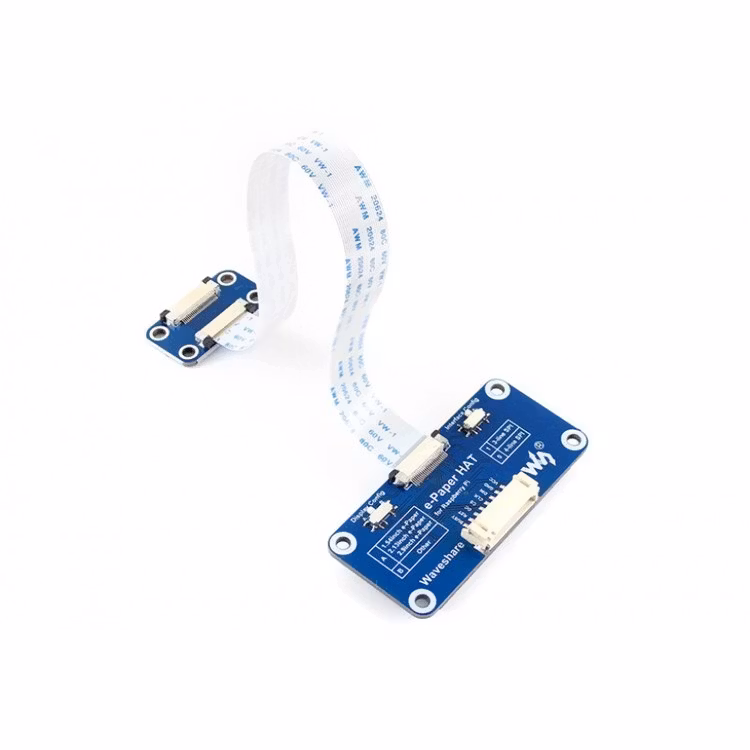

  3. PH2.0 20cm 8Pin x1
