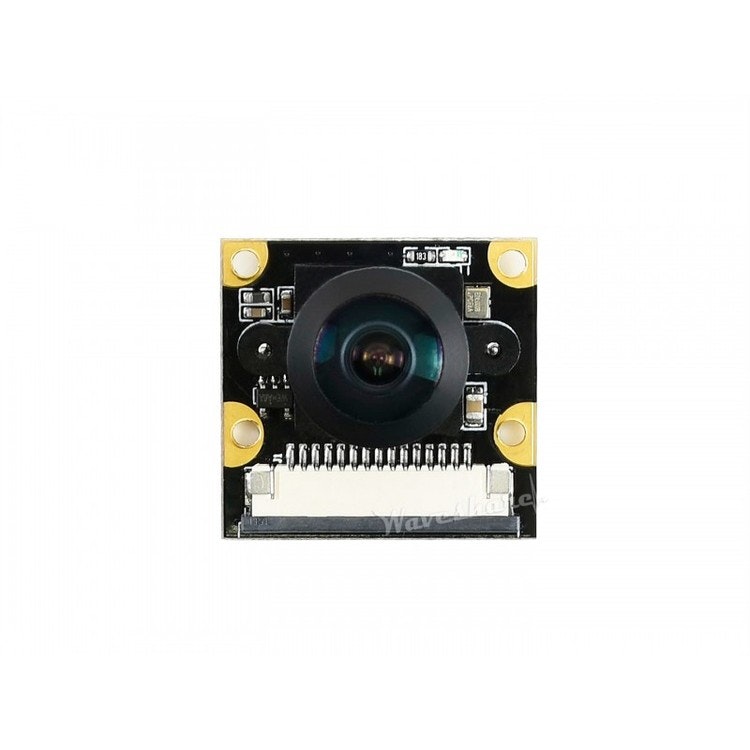

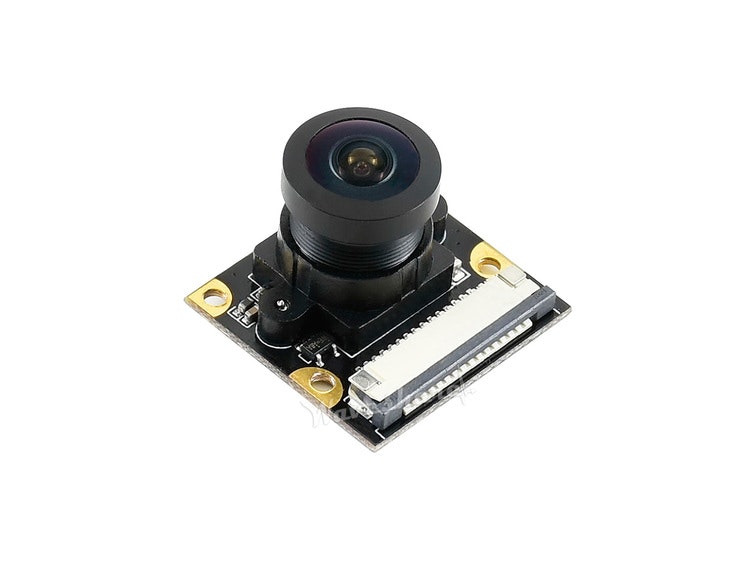

IMX219-160IR Camera, 160° FOV, Infrared, Applicable for Jetson Nano

I lager.

399 kr

IMX219-160IR Camera, Applicable for Jetson Nano, 8 Megapixels, Infrared Night Vision, 160° FOV.

Features

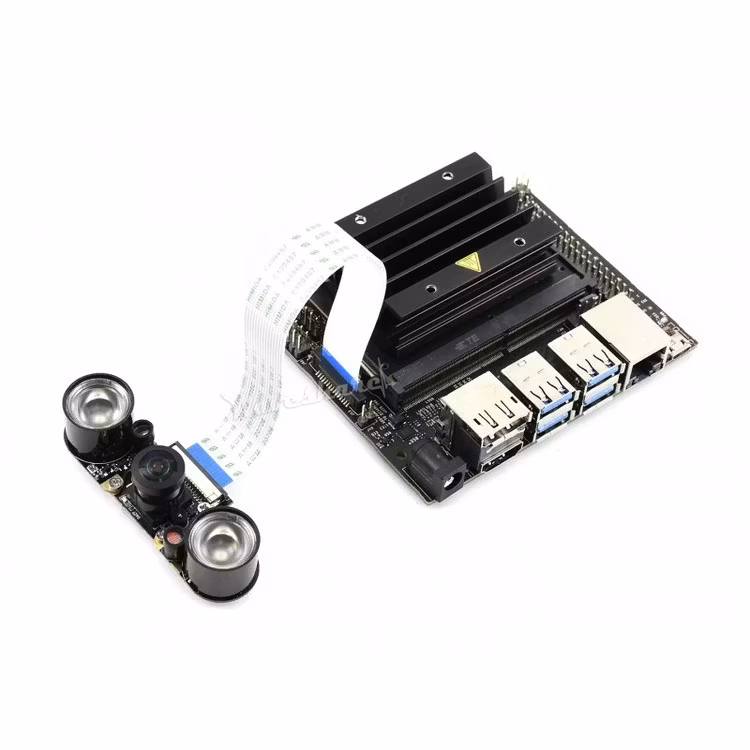

  • Supports NVIDIA Jetson Nano Developer Kit

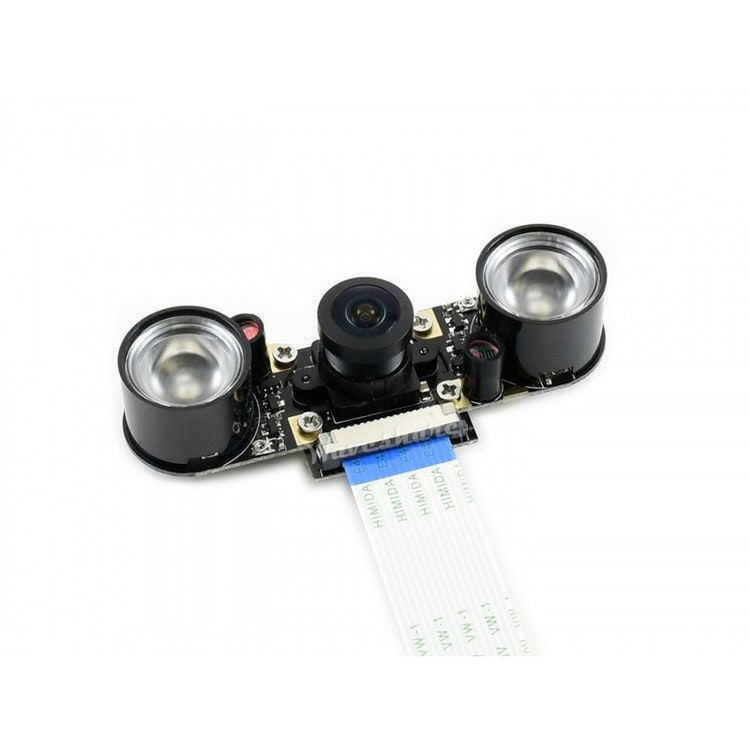

  • Supports night vision when works with infrared LEDs
  • 8 Megapixels
  • Sensor: Sony IMX219
  • Resolution: 3280 × 2464
  • Lens specifications:
    • CMOS size: 1/4inch
    • Aperture (F): 2.35
    • Focal Length: 3.15mm
    • Angle of View (diagonal): 160 degree
    • Distortion: <14.3%

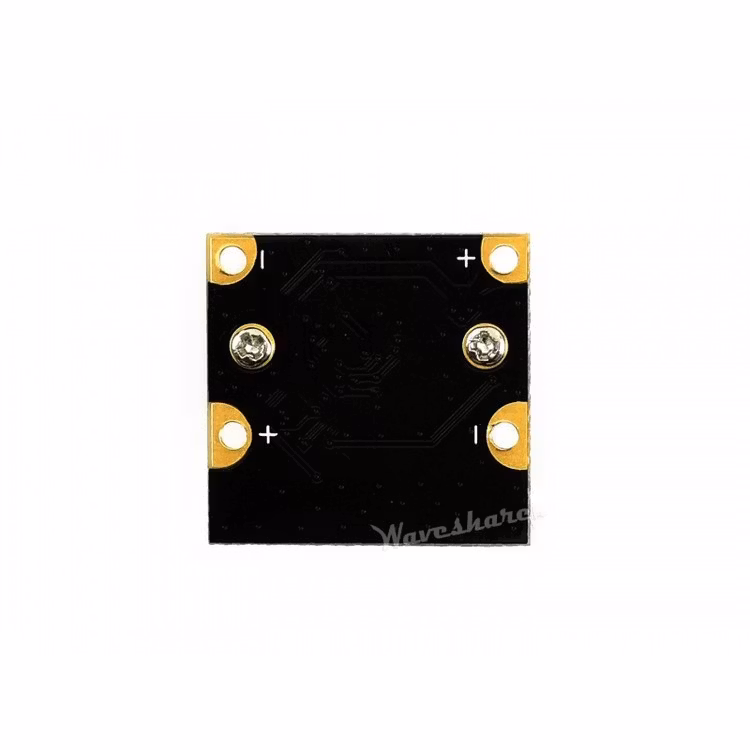

  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
    • Supports connecting infrared LED and/or fill flash LED
  • Dimension: 25mm × 24mm

Applications

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:

  • Face recognition
  • Road mark detection
  • License plate recognition

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-160IR_Camera

Shipping list

Weight: 0.031 kg

  1. IMX219-160IR Camera x1
  2. Infrared LED Board (B) 2PCS x1
  3. 15-pin FFC 16cm (opposite sides contact) x1
