JetBot AI Kit Accessories, Add-ons for Jetson Nano to Build JetBot

1 199 kr

Pre-order

The smart robot is always the favorite project of electronic enthusiasts, however, a robot will be "not that smart" if it is not AI-based.

Welcome the JetBot, a literally smart robot powered by Jetson Nano. With the intelligent eye (front camera), no matter facial recognition, object tracking, auto line following, or collision advance, just a piece of cake. It also comes with ROS nodes code, make it easy to get started with the open source ROS (Robot Operating System), and to learn the system framework and concepts of ROS.

If you've got a Jetson Nano on your desk right now, combined with our open source codes and tutorials, these add-ons would be the ideal choice for you to learn AI robot designing and development.

What's on Jetson Nano Developer Kit

  1. Micro SD card slot: insert a 16GB or larger TF card for main storage and writing system image
  2. 40-pin expansion header
  3. Micro USB port: for 5V power input or for USB data transmission
  4. Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation
  5. 4x USB 3.0 port
  6. HDMI output port
  7. DisplayPort connector
  8. DC jack: for 5V power input
  9. MIPI CSI camera connector:

JetBot Expansion Board Features

  • Adopts 3x 18650 batteries (NOT included), high battery capacity, up to 12.6V voltage output, more powerful driving force
  • Integrates S-8254AA + AO4407A lithium battery protection circuit, provides protections for over-charge, over-discharge, over-current, and short circuit
  • Onboard APW7313 voltage regulator, provides stable 5V voltage for the Jetson Nano
  • Onboard TB6612FNG dual H-bridge motor driver
  • Onboard 0.91inch 128×32 pixels OLED, allows displaying robot IP address, RAM, battery life, etc.
  • Onboard ADS1115 AD acquisition chip for monitoring the battery in real time

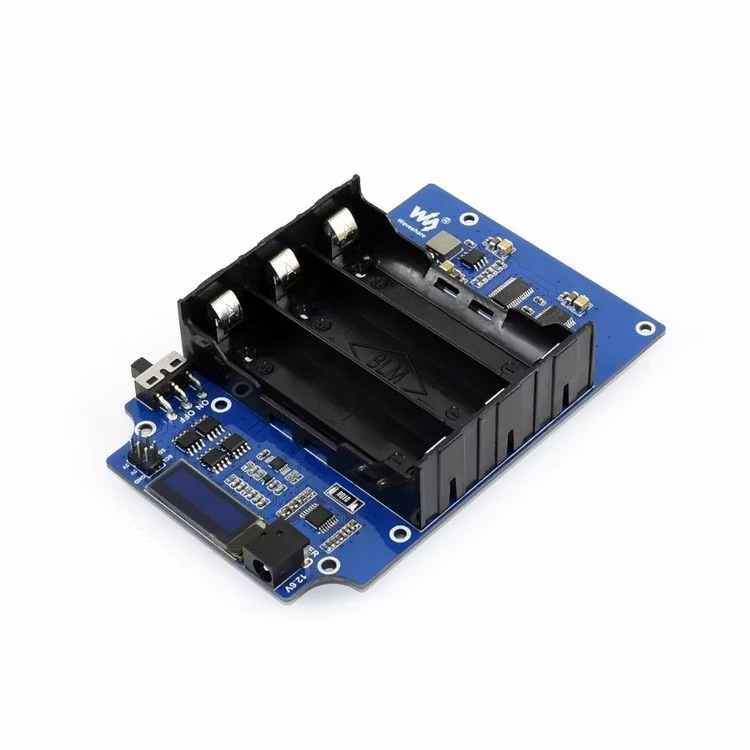

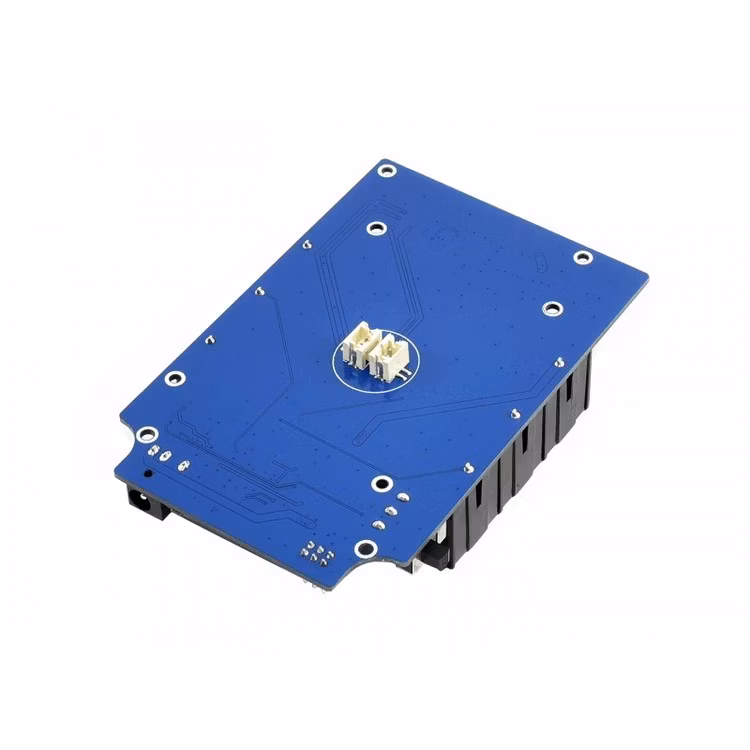

What's on the JetBot Expansion Board

  1. S-8254AA: lithium battery protector, provides protections for over-charge, over-discharge, over-current, and short circuit
  2. ADS1115: 16-bit AD acquisition chip, monitoring the battery in real time
  3. AO4407A:: P-Channel MOSFET for protection circuit
  4. APW7313:: 5V power regulator for powering the Jetson Nano
  5. PCA9685: PWM controller, I2C interface, for IO expansion
  6. TB6612FNG: dual H-bridge motor driver
  7. 0.91inch OLED: SSD1306 driver chip, 128×32 pixels
  8. Battery charger input: charging the 3x 18650 batteries
  9. Power switch
  10. 18650 battery holder
  11. Motor connector (bottom side)
  12. Jetson Nano communication header: I2C interface and power supply


JetBot AI Kit Accessories Artificial Intelligence

Add-ons for Jetson Nano to Build an AI-based Robot
128-core GPU + Quad-core A57 CPU + 4GB RAM

Highly Integrated JetBot Expansion Board

Motor Driver + Protection Circuit + High Capacity 18650 Battery (NOT included) + OLED
No Messy Wiring, Simple Assembly

Dual Mode Wireless NIC AC8265

2.4GHz / 5GHz Dual Mode WIFI + Bluetooth 4.2
High Speed WIFI Connectivity, Stable Bluetooth Communication, Low Latency

8MP 160° FOV Camera

Sony IMX219 Sensor, 3280×2464 Resolution
Facial Recognition, Object Classify, Real Time Monitoring

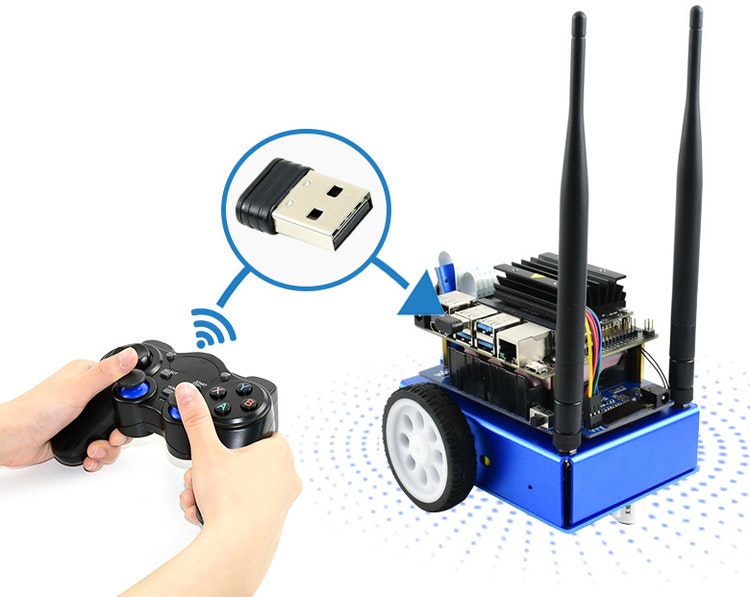

Wireless Gamepad

Wireless Communication, Easier Teleoperation

An AI Robot That Has Brain

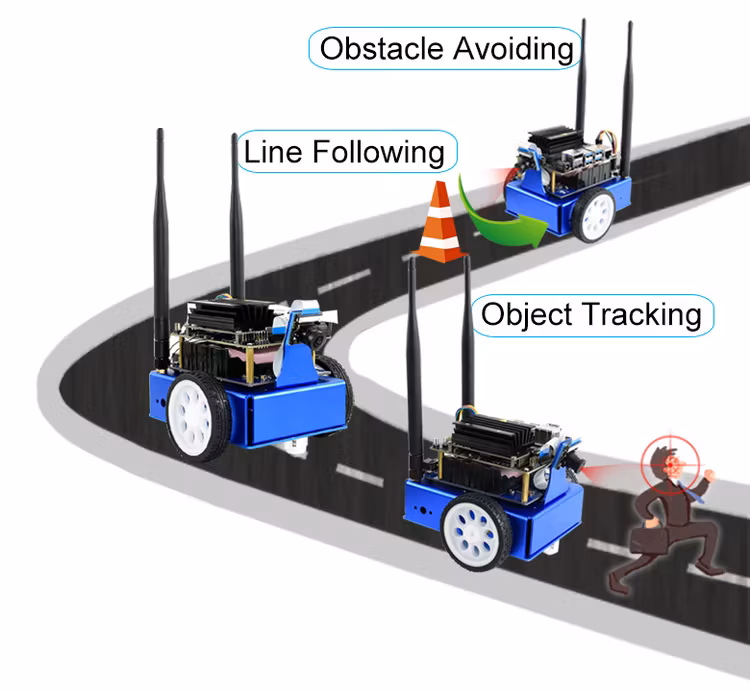

Collect Data via Camera, Train the Neural Network, Then Use the Train Model for:
Facial Recognition, Object Tracking, Line Following and Obstacle Avoiding...

ROS (Robot Operating System)

Comes with ROS Nodes Code, Easy to Get Started with ROS
Learn the ROS System Framework and Concept

The Robot Operating System (ROS) is a flexible framework for writing robot software. It is a collection of tools, libraries, and conventions that aim to simplify the task of creating complex and robust robot behavior across a wide variety of robotic platforms. The ROS is one of the most popular robot software frameworks in the world.

Metal Structure, Sapphire Color

Good Looking, Nearly Industrial Quality

Development Resources

Wiki: www.waveshare.com/wiki/JetBot_AI_Kit

Products

Weight: 0.773 kg

Note: this product requires three 18650 batteries to work, which are NOT included and should be purchased separately.

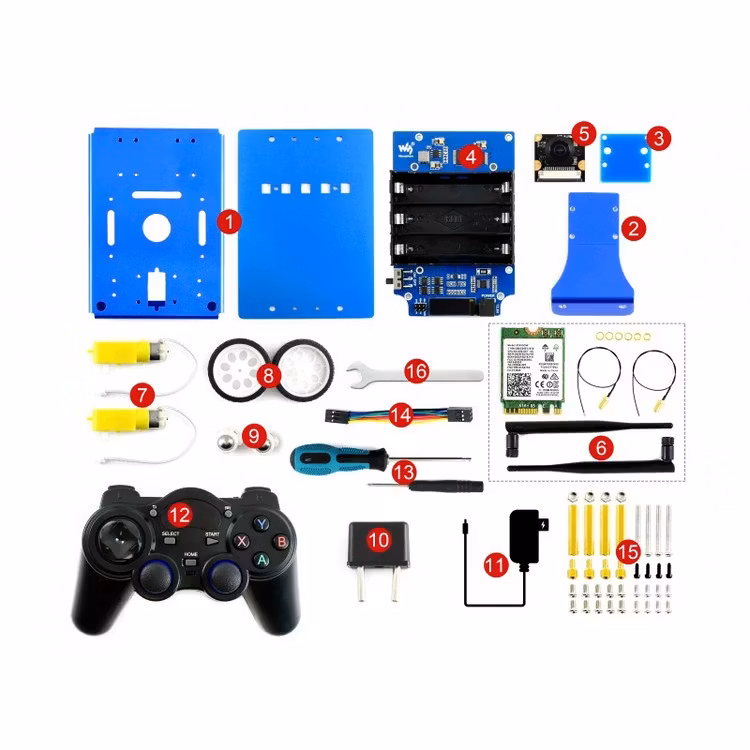

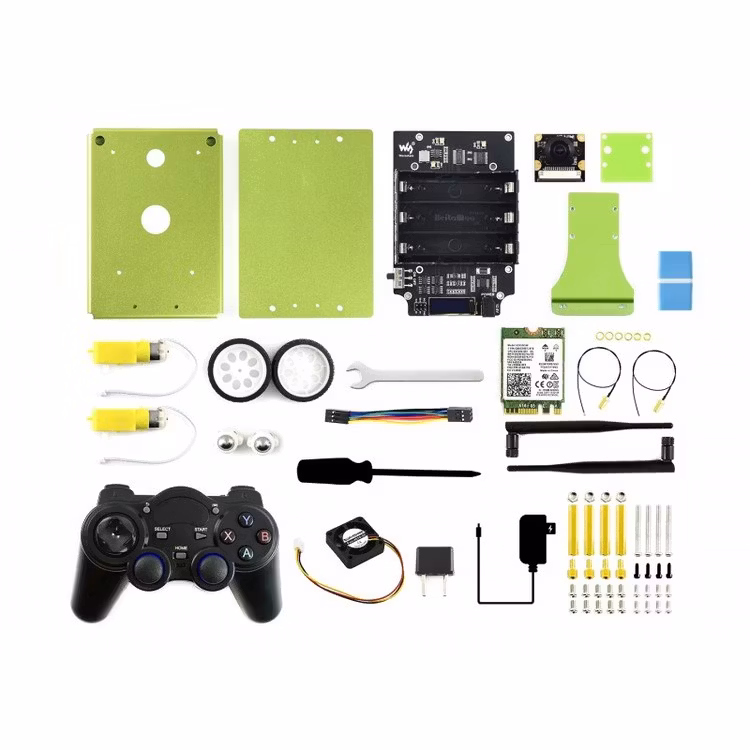

  1. Metal box x1
  2. Camera holder x1
  3. Acrylic piece x1
  4. Jetbot expansion board x1
  5. IMX219-160 Camera x1
  6. Wireless-AC8265 x1
  7. Motor 2PCS x1
  8. Wheel 2PCS x1
  9. Omni-direction wheel 2PCS x1
  10. Power adapter EU head x1
  11. 12.6V battery charger x1
  12. Wireless gamepad x1
  13. Screwdriver 2PCS x1
  14. 6Pin 9cm cable x1
  15. Screws pack x1
  16. Spanner x1
