Jetson Nano Development / Expansion Kit, Alternative Solution Of B01 Kit, Optional Jetson Nano Core Module

Jetson Nano Development / Expansion Kit

Compatible With Both Jetson Nano And Jetson Xavier NX

Alternative solution of B01 kit



Based on AI computers Jetson Nano and Jetson Xavier NX, providing almost the same IOs, size and thickness as the Jetson Nano Developer Kit (B01), more convenient for upgrading the core module. By utilizing the power of core module, it is qualified for fields like image classification, object detection, segmentation, speech processing etc. and can be used in sorts of AI projects.

Ordering Options

JETSON-NANO-DEV-KIT-A

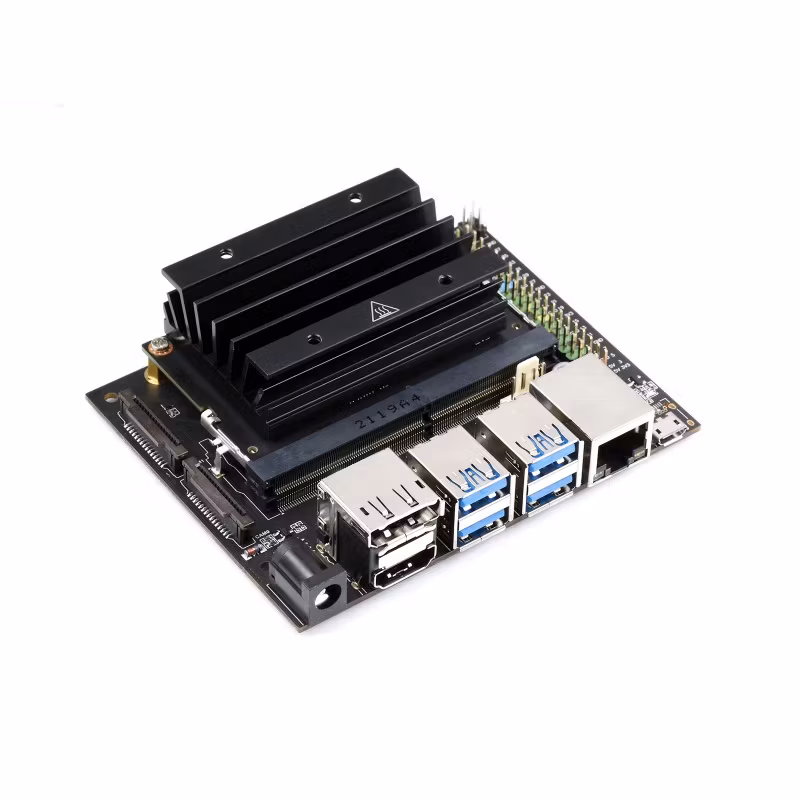

The carrier board, along with Jetson Nano module, official heatsink, and more extra free accessories



JETSON-IO-BASE-A
The carrier board ONLY, compatible with both Jetson Nano and Jetson Xavier NX

Extra Free Accessories

For JETSON-NANO-DEV-KIT-A ONLY

AC8265 dual-mode NIC



Cooling fan



USB cable (~1.2m)



5V 4A power adapter

Comparing Specifications With B01

 JETSON-NANO-DEV-KIT-AJetson Nano Developer Kit (B01)
GPU128-core Maxwell
CPUQuad-core ARM A57 @ 1.43 GHz
MEMORY4 GB 64-bit LPDDR4 25.6 GB/s
STORAGE emmc                                                 micro SD card (NOT included. Recommendation
VIDEO ENCODER4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
VIDEO DECODER4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265)
CAMERA2x MIPI CSI-2 DPHY lanes
CONNECTIVITYGigabit Ethernet
M.2 Key E expansion connector
(comes with AC8265 Dual-mode NIC)
M.2 Key E expansion connector
(no NIC)
DISPLAYHDMI and DP
USB4x USB 3.0, USB 2.0 Micro-B
EXTENSION INTERFACESGPIO, I2C, I2S, SPI, UART
DIMENSIONS100 × 80 × 29mm
OTHER260-pin connector


Comparing Appearance With B01

Compatible With Expansion Modules And Cases Of The Jetson Nano Developer Kit (B01)

JETSON-NANO-DEV-KIT-A



Jetson Nano Developer Kit (B01)

Compatible With Two Core Modules

The Carrier Board Is Compatible With Jetson Nano And Jetson Xavier NX
Convenient For Hardware Upgrading

Play Around With Binocular Vision

Supports 2-Lanes CSI Camera, Suitable For Binocular Vision Applications Such As Parallax Algorithm Ranging, Facial Recognition, Organism Detection, VR Video Recording...

Dual 4K Outputs

Supports DisplayPort And HDMI High Definition Ports

4x High Speed USB3.0

USB3.0 High Speed Data Transmission, Allows More USB Peripherals


Color-Coded 40PIN GPIO Header

Color-Coded Header Pins With Clear Labels, Handy For Use

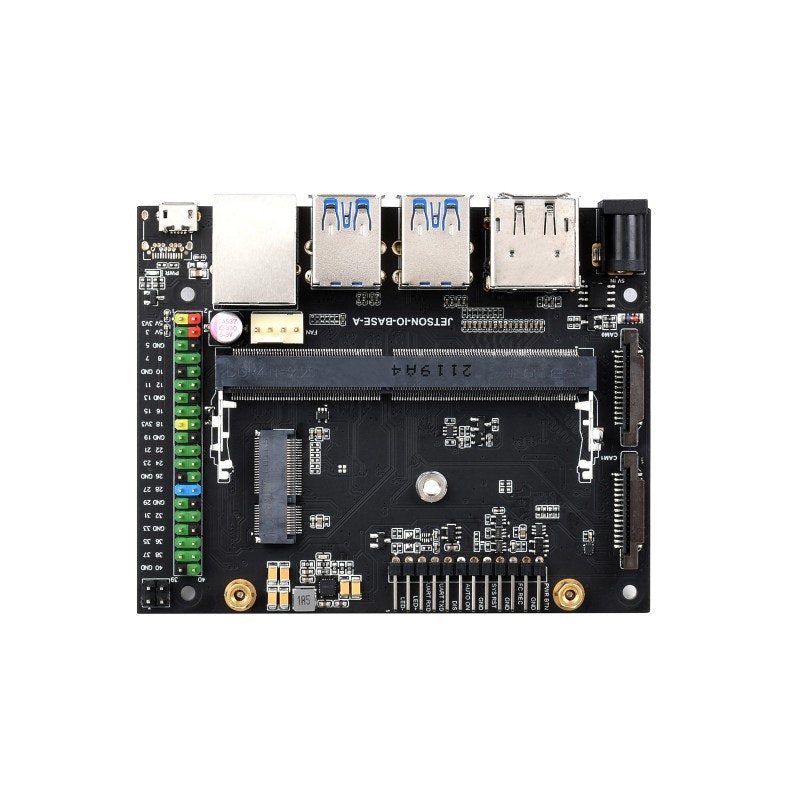

Introduction

  1. Core module socket
  2. M.2 Key E connector
  3. PoE pins: PoE module is not included
  4. 40PIN GPIO header
  5. Micro USB port: for 5V power input or for USB data transmission
  6. Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation, supports PoE if external PoE module is connected
  7. 4x USB 3.0 port
  8. HDMI output port
  9. DisplayPort connector
  10. DC jack: for 5V power input
  11. 2x MIPI CSI camera connector

Outline Dimensions

Resources & Services

Wiki: JETSON-NANO-DEV-KIT-A

Shipping list

Weight: 0.447 kg

  1. JETSON-IO-BASE-A (carrier board)
  2. Jetson Nano core module & accessories
    • Jetson Nano module
    • Official heatsink
    • (free) AC8265 dual-mode NIC
    • (free) cooling fan
    • (free) USB cable (~1.2m)
    • (free) 5V 4A power adapter
