Jetson Nano Developer Kit Package C (for EU), with Display, Camera, TF Card

I lager.
Antal: 2

2 685 kr

Artikelnummer: SKU363

NVIDIA Jetson Nano Developer Kit (Optional) + 7inch Touch Display + Camera + TF Card

Jetson Nano Developer Kit Package C

Almost A Robot In Embryo

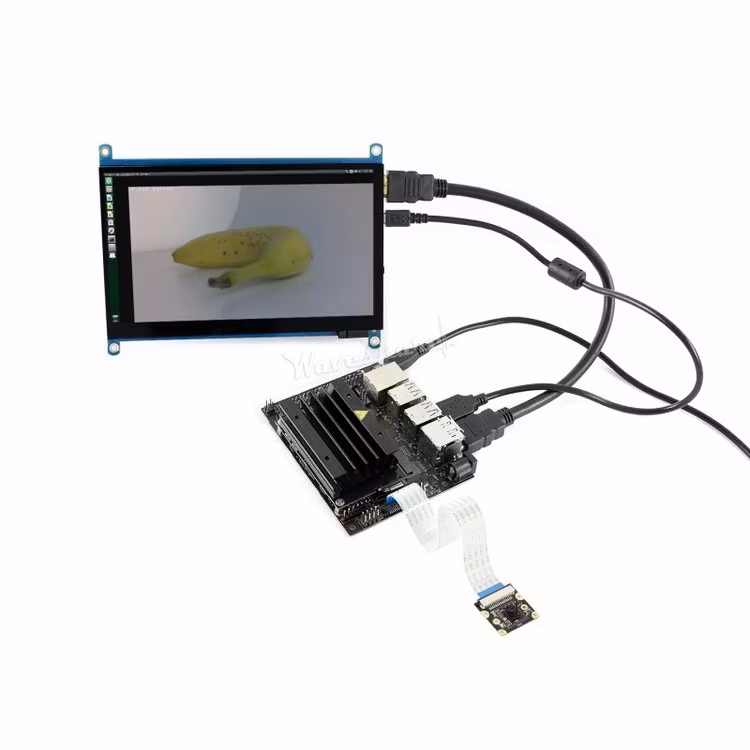

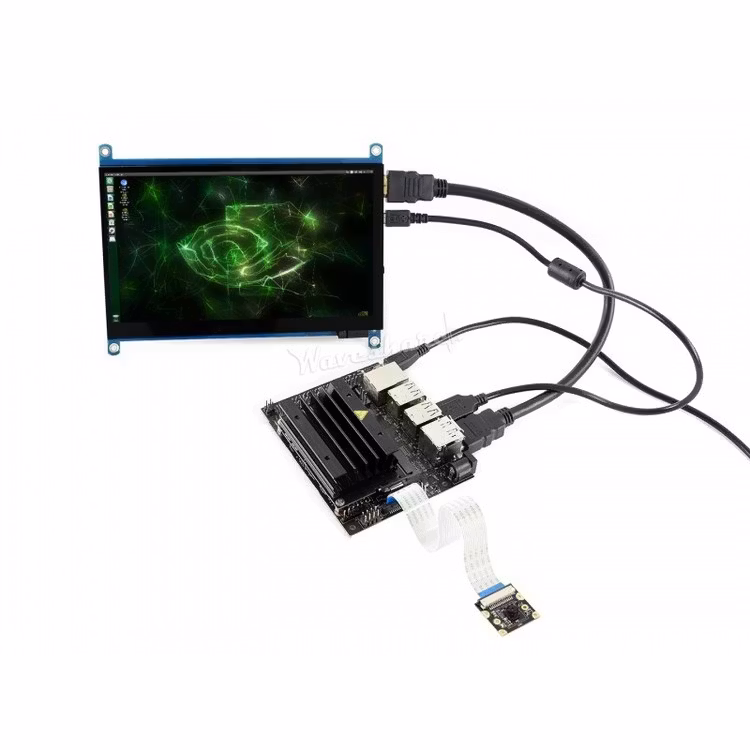

This is a development pack (Type C) designed for NVIDIA Jetson Nano, it includes: Jetson Nano Developer Kit official content (optional), 7inch IPS capacitive touch display, IMX219-77 camera board, SanDisk 64GB class 10 TF card, and the power adapter. This pack is almost a robot in embryo, you can even "see" via its "eye", now it's your show time to bring the superior AI robot to life.

Introducing Jetson Nano

NVIDIA Jetson Nano, Bringing The Power Of Modern AI To Millions Of Devices

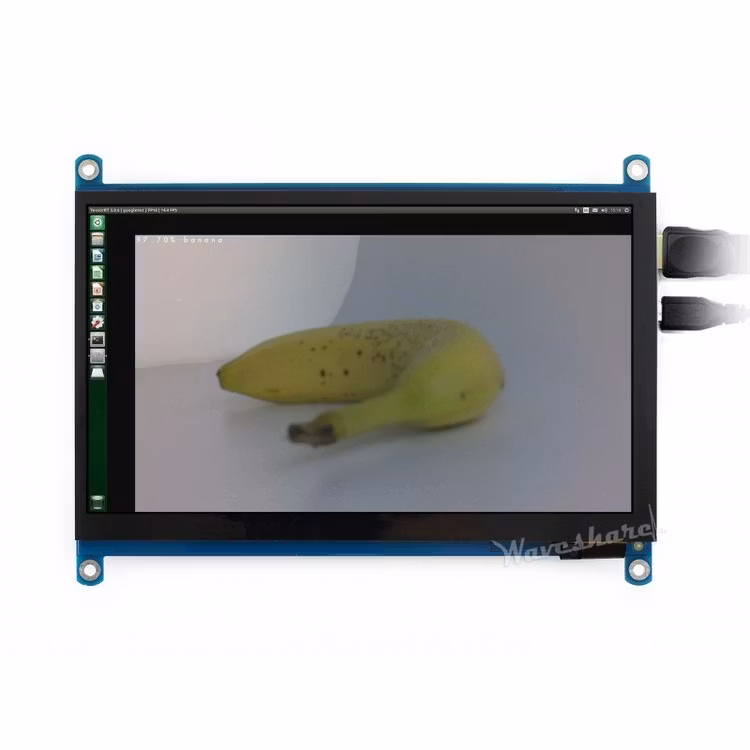

7" HDMI Touch Display

7inch HDMI LCD (H) Features

  • IPS screen, 1024x600 hardware resolution, configurable by software (up to 1920x1080)
  • Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers
    • When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
    • When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
  • Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.
  • Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
  • 3.5mm audio jack, speaker connector, supports HDMI audio output
  • Also supports VGA input (specific cable is required and should be purchased separately)

8MP Camera

IMX219-77 Camera Features

  • Supports NVIDIA Jetson Nano Developer Kit, Compute Module 3/3+
  • 8 Megapixels
  • Sensor: Sony IMX219
  • Resolution: 3280 × 2464
  • Lens specifications:
    • CMOS size: 1/4inch
    • Aperture (F): 2.0
    • Focal Length: 2.96mm
    • Angle of View (diagonal): 77 degree
    • Distortion: < 1%
    • Lens dimensions: 6.5mm × 6.5mm
  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
  • Dimension: 25mm × 24mm

What's On Board

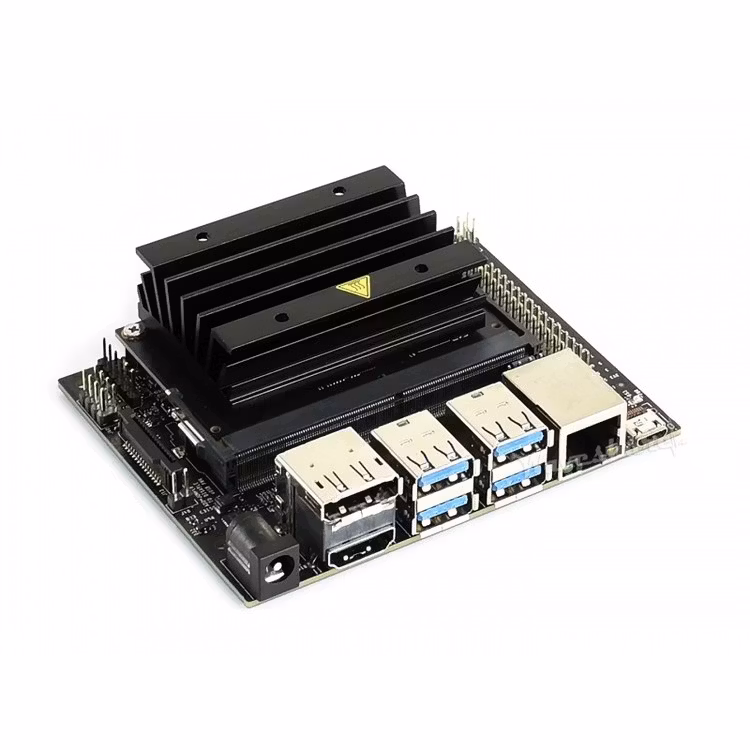

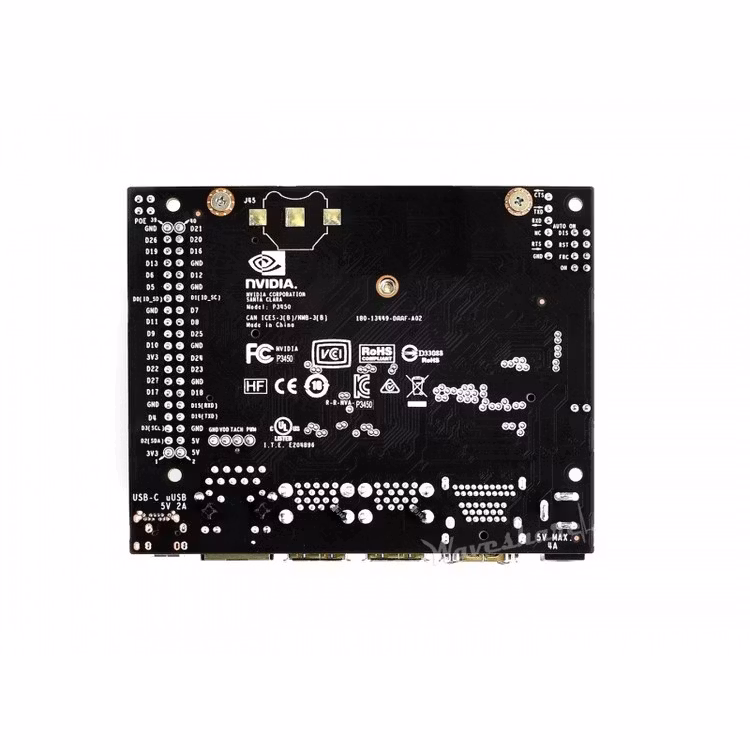

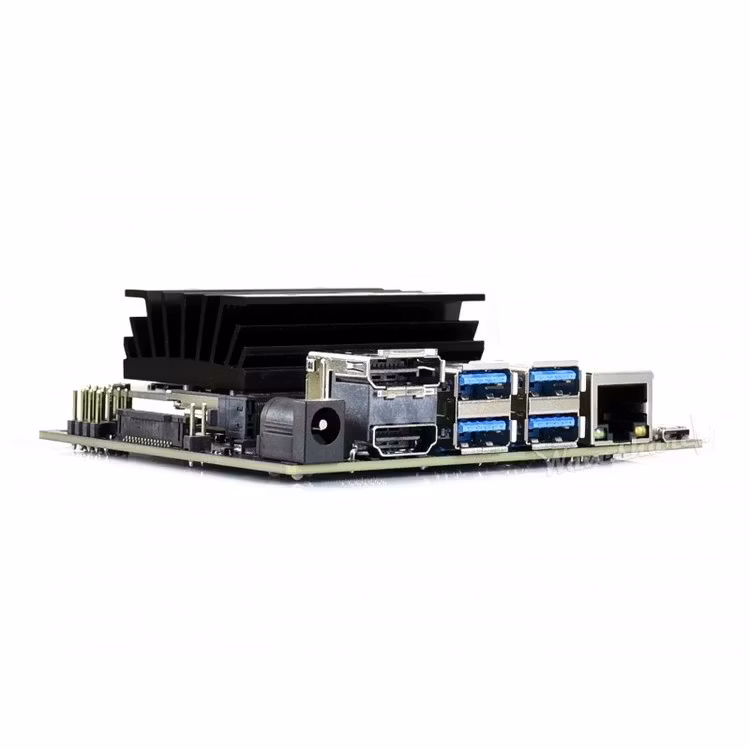

Jetson Nano Developer Kit (B01) on board resource

  1. Micro SD card slot: insert a 16GB or larger TF card for main storage and writing system image
  2. 40-pin expansion header
  3. Micro USB port: for 5V power input or for USB data transmission
  4. Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation
  5. 4x USB 3.0 port
  6. HDMI output port
  7. DisplayPort connector
  8. DC jack: for 5V power input
  9. 2x MIPI CSI camera connector

Specifications

GPU128-core Maxwell
CPUQuad-core ARM A57 @ 1.43 GHz
MEMORY4 GB 64-bit LPDDR4 25.6 GB/s
STORAGE64GB Class10 Micro SD card
VIDEO ENCODER4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
VIDEO DECODER4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265)
CAMERA2x MIPI CSI-2 DPHY lanes
CONNECTIVITYGigabit Ethernet, M.2 Key E expansion connector (Recommendation: AC8265 Dual-mode NIC)
DISPLAYHDMI and DP
USB4x USB 3.0, USB 2.0 Micro-B
EXTENSION INTERFACESGPIO, I2C, I2S, SPI, UART

Resources & Services

Wiki: www.waveshare.com/wiki/Jetson_Nano_Developer_Kit

Kits Selection Guide

Various Choices Of Development Pack Designed For Jetson Nano Developer Kit

Starter Kit

The very essential parts to get started, guaranteed compatibility and stability.

  • Jetson Nano Developer Kit (optional)
  • 64GB Class10 high speed TF card
  • 5V 4A quality power supply
  • Extra SD card reader and jumper






Camera Kit

Utilizing the Jetson Nano for facial recognition, object identification, real-time monitoring...

  • Jetson Nano Developer Kit (optional)
  • 8MP camera module
  • 64GB Class10 high speed TF card
  • 5V 4A quality power supply
  • Extra SD card reader and jumper


Display Kit

It is almost a robot in embryo, you can even "see" via its "eye", time to create your own robot.

  • Jetson Nano Developer Kit (optional)
  • 7" IPS capacitive touch display
  • 8MP camera module
  • 64GB Class10 high speed TF card
  • 5V 4A quality power supply, card reader...






Binocular Kit

Evaluating depth vision / stereo vision applications powered by Jetson Nano

  • Jetson Nano Developer Kit (optional)
  • 8MP stereo camera module
  • 64GB Class10 high speed TF card
  • 5V 4A quality power supply
  • Extra SD card reader and jumper


Robot KitJetRacer

An autonomous AI racing Donkeycar powered by Jetson Nano, features capability like deep learning, self driving, visual road following, etc.

  • Jetson Nano Developer Kit (optional)
  • JetRacer driver board, alloy chassis
  • Camera / Wireless NIC / Teleoperator
  • Track Map / TF Card / Power Supply / Cooling Fan...






Robot KitJetBot

AI robot based on Jetson Nano, features capability like facial recognition, object tracking, auto line following, and collision avoidance...

  • Jetson Nano Developer Kit (optional)
  • JetBot driver board, alloy chassis
  • Camera / Wireless NIC / Teleoperator
  • TF Card / Power Supply / Cooling Fan...

Note: please properly keep the Jetson products' original packing box and accessories (if any) for warranty service, and the serial numbers on the product and packing box MUST be matched, otherwise, the original manufacturer will reject returning / repairing.

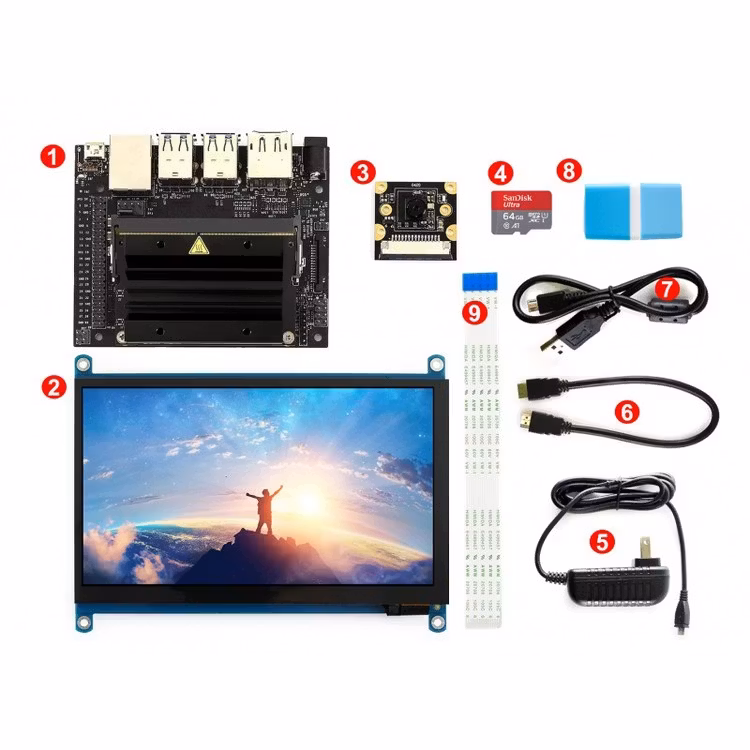

  1.  Jetson Nano Developer Kit (B01) x1
  2. 7inch HDMI LCD (H) x1
  3. IMX219-77 Camera x1
  4. Micro SD Card 64GB x1
  5. HDMI cable x1
  6. USB type A plug to micro B plug cable x1
  7. SD card reader x1
  8. 15-pin FFC (opposite sides contact) x1
  9. Jumper cap x1
  10. OPTIONS Power adapter x1
