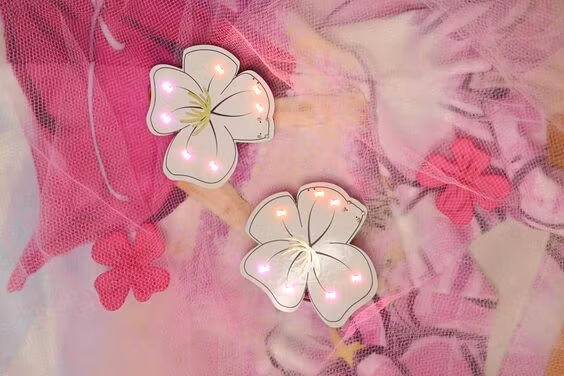

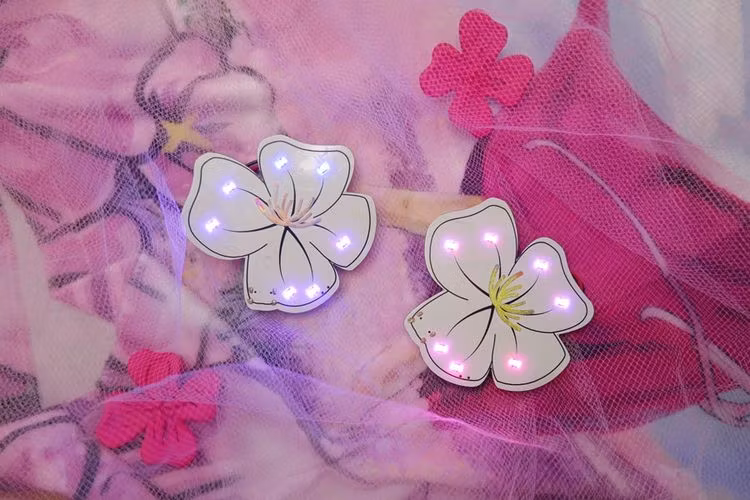

Kitty’s Flower - Bluetooth Wearable Brooches

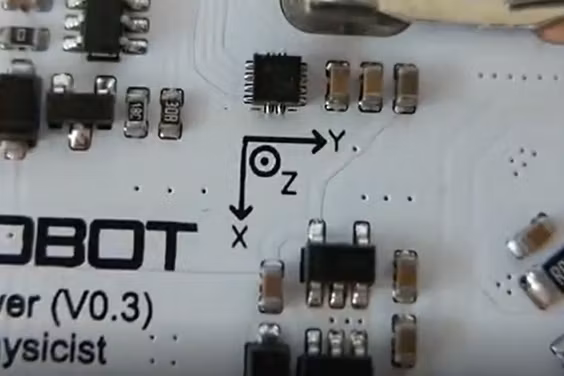

Kitty's Flower is a pair of Bluetooth wearable brooches. Jointly created by Art by Physicist and DFRobot, they are specially designed for wearable application scenarios, integrated power management system, RGB LED lights, accelerometer, sensors, vibration, and touch. Support Arduino programming, and can be used as the core intelligent control unit for wearable products, interactive art installations, and new accessories. Two are matched as a pair, and various effects can be programmed by users. The factory-set functions are programmed for the above-mentioned scenario.
Companion brooches match the Flower outfit (top, shorts, and mask cover) with hand digital painting on fabric and 3D printed flowers on tulle.
- Microcontroller: ATmega328
- BLE chip type: TI CC2540
- Support Bluetooth HID
- Debug Bluetooth module through AT command
- Serial port communication
- USB BLE firmware update
- Power supply interface: USB/3.7V lithium battery, JST connector
- External power supply range: 7-12V
- Bootloader: Arduino UNO
- Size: 70mm*70mm
- Weight: 30g
- Kitty’s Flower (pair) x1
