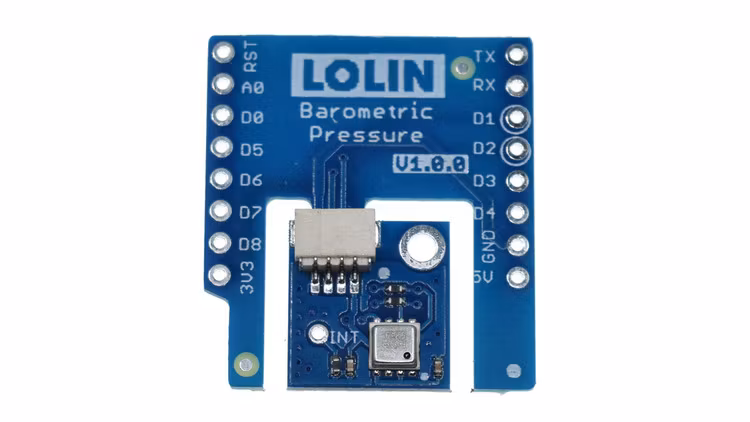

Barometric Pressure Shield V1.0.0 for LOLIN (WEMOS) D1 mini

I lager.

39 kr

Artikelnummer: 200

Barometrisk trycksensor V1.0.0 för LOLIN (WEMOS) D1 mini HP303B I2C digitaltrycksensormodul DPS310 kompatibel. HP303B är en miniatyriserad digital barometrisk lufttrycksgivare med hög noggrannhet
och låg strömförbrukning, som kan mäta både tryck och temperatur.

I2C Interface

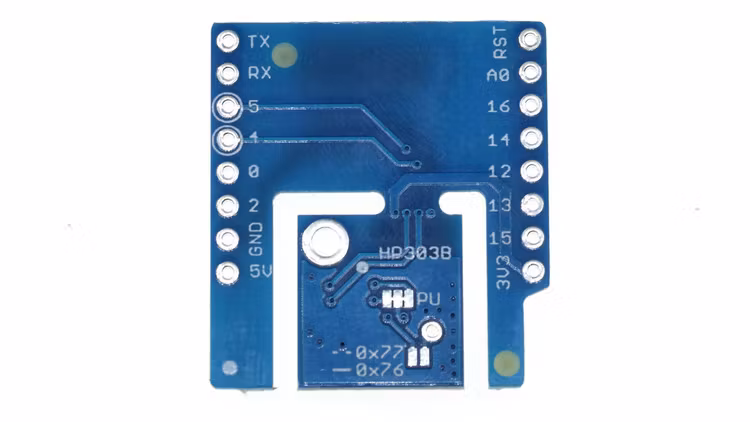

Two user selectable addresses (0x77 or 0x76)
Operation range: Pressure: 300 -1200 hPa. Temperature: -40 - 85 °C.
Pressure sensor precision: ± 0.005 hPa (or ±0.05 m) (high precision mode).
Relative accuracy: ± 0.06 hPa (or ±0.5 m)
Absolute accuracy: ± 1 hPa (or ±8 m)
Temperature accuracy: ± 0.5°C.
Separable design
Φ2mm mounting holes

Typical Applications
• Indoor Navigation (floor detection e.g. in shopping malls and parking garages)
• Health and Sports (accurate elevation gain and vertical speed)
• Outdoor Navigation (GPS start-up time and accuracy improvement, dead-reckoning e.g. in tunnels)
• Weather Station('Micro-weather' and local forecasts)
• HDD drivers, (leak rate detection in hard disk drives)
• Drones (flight stability and height control)
