Battery Shield V1.3.0 for LOLIN D1 Mini

I lager.

59 kr

Batteri Shield V1.3.0 för LOLIN (WEMOS) D1 mini, gör det möjligt att producera anslutna objekt som fungerar på ett LiPo-batteri. Batterikontakten är JST XH2-2.54mm.

Features

  • Charging Voltage: max: 10V, recommend: 5V

  • Charging Current: max: 1A

  • Lithium Battery voltage: 3.3-4.2V

  • Boost Power Supply: 5V(max: 1A)

Pins

D1 miniShield
5V5V(max: 1A) Power Supply
GNDGND

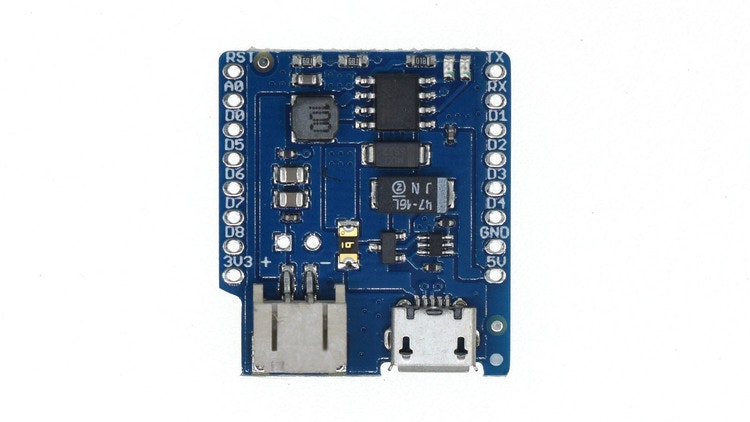

Ports

PortIntroduction
PH2-2.0MM (Port 1)Connect to lithium Battery (normal 3.3-4.2V)
Micro USB (Port 2)Charging port (normal 5V)
Green LEDlights when charging is completed
Red LEDlights when charging

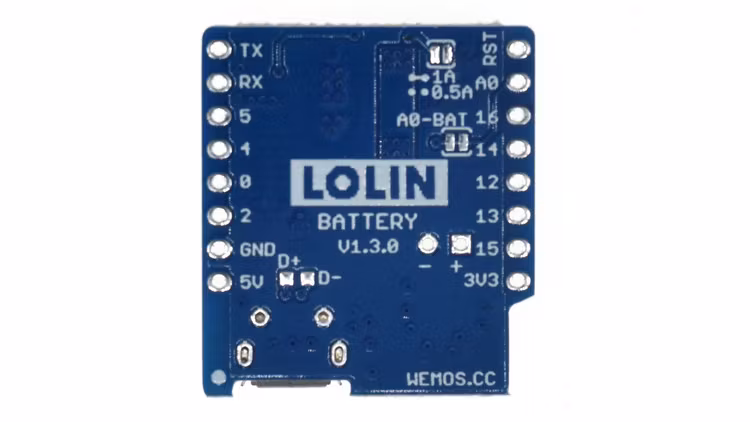

J1setting max charging current, 0.5A or 1A.
J2Connect the battery to A0

Documents

Shipping list

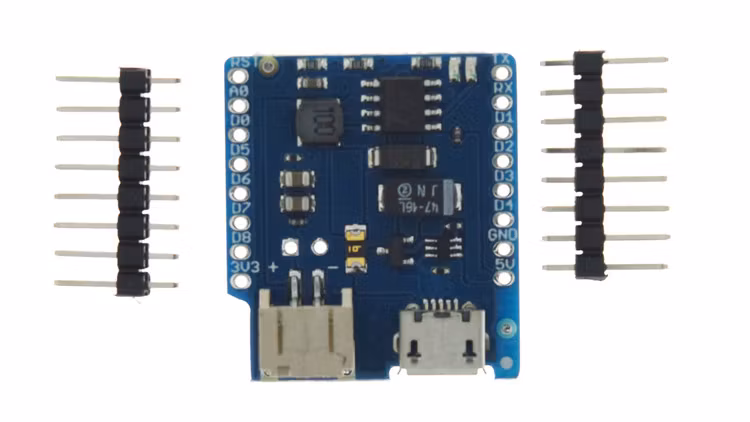

1.Normal pins x2pcs

2.Battery Shield  x1pcs
