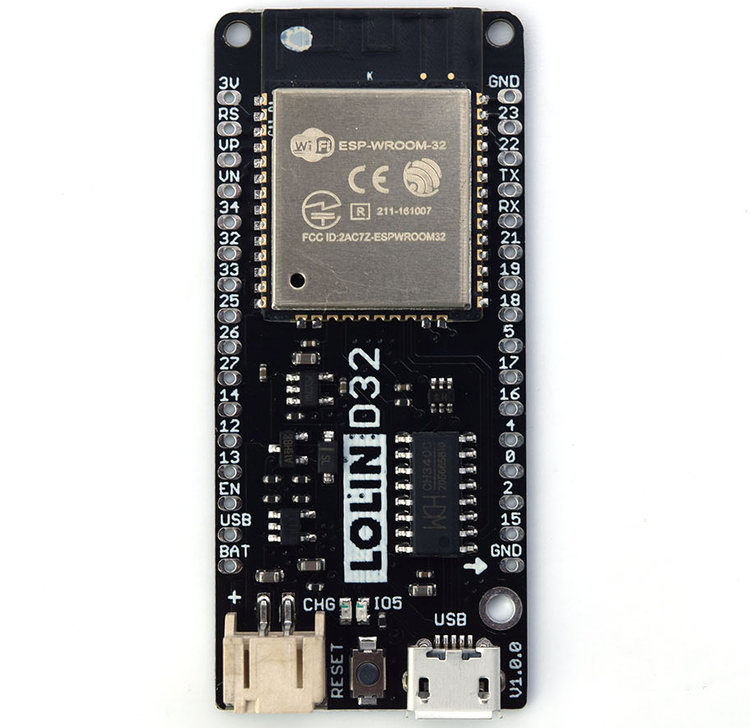

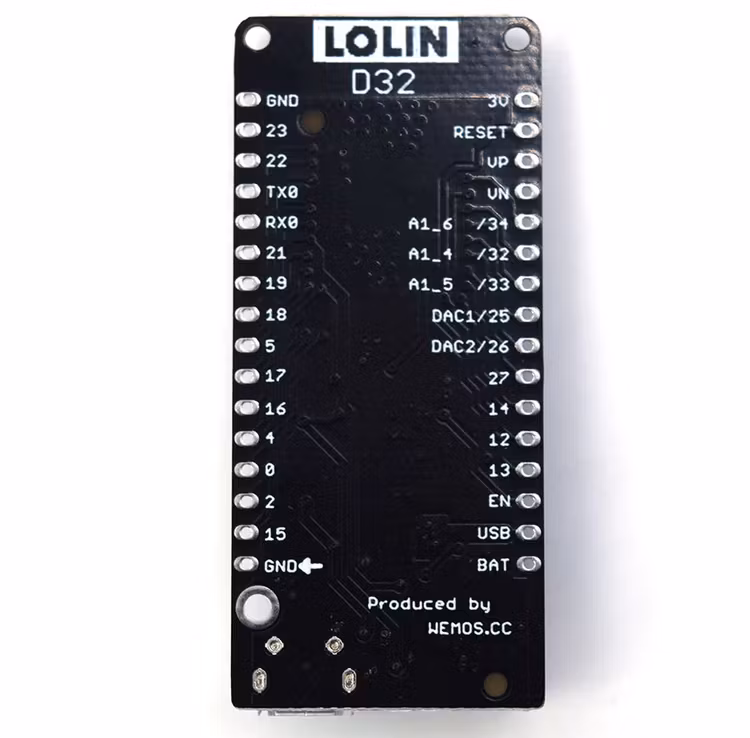

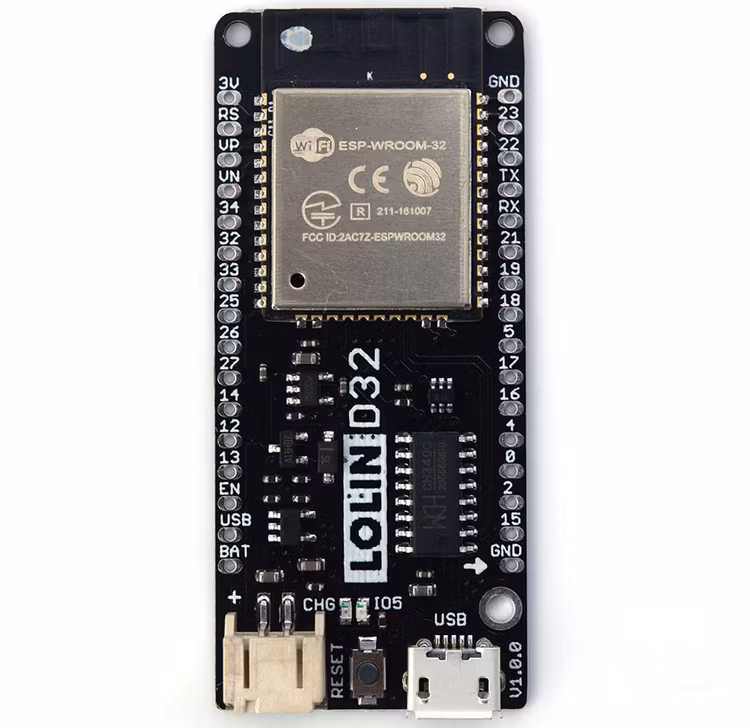

LOLIN D32

  • 175 kr

LOLIN D32 V1.0.0 - wifi & Bluetooth board based ESP-32 esp32 ESP-WROOM-32 4MB FLASH Arduino MicroPython CompatibleESP32-WROOM-32D integrates ESP32-D0WD. It

I lager.
Lagersaldo: 2
Artikelnummer: SKUD32
Dela
  • Information

LOLIN D32 V1.0.0 - wifi & Bluetooth board based ESP-32 esp32 ESP-WROOM-32 4MB FLASH Arduino MicroPython Compatible

ESP32-WROOM-32D integrates ESP32-D0WD. It targets a wide variety of applications, ranging from low-power sensor networks to demanding tasks, such as voice encoding, music streaming, and MP3 decoding.

This ESP32-WROOM-32D module is one of those in this family ESP32-DevKitC is a low footprint system, breadboard-friendly, minimal system development powered by the ESP32-WROOM-32 module.

LOLIN D32 V1.0.0 - wifi & Bluetooth board based ESP-32 esp32 ESP-WROOM-32 4MB FLASH Arduino MicroPython Compatible

  • D32: The red LED is off when the battery is not connected.
  • D32-LED: The red LED will fast flashing when the battery is not connected.

Features

  • WIFI

  • Bluetooth

  • 4MB Flash

  • Lithium battery interface, 500mA Max charging current

  • Compatible with Arduino, MicroPython

  • Default firmware: lastest MicroPython

Technical specs

Microcontroller
ESP-32
Operating Voltage
3.3V
Digital I/O Pins
26
Analog Input Pins
12
Clock Speed(Max)
240Mhz
Flash
4M bytes
Length
58mm
Width
25.4mm
Weight
5.8g

Shipping List

1. 16P pinhead x2pcs

2. LOLIN D32 x1pcs

Documents

ESP32-WROOM-32D
Get started in MicroPython with LOLIN32

ESP32-DevKitC V4 Getting Started Guide

ESP-IDF Programming Guide
