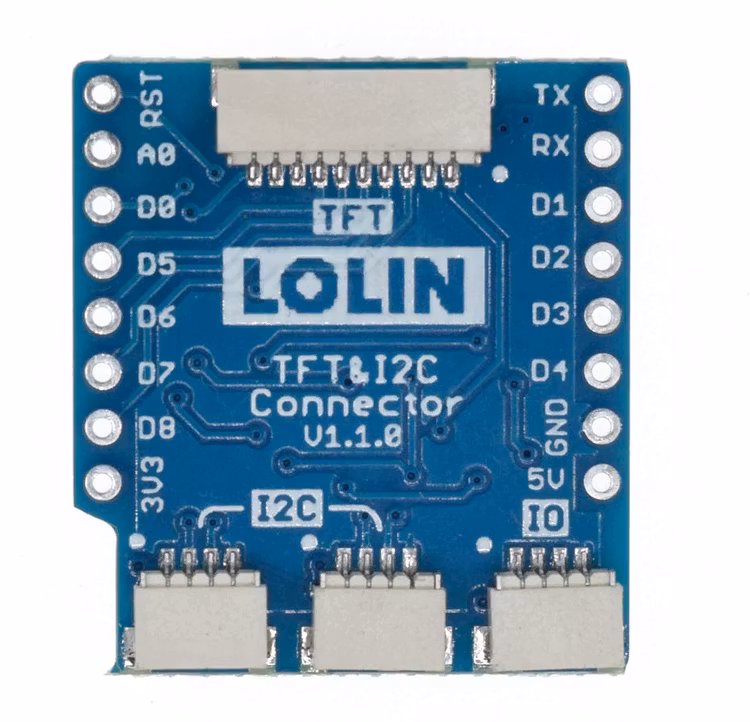

TFT I2C Connector Shield V1.1.0 for LOLIN (WEMOS) D1 mini

I lager.

33 kr

TFT I2C Connector Shield V1.1.0 for LOLIN (WEMOS) D1 mini 1x TFT, 2x I2C & 1x User IO Connector.

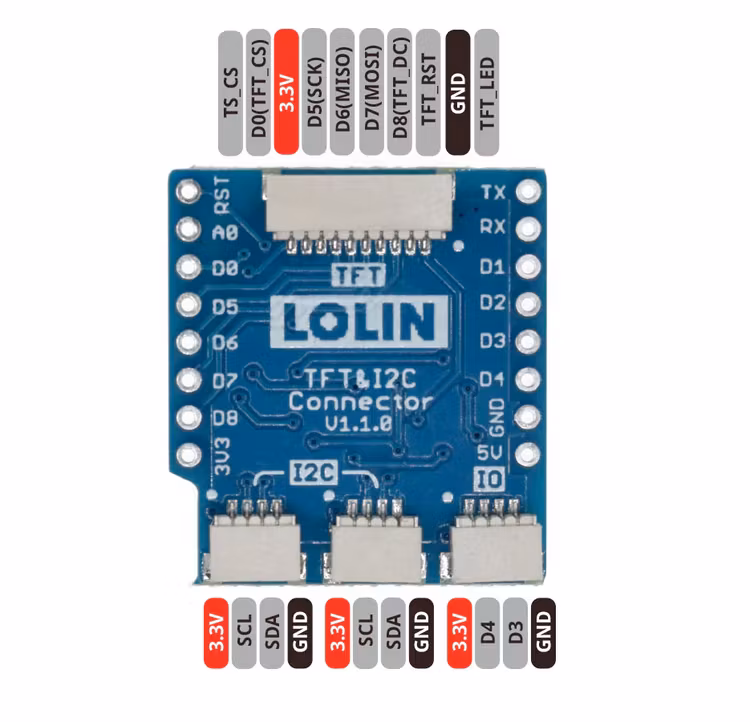

TFTConnector

  • TFT_LEDBacklight control pin, default: NC

  • GND

  • TFT_RST TFT RESET pin, default: RST

  • TFT_DC TFT Register select pin, default: D8 (IO15)

  • MOSISPI MOSI, D7 (IO13)

  • MISOSPI MISO, D6 (IO12)

  • SCKSPI SCK, D5 (IO14)

  • 3V3

  • TFT_CSTFT Select pin, default: D0 (IO16)

  • TS_CSTouch Screen Select pin, default: D3 (IO0)

I2CConnector

  • 3V3

  • SCLD1 (IO5)

  • SDAD2 (IO4)

  • GND

UserIO Connector

  • 3V3

  • D4(IO2)

  • D3(IO0)

  • GND
