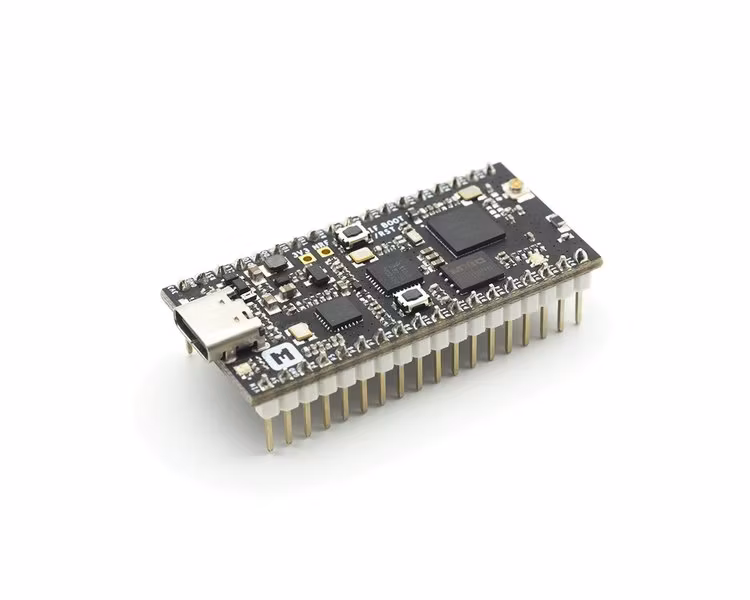

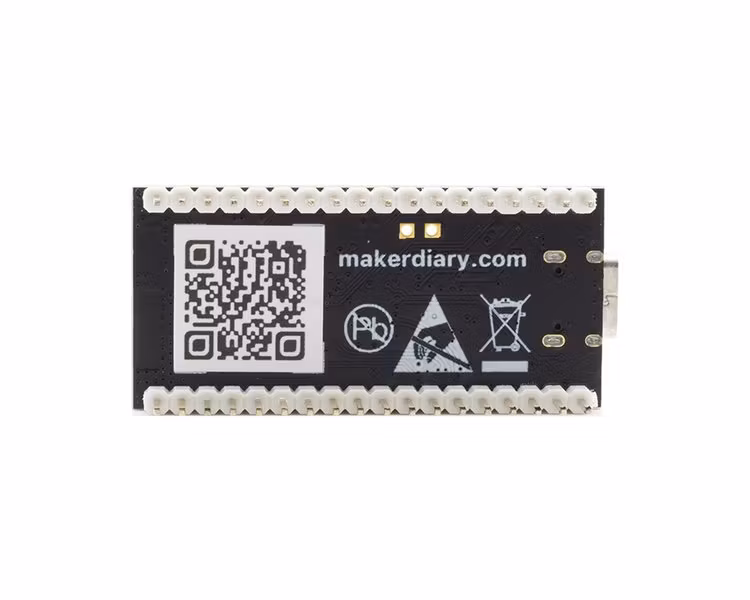

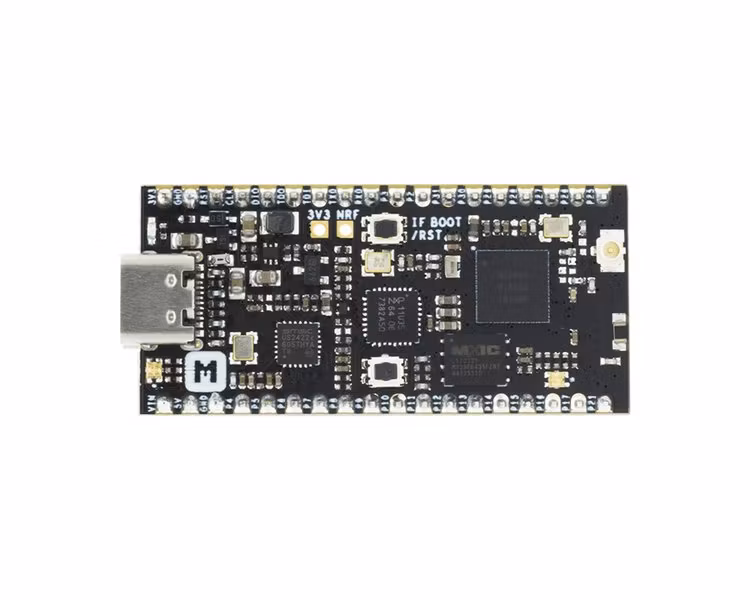

nRF52840-MDK IoT Development Kit

I lager.

699 kr

Artikelnummer: 909

Nordic nRF52840 System-on-Chip

  • ARM Cortex-M4F processor optimized for ultra-low power operation
  • Combining Bluetooth 5, Bluetooth Mesh, Thread, IEEE 802.15.4, ANT and 2.4GHz proprietary
  • On-chip NFC-A tag
  • On-chip USB 2.0 (Full speed) controller
  • ARM TrustZone Cryptocell 310 security subsystem
  • 1 MB FLASH and 256 kB RAM


Program/Debug options with DAPLink

  • MSC - drag-n-drop programming flash memory
  • CDC - virtual com port for log, trace and terminal emulation
  • HID - CMSIS-DAP compliant debug channel
  • WEBUSB HID - CMSIS-DAP compliant debug channel
  • Microchip 2-Port USB 2.0 Hi-Speed Hub Controller
  • External ultra-low power 64-Mb QSPI FLASH memory
  • Up to 24 GPIOs available via headers
  • IF Boot/Reset Button
  • User programmable Button and RGB LED
  • On-board 2.4G chip antenna
  • U.FL connector selectable for external antenna
  • 3.3V regulator with 1A peak current output
  • VBUS & VIN Power-Path Management
  • Reversible USB 3.1 Type-C Connector
  • Breadboard-friendly with dual 18-Pin headers
  • Measures 1.97" x 0.9" x 0.51" (50mm x 23mm x 13mm) with headers soldered in

Technical Details:

  • Dimensions: 50mm x 23mm x 13mm
  • Weight: G.W 36g
  • Battery: Exclude

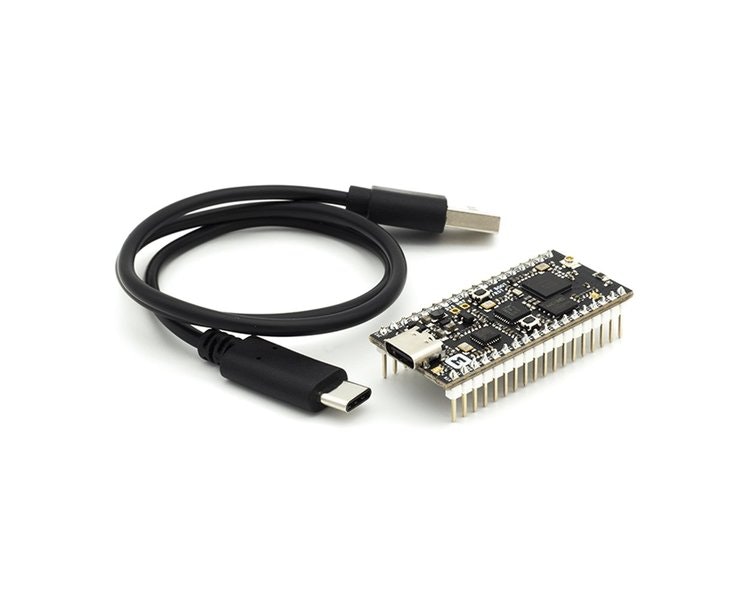

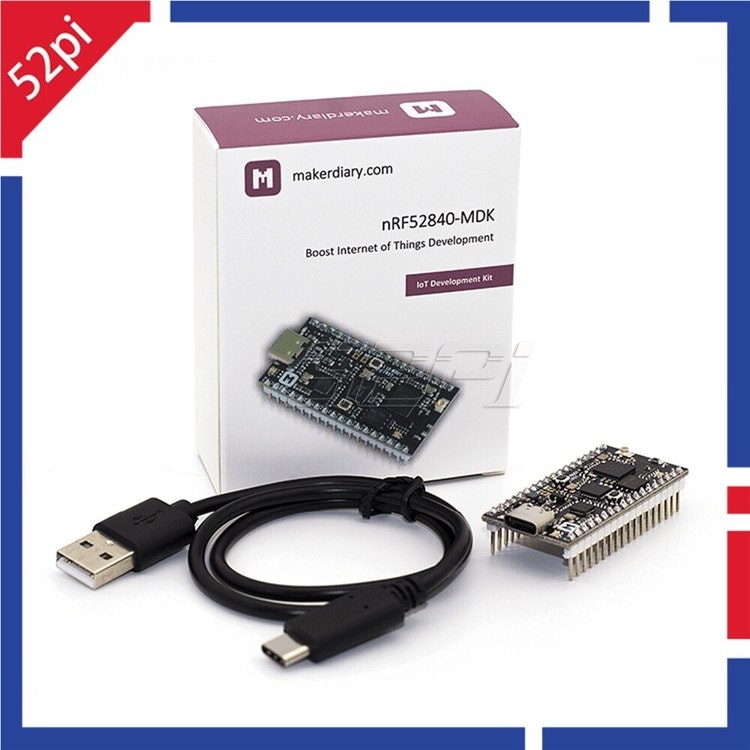

Package Includes:

  • 1x nRF52840-MDK Board
  • 1x USB 3.1 Type-C Cable
