Raspberry Pi Compute Module 4 - 8GB RAM, 32GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0

  • 2 199 kr

SEEED Studio version High-performance 64-bit quad-core processorDual display support at resolutions up to 4KHardware video decode at up to 4Kp60Dual camera

Produkten är tyvärr slut i lager. :(

Artikelnummer: 1036
Dela
  • Information

SEEED Studio version

  • High-performance 64-bit quad-core processor
  • Dual display support at resolutions up to 4K
  • Hardware video decode at up to 4Kp60
  • Dual camera interfaces
  • PCIe Gen 2 x1 interface

Raspberry Pi Compute Module 4 harnesses the computing power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor suitable for integration into products.

This version of the Raspberry Pi Compute Module 4 includes a high-performance 64-bit quad-core processor, 8GB LPDDR4 RAM, dual-display support at resolutions up to 4K, hardware video decode at up to 4Kp60, Gigabit Ethernet, USB 2.0, dual camera interfaces, PCIe Gen 2 x1 interface, and dual-band 2.4/5.0GHz wireless LAN and Bluetooth 5.0.

Specifications

SpecificationDetails
ProcessorBroadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory8GB LPDDR4
ConnectivityOnboard Gigabit Ethernet PHY supporting IEEE1588

1 × USB 2.0 interface

PCIe Gen 2 x1 interface

28 GPIO signals

SD card interface for SD card or external eMMC (for use only with Compute Module 4 variants without eMMC)
VideoDual HDMI interface (up to 4Kp60 supported)

2-lane MIPI DSI display interface

2-lane MIPI CSI camera interface

4-lane MIPI DSI display interface

4-lane MIPI CSI camera interface
MultimediaH.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
Input power5V DC
Operating temperature0 to +80°C
Dimensions55 mm × 40 mm
Production lifetimeRaspberry Pi Compute Module 4 will remain in production until at least January 2028
ComplianceFor a full list of local and regional product approvals, please visit:
www.raspberrypi.org/documentation/hardware/raspberrypi/conformity.md

Hardware Overview

Dimensions

Note

  • 4 x M2.5 holes in corners
  • All dimensions are in mm

Part List

1 x Raspberry Pi Compute Module 4 - 8GB RAM



Raspberry Pi Compute Module 4 Wireless / 4GB RAM / 32GB Storage.

The power of Raspberry Pi 4 in a compact form factor for deeply embedded applications.

Built on the same 64-bit quad-core BCM2711 application processor as Raspberry Pi 4, the Compute Module 4 delivers a step change in performance over its predecessors: faster CPU cores, better multimedia, more interfacing capabilities, and, for the first time, a choice of RAM densities and a wireless connectivity option.

The Raspberry Pi Compute Module 4 IO Board is an invaluable development tool. Exposing every interface from Compute Module 4, the IO Board provides a development platform and reference base-board design for the most powerful Compute Module yet, and is also designed for integration into end products.

  • 1.5GHz quad-core 64-bit ARM Cortex-A72 CPU
  • VideoCore VI graphics, supporting OpenGL ES 3.x
  • 4Kp60 hardware decode of H.265 (HEVC) video
  • 1080p60 hardware decode, and 1080p30 hardware encode of H.264 (AVC) video
  • Dual HDMI interfaces, at resolutions up to 4K
  • Single-lane PCI Express 2.0 interface
  • Dual MIPI DSI display, and dual MIPI CSI-2 camera interfaces
  • 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM
  • Optional 8GB, 16GB or 32GB eMMC Flash storage
  • Optional 2.4GHz and 5GHz IEEE 802.11b/g/n/ac wireless LAN and Bluetooth 5.0
  • Gigabit Ethernet PHY with IEEE 1588 support
  • 28 GPIO pins, with up to 6 × UART, 6 × I2C and 5 × SPI

The Raspberry Pi Compute Module 4 Antenna Kit is certified for use with Raspberry Pi Compute Module 4.

New, more compact form factor

Compute Module 4 introduces a brand new form factor, and a compatibility break with earlier Compute Modules. Where previous modules adopted the JEDEC DDR2 SODIMM mechanical standard, with I/O signals on an edge connector, we now bring I/O signals to two high-density perpendicular connectors (one for power and low-speed interfaces, and one for high-speed interfaces).

This significantly reduces the overall footprint of the module on its carrier board, letting you achieve smaller form factors for your products.

Documents

Compliance

Raspberry Pi Compute Module 4 has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates at raspberrypi.org/compliance.

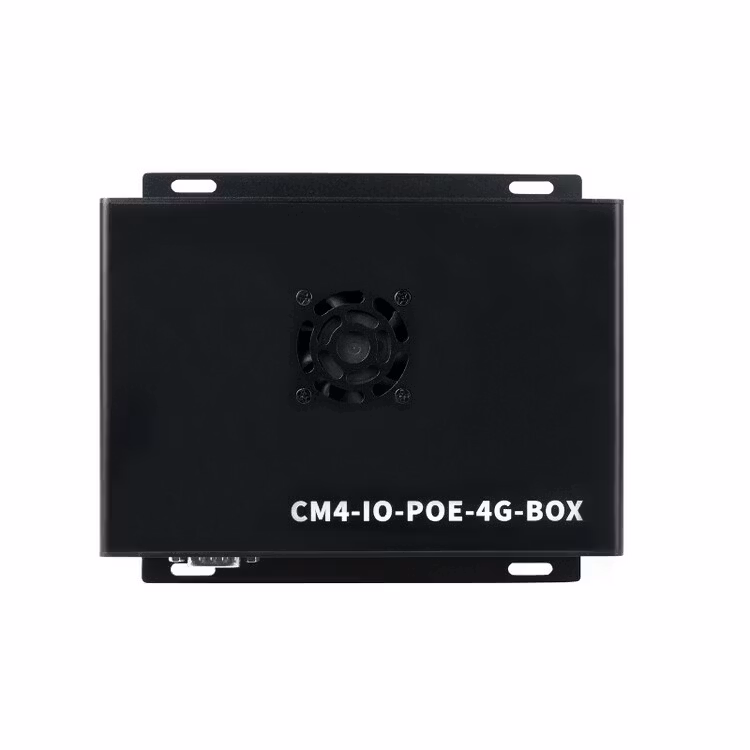

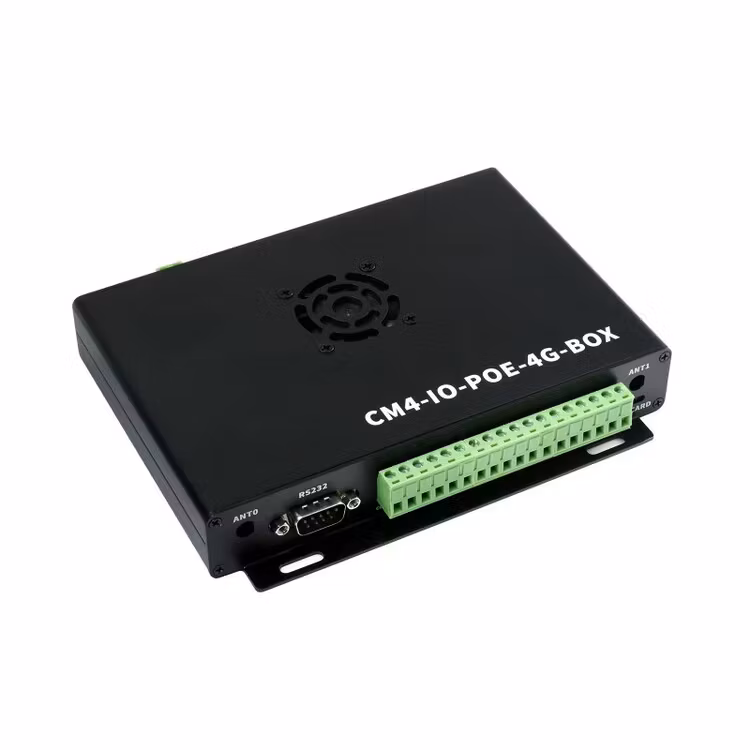

Industrial IoT Mini-Computer Based On Raspberry Pi Compute Module 4  PoE, 5G/4G, Metal Case, With Cooling Fan

Industrial IoT Mini-Computer Based On CM4

Designed For Raspberry Pi Compute Module 4

Waveshare CM4 Industrial IoT Board Inside, Fast And Easy To Build A Mini-Computer

Part List Comparison


RAW BASE BOARD
MINI-COMPUTER KIT
CM4 Industrial IoT Board
√
√
Metal case

√
5000rpm cooling fan

√
12V 2A power adapter

√
Screwdriver and screws

√

Waveshare CM4 Industrial IoT Board Inside

Make It Easy To Build Your Own Raspberry Pi CM4 Mini PC

Base Board Specifications

CM4 SOCKET
suitable for all variants of Compute Module 4
NETWORKING
Gigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A)
M.2 B KEY, supports 5G / 4G module
SIM card slot, supports standard SIM card for 5G/4G/3G/2G communication
CONNECTOR
Isolated RS485, Isolated RS232, PCIe Gen 2 x1, I2C, ADC, GPIO
USB
Dual USB 2.0 Type A
DISPLAY
Dual MIPI DSI display ports (15pin 1.0mm FPC connector)
CAMERA
Dual MIPI CSI-2 camera ports (15pin 1.0mm FPC connector)
VIDEO
Dual HDMI ports, supports 4K 30fps output
RTC
Real-time clock with battery socket and ability to wake Compute Module 4
STORAGE
MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
FAN HEADER
allows speed adjustment and measurement, 5V / 12V input
POWER INPUT
7V~36V wide range
DIMENSIONS
160 × 114mm

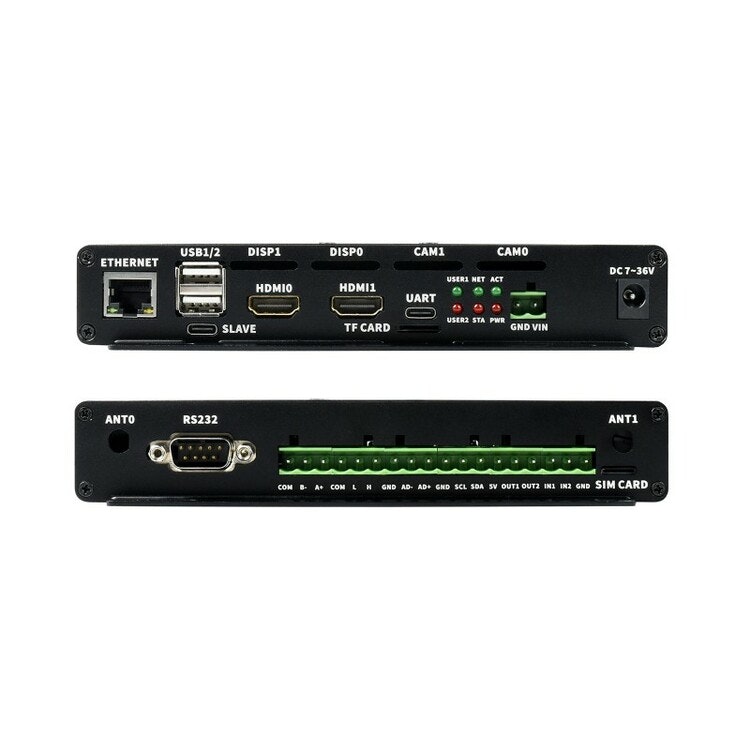

Rich Peripheral Connectors

Onboard Connectors Including M.2/CSI/DSI/HDMI/USB/ETH/PCIe/RS232/RS485

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

Cooling Fan Included

Comes With Cooling Fan, Combined With The Airflow Vent, Better Heat Dissipation

Wall Mount Support

Wall Mount Holes On Two Sides, Handy For Mounting

Application Examples

Binocular Vision, PoE Powered Raspberry Pi Projects, Or Other Industrial Context

for reference only, displays, cameras, and antennas are NOT included.

Outline Dimensions


WIKI: Compute_Module_4_PoE_4G_Board

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Shipping list

Weight: 0.643 kg

  1. Compute Module 4 PoE 4G Board x1
  2. Raspberry Pi Compute Module 4 Wireless / 4GB RAM / 32GB Storage.
  3. Metal case (top and bottom) x1
  4. Fan-4010-PWM-12V x1
  5. Screwdriver x1
  6. Screws pack x1
  7.  12V 2A power adapter x1
