PYNQ-Z2 Dev Board Python Productivity for Zynq

  • 2 999 kr

Skicka mejl till oss info @ hitechchain .se . TUL PYNQ™-Z2 board, based on Xilinx Zynq SoC is designed for the Xilinx University Program to support PYNQ (P

Produkten är tyvärr slut i lager. :(

Artikelnummer: 361
Dela

Skicka mejl till oss info @ hitechchain .se .

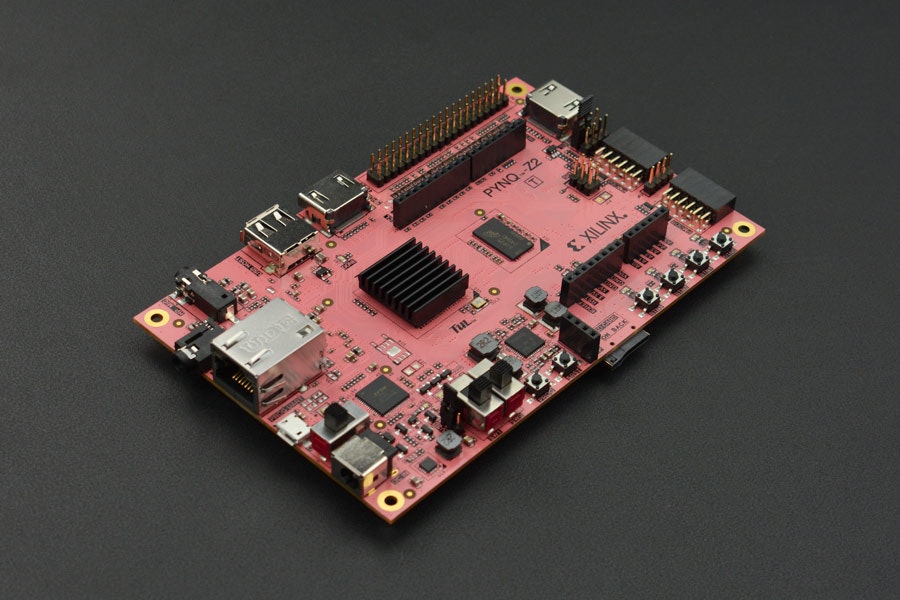

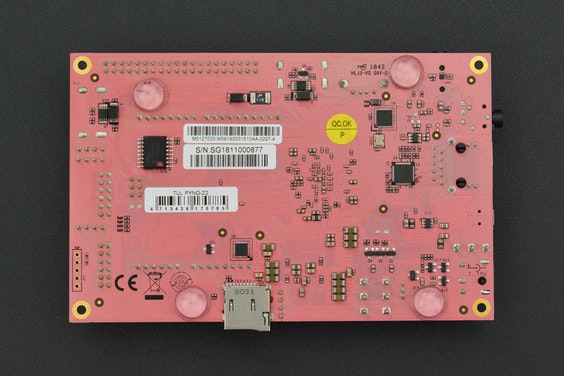

TUL PYNQ™-Z2 board, based on Xilinx Zynq SoC is designed for the Xilinx University Program to support PYNQ (Python Productivity for Zynq) framework and embedded systems development.

PYNQ is an open-source project from Xilinx® that makes it easy to design embedded systems with Xilinx Zynq® Systems on Chips (SoCs).

Using the Python language and libraries, designers can exploit the benefits of programmable logic and microprocessors in Zynq to build more capable and exciting embedded systems.

ZYNQ XC7Z020-1CLG400C

  • 650MHz dual-core Cortex-A9 processor
  • DDR3 memory controller with 8 DMA channels and 4 High-Performance AXI3 Slave ports
  • High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
  • Low-bandwidth peripheral controller: SPI, UART, CAN, I2C
  • Programmable from JTAG, Quad-SPI flash, and MicroSD card
  • Programmable logic equivalent to Artix-7 FPGA
  • 13,300 logic slices, each with four 6-input LUTs and 8 flip-flops
  • 630 KB of fast block RAM
  • 4 clock management tiles, each with a phase locked loop (PLL) and mixed-mode clock manager (MMCM)
  • 220 DSP slices
  • On-chip analog-to-digital converter (XADC)

Memory

  • 512MB DDR3 with 16-bit bus @ 1050Mbps
  • 16MB Quad-SPI Flash with factory programmed 48-bit globally unique EUI-48/64™ compatible identifier
  • MicroSD slot

Power

  • Powered from USB or 7V-15V external power source

USB and Ethernet

  • Gigabit Ethernet PHY
  • Micro USB-JTAG Programming circuitry
  • Micro USB-UART bridge
  • USB 2.0 OTG PHY (supports host only)

Audio and Video

  • HDMI sink port (input)
  • HDMI source port (output)
  • I2S interface with 24bit DAC with 3.5mm TRRS jack
  • Line-in with 3.5mm jack

Switches, Push-buttons, and LEDs

  • 4 push-buttons
  • 2 slide switches
  • 4 LEDs
  • 2 RGB LEDs

Expansion Connectors

  • Two standard Pmod ports
  • 16 Total FPGA I/O (8 shared pins with Raspberry Pi connector)

Arduino Shield connector

  • 24 Total FPGA I/O
  • 6 Single-ended 0-3.3V Analog inputs to XADC

Raspberry Pi connector

  • 28 Total FPGA I/O (8 shared pins with Pmod A port)

ECCN/HTS

ECCN
3A991.a
HSCODE
8543709990
USHSCODE
84715001

Document

• PYNQ-Z2 User Manual (PDF)
• PYNQ-Z2 Boot Image
• PYNQ-Z2 Board File (for Pmod IP support please refere here)
• Master XDC

• Protective Acrylic Case (PDF)
• Zynq Datasheet (PDF)
• Zynq Manual (PDF)
• Schematics (PDF)
