SIM7020E NB-IoT Module For Raspberry Pi Pico for Europe

I lager.

349 kr

Artikelnummer: 985

Ny produkt leverans v15

SIM7020E NB-IoT Module For Raspberry Pi Pico, Suitable For Asia, Europe, Africa, Australia

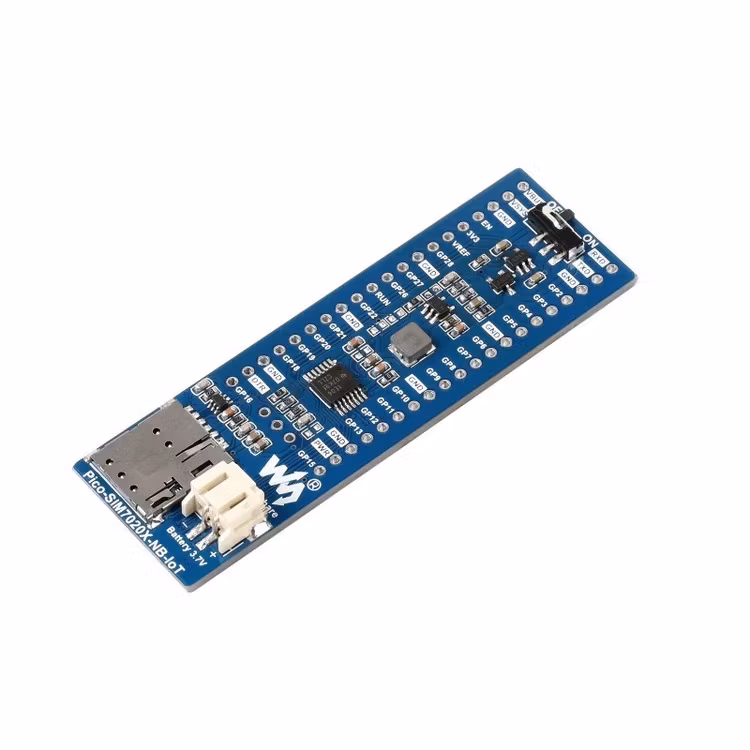

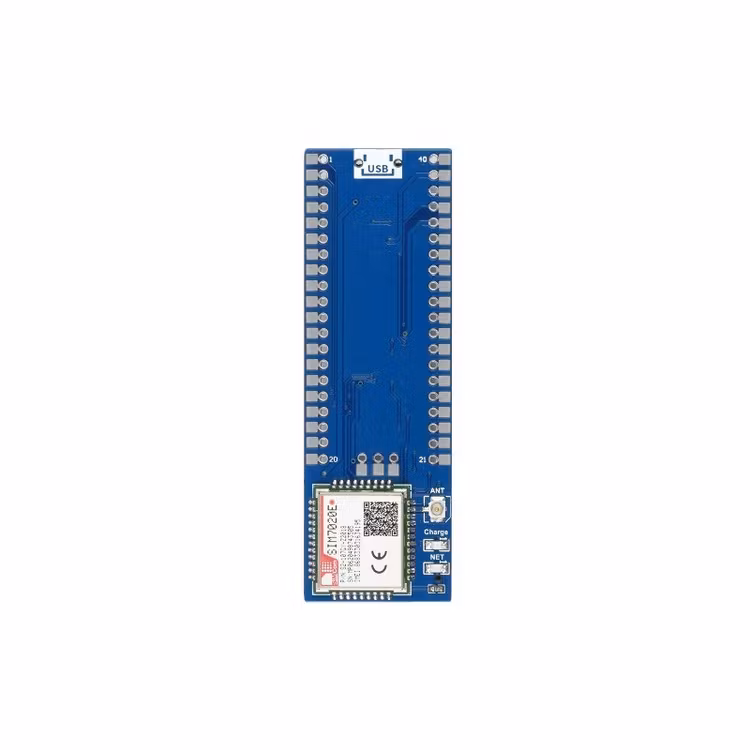

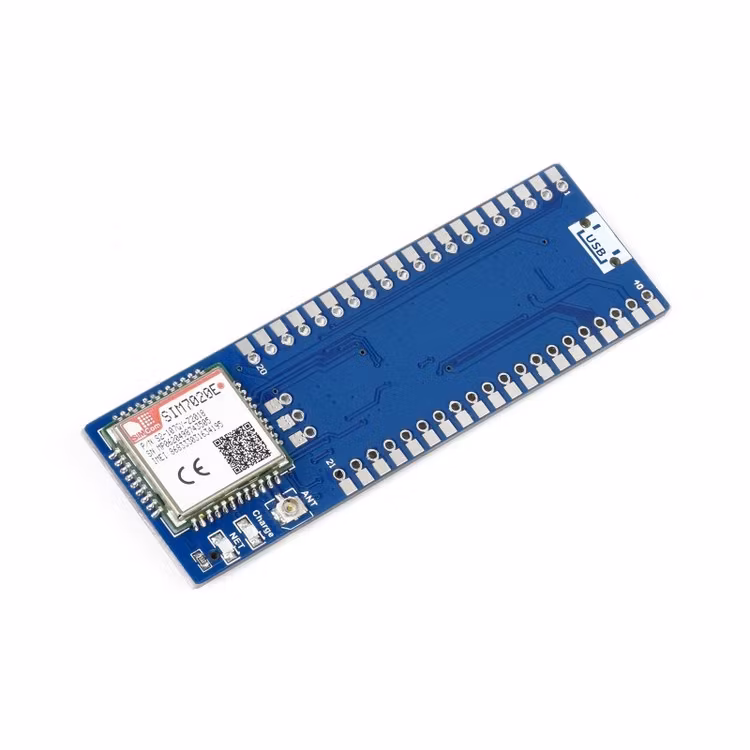

SIM7020E NB-IoT Module For Pico

B1/B3/B5/B8/B20/B28 Frequency Band

Features At A Glance

The Pico-SIM7020E-NB-IoT is an NB-IoT (NarrowBand-Internet of Things) module designed for Raspberry Pi Pico. It supports multiple NB-IoT frequency band, can be controlled via serial AT commands, and supports communication protocols like HTTP/MQTT/LWM2M/COAP, etc. Due to the advantages of low delay, low power, low cost, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, and so on.

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • UART communication, serial AT commands control, multiple communication protocols support, multiple cloud platform support
  • Integrates 3.7V Li-po battery connector and recharge circuit, allows being powered from external rechargeable Li-po battery, or recharging it in turn
  • 2x LED indicators, for monitoring the module operating status
  • Onboard Nano SIM card slot for NB-IoT specific card
  • Comes with development resources and manual (MicroPython examples)

Specifications

OPERATING
COMMUNICATION
Frequency bandLTE-FDD: B1/B3/B5/B8/B20/B28
Data rate26.15kbps (DL) / 62.5kbps (UL)
Communication interfaceUART
Baudrate300bps~921600bps (115200bps by default)
Communication ProtocolTCP/UDP/HTTP/HTTPS/MQTT/LWM2M/COAP/TLS/DTLS/DNS/NTP
Applicable regionAsia, Europe, Africa, Australia
Power supplyExternal Li-po battery OR Raspberry Pi Pico USB port
Battery interface3.7V ~ 4.2V
Logical level3.3V
Module standalone currentIdle mode: 5.6mA
Sleep mode: 0.4mA
PSM mode: 3.4uA
Dimensions73.5 × 24.00mm

Raspberry Pi Pico Header Compatibility

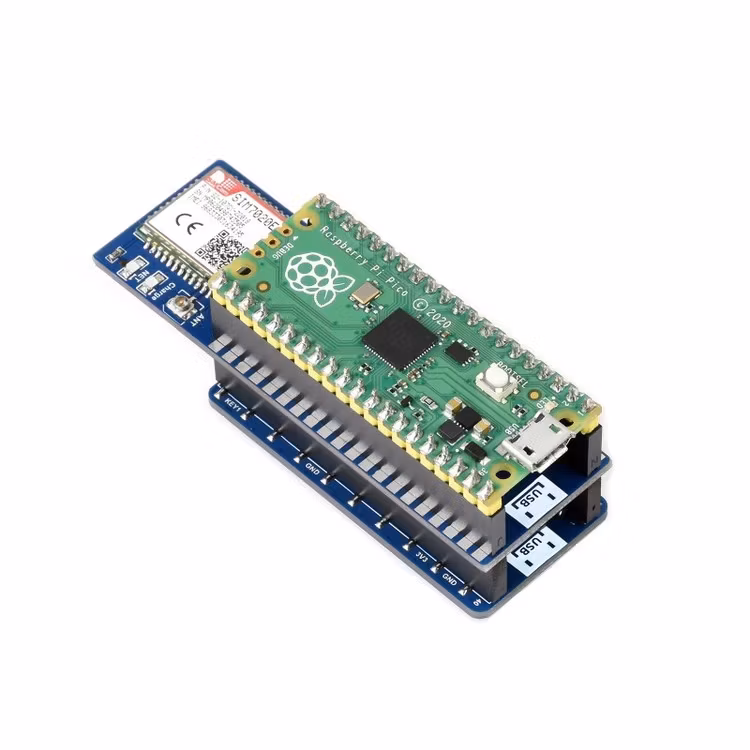

The Pico Can Be SMD-Mounted (Left), Or Attached Via Female Header (Right)

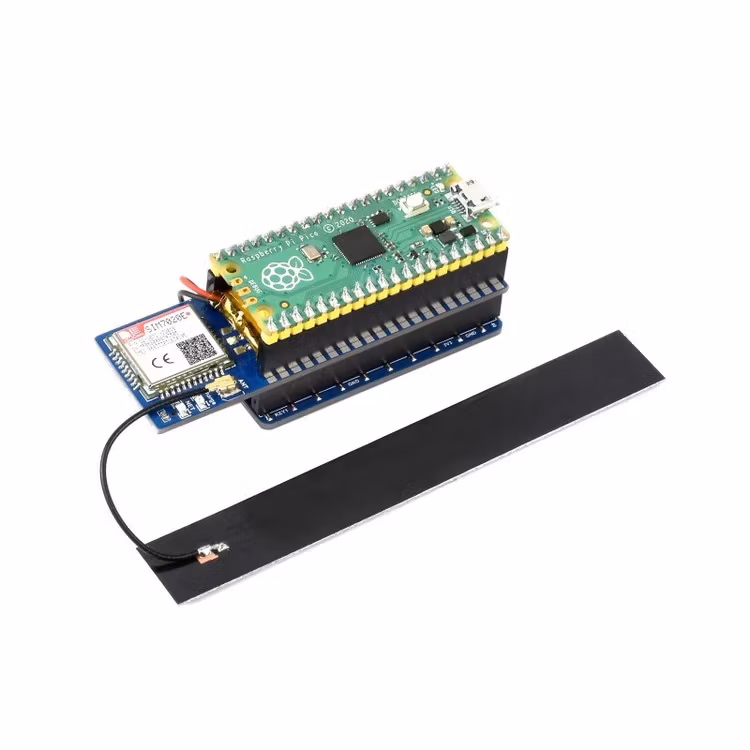

Connecting With Other Expansion Module And Antenna

Raspberry Pi Pico is NOT included.
The pin headers are NOT soldered by default, contact us if you prefer to have it soldered.

Cloud Communication

Supports Communication Protocols Including: TCP/UDP/HTTP/HTTPS/MQTT/LWM2M/COAP/TLS

Application Example

Via NB-IoT network, the Pico is able to fetch weather information by HTTP GET,
and send its temperature to server via HTTP POST, then display it on webpage in real time

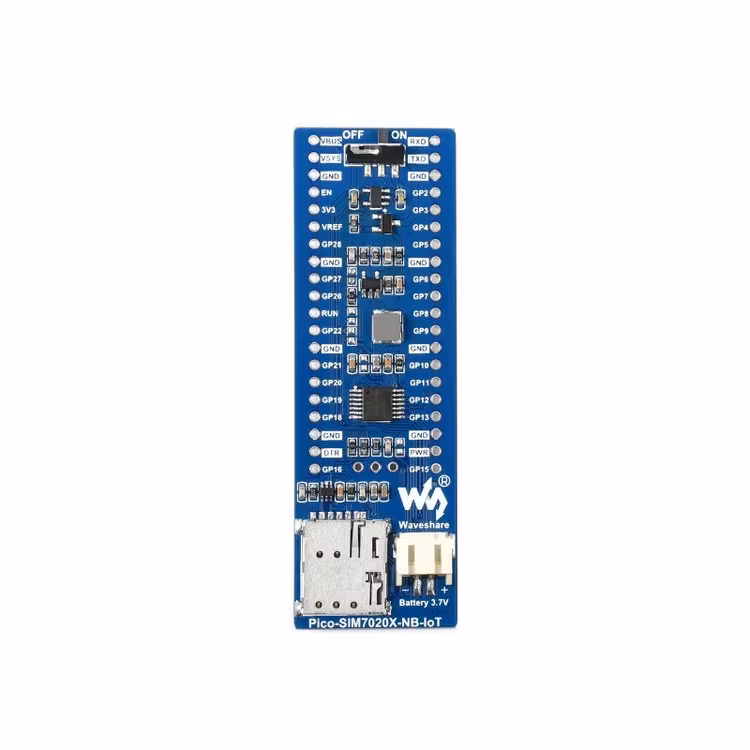

Pinout Definition

Outline Dimensions

Wiki: Pico-SIM7020E-NB-IoT

 Shipping list

Weight: 0.006 kg

  1. Pico-SIM7020E-NB-IoT x1
  2. Antenna x1
  3. 20PIN female pin header x2
  4. 40PIN male pin header × 1
  5. 3.7V rechargeable Li-po battery x1
