M5Stack Official ESP32 Camera Development Board OV2640 Camera

  • 249 kr

Pre-order delivery at the beginning of July M5Stack Official ESP32 Camera Development Board OV2640 Camera Type-C Grove Port 3D Wifi Antenna Mini Camera Boa

Produkten är tyvärr slut i lager. :(

Artikelnummer: 385
Dela
  • Information

Pre-order delivery at the beginning of July

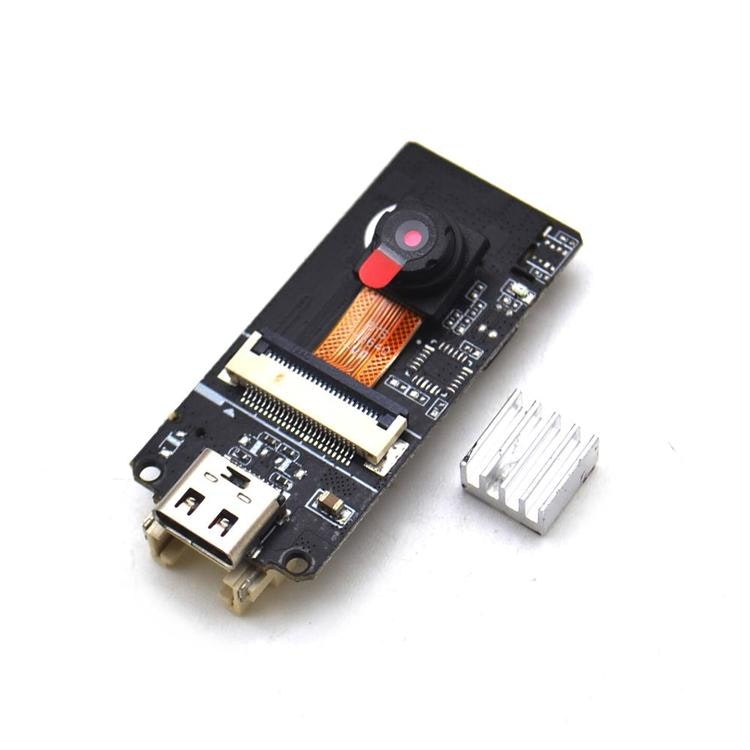

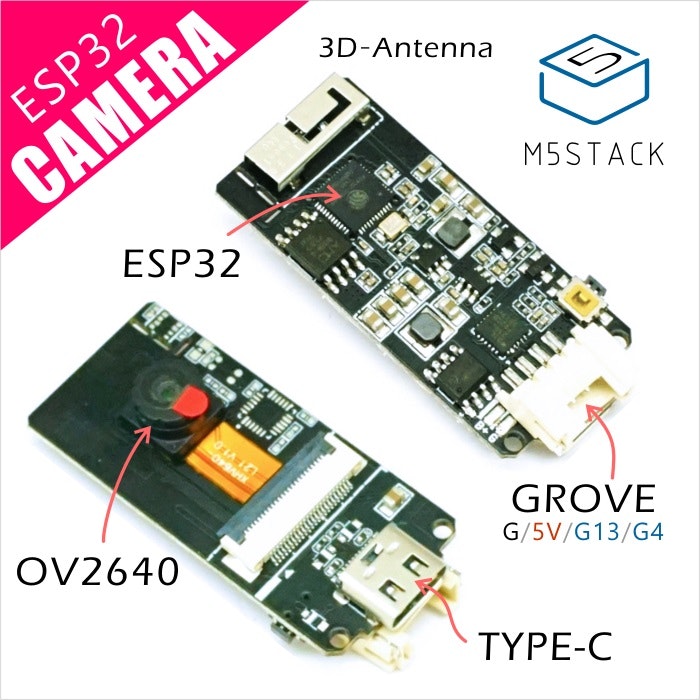

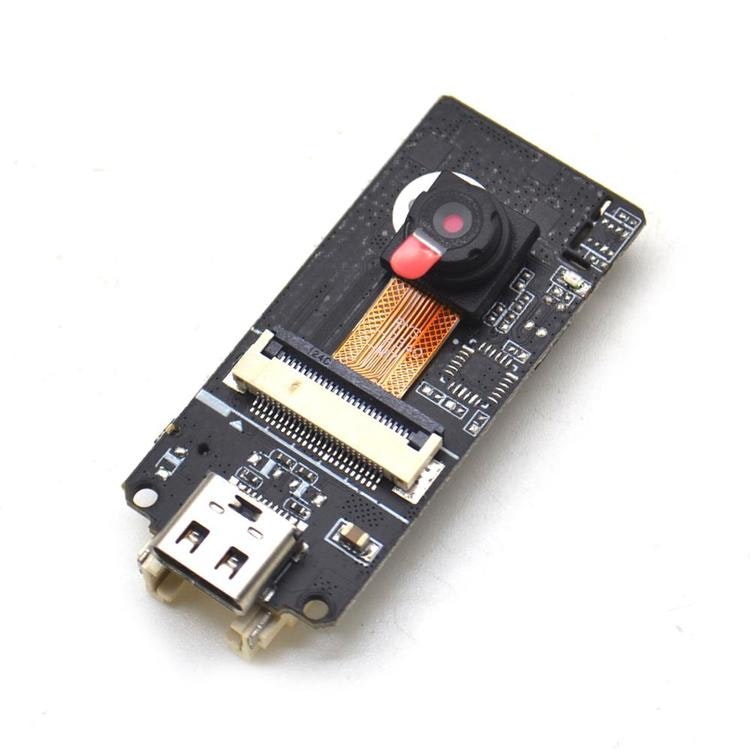

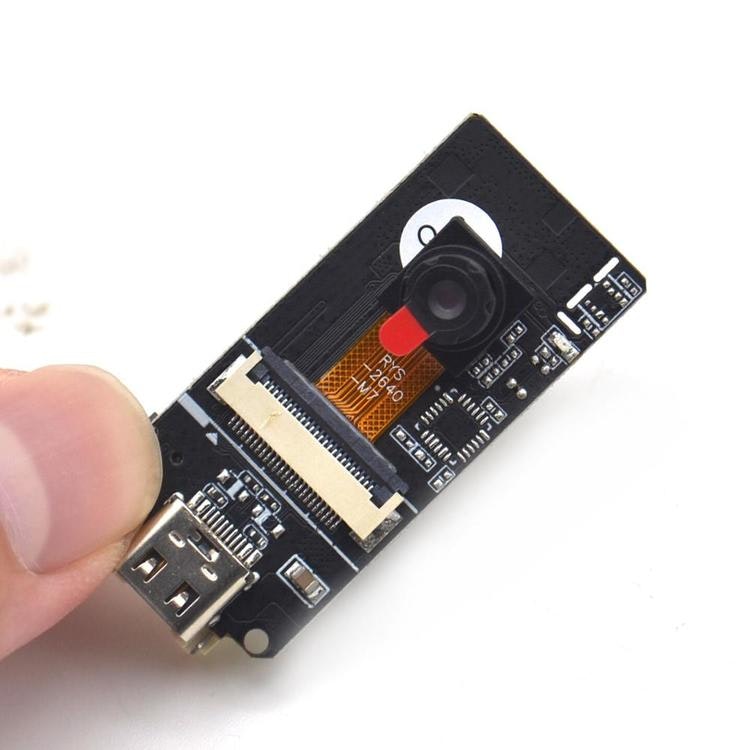

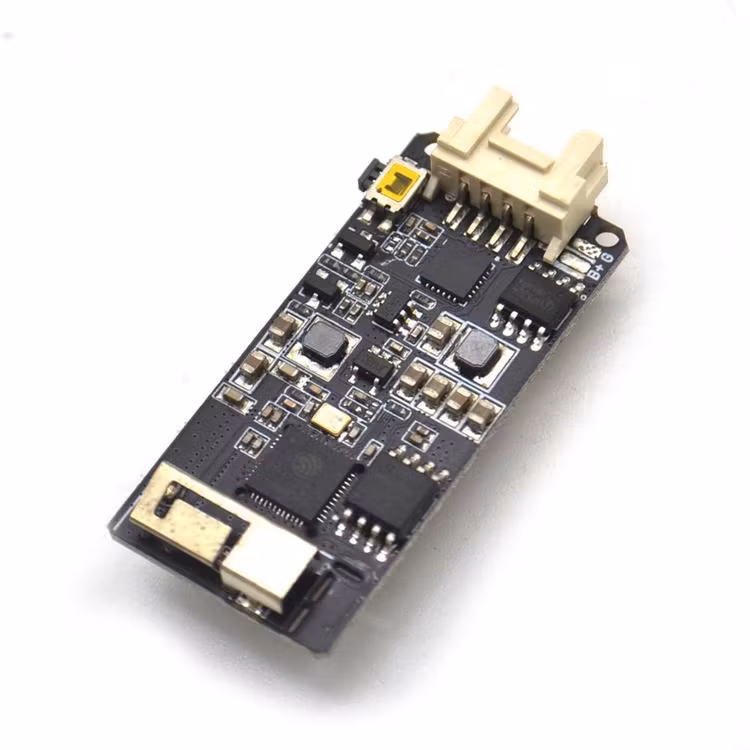

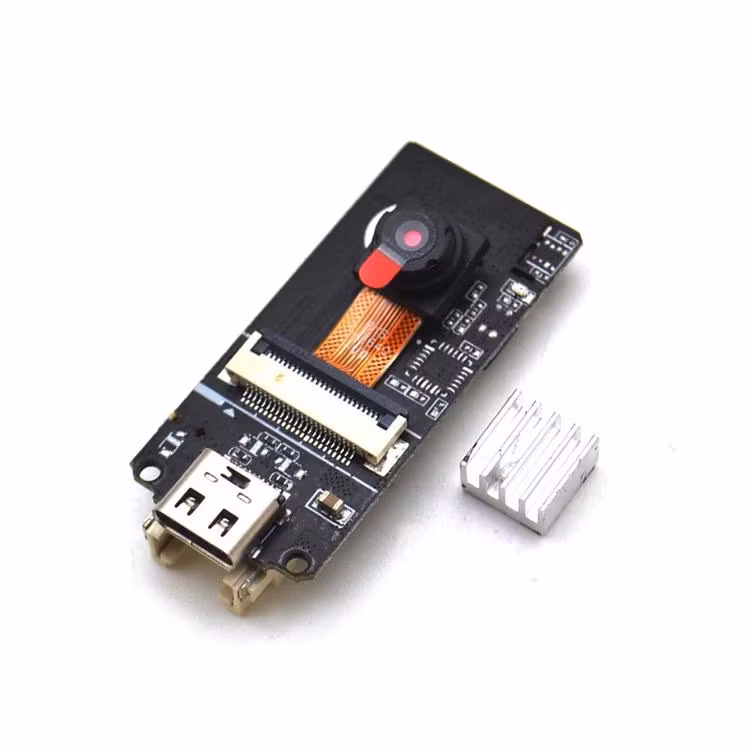

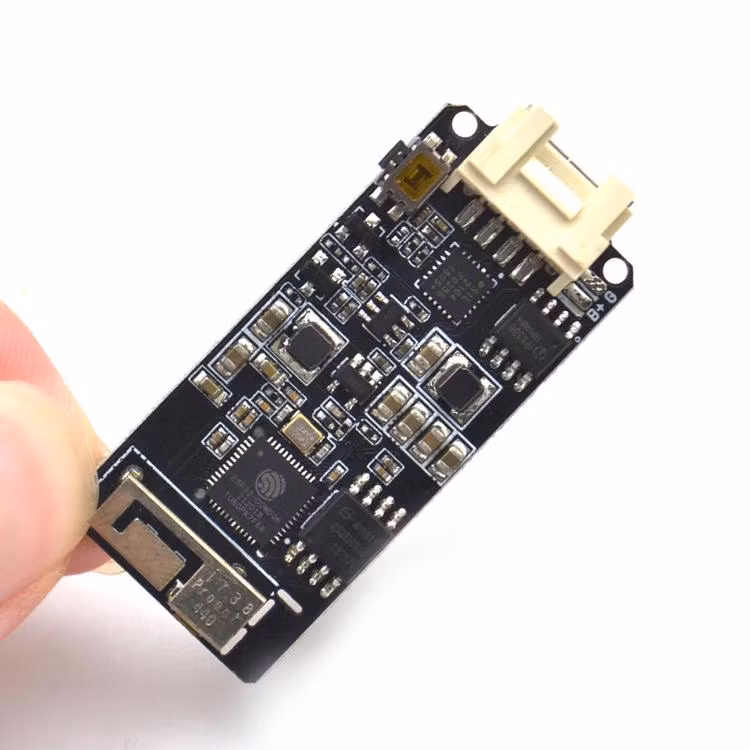

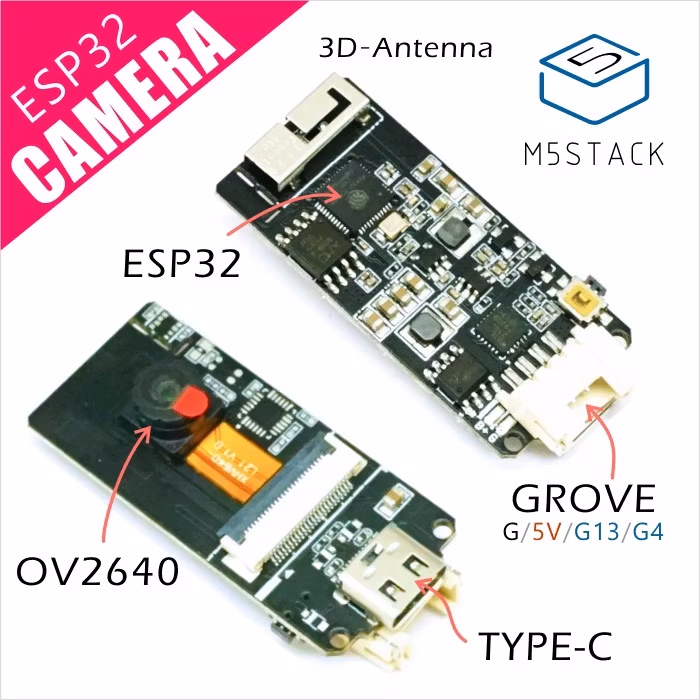

M5Stack Official ESP32 Camera Development Board OV2640 Camera Type-C Grove Port 3D Wifi Antenna Mini Camera Board

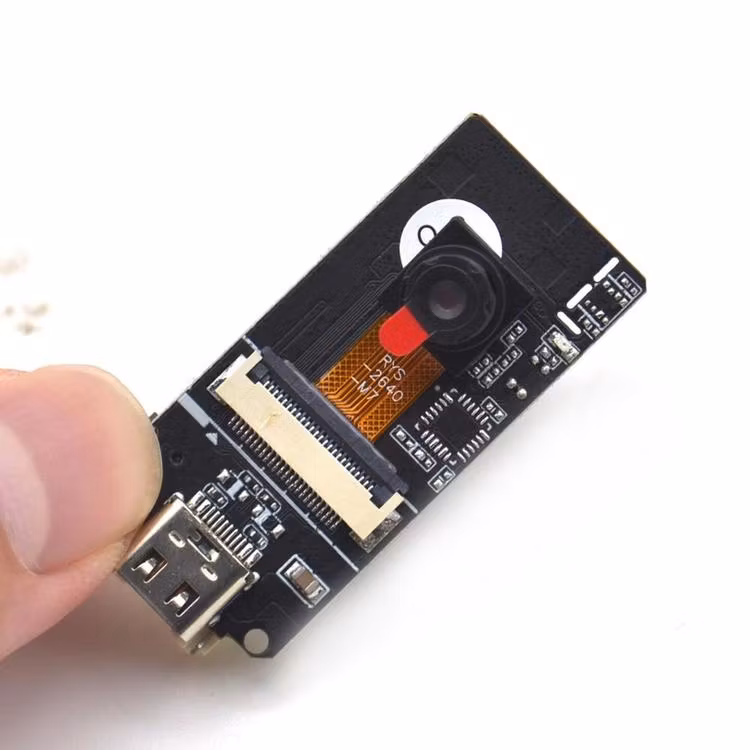

The ESP32CAM is a tiny module based on ESP32 chip and OV2640. You can even program the ESP32CAM through the ESP-IDF by installing the ESP32 Core.

The ESP32CAM equips the ESP32 with everything necessary to program, run and develop on the wonder chip. It also features a LiPo charger (IP5306), so your ESP32CAM project can be battery-powered and truly wireless. Additionally, the board reserved the MPU6050, BME280 and an analogue MIC.

FEATURES

  • ESP32 specifications
  • Dual-core Tensilica LX6 microprocessor
  • Up to 240MHz clock frequency
  • 520kB internal SRAM
  • 4MB Flash memory
  • Integrated 802.11 BGN WiFi transceiver
  • Integrated dual-mode Bluetooth (classic and BLE)
  • Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
  • CP2104 USB TTL
  • OV2640 sensor
  • Output Formats(8-bit):
  • YUV(422/420)/YCbCr422
  • RGB565/555
  • 8-bit compressed data
  • 8-/10-bit Raw RGB data
  • Maximum Image Transfer Rate
  • UXGA/SXGA: 15fps
  • SVGA: 30fps
  • CIF: 60fps
  • Scan Mode: Progressive
  • Camera specifications
  • CCD size: 1/4inch
  • Field of View: 78 degree
  • Maximum Pixel: 200W
  • Sensor best resolution: 1600 * 1200
  • Dimension: 25mm x 24mm
  • Weight: 5g
