SIM7600G-H 4G HAT (B) for Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band

  • 1 099 kr

SIM7600G-H 4G HAT (B) For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band4G HAT FOR RASPBERRY PIEnabling LTE Cat-4 4G / 3G / 2G

I lager.
Lagersaldo: 2
Artikelnummer: 19485
Dela
  • Information

SIM7600G-H 4G HAT (B) For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band

4G HAT FOR RASPBERRY PI

Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning

Based on SIM7600G-H, Global Band



Features At A Glance

  • Connected via pogo pin or MicroUSB connector
    • Dedicated pogo pin for Raspberry Pi Zero/Zero W
    • MicroUSB connector for other Raspberry Pi boards or PC
  • Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support
  • USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access
  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, LBS base station positioning
  • SIM card slot, supports 1.8V/3V SIM card
  • Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the operating status
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Comes with development resources and manual (examples for Raspberry Pi)

Specifications

OTHER
SMS AND AUDIO
GNSS
FREQUENCY BAND
LTE Cat-4LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B34/B38/B39/B40/B41
3GUMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2GGSM/GPRS/EDGE: 850/900/1800/1900 MHz
Satellite systemsGPS/Beidou/GLONASS
Receiver type16-channel
C/A Code
Sensitivity-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air)Cold starts: <35s
Hot starts: <1s
SMSSupported types: MT, MO, CB, Text, PDU
Audio featureSupports echo cancellation
Supports noise reduction
Power supply5V
Operating temperature-30°C ~ 80°C
Storage temperature-45°C ~ 90°C
Dimensions65.00 × 31.00mm

Suitable For Raspberry Pi / PC

Dedicated Pogo Pin For Connecting With Raspberry Pi Zero/Zero W Without Extra USB Cable
General Purpose MicroUSB Connector For Other Raspberry Pi Boards Or PC

Global Band 4G / 3G / 2G Support

Up To 50Mbps Uplink And 150Mbps Downlink For 4G Network *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

USB HUB Feature

Onboard USB HUB Chip With USB2.0/1.1 Compliant,
Providing 2x USB-A Connector And 1x USB Solder Pad

GNSS Positioning

Supports GPS, BeiDou, Glonass, LBS Base Station Positioning

Telephoto Call & SMS Support

Making Telephoto Call Or Sending SMS By AT Commands, With Onboard Audio Jack

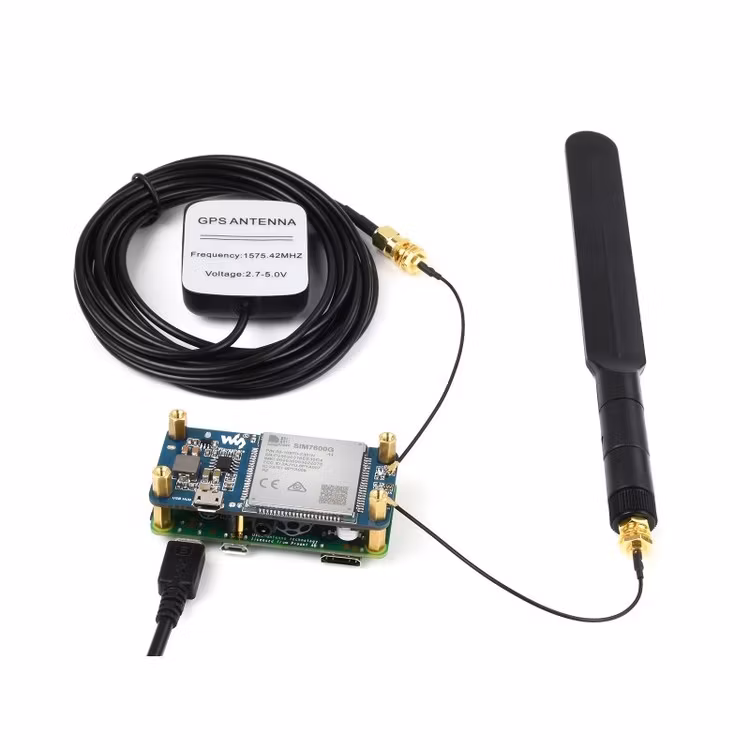

Application Example

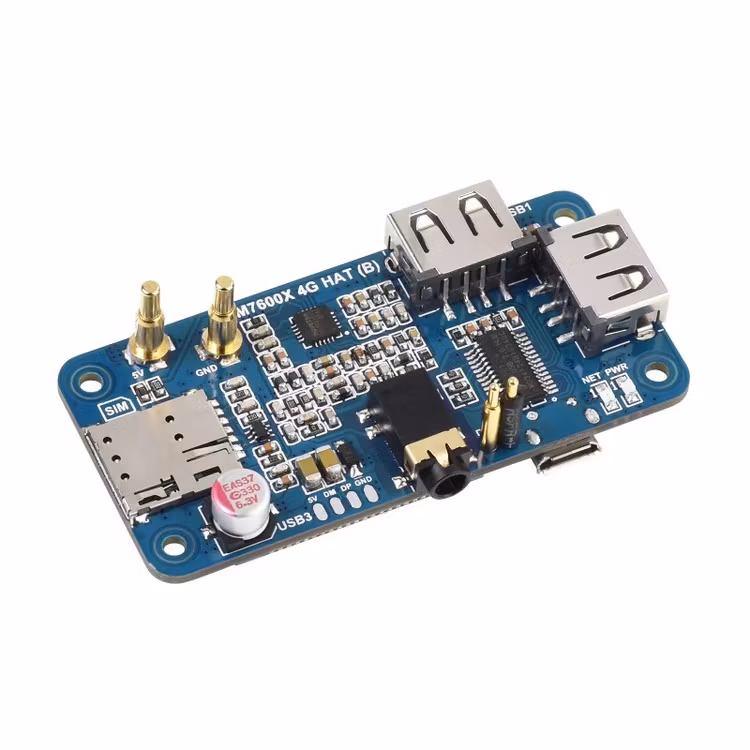

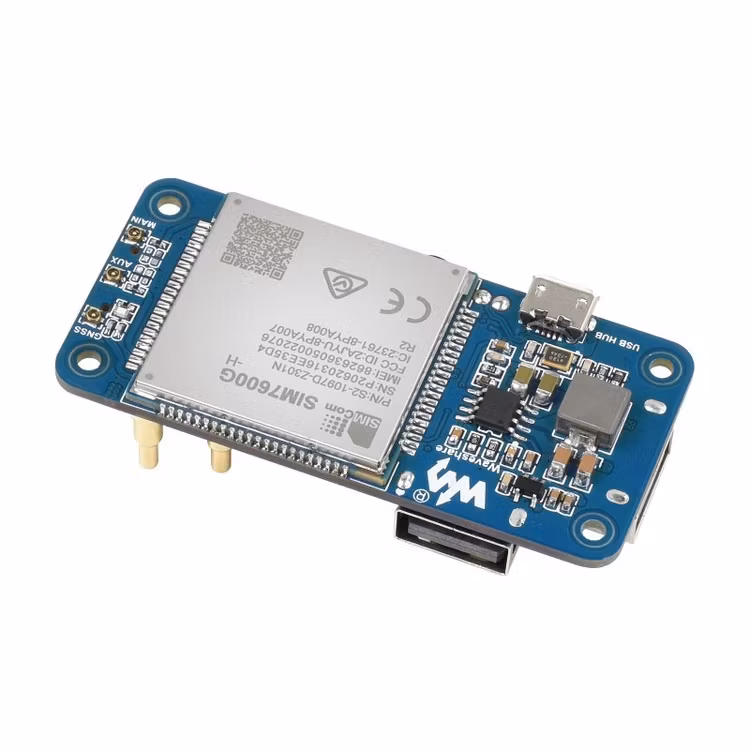

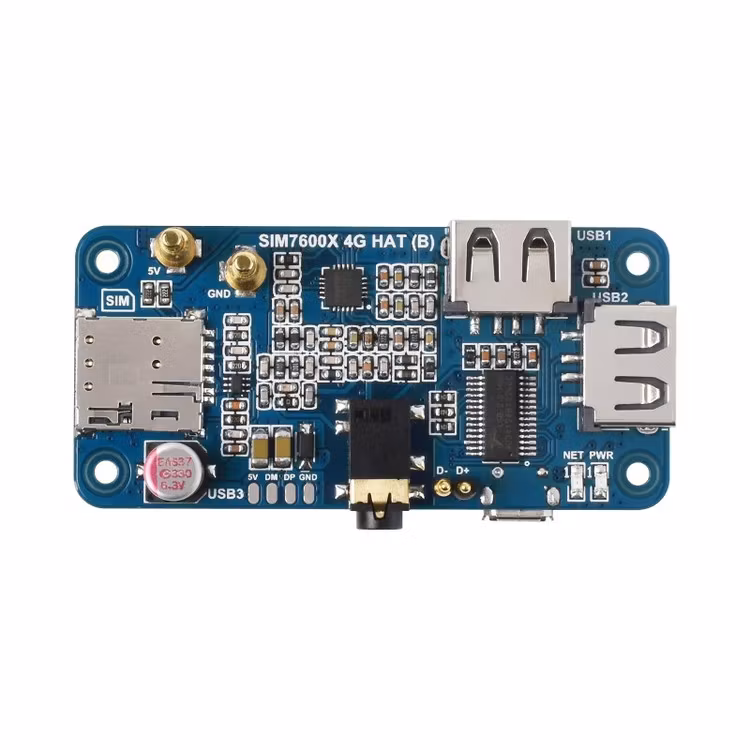

What's On Board

  1. SIM7600G-H
  2. FE1.1S USB HUB chip
  3. NAU8810 audio decoder
  4. MP1482 power chip
  5. RT9193-33 voltage translator
  6. USB HUB input
    D+/D- pogo pin: for Raspberry Pi Zero/Zero W
    MicroUSB connector: for other Raspberry Pi boards or PC
  7. Pogo pin power supply
    5V: connects to 5V pin of Zero/Zero W, up to 2A current
    GND: connects to GND pin of Zero/Zero W



  1. USB extended ports
    USB1~USB2: USB-A connectors
    USB3: solder pad
  2. SIM card slot
    supports 1.8V/3V SIM card
  3. 3.5mm earphone/mic jack
  4. MAIN antenna connector
  5. AUX auxiliary antenna connector
  6. GNSS antenna connector
  7. Power indicator
  8. Network status indicator

Outline Dimensions


WIKI: SIM7600G-H_4G_HAT_(B)

Shipping list

Weight: 0.162 kg

  1. SIM7600G-H 4G HAT (B) x1
  2. LTE Antenna x1
  3. GPS Antenna x1
  4. USB-A to micro-B cable x1
  5. Screws pack x1
